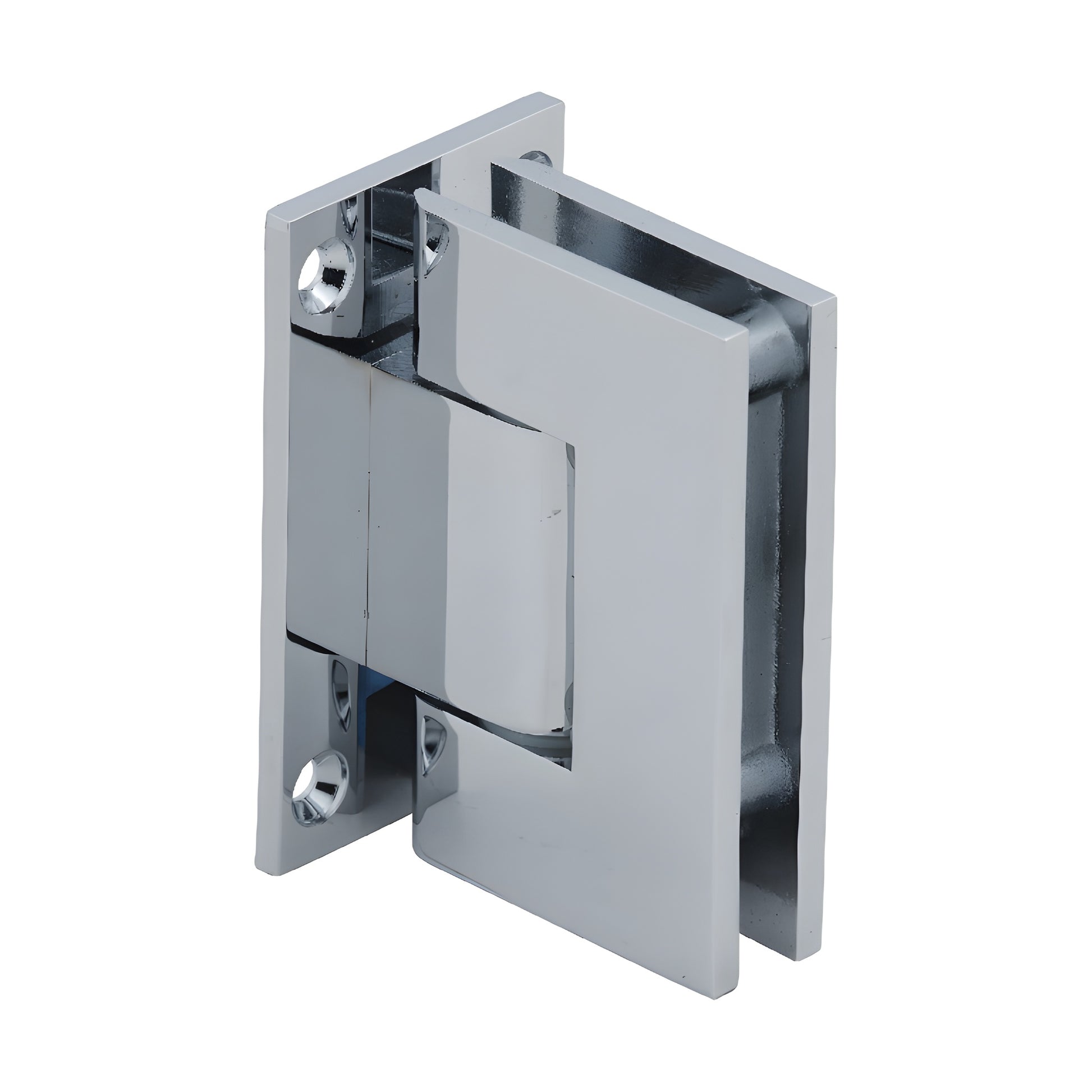

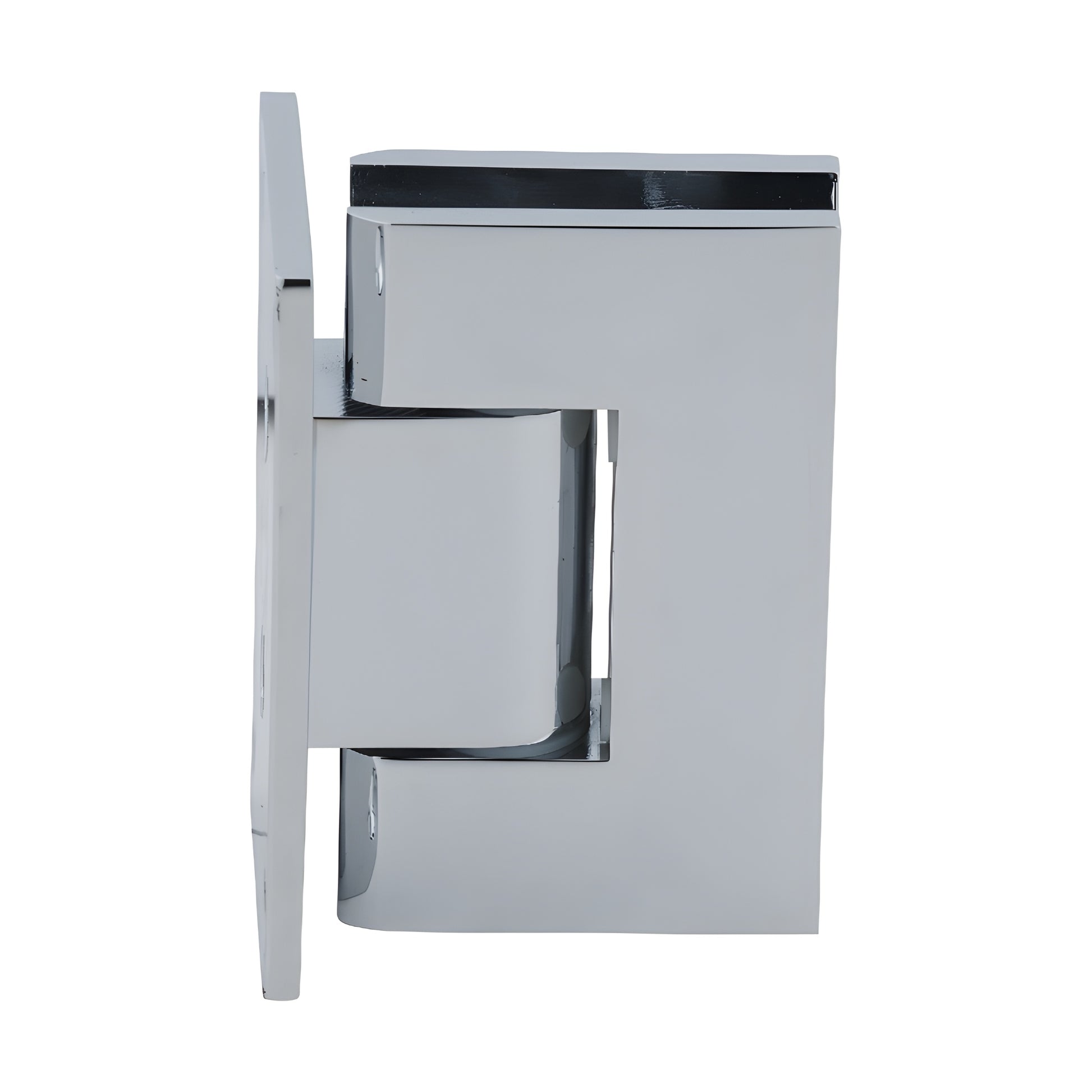

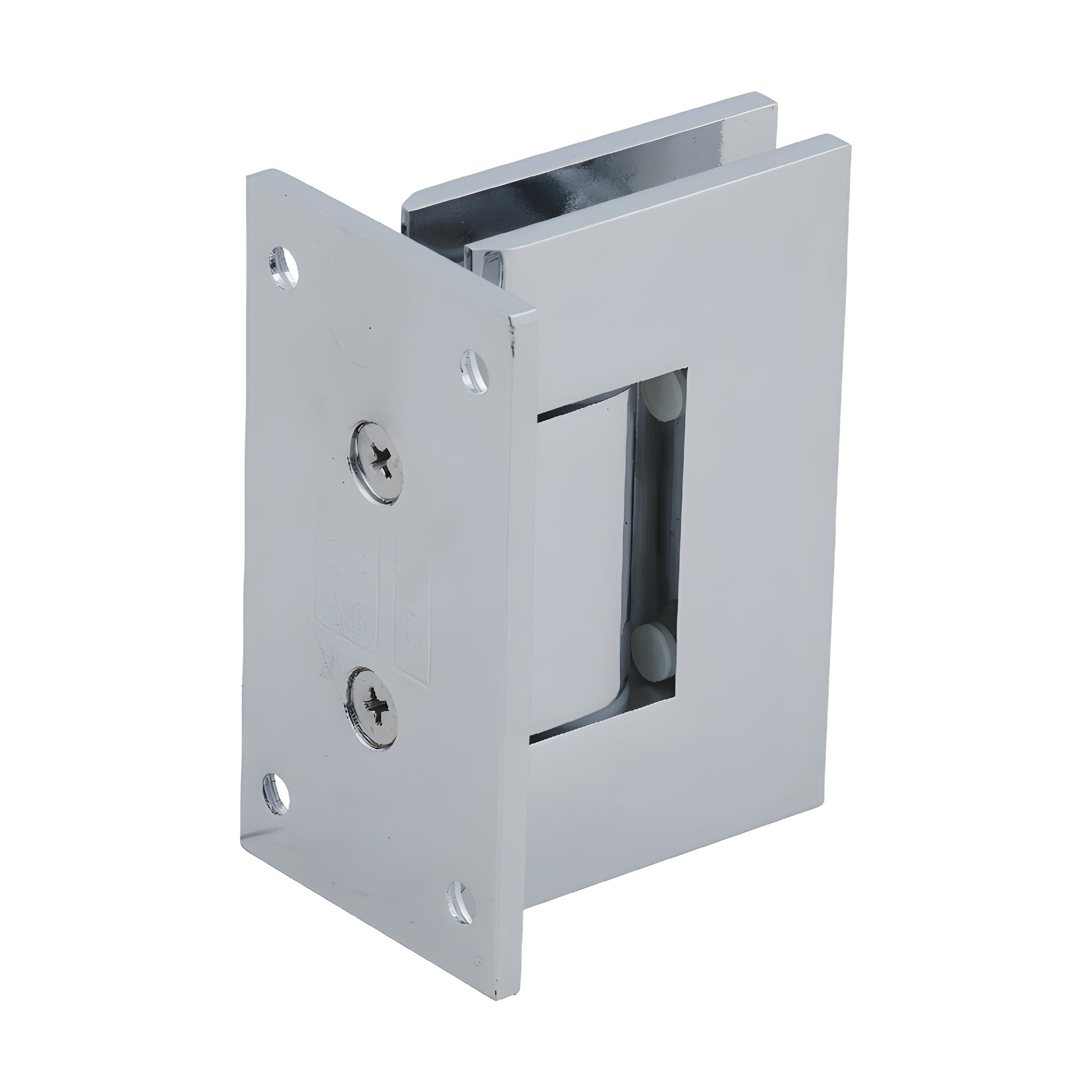

CRL Geneva 337 Polished Chrome Adjustable Shower Door Wall Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable wall mount full back plate
• For use with monolithic tempered glass

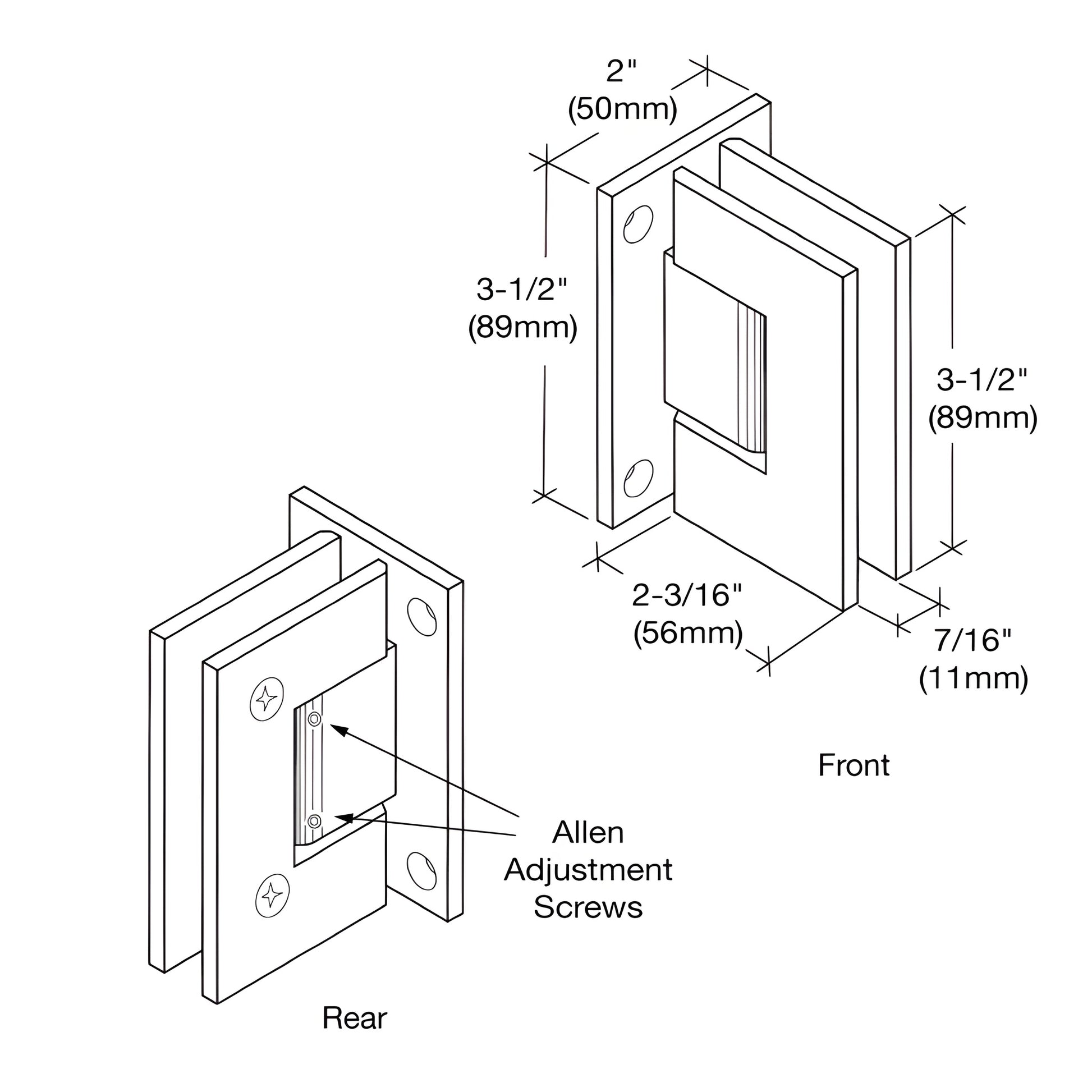

CRL Adjustable Geneva Series enhances the popular Geneva hinge with post‑installation angle adjustment up to 90°. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position and retighten — the hinge self‑centers when within 15° of closed. Doors can swing 90° inward and 90° outward (adjusting from factory set position reduces swing in that direction). For outward‑opening doors on a clear door jamb, adjust the hinge to close 5° inside the shower to seat snugly against the jamb.

Performance (8–12 mm / 5/16"–1/2" tempered glass):

Using two hinges: holds up to 80 lbs. (36 kg); maximum door width 28" (711 mm).

Using three hinges: holds up to 120 lbs. (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self‑centering within 15° of closed position
Cut‑Out Required Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request; contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut‑out dimensions may not match other brands.
