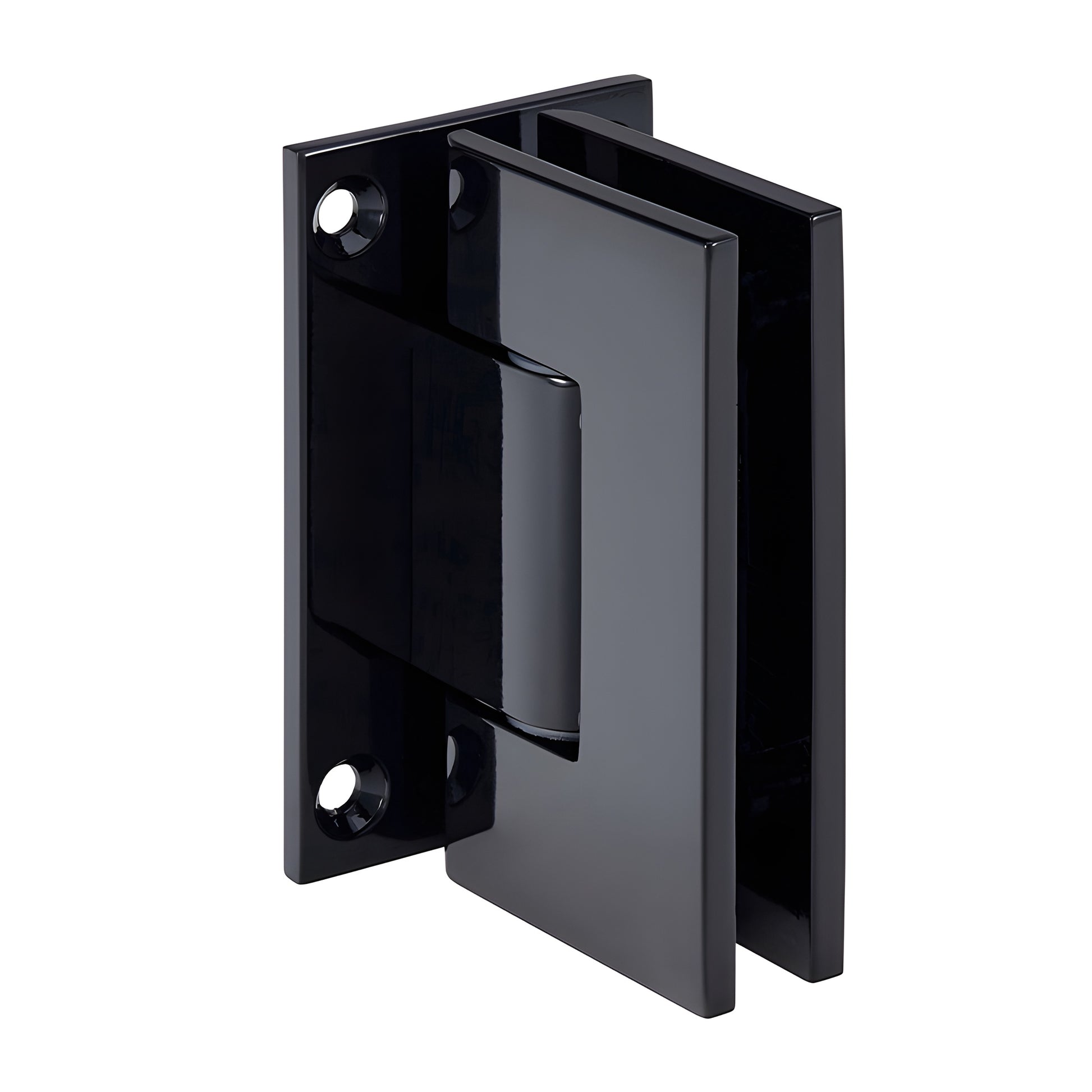

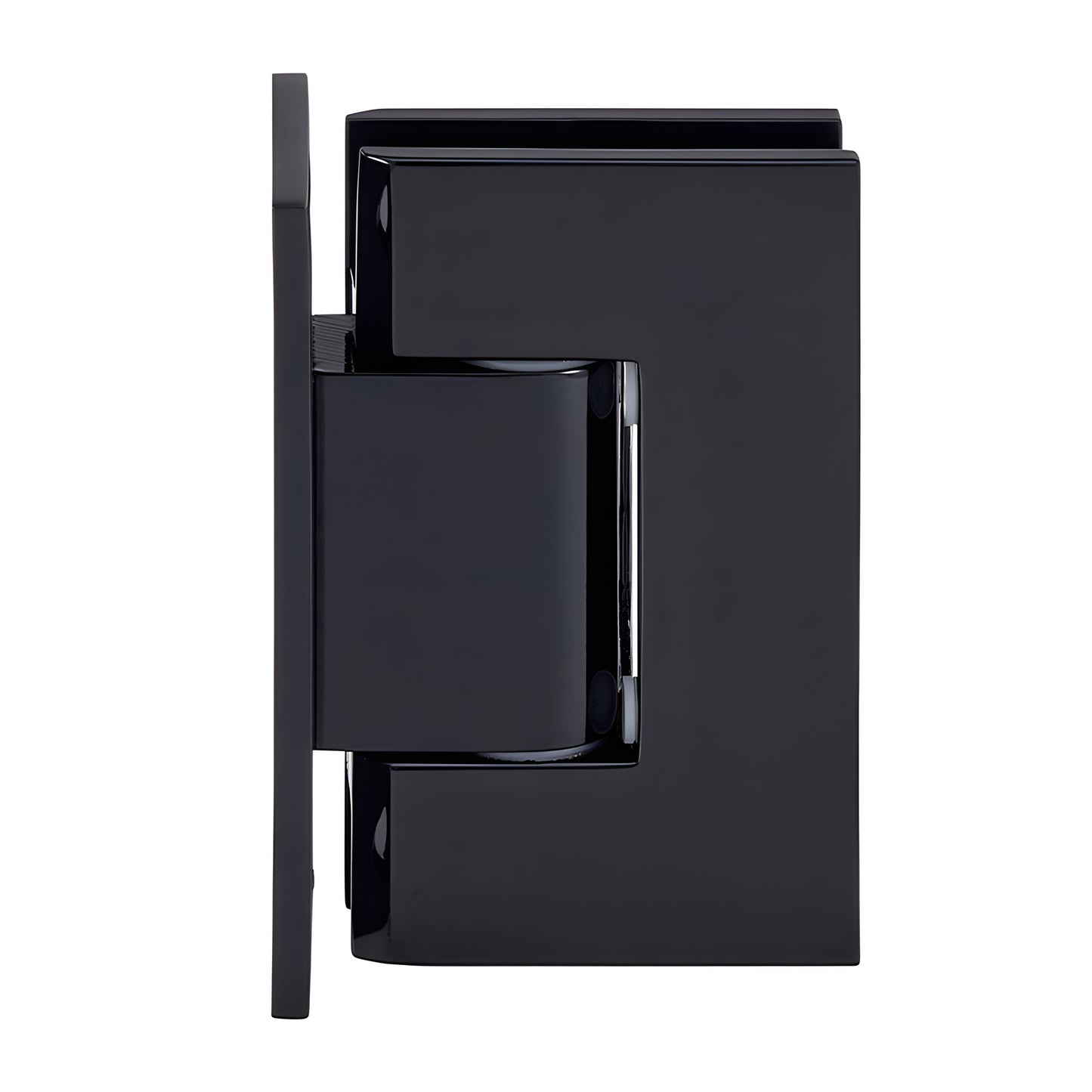

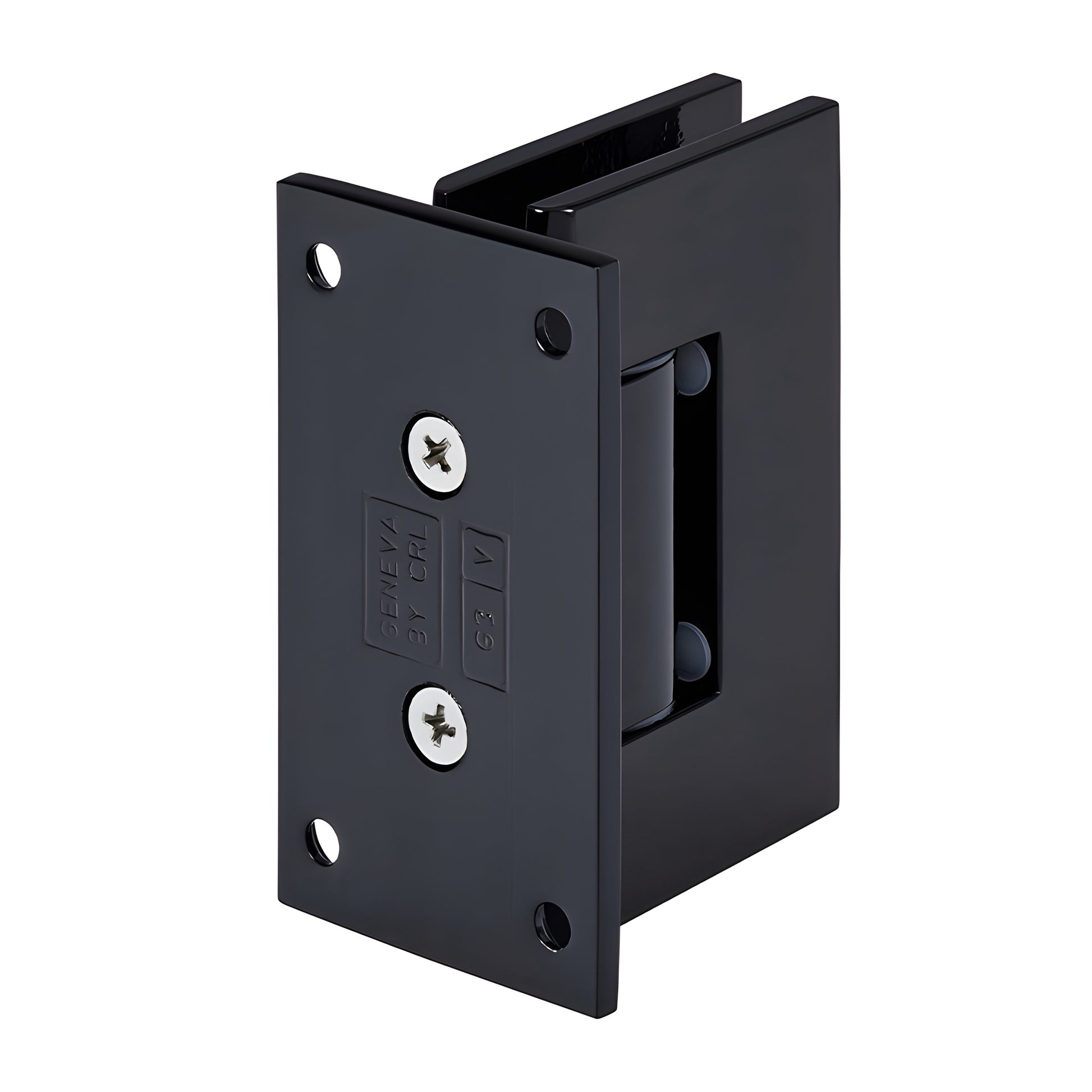

CRL Oil Rubbed Bronze Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge

CRL Oil Rubbed Bronze Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge

$120.84 CAD
$120.84 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GEN3370RB
Shipping Weight: 1.6 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set NoYes
BackPlate Full
EdgeProfile Square
Finish/ColorOil Rubbed Bronze
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)

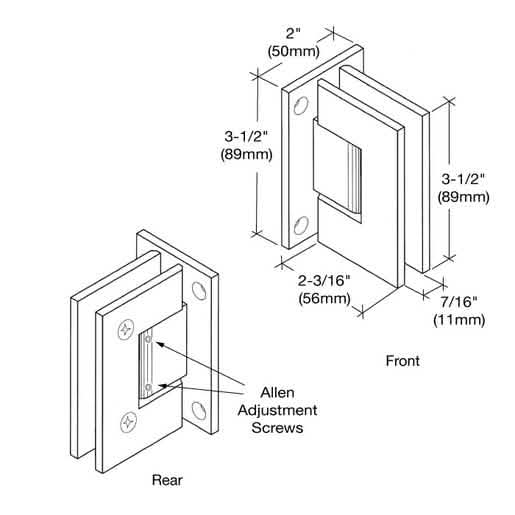

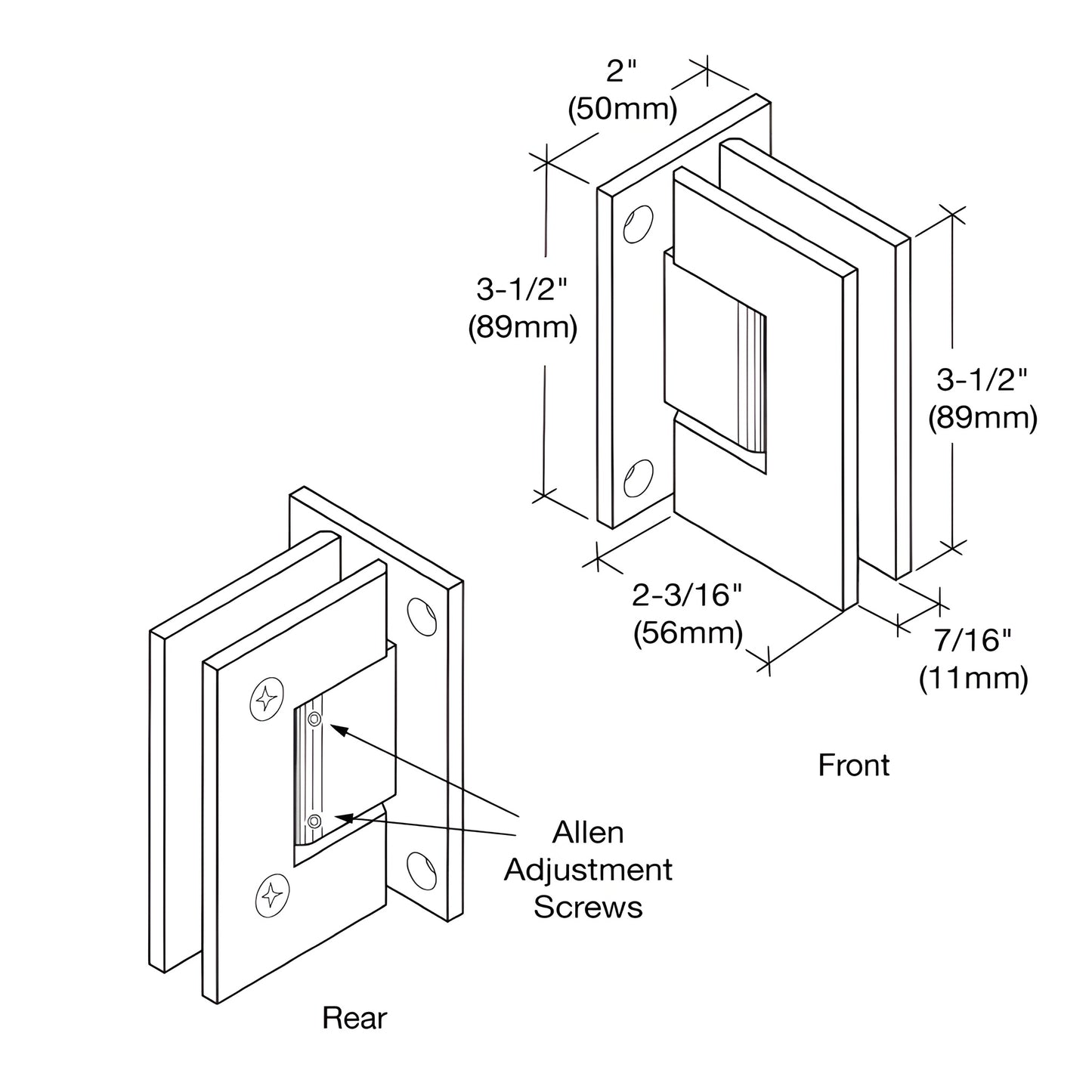

Height 3-1/2 in.(89 mm)
MaterialBrass
Maximum Door Weight - 2 Hinges 80 lbs.(36.3 kg)
Maximum Door Weight - 3 Hinges 120 lbs.(54.4 kg)
Maximum Door Width -2 Hinges 28
Maximum Door Width -3 Hinges 32
MountingType Wall Mount
Self-Centering YesGeneva
Width 2-3/16 in.(56 mm)

Overview

The CRL Adjustable Geneva Series elevates the popular Geneva Hinge by offering flexibility to adjust angles up to 90 degrees without removing the door.
Once installed, users can easily modify the angle by loosening and tightening Allen set screws, ensuring the door self-centers to the desired position.
This hinge supports glass doors 5/16" to 1/2" thick and can hold up to 80 lbs with two hinges or 120 lbs with three hinges, accommodating door widths up to 32".
Available in various finishes and backed by a three-year warranty, the hinge features solid brass construction and a full back plate, designed for residential or hotel shower use.
Custom finishes are available upon request, and the CRL Technical Sales Shower Door Department is available for any inquiries or special requests.
