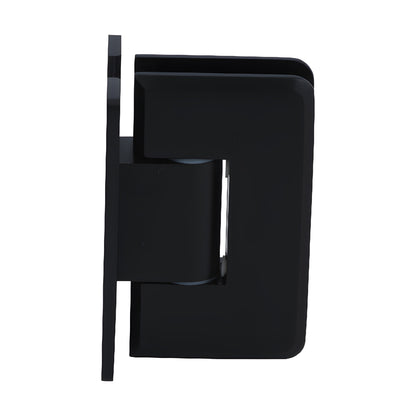

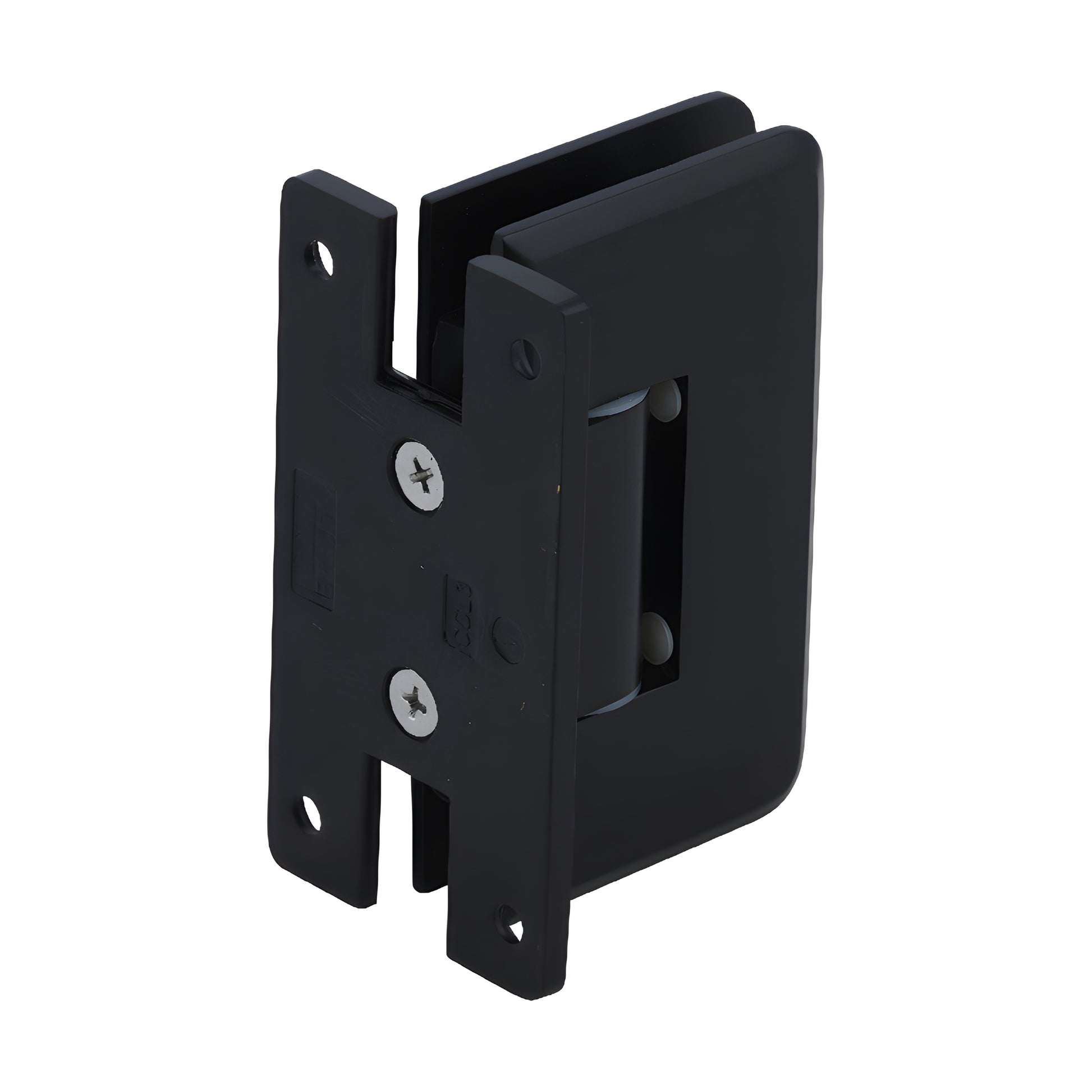

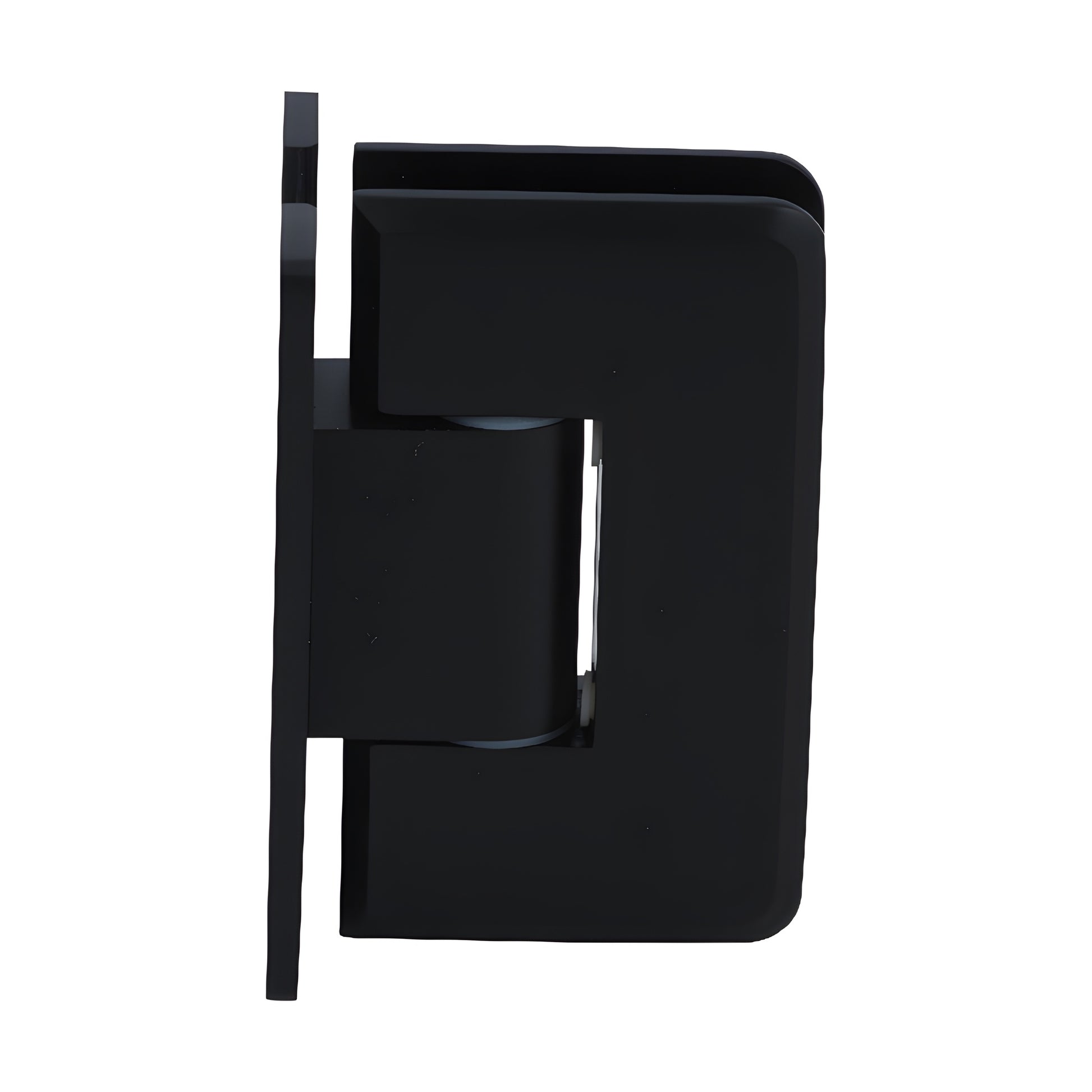

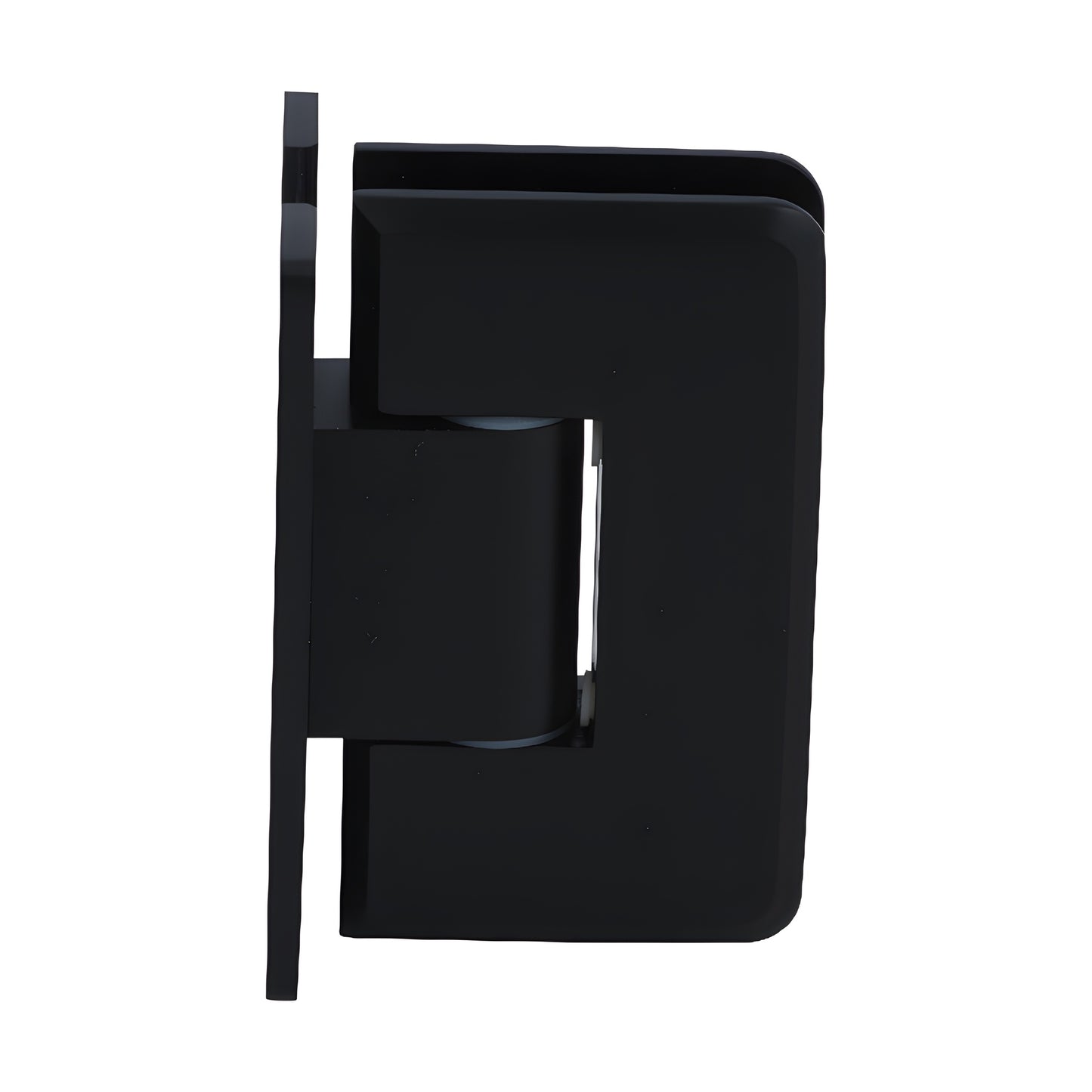

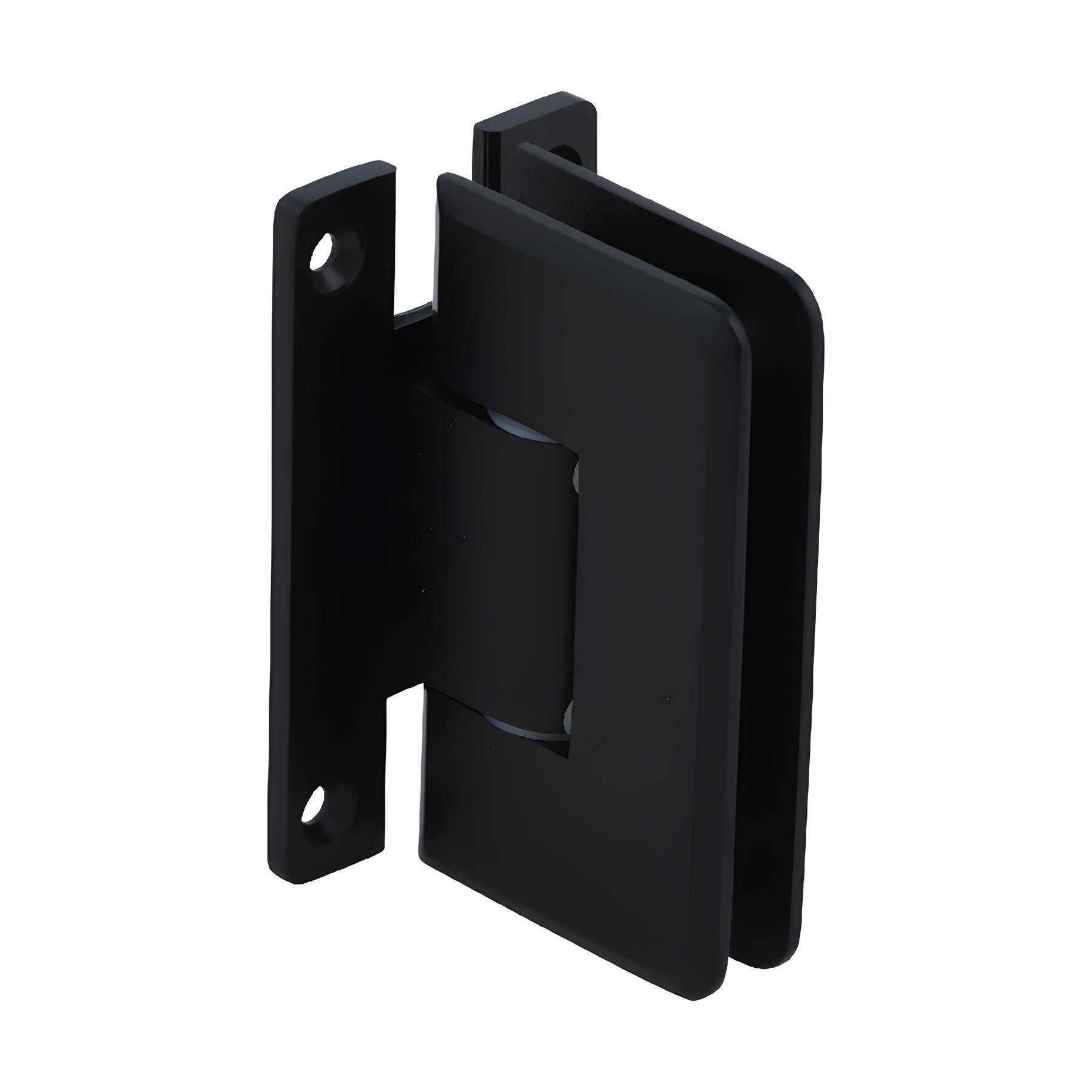

CRL Cologne 337 Oil-Rubbed Bronze Adjustable Wall H-Back Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

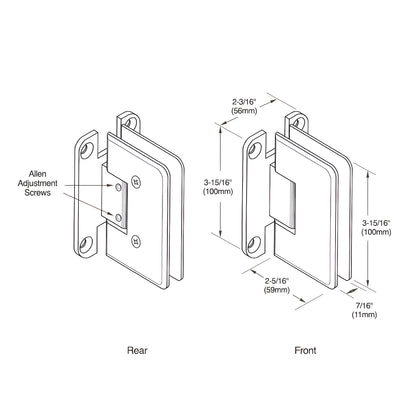

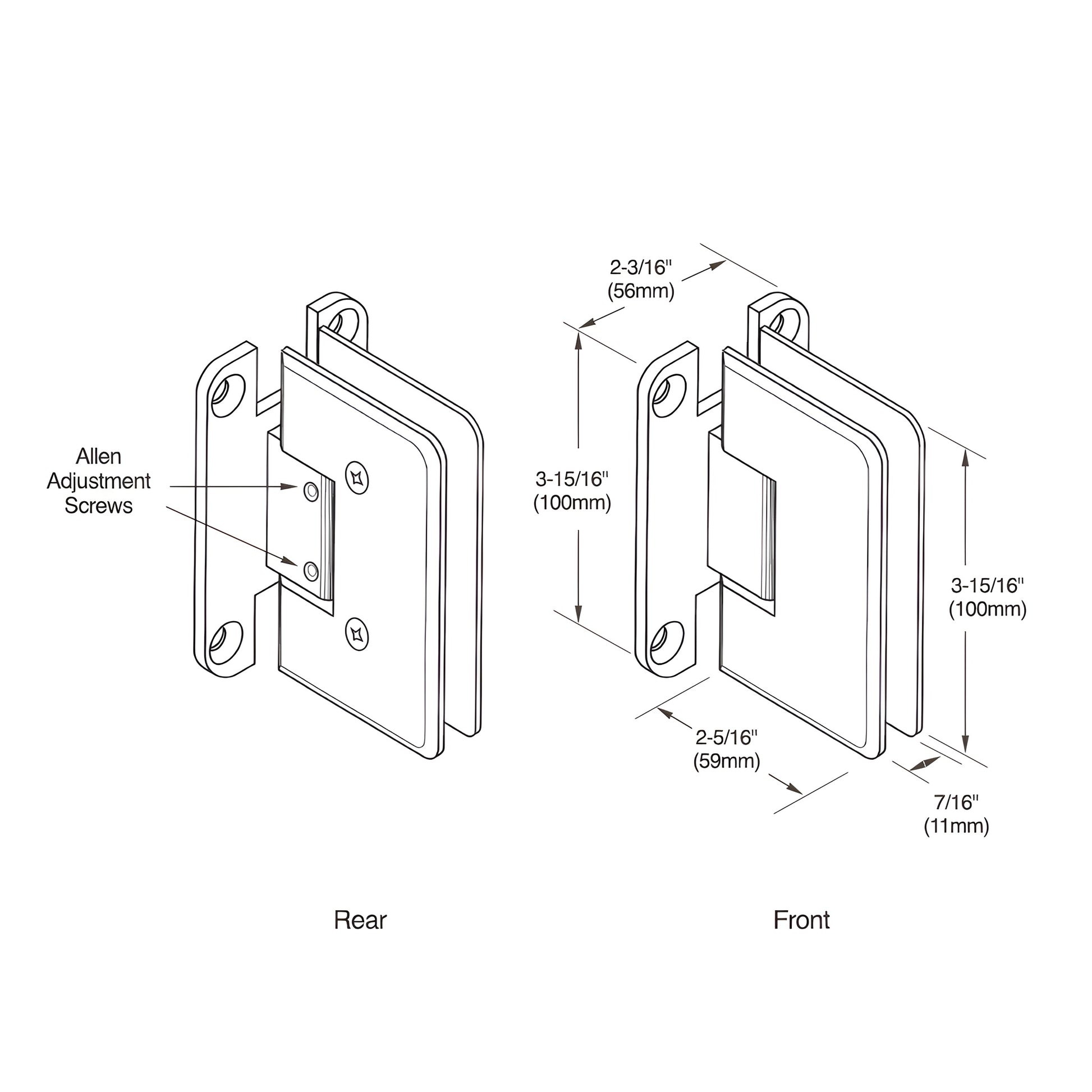

CRL Adjustable Cologne Series — adjustable shower door hinge (SKU: C0L3370RB) engineered for frameless and semi-frameless shower doors. This solid brass, adjustable Cologne hinge lets you set the closing angle up to 90º after installation: loosen the Allen set screws, rotate the door to the desired position, then tighten to self-center. The hinge swings 90º in and 90º out (factory-set). For outward-swing installations using a clear door jamb, you can adjust the hinge to close 5º inside the shower for a snug jamb seal.

Performance & load capacity

• Two hinges with 3/8"–1/2" glass (10–12 mm): supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Three hinges with 3/8"–1/2" glass (10–12 mm): supports up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:

• Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Special Feature: Adjustable to any angle up to 90º without removing the door
• Construction: Solid brass for corrosion resistance and long life
• Hinge Swings: 90º in and 90º out (at factory set position)
• Closing Type: Self-centering within 15º of closed position
• Cut-Out Required
• Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details. Custom finishes available upon request.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.

Why choose this adjustable shower door hinge? Solid brass construction,
