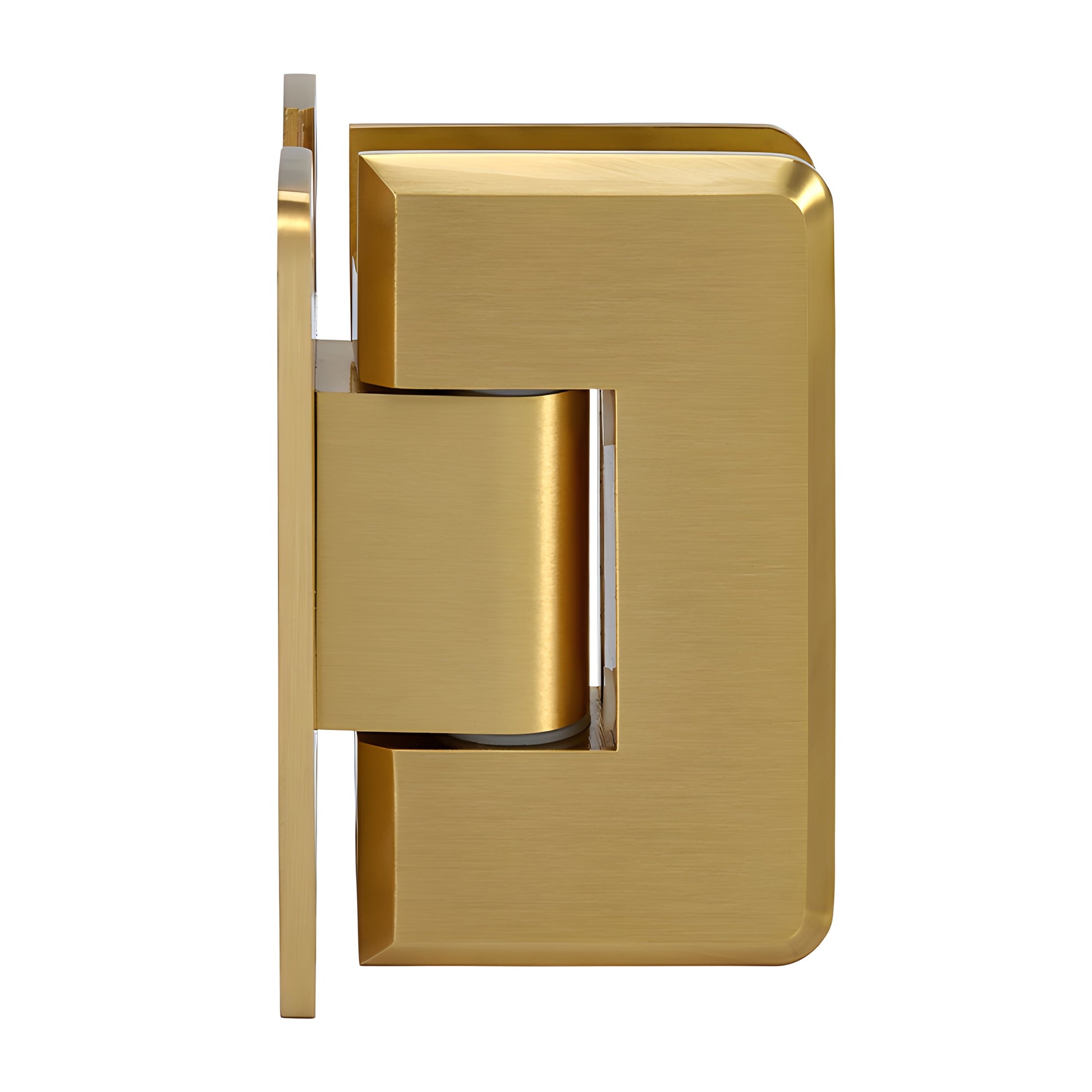

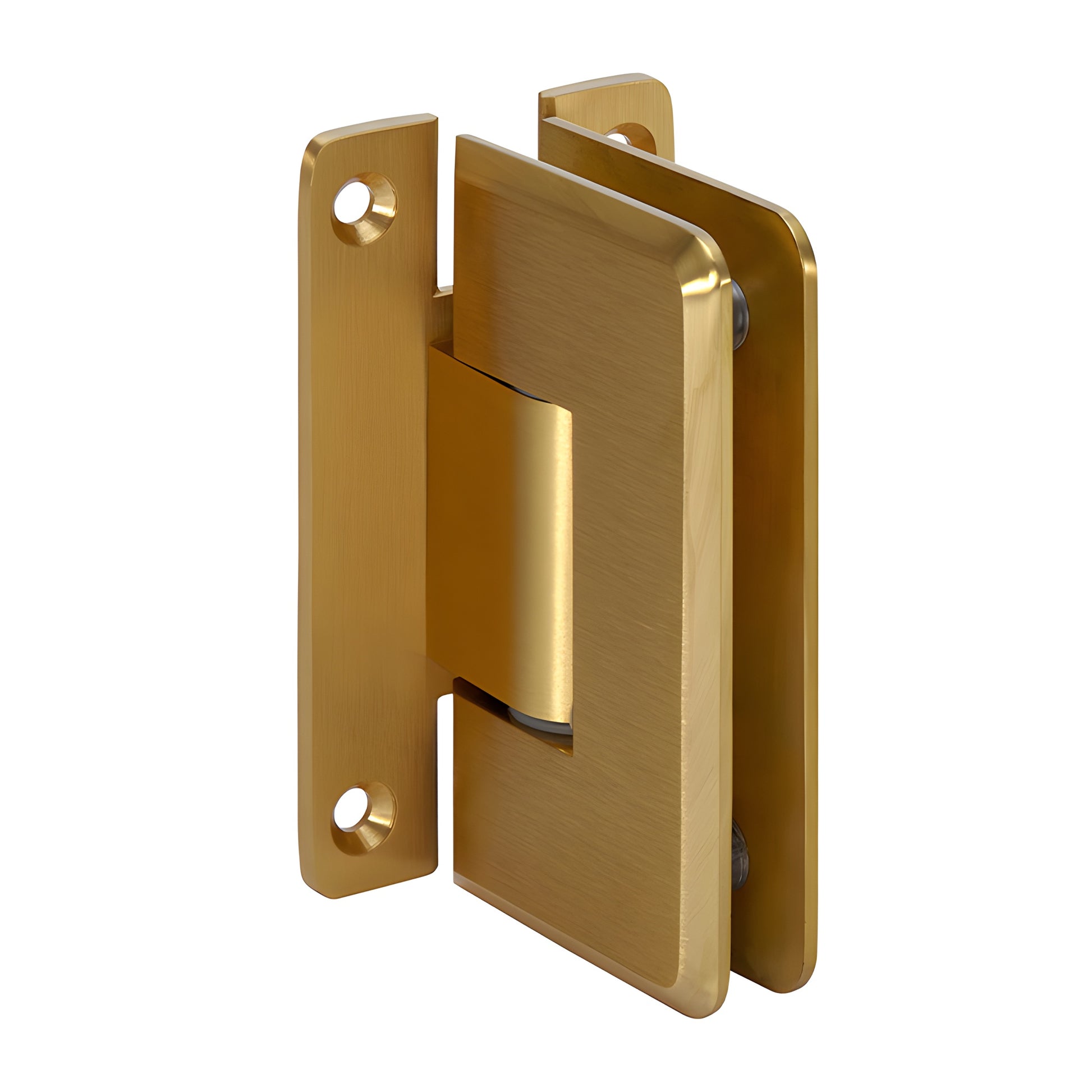

CRL Cologne 337 Satin Brass Adjustable Wall-Mount H Back-Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes, including custom finishes on request

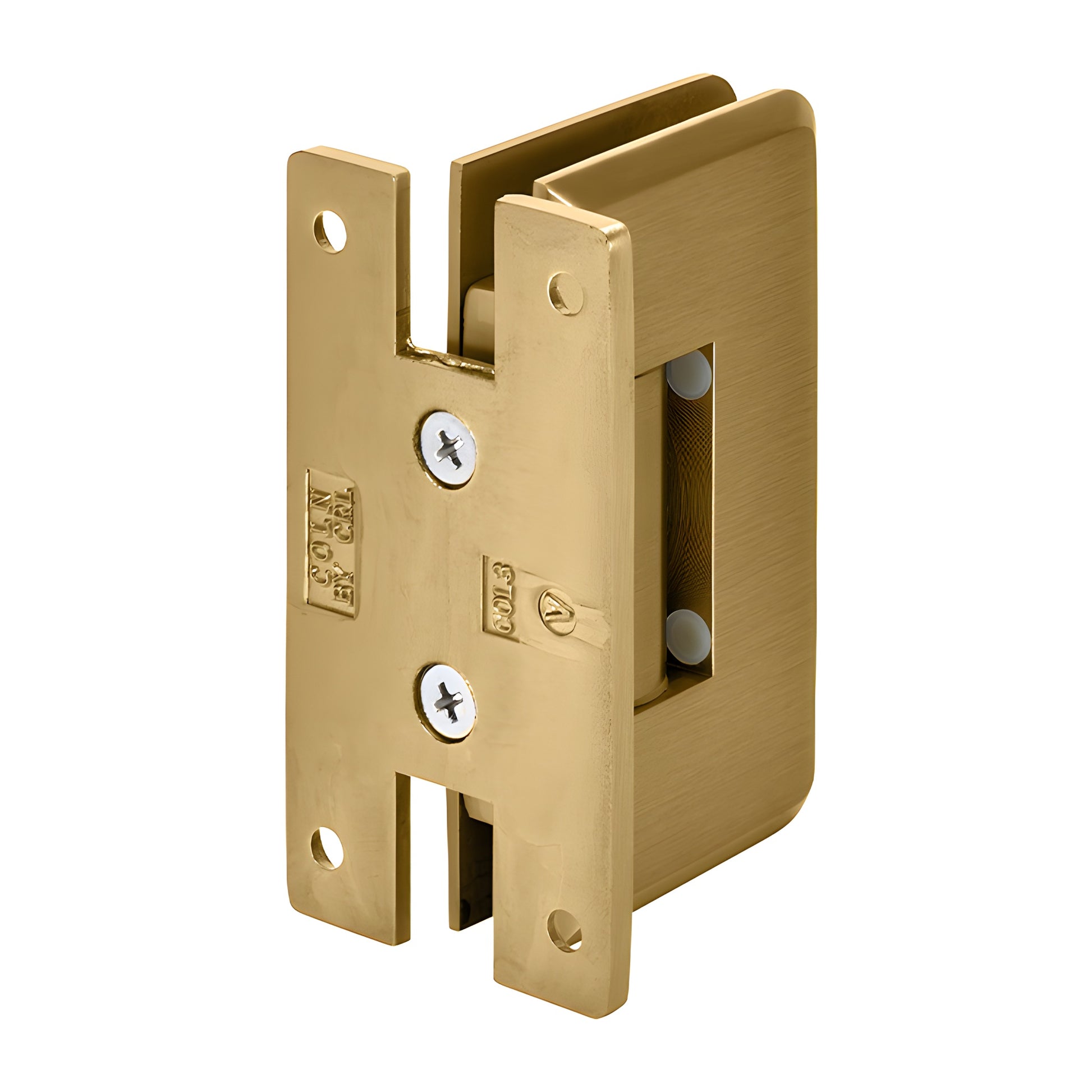

• Adjustable wall mount with full back plate for secure installation
• Use monolithic tempered safety glass

CRL Adjustable Cologne Series — SKU C0L337SB

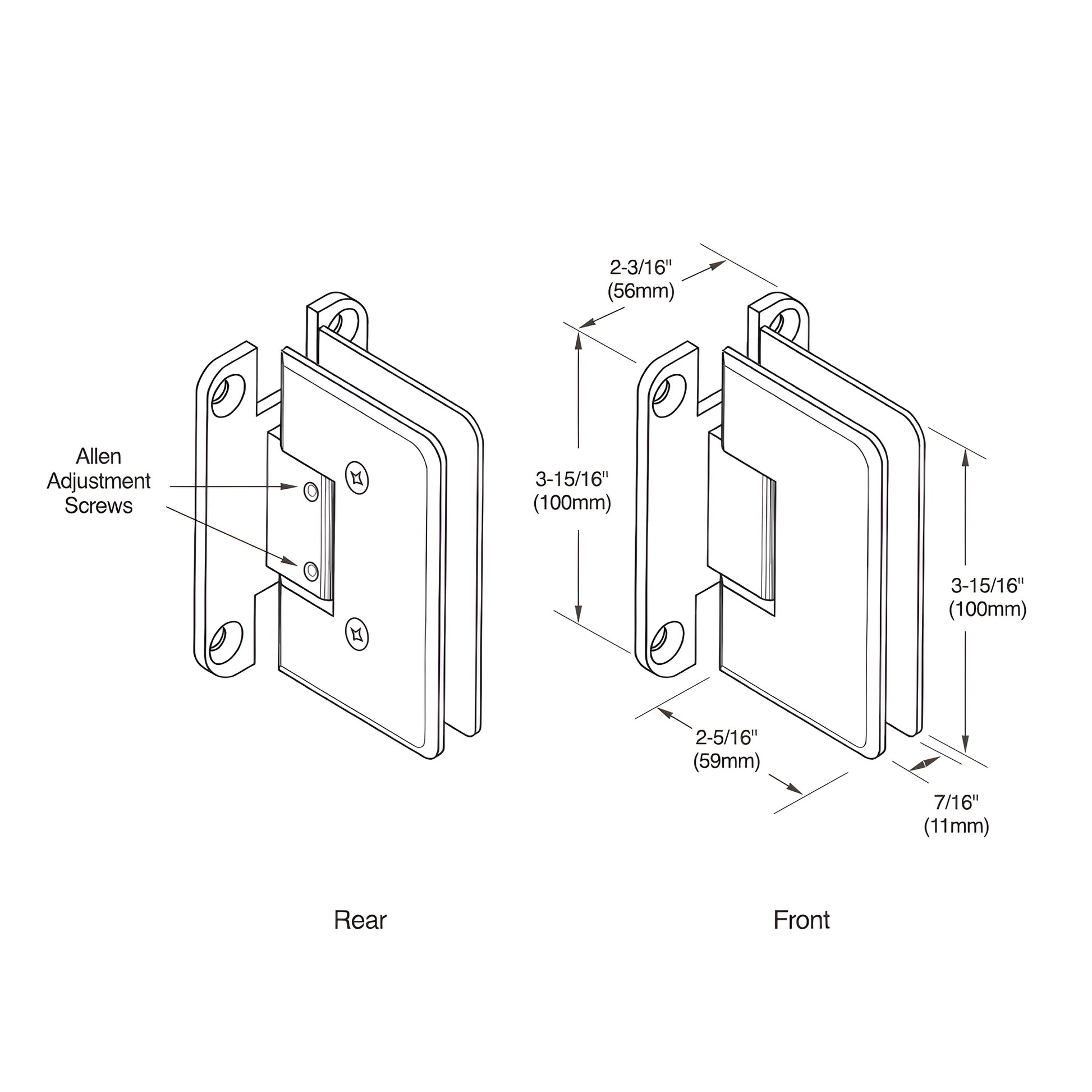

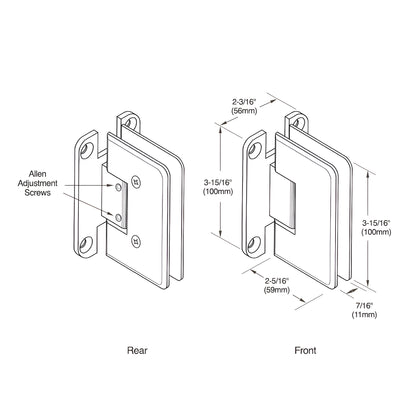

The CRL Adjustable Cologne Series upgrades the popular Cologne hinge into a fully adjustable shower door hinge. After installation, simply loosen the Allen set screws, rotate the door to the desired closing angle (up to 90°), then retighten—the hinge self-centers when within 15° of the closed position. The door can swing 90° inward and 90° outward from the factory set position. For outward-swinging doors with a clear door jamb, adjust the hinge to close 5° inside the shower so the door seals snugly against the jamb.

Load Capacity

Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Adjustable to any angle up to 90° after installation—no door removal required

Construction: Solid brass for durability

Hinge Swings: 90° in and 90° out (at factory set position)

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call CRL Technical Sales for details.

Custom finishes are available on request by contacting CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. If you intend to use these hinges for other purposes, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
