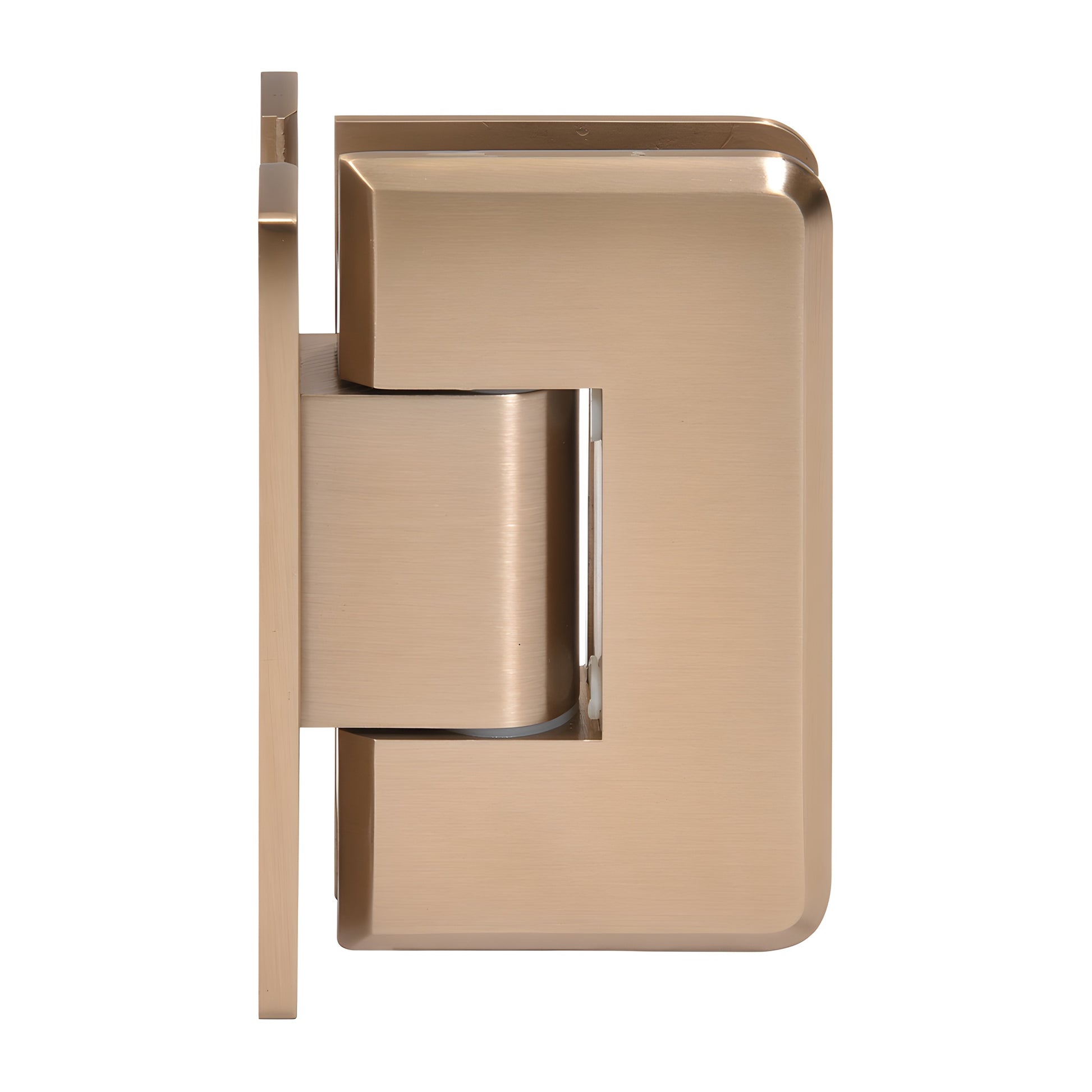

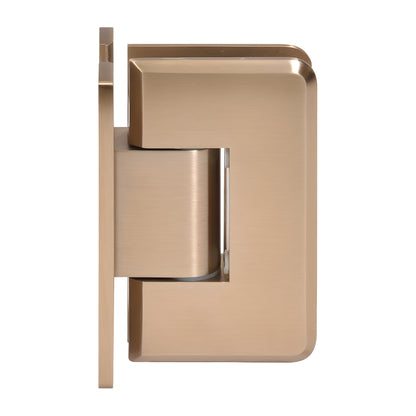

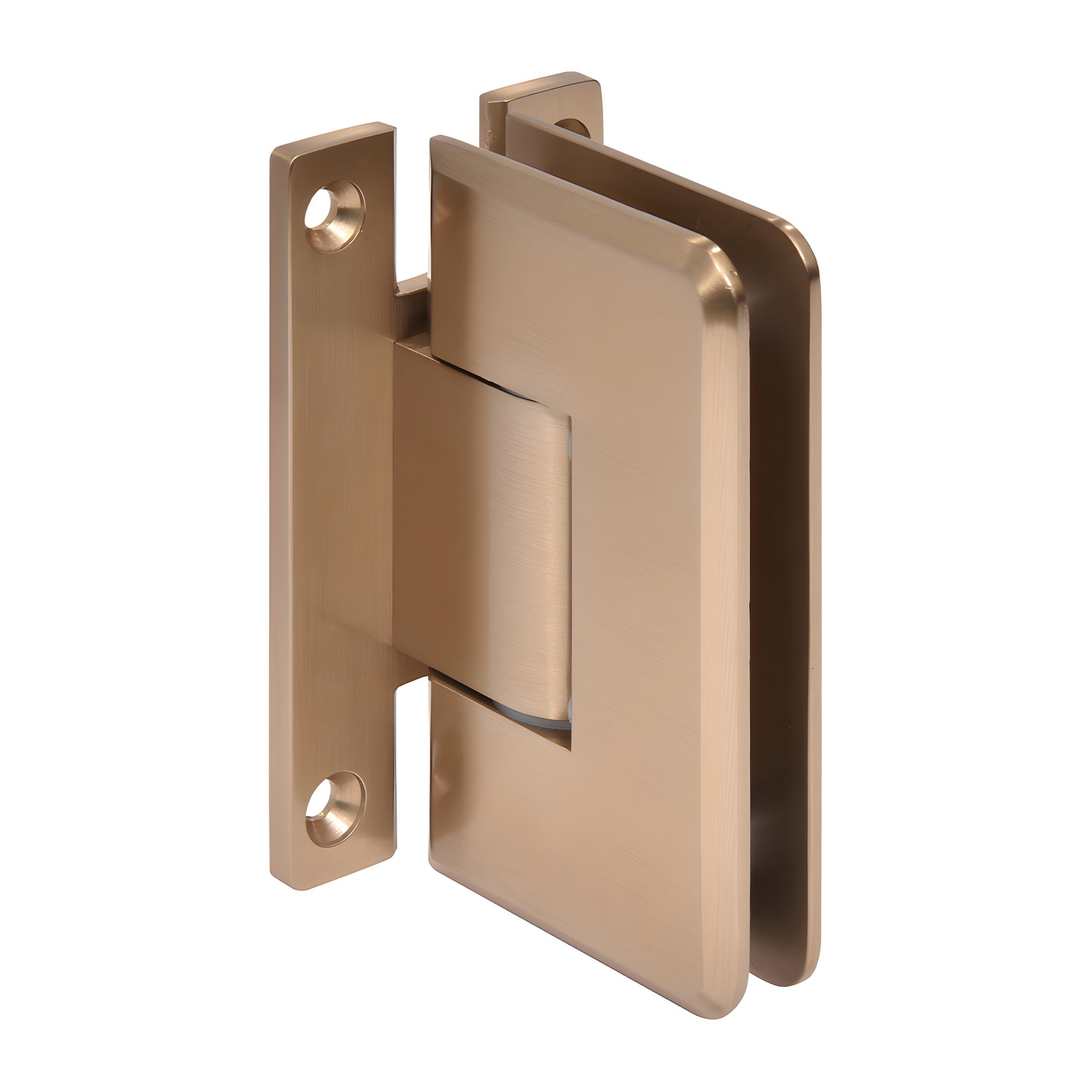

CRL Cologne 337 Adjustable Shower Door H-Back Hinge, Dark Bronze

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes on request)

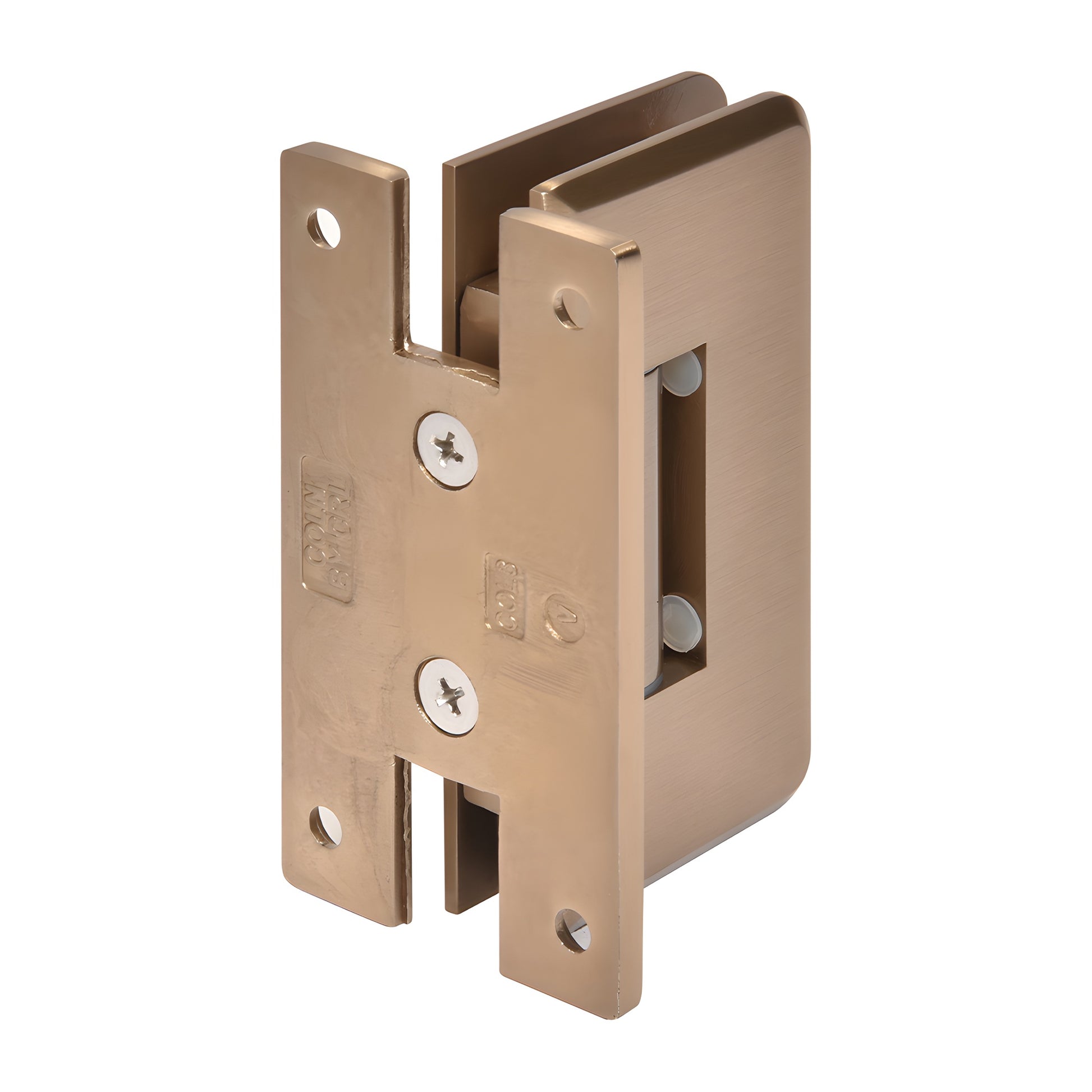

• Adjustable wall mount with full back plate for secure installation
• Designed for monolithic tempered glass shower doors

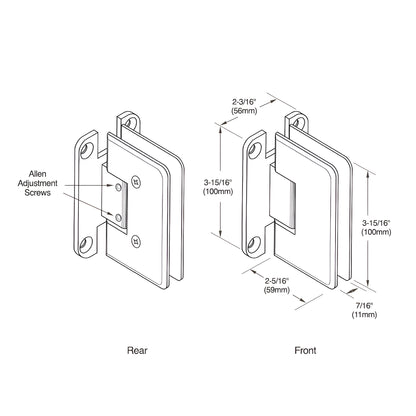

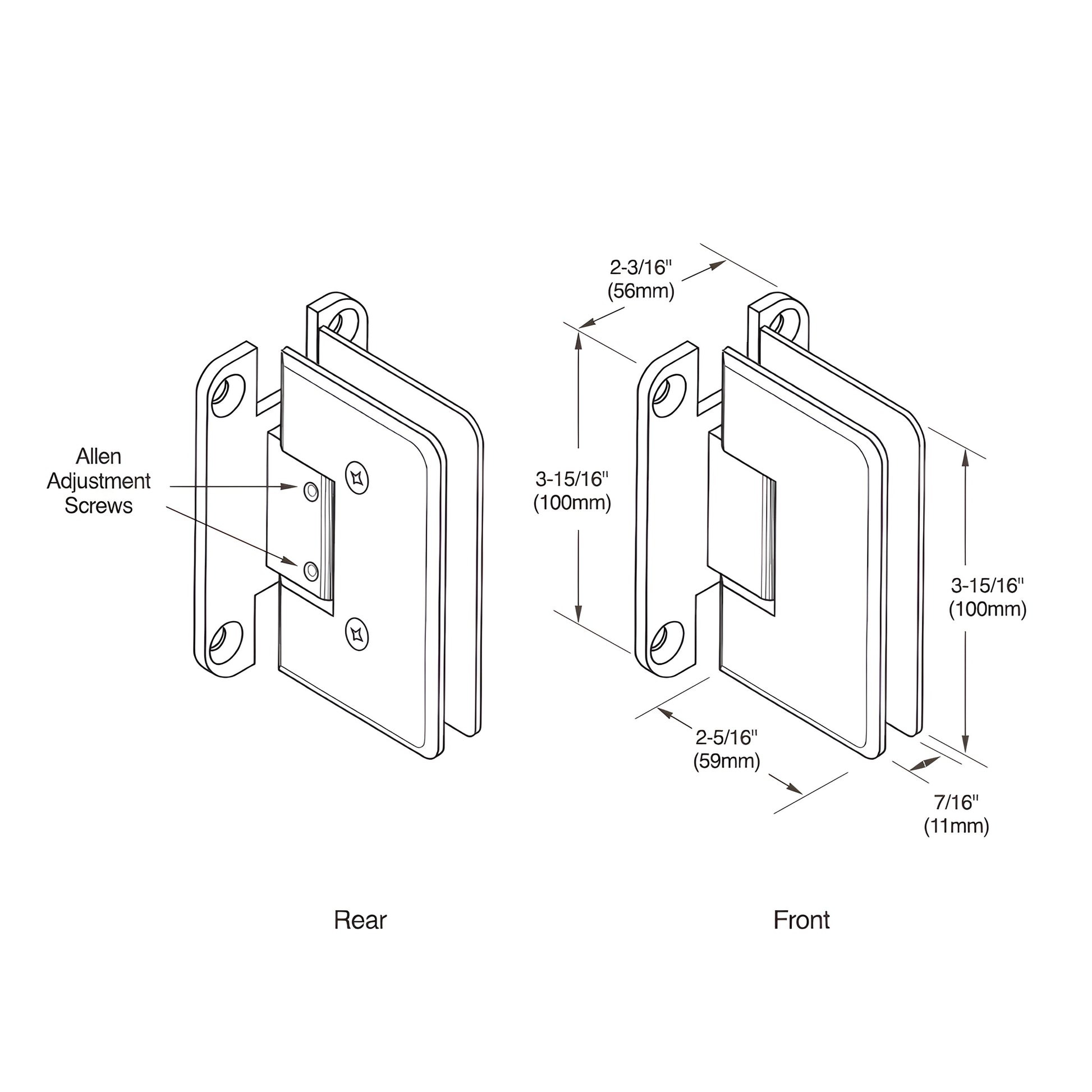

CRL Adjustable Cologne Series (SKU: C0L337DBBZ) — an adjustable shower door hinge engineered for easy post‑installation angle adjustment up to 90º. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position, then tighten to self‑center. Hinge supports 90º swing inward and outward (factory set position applies; adjusting angle can reduce swing in that direction). For outward‑pull doors with a clear door jamb, you can set a 5º inward close so the door seals snugly against the jamb.

Performance:

Using two hinges: supports up to 110 lbs. (50 kg) with maximum door width 36" (914 mm).

Using three hinges: supports up to 140 lbs. (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90º without removing door
Construction: Solid brass
Hinge Swings: 90º in and 90º out (at factory set position)
Closing Type: Self‑centering when within 15º of closed position
Includes: gaskets, screws, and glass fabrication dimensions
Cut‑out Required.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details. Custom finishes available on request.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut‑out dimensions may not match other brands.
