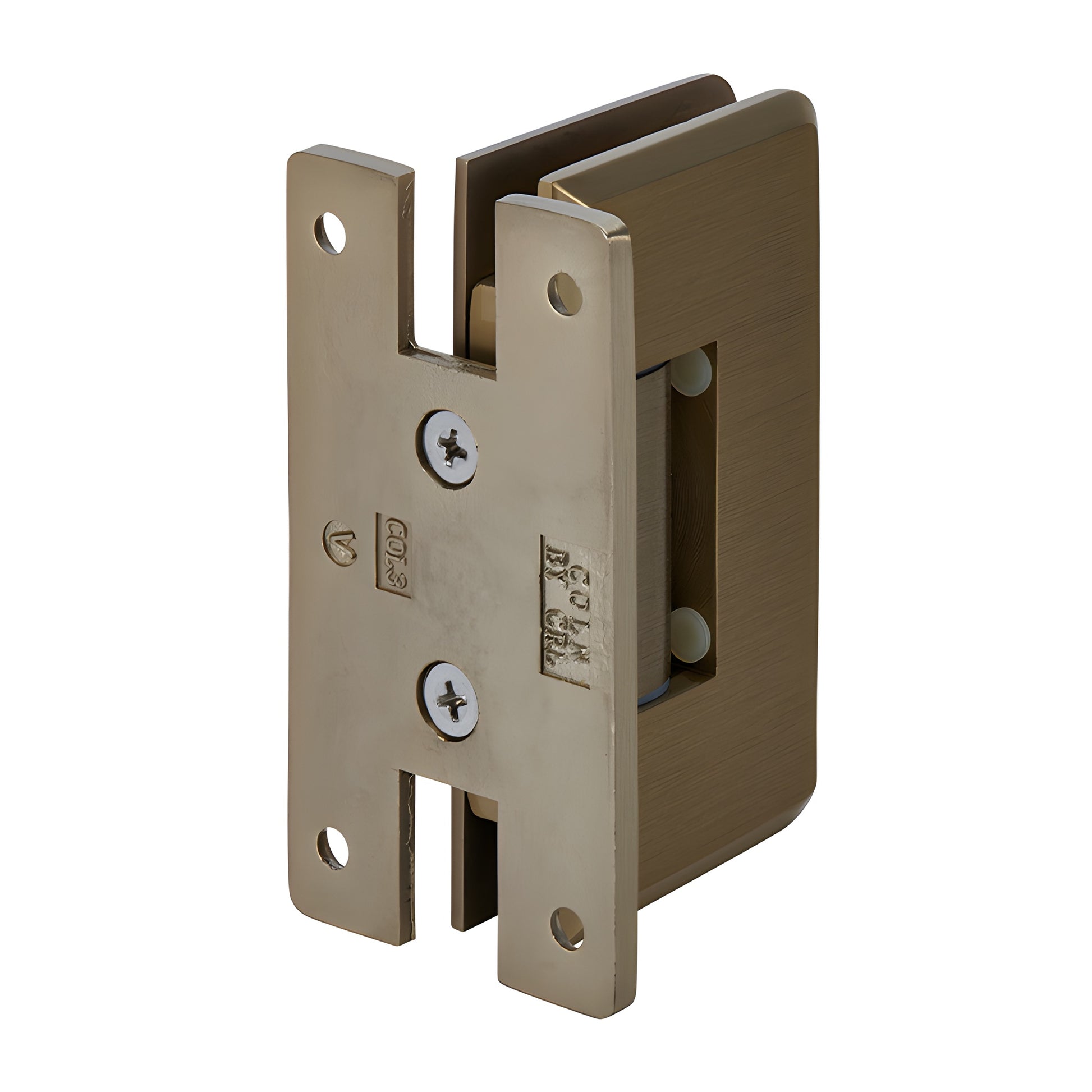

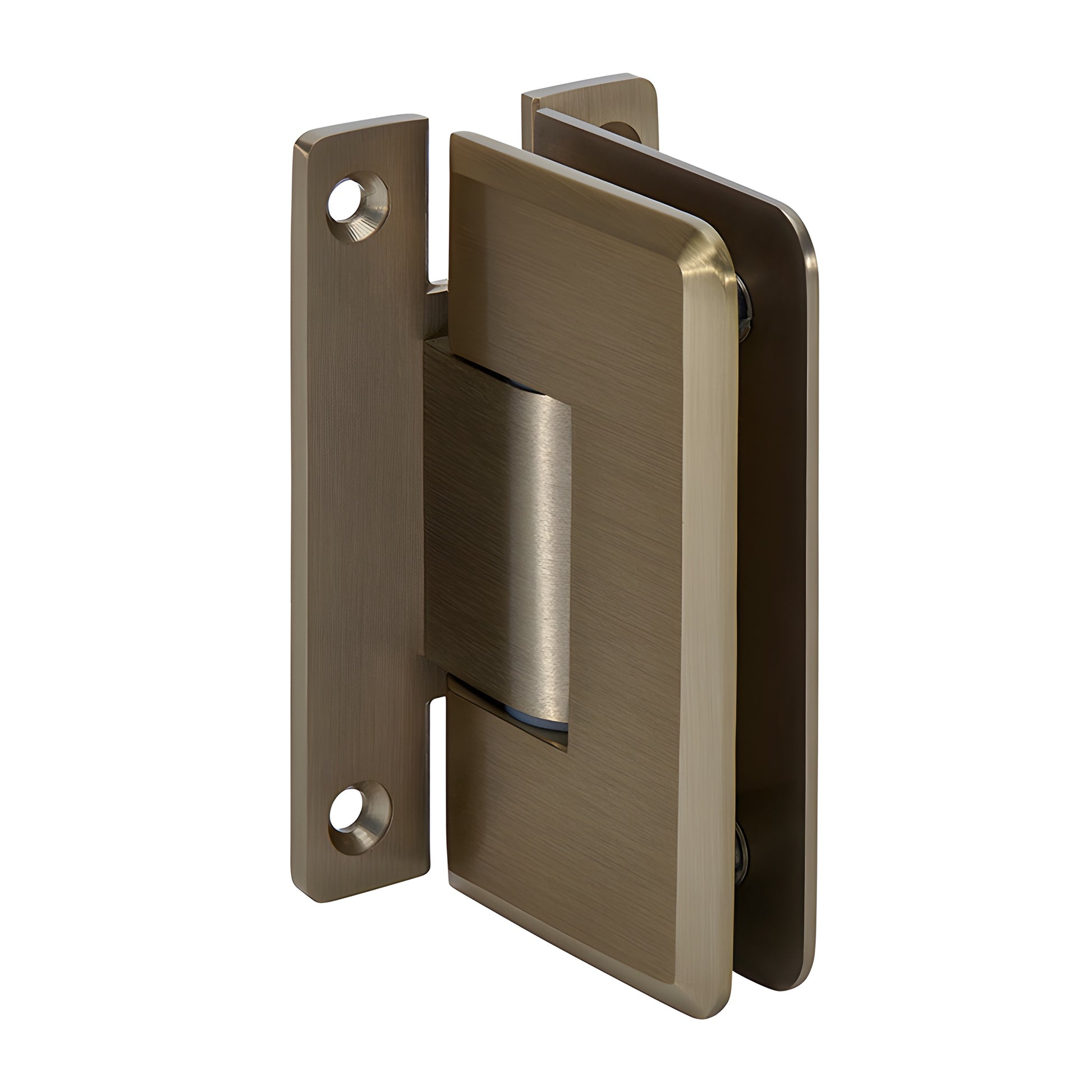

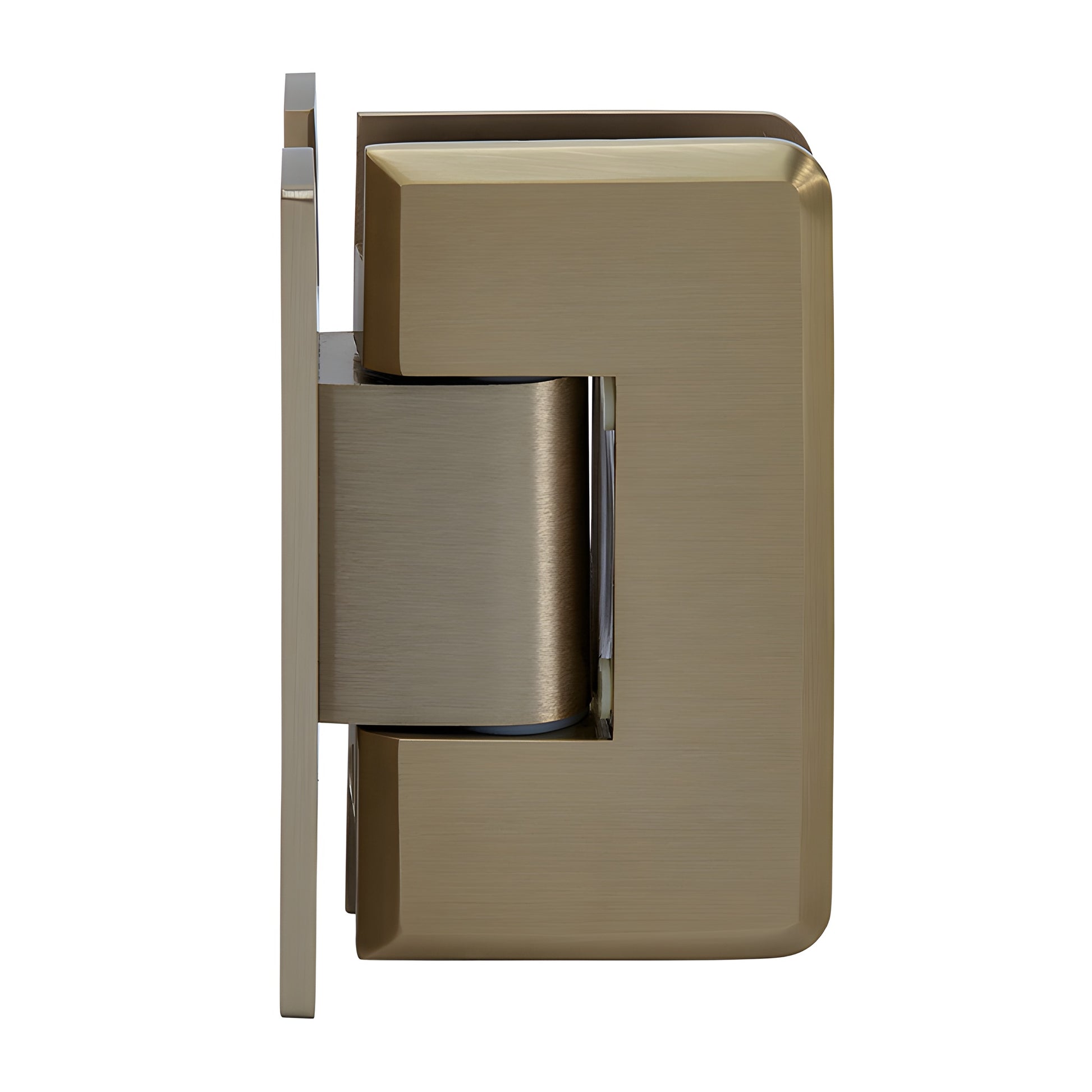

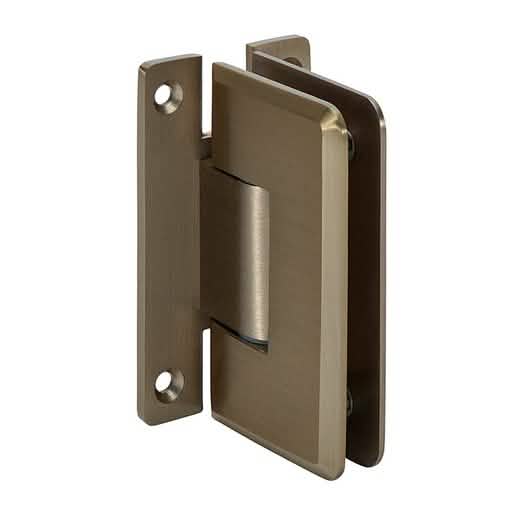

CRL Cologne 337 Brushed Bronze H-Back Adjustable Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
• Available in several beautiful finishes (custom finishes on request)
• Adjustable wall mount with full back plate
• Use with monolithic tempered glass

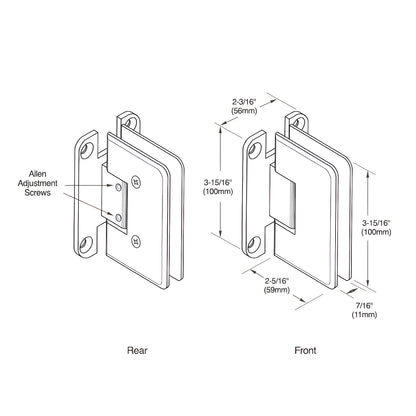

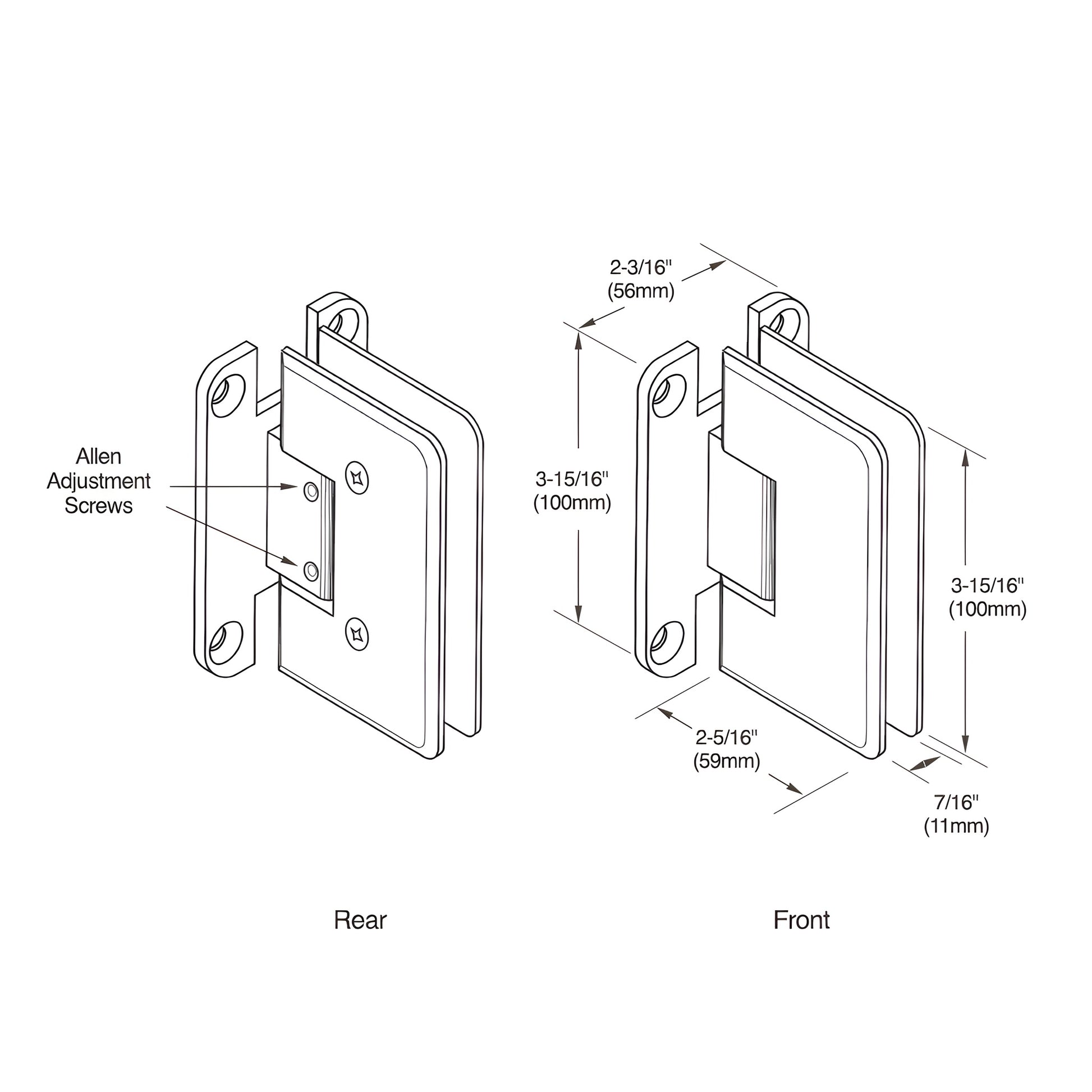

CRL Adjustable Cologne Series — a heavy-duty, solid brass shower door hinge engineered for adjustable-angle installation and reliable long-term performance. This adjustable shower door hinge allows post-installation angle adjustment up to 90° without removing the door. Loosen the Allen set screws, rotate the door to the desired closed position, then re-tighten to self-center the door. Hinge swings 90° in and 90° out at the factory-set position; adjusting the hinge reduces swing in the adjusted direction. For outward-swing doors using a clear jamb, adjust the hinge to close 5° inside the shower so the door seats snugly against the jamb.

Performance

• Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm)

Specifications:

• Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Special Feature: Adjustable to any angle up to 90° without removing door
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out (factory set position)
• Closing Type: Self-centering when within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions
• Cut-Out Required: Use only the template included; dimensions may differ from other brands

Important Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details. Custom finishes available upon request.

Product Warning:
Designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-outs for CRL hinges may not match other brands.
