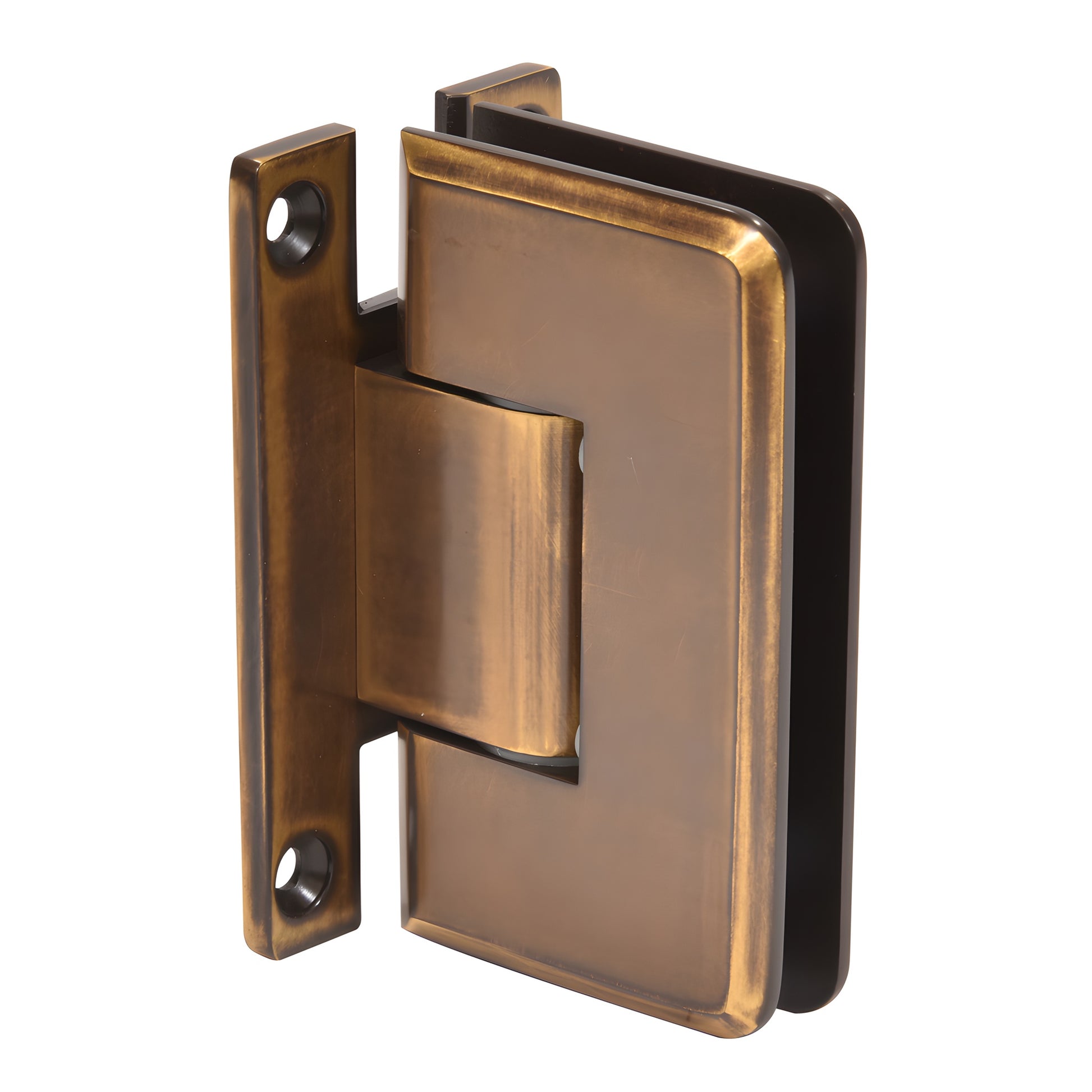

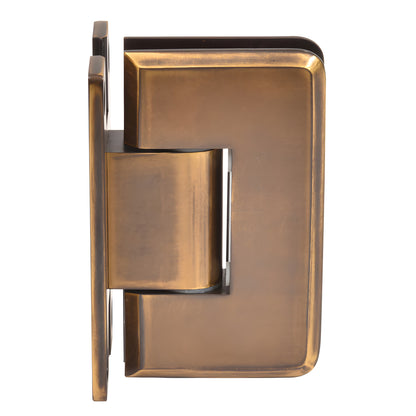

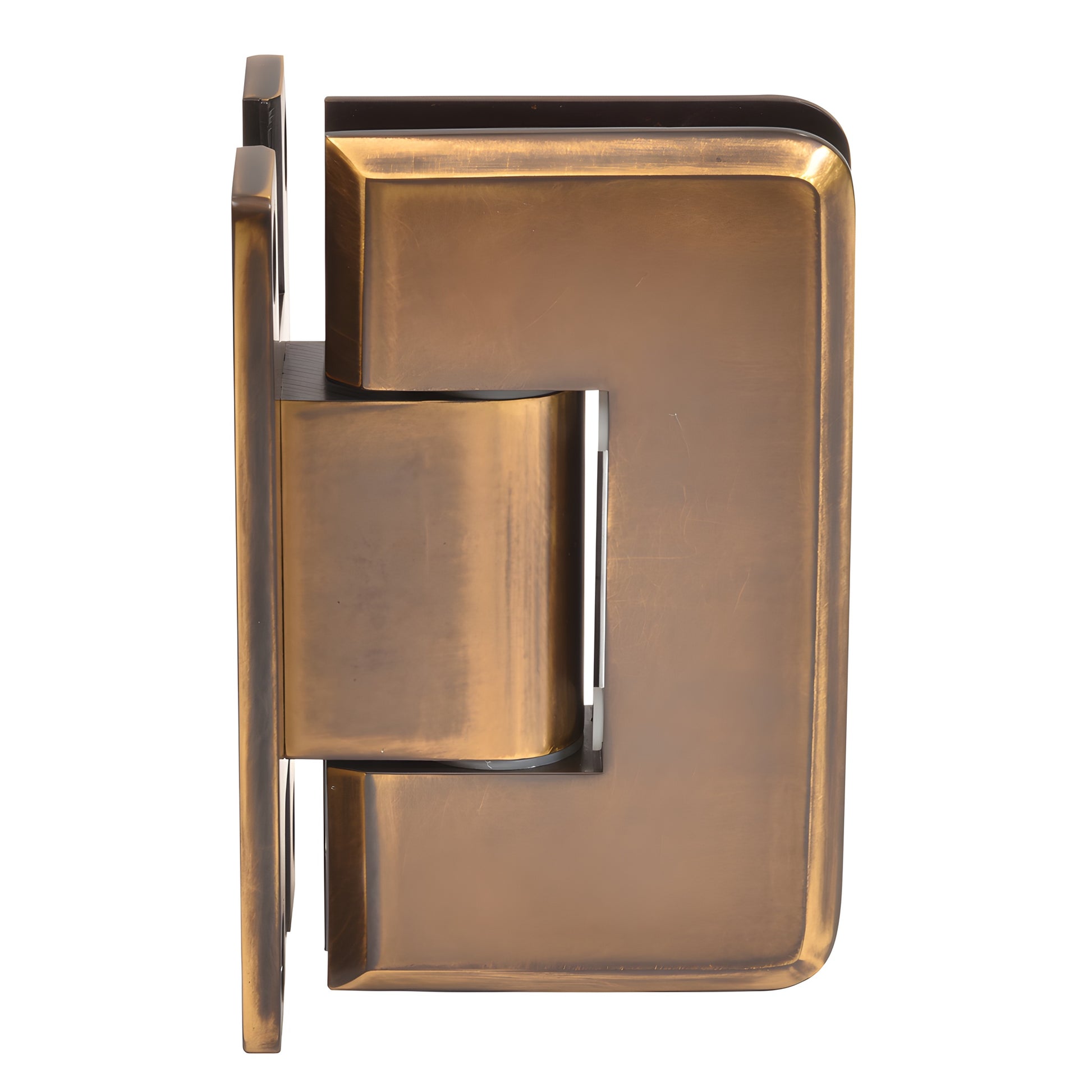

CRL Cologne 337 Adjustable Wall-Mount H Back Plate Hinge Vintage Brass

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes

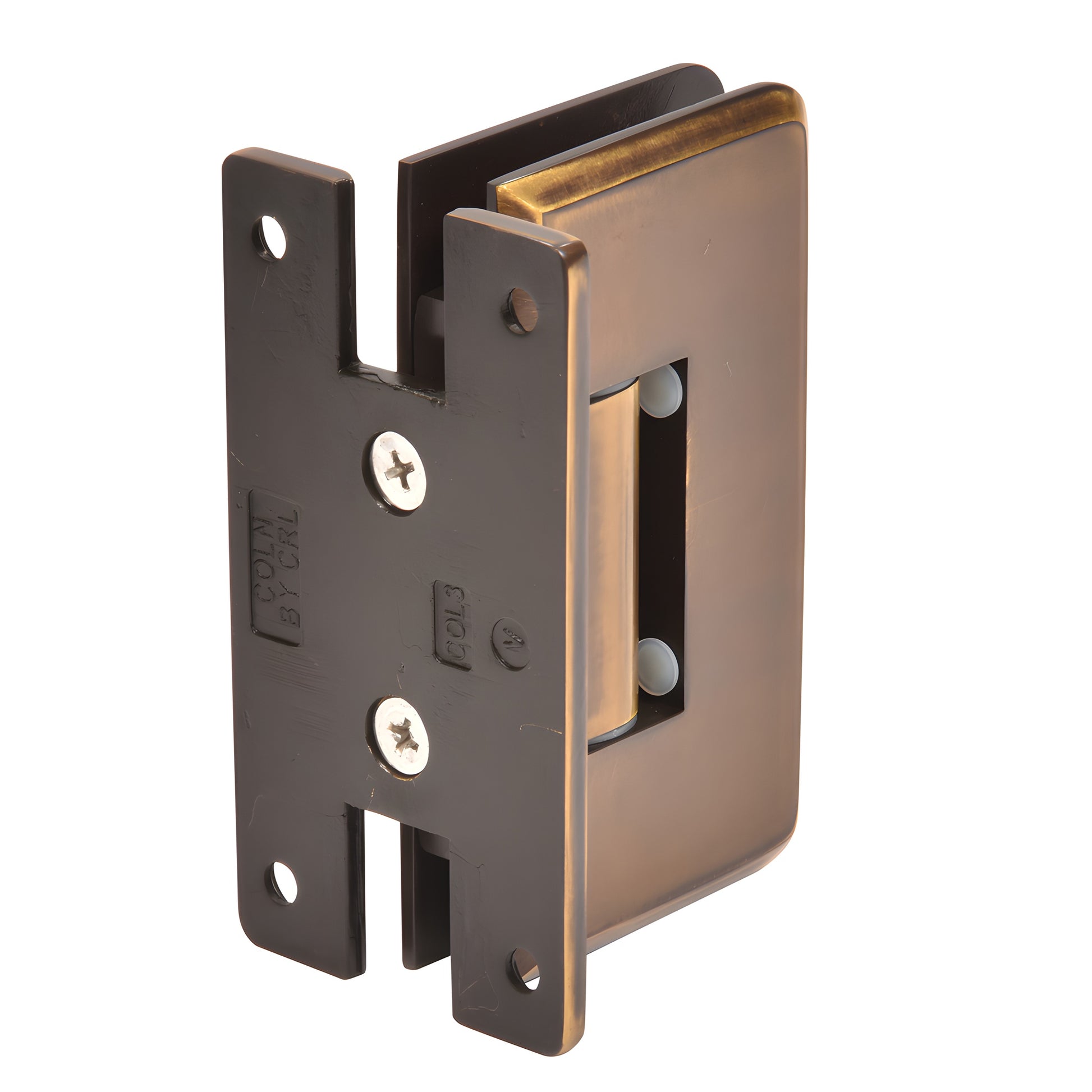

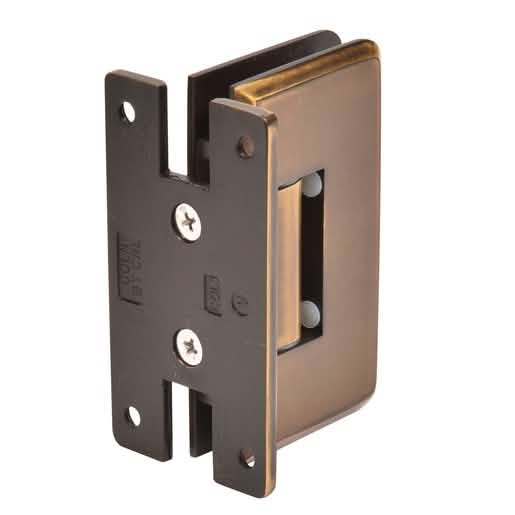

• Adjustable wall mount full back plate
• Use monolithic tempered glass

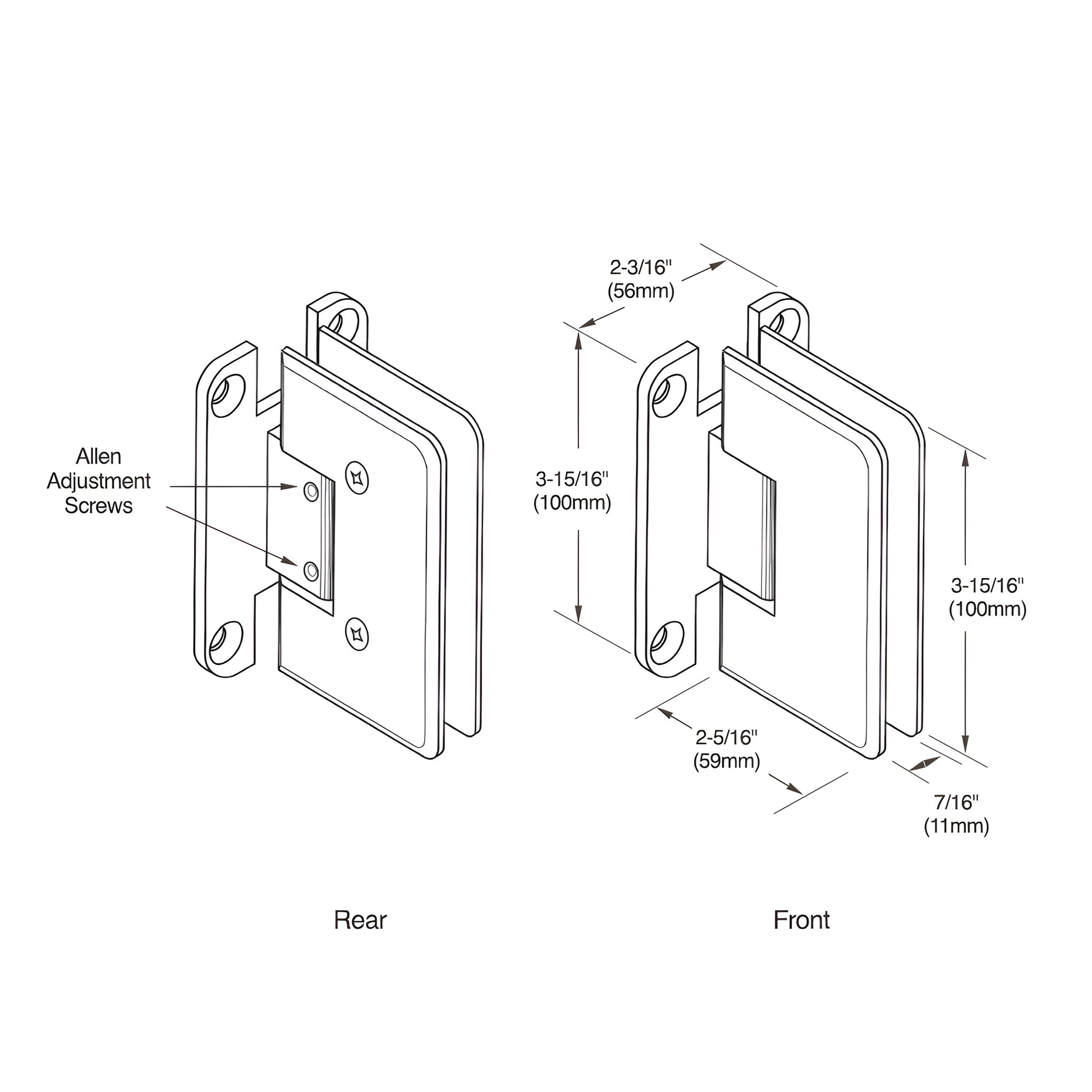

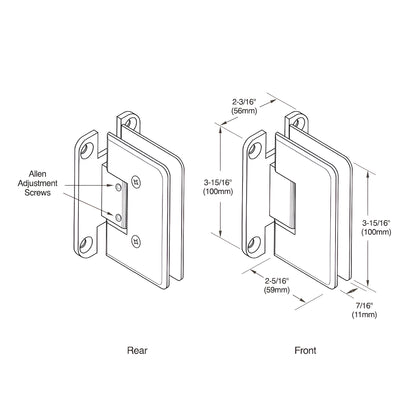

CRL Adjustable Cologne Series—SKU C0L337VBR—is an adjustable shower door hinge engineered for residential and hotel shower glass. After installation you can adjust the hinge angle up to 90° without removing the door: loosen the Allen set screws, swing the door to the desired closed position, then re-tighten to self-center. The hinge allows 90° swing in and 90° swing out from the factory position; adjusting the angle will reduce swing range in that direction. For outward-swinging doors using a clear door jamb, the hinge can be set to close 5° inside the shower for a snug fit against the jamb.

Performance:

Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8"–1/2" glass supports up to 140 lbs (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request—contact CRL Technical Sales.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For alternate applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
