Product Details
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- Available in Several Beautiful Finishes

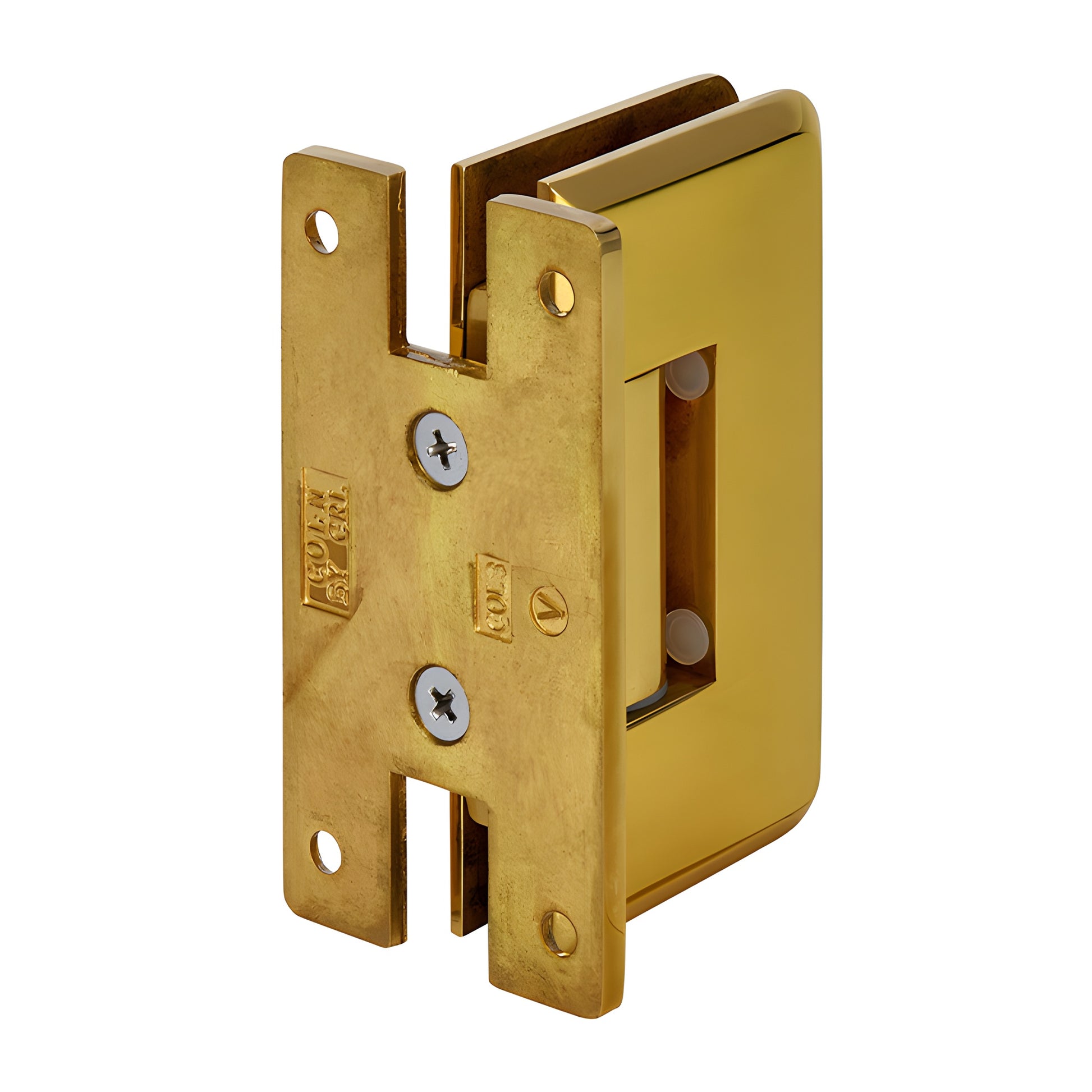

- Adjustable Wall Mount Full Back Plate
- Use Monolithic Tempered Glass
- Apply medium-strength threadlocker on cover plate screws

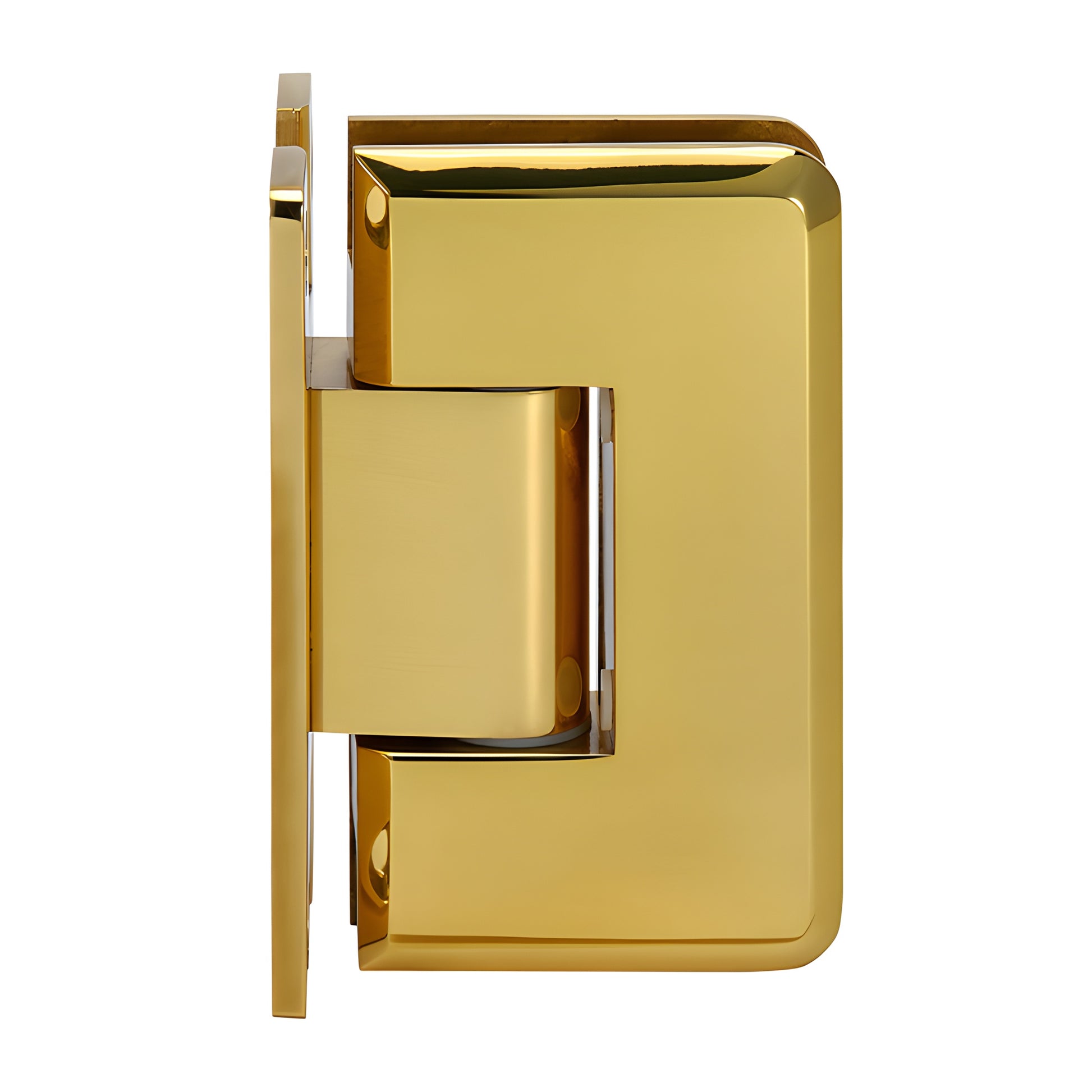

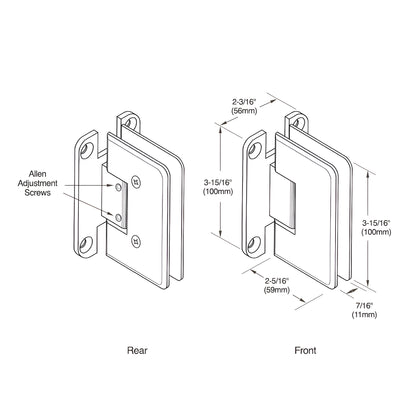

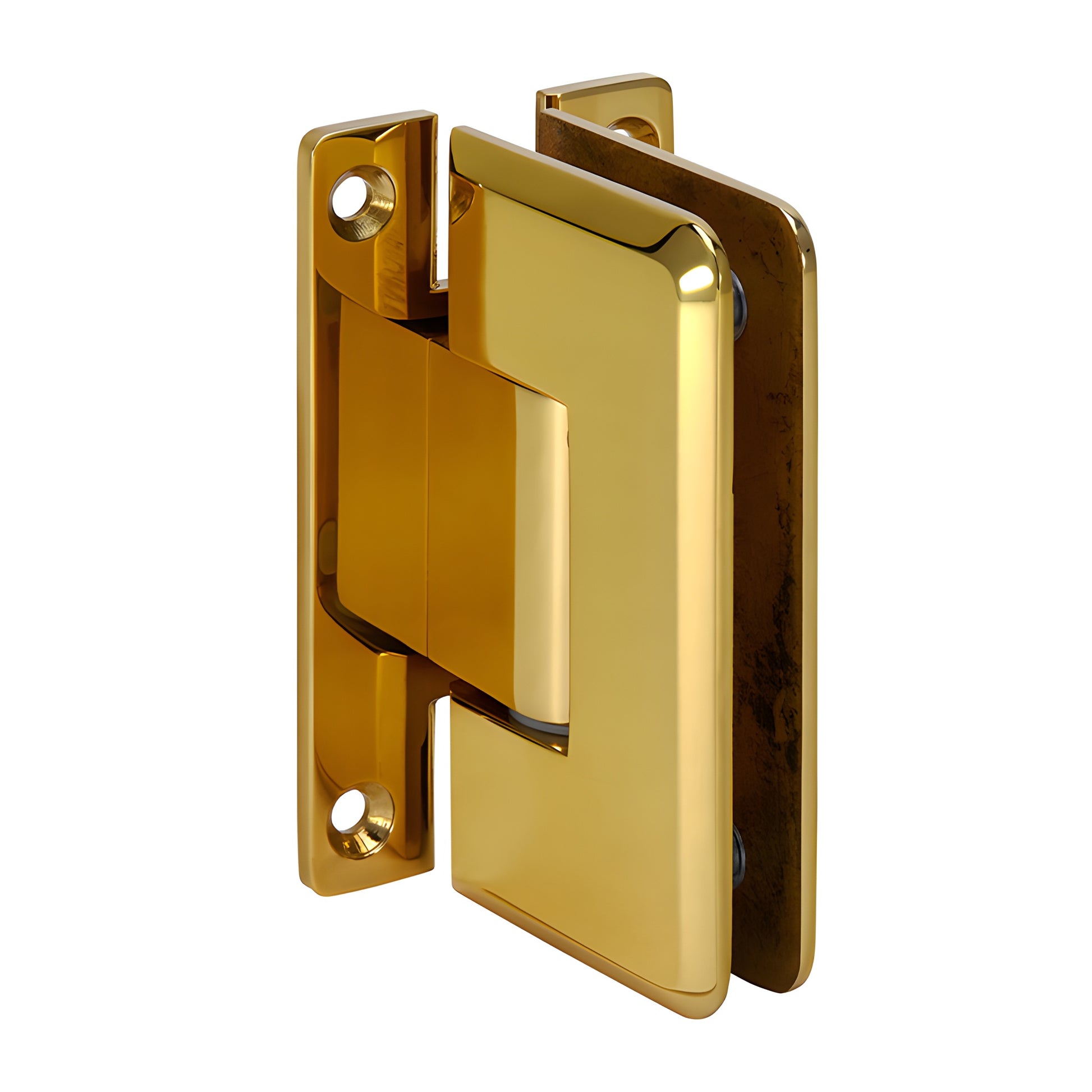

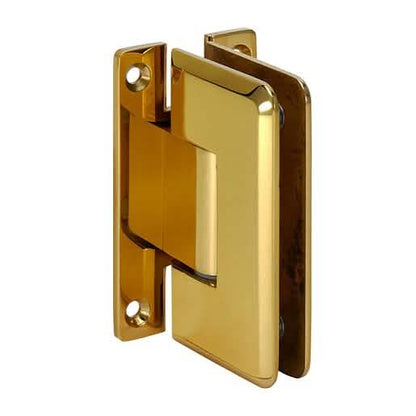

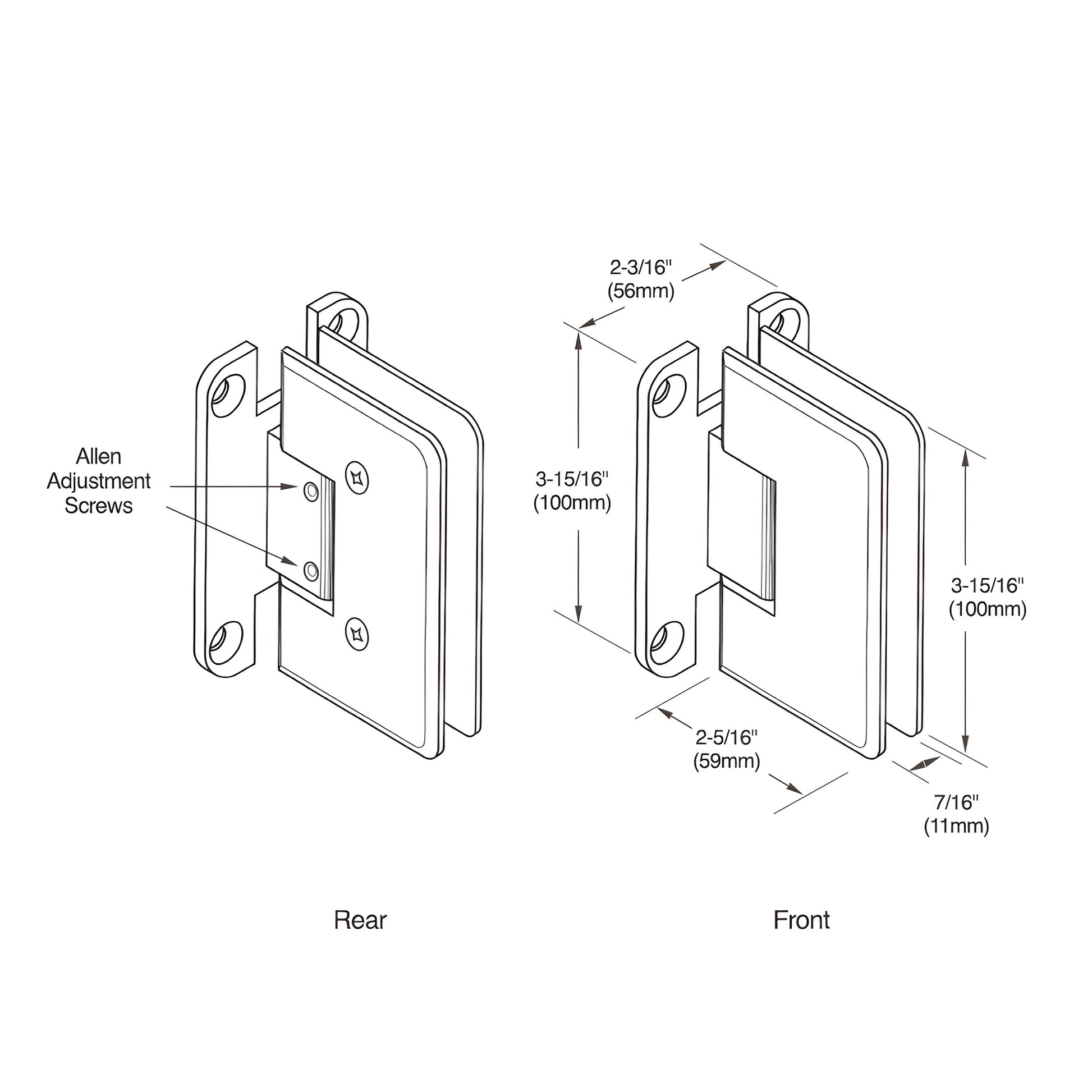

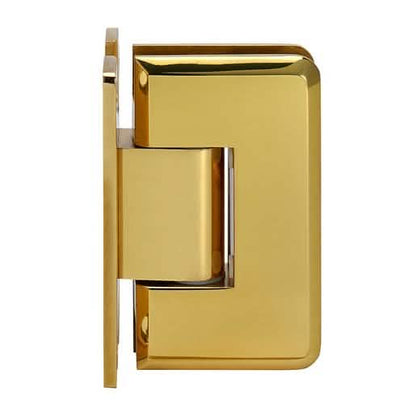

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90º without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request by contacting CRL Technical Sales.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
