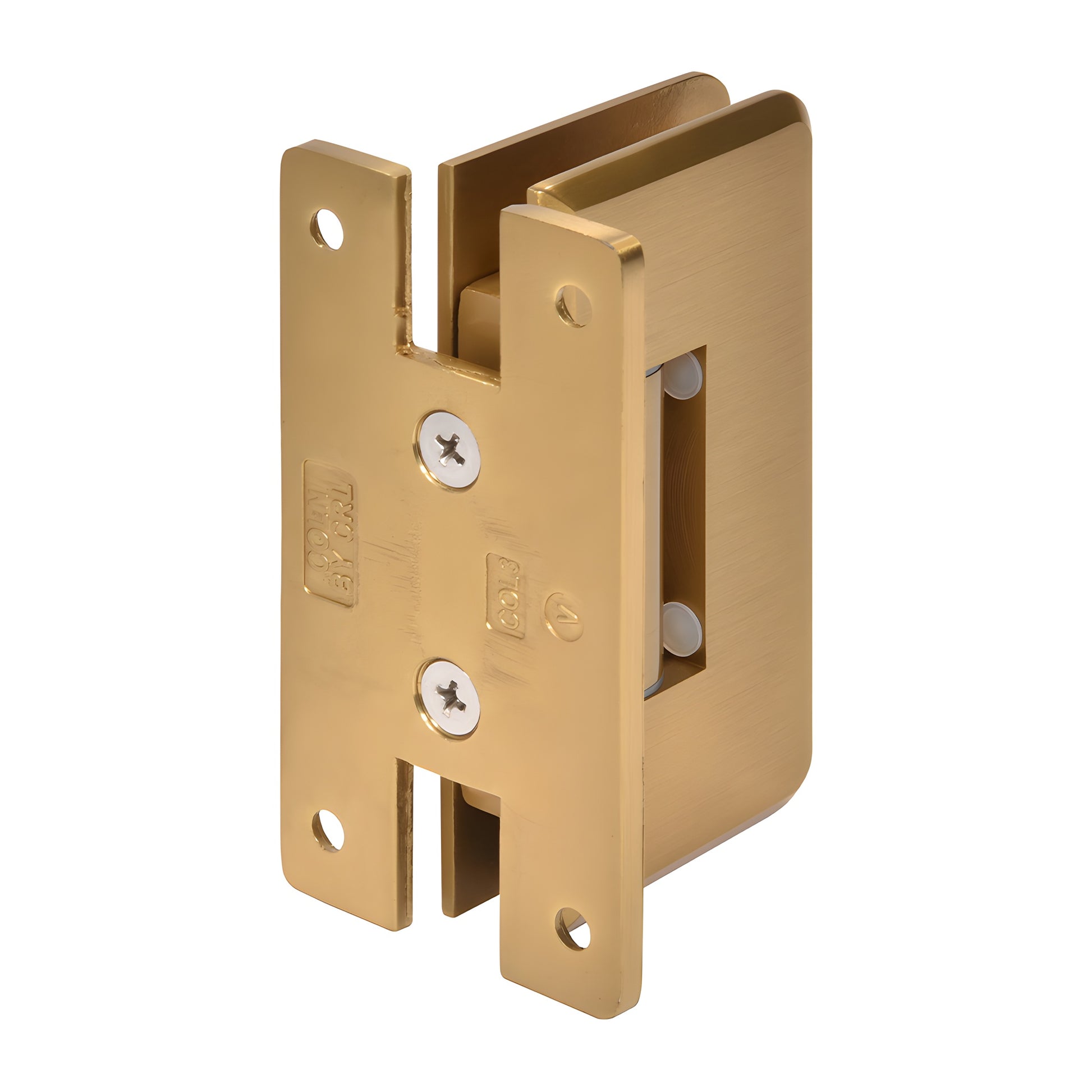

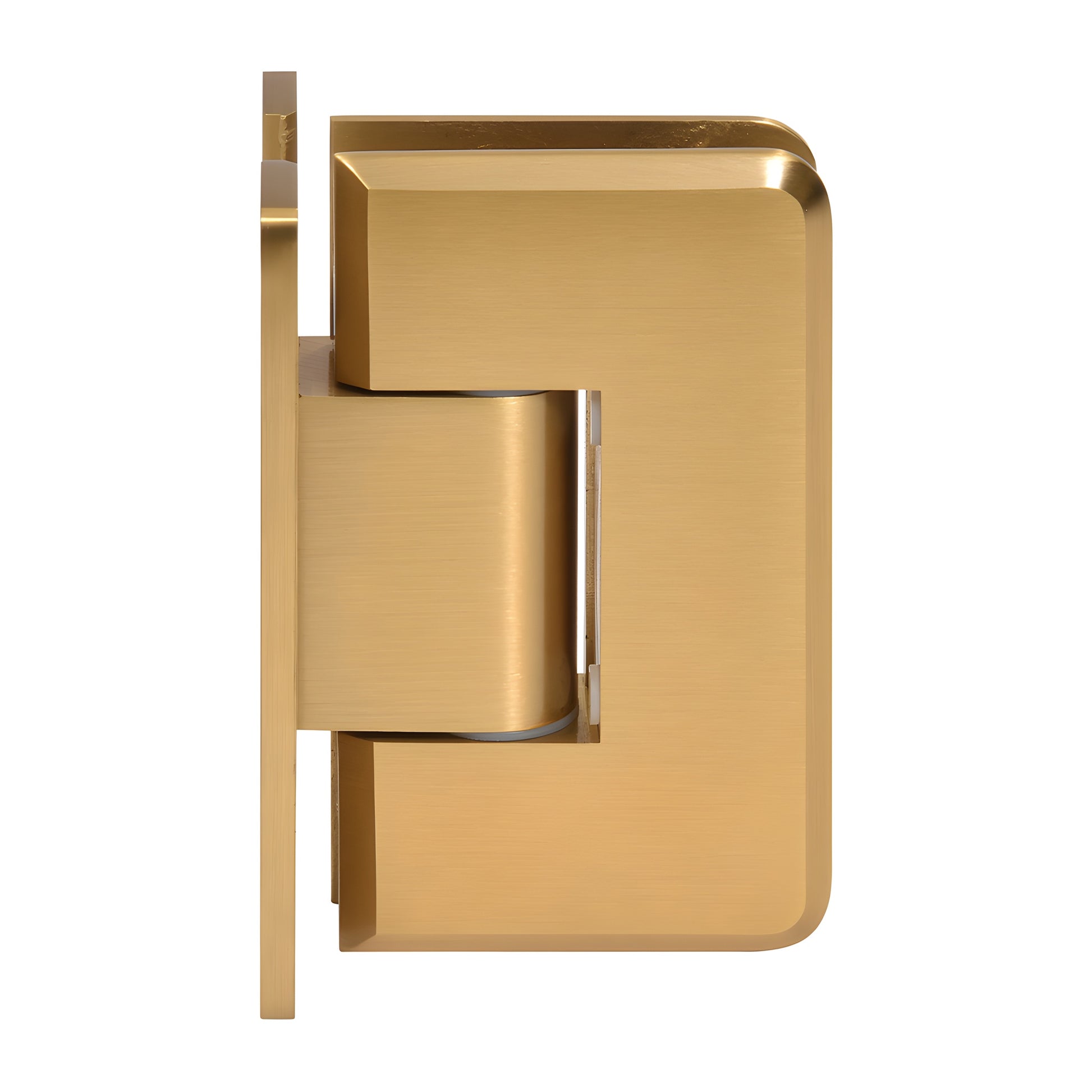

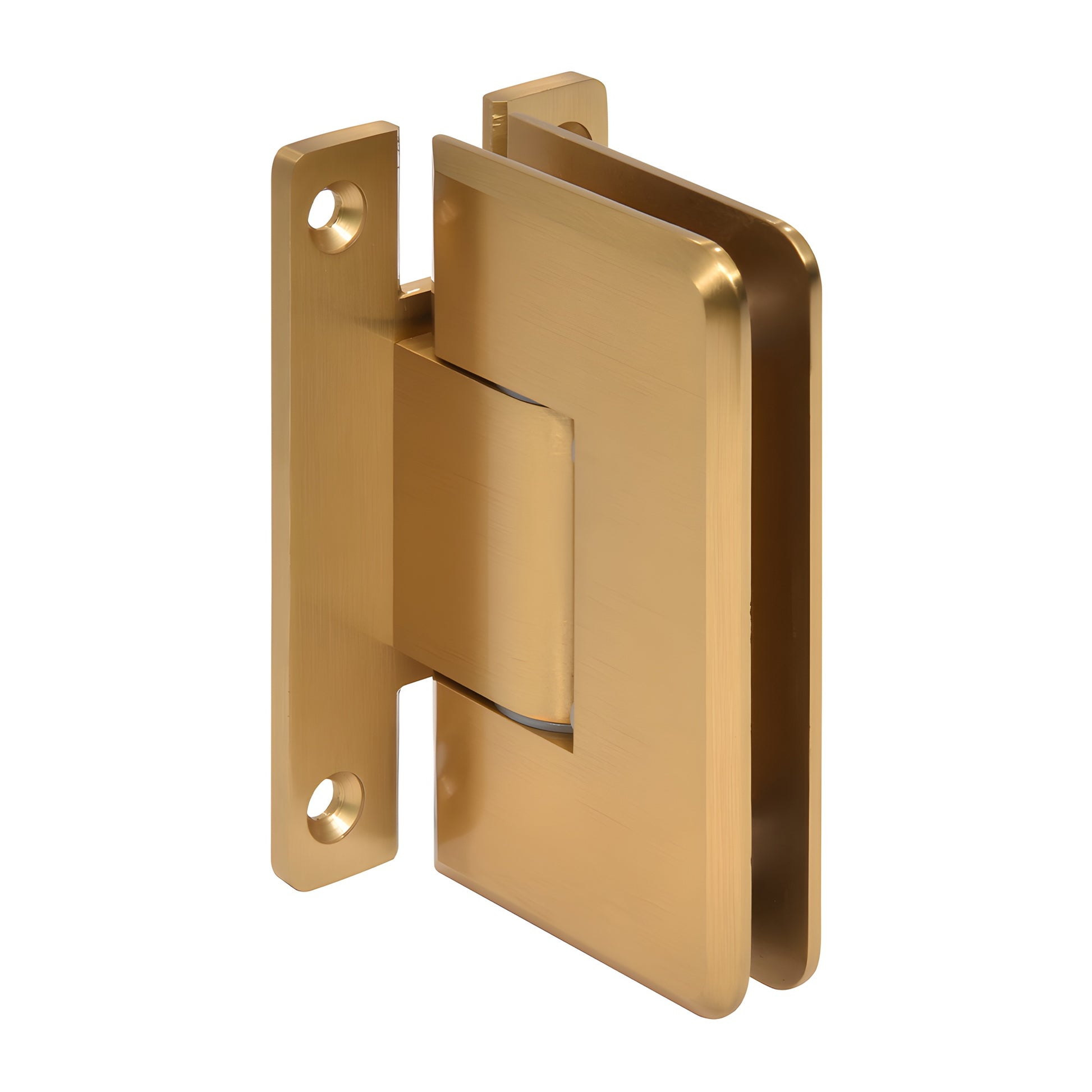

CRL Cologne 337 Adjustable Wall-Mount H-Back Glass Door Hinge Gold

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available via CRL Technical Sales)
• Adjustable wall mount with full back plate for secure installation
• Designed for monolithic tempered glass shower doors

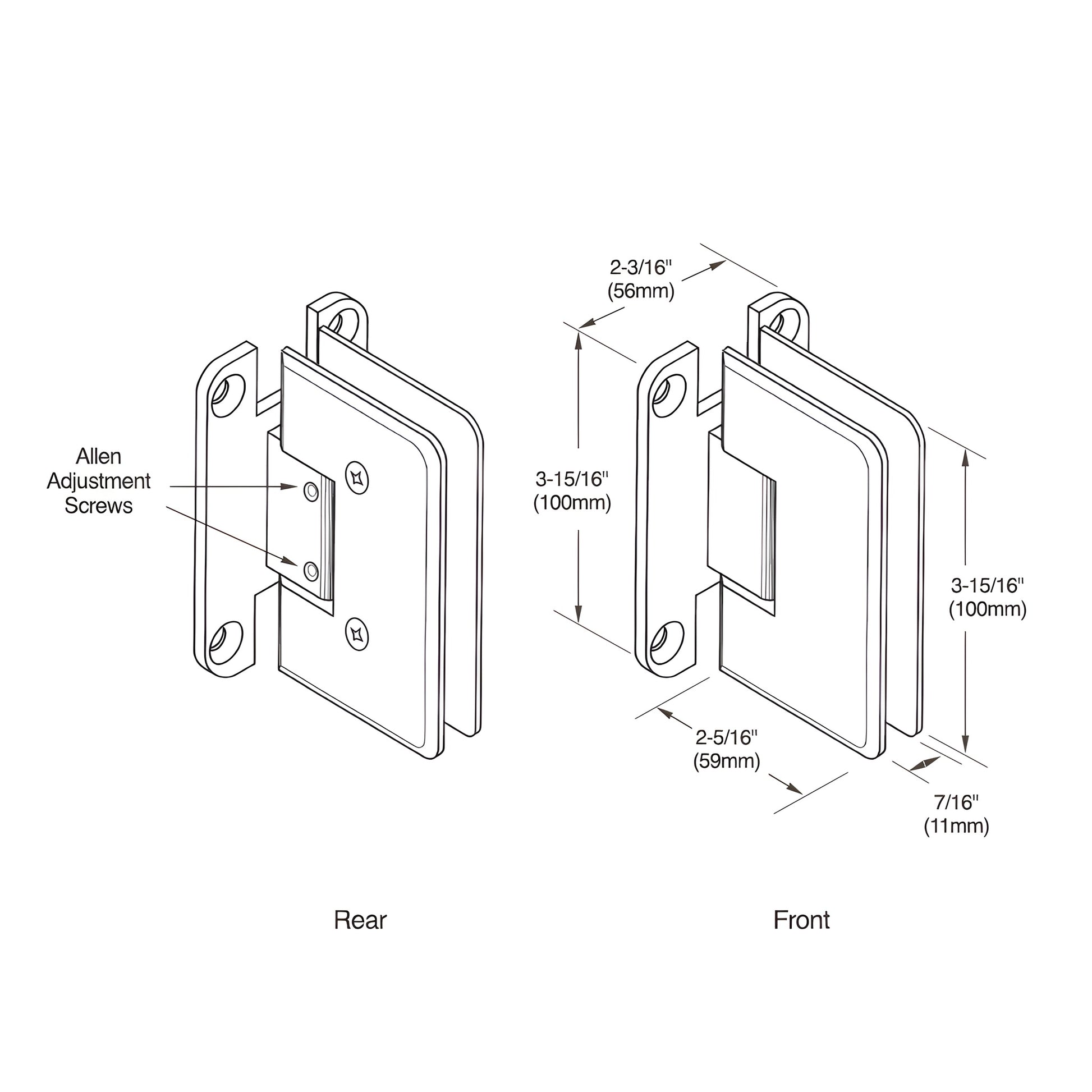

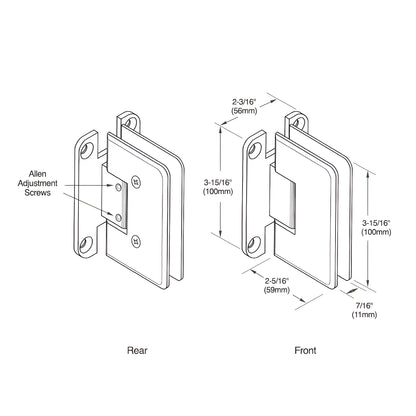

The CRL Adjustable Cologne Series is an adjustable shower door hinge engineered for easy on‑site angle adjustment up to 90° after installation. Loosen the Allen set screws, rotate the door to the desired closed position, then tighten—your door will self-center at the selected angle. The hinge allows a 90° swing inward and 90° outward (factory set position). For outward‑swinging doors using a clear door jamb, you can set the hinge to close 5° inside the shower for a snug fit against the jamb.

Performance & Capacity

Two-hinge installation: Holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm) using 3/8"–1/2" (10–12 mm) glass.
Three-hinge installation: Holds up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm) using 3/8"–1/2" (10–12 mm) glass.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass for corrosion resistance and durability
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request by contacting CRL Technical Sales.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
