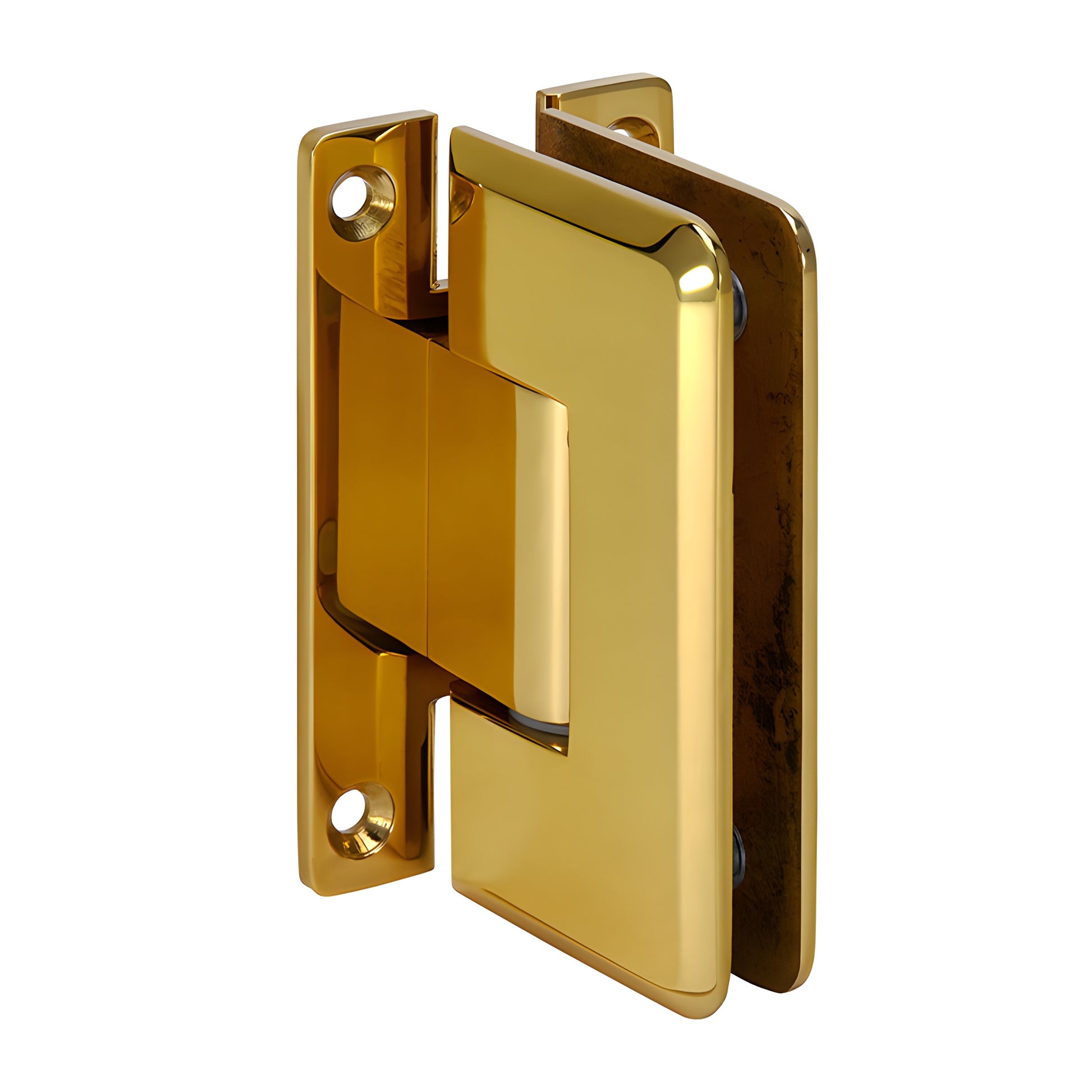

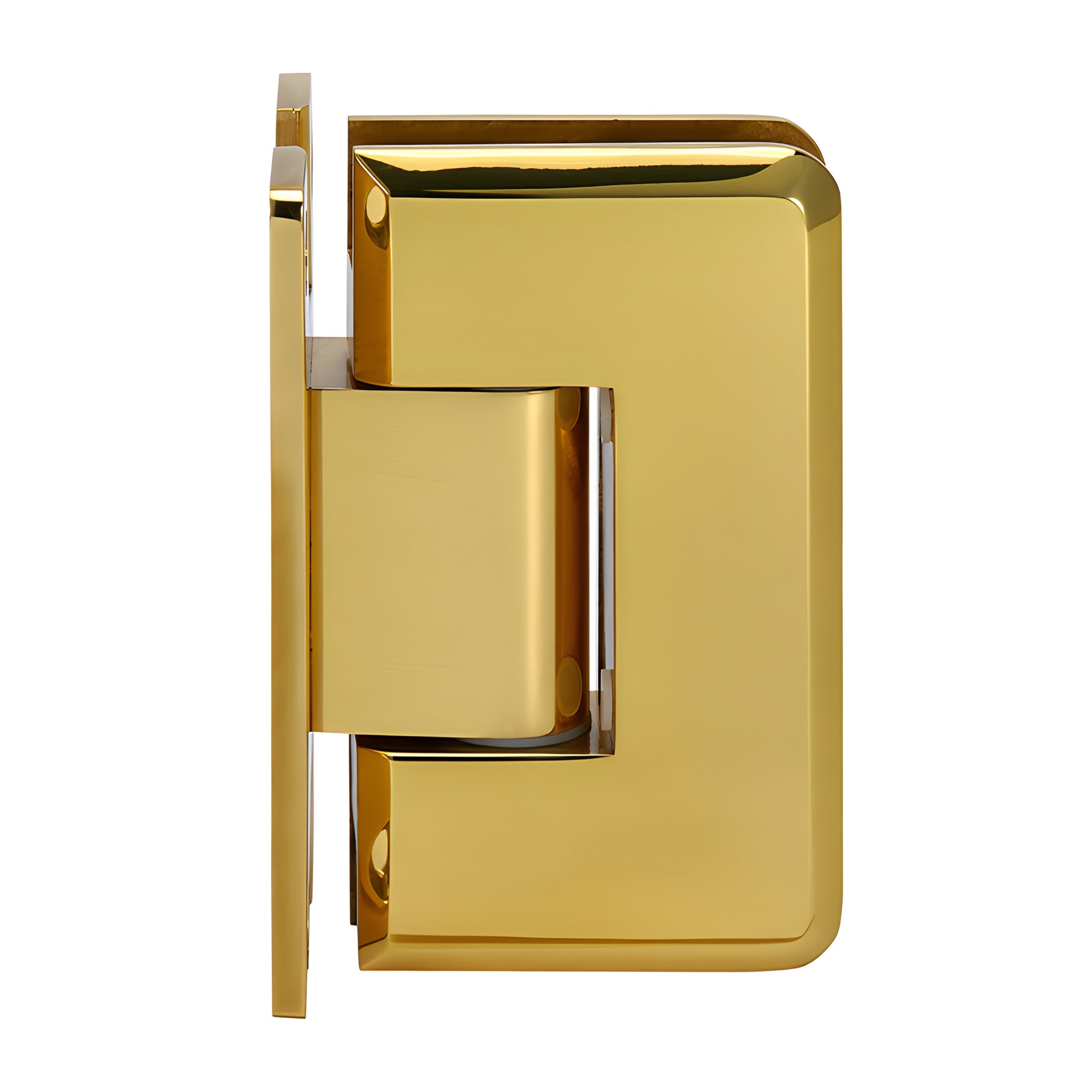

CRL Cologne 337 Unlacquered Brass Adjustable H Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable finishes, including custom finishes on request

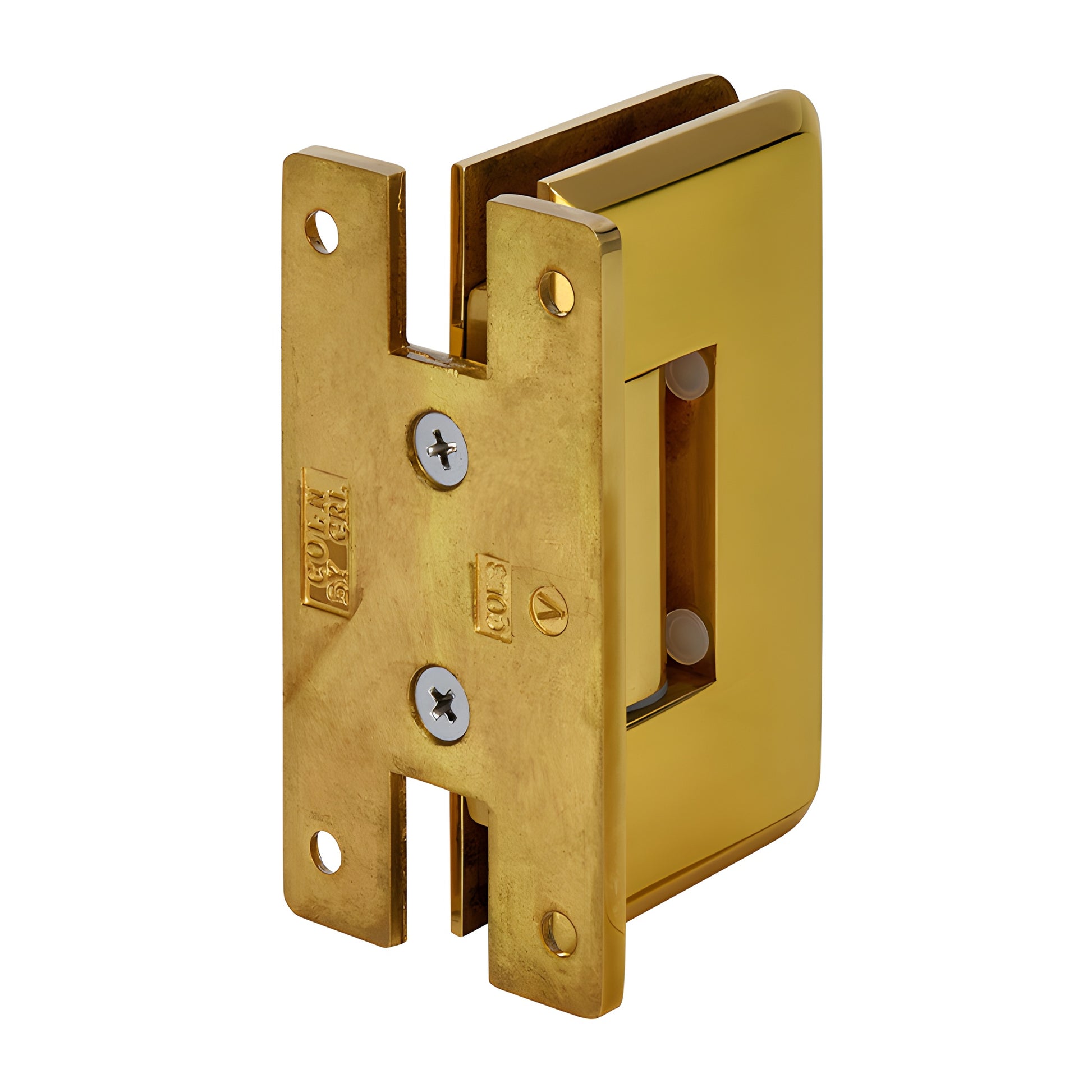

• Adjustable wall mount with full back plate for secure installation
• Designed for monolithic tempered glass shower doors

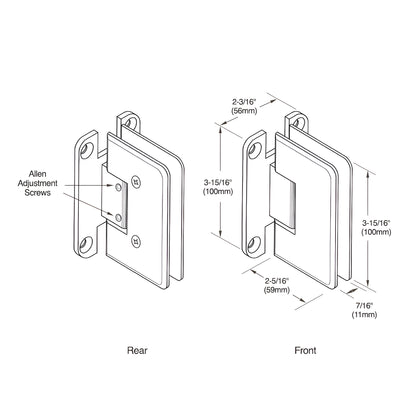

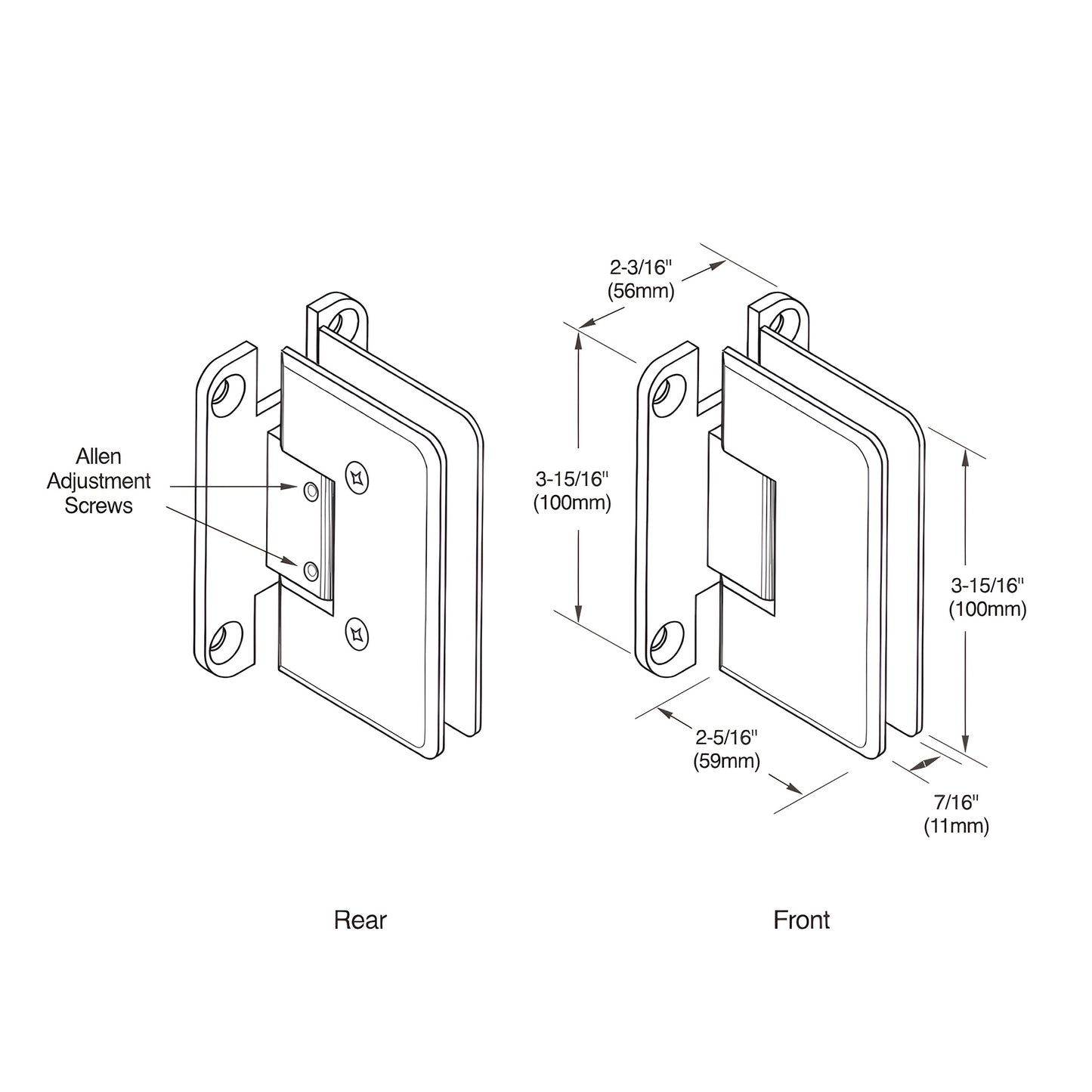

The CRL Adjustable Cologne Series is an adjustable shower door hinge engineered for easy post-installation alignment. Adjust the door angle (up to 90°) after hanging by loosening the Allen set screws, rotating the door to the desired position, then tightening the screws to self-center. The hinge allows 90° inward and 90° outward swing (factory set position affects maximum swing). For outward-swing doors using a clear door jamb, the hinge can be fine-adjusted to close 5° into the shower for a snug jamb fit.

Performance:
Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8"–1/2" glass (10–12 mm) supports up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without removing the door (ideal for on-site shower adjustments)
Construction: Solid brass for corrosion resistance and long life
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request—contact CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For alternative applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.
