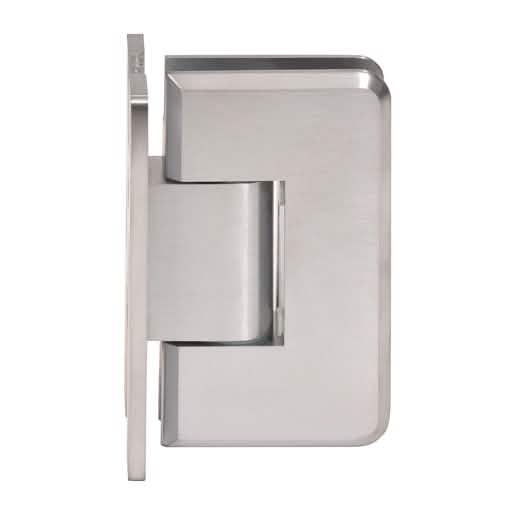

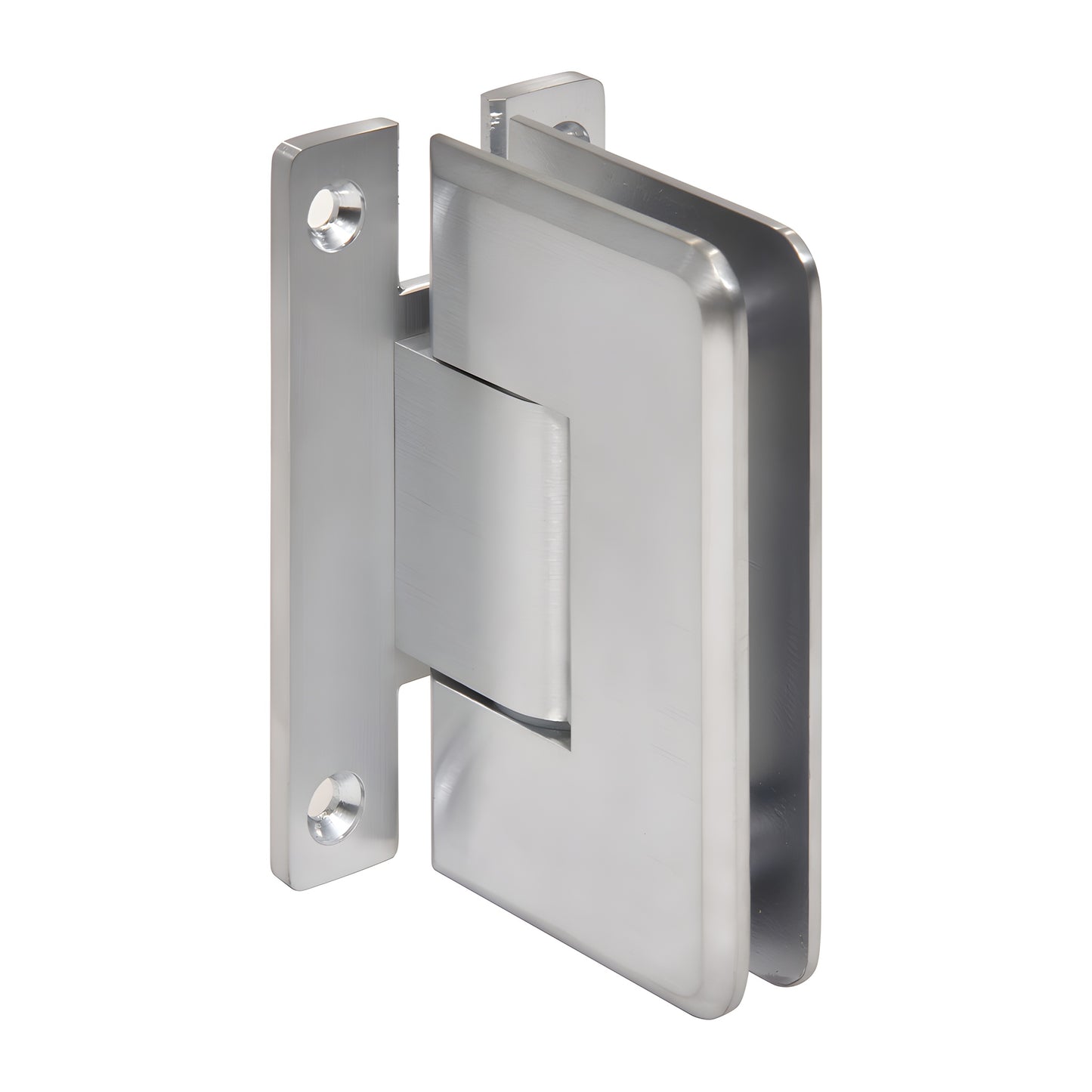

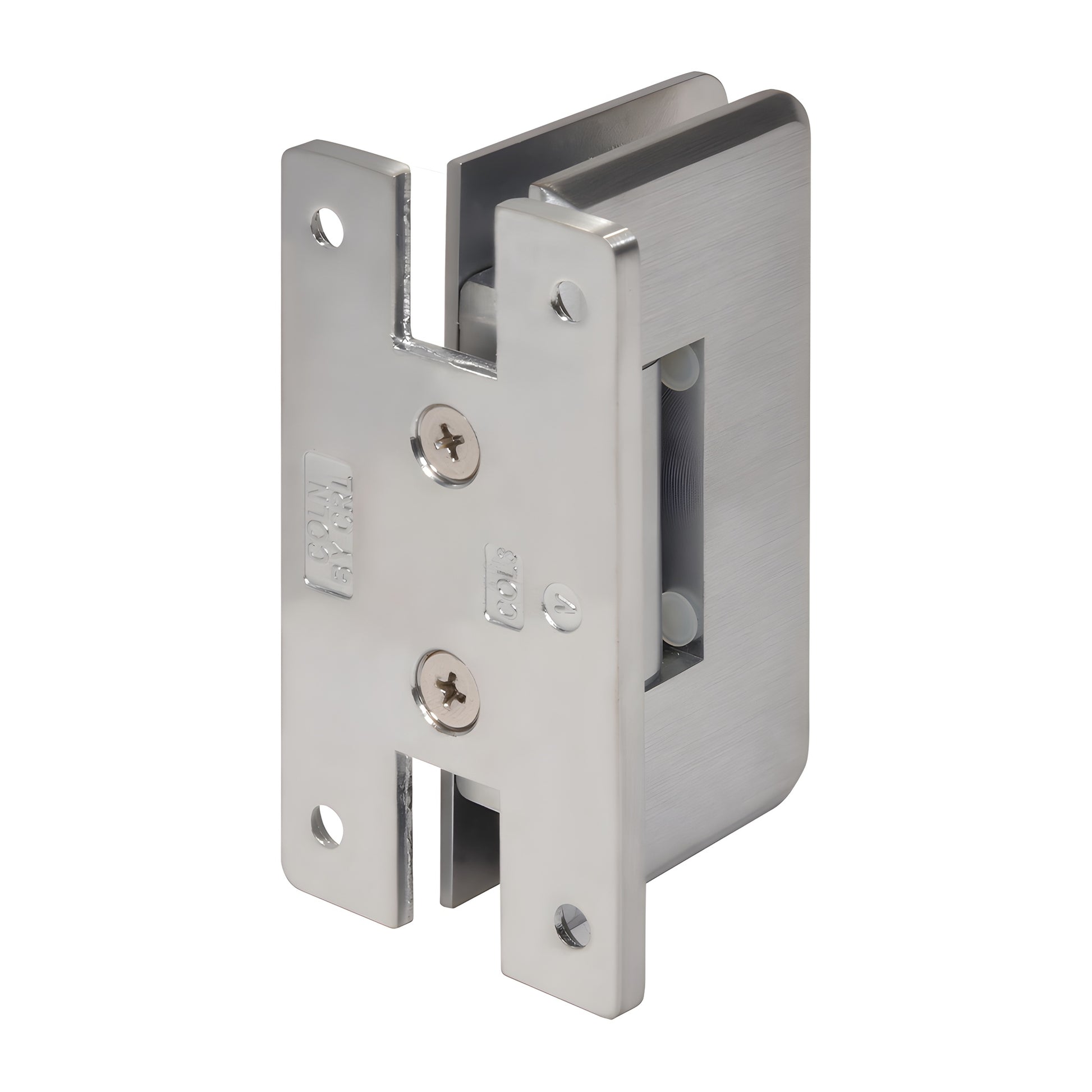

CRL Brushed Chrome Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
CRL Brushed Chrome Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
Regular price
$224.46 CAD
Regular price
Sale price
$224.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L337BCH
Shipping Weight: 1.98 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.98 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | Yes |
| Back | Plate 'H' |
| Edge | Profile Beveled |
| Finish/Color | Brushed Chrome |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Wall Mount |
| Positive | Close No |
| Self-Centering Yes | Cologne |
| Width 2-5/16 in. | (59 mm) |
Overview
The CRL Adjustable Cologne Series elevates the popular Cologne Hinge with its ability to accommodate 3/8" to 1/2" (10 to 12 mm) glass and offers adjustable wall mount full back plates in several beautiful finishes.

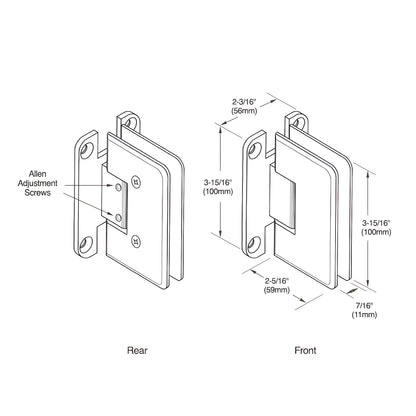

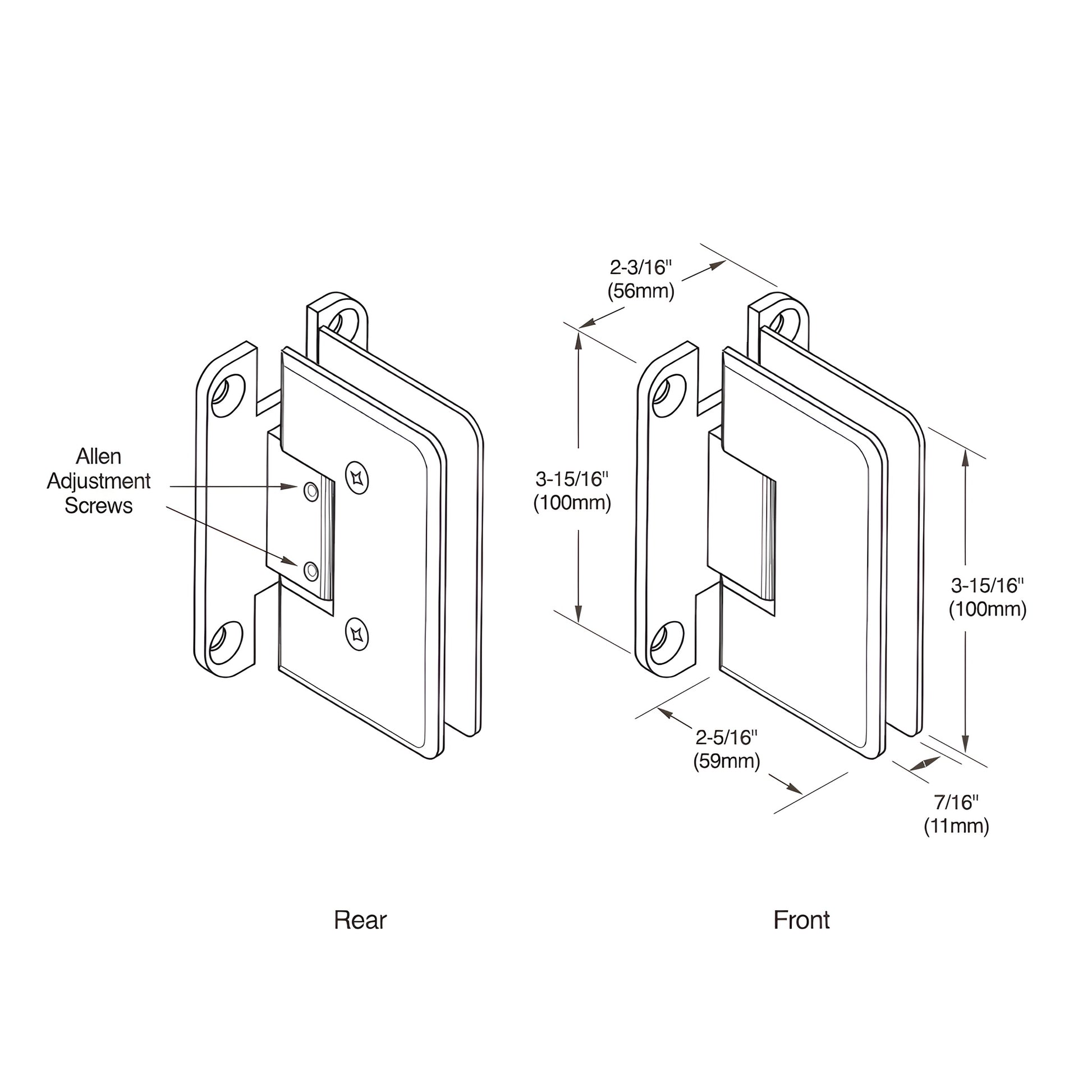

This innovative hinge allows for easy post-installation angle adjustments up to 90º, ensuring your shower door self-centers perfectly by simply adjusting the Allen set screws.
Designed to swing 90º inward and outward, the hinge supports a maximum door width of 36" (914 mm) and can hold up to 140 lbs (63 kg) using three hinges.
Crafted from solid brass, the hinge is optimized for tempered safety glass and comes with gaskets, screws, and fabrication dimensions, making it a versatile and reliable choice for residential or hotel shower use.
For custom finishes or additional details, contact CRL Technical Sales.
This innovative hinge allows for easy post-installation angle adjustments up to 90º, ensuring your shower door self-centers perfectly by simply adjusting the Allen set screws.
Designed to swing 90º inward and outward, the hinge supports a maximum door width of 36" (914 mm) and can hold up to 140 lbs (63 kg) using three hinges.
Crafted from solid brass, the hinge is optimized for tempered safety glass and comes with gaskets, screws, and fabrication dimensions, making it a versatile and reliable choice for residential or hotel shower use.
For custom finishes or additional details, contact CRL Technical Sales.
