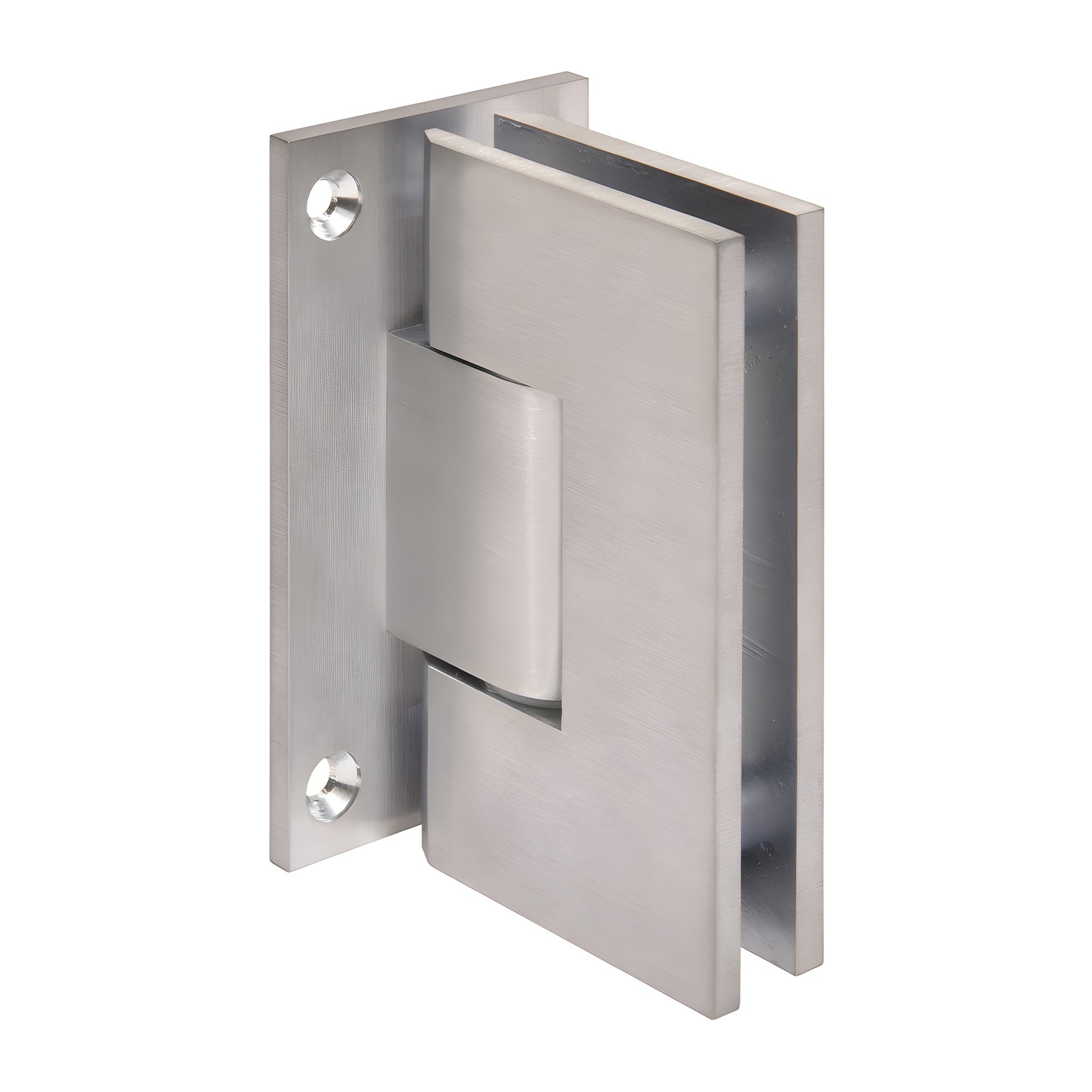

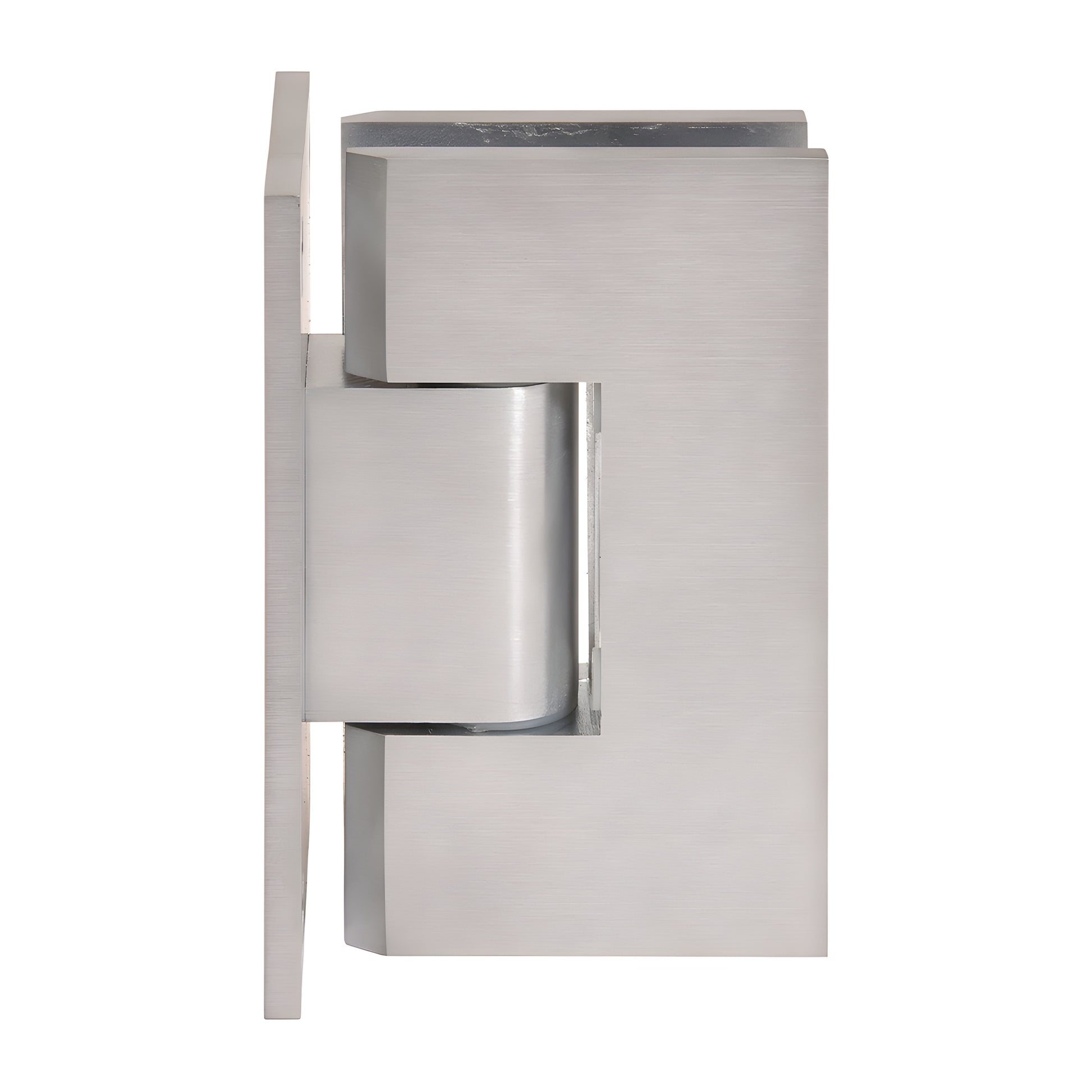

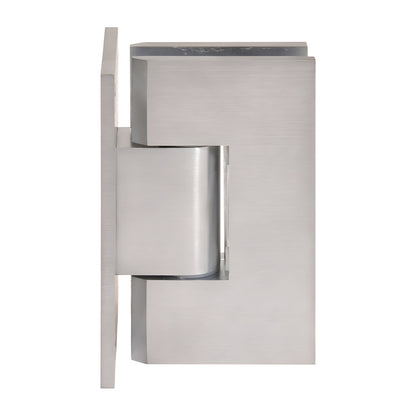

CRL Vienna 337 Brushed Chrome Adjustable Wall-Mount Glass Door Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in multiple finishes
• 3 Year Warranty

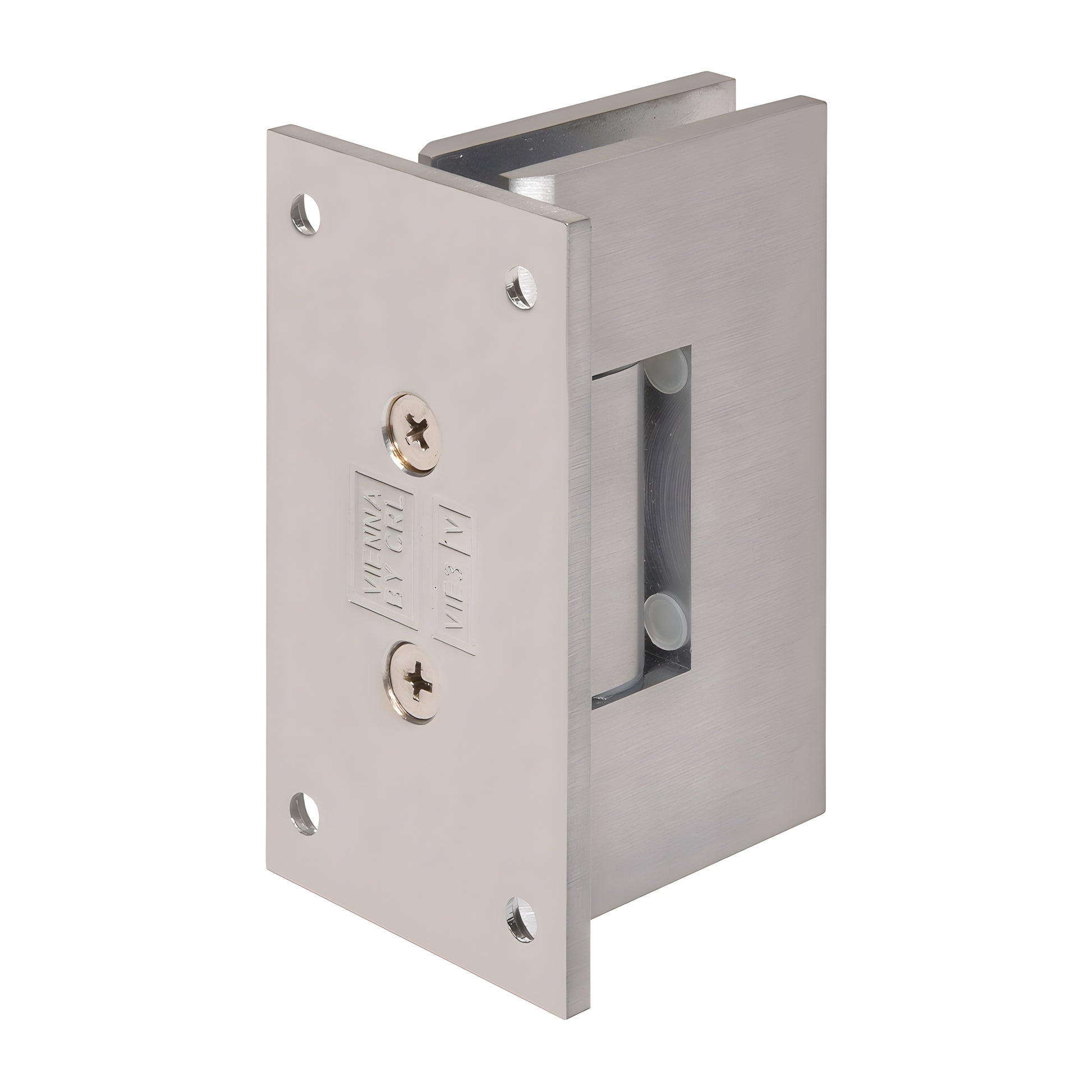

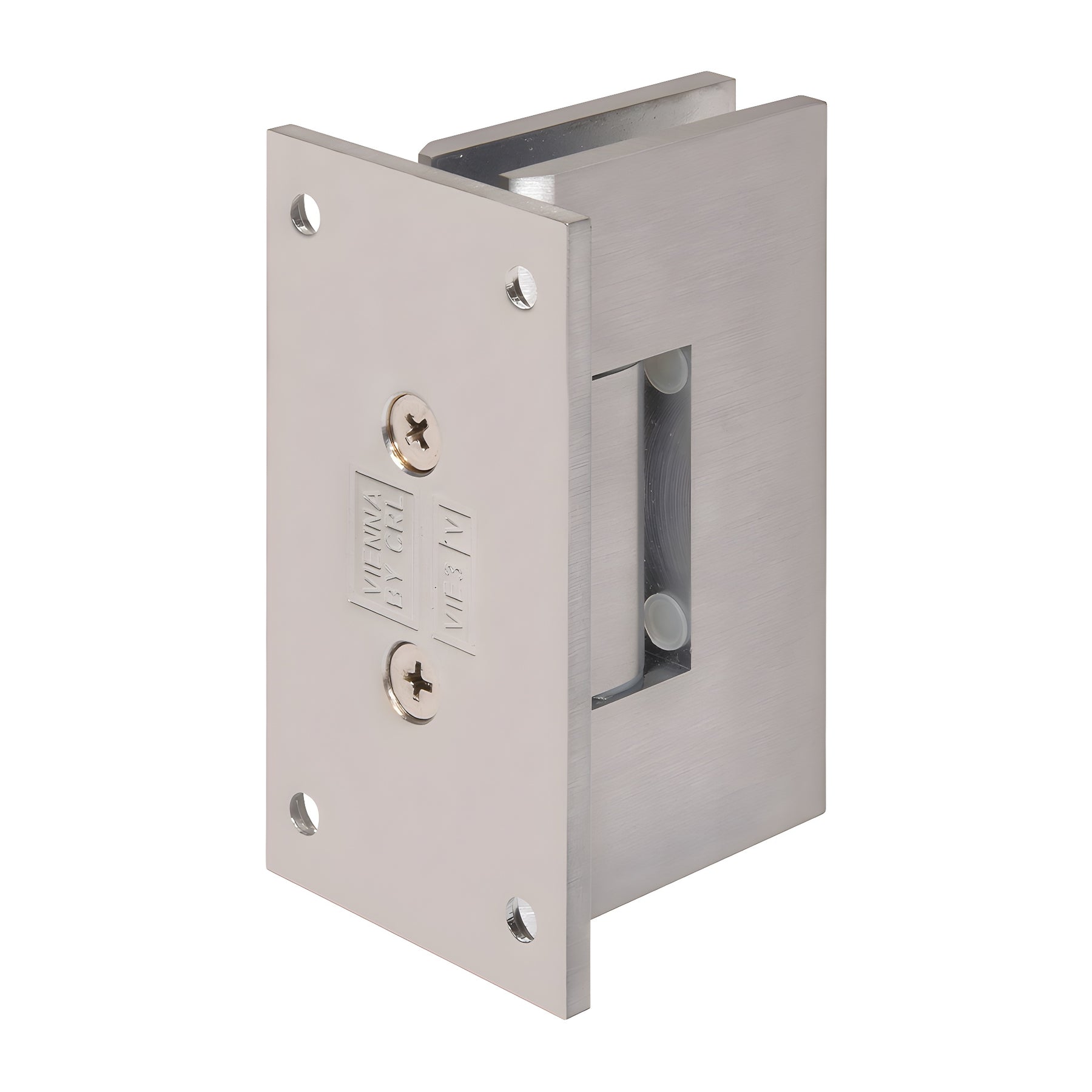

• Adjustable wall mount with full back plate
• Designed for monolithic tempered glass

The CRL Adjustable Vienna Series (SKU: V1E337BCH) upgrades the popular Vienna Hinge into a precision, field-adjustable shower hinge for frameless glass doors. After the door is hung, loosen the Allen set screws, rotate the door to the desired closed position, then retighten—your door will self-center to the chosen angle. The hinge permits 90° swing in and 90° swing out at the factory set position; adjusting the factory angle reduces swing in that direction. For outward-swing doors using a clear jamb, set the hinge to close 5° inside the shower for a snug seal.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° for a tighter 5° closure into the shower interior. Rotate the pin (do not flip) to activate the alternate setting.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard pin does not achieve the desired closure.

Performance:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg), max door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact CRL Technical Sales, Shower Door Department.
