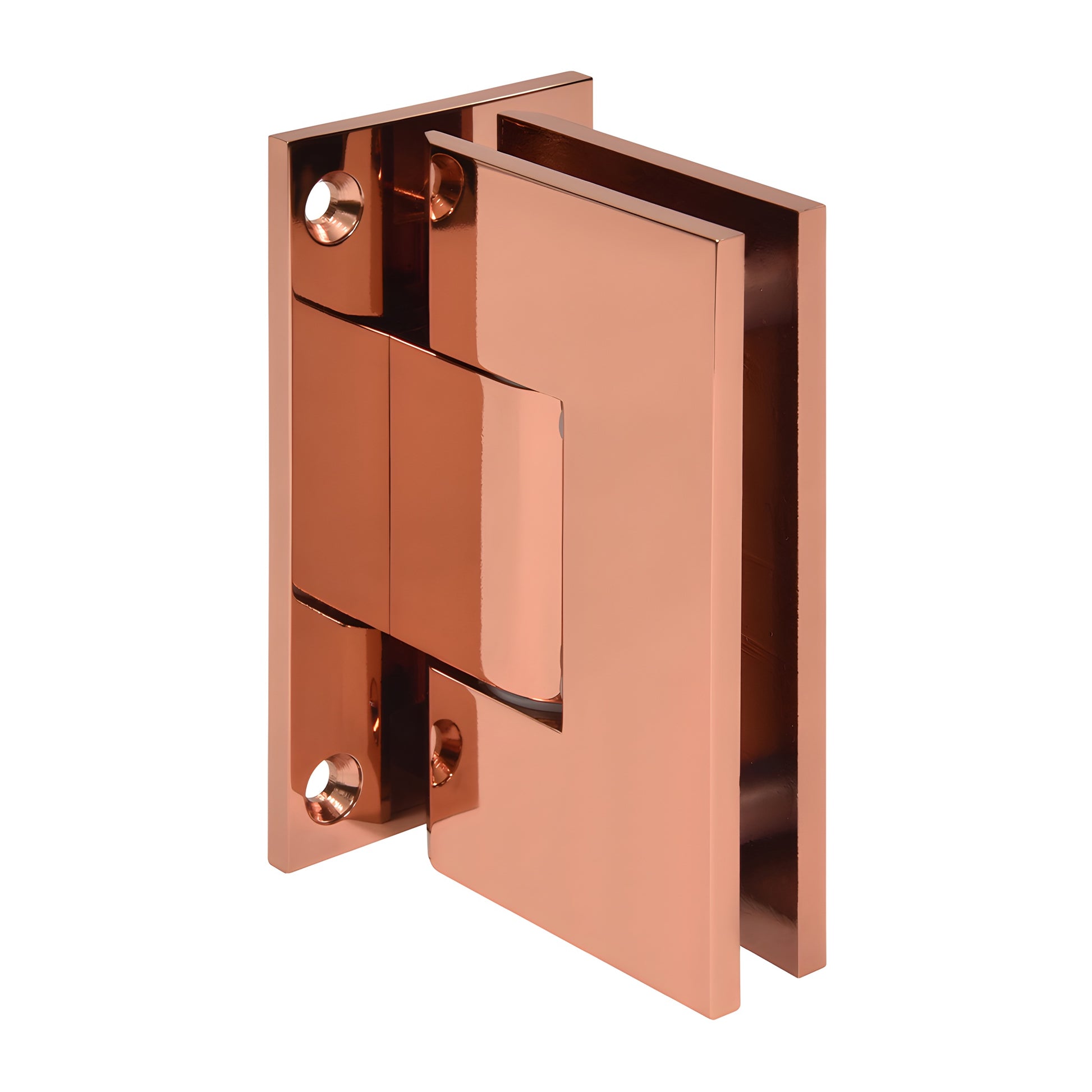

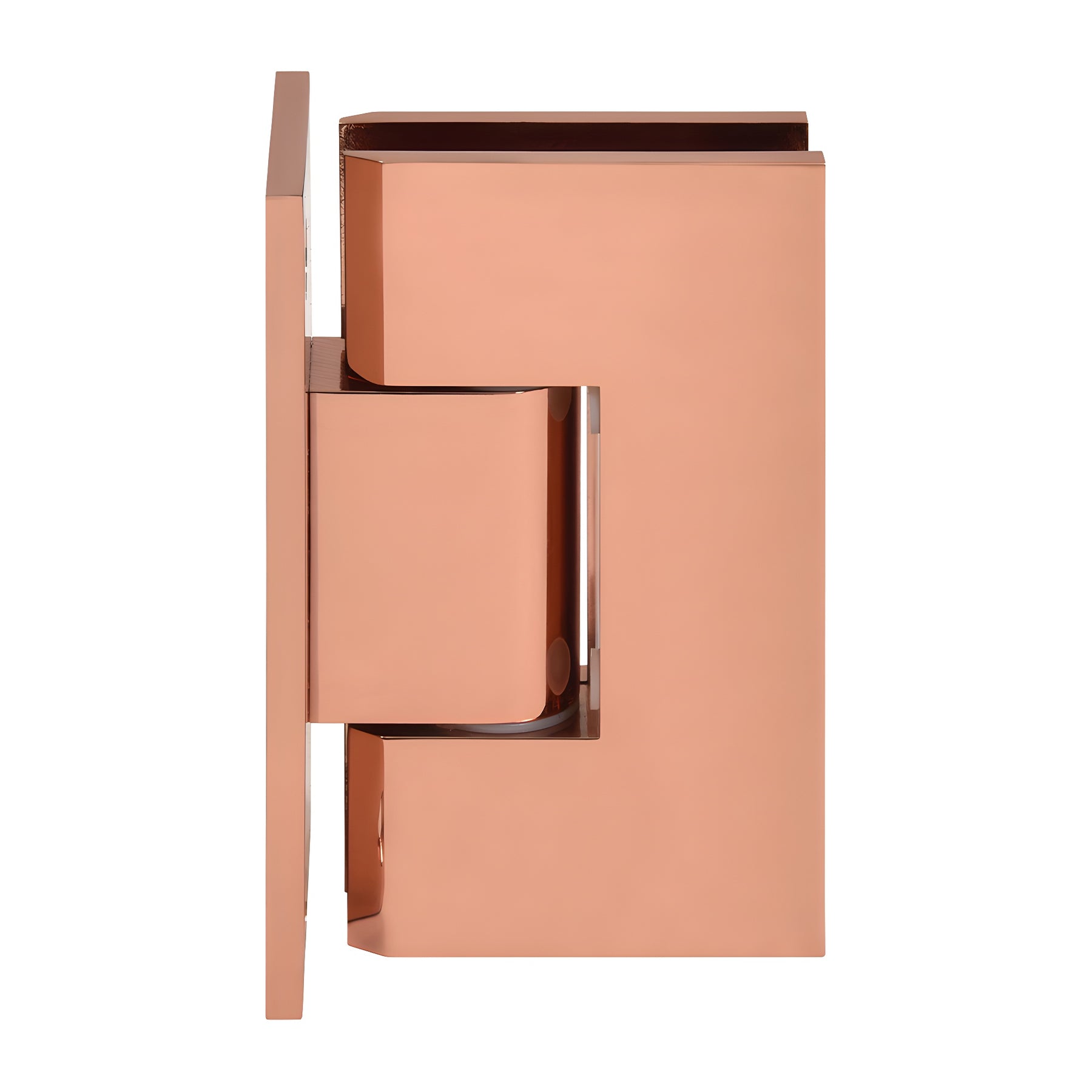

CRL Vienna 337 Rose Gold Adjustable Wall Mount Hinge, Full Back Plate

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• 3 Year Warranty

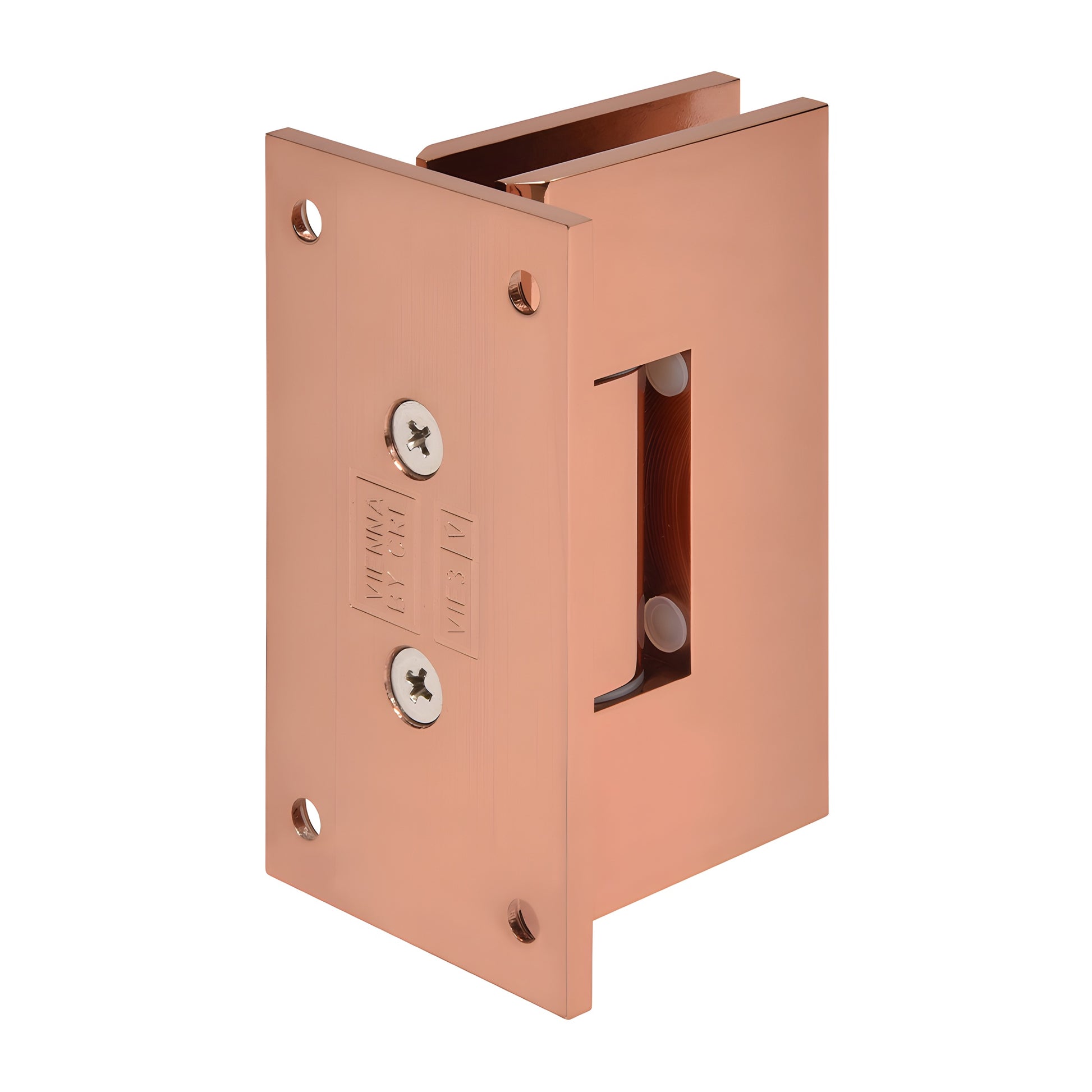

• Adjustable wall mount full back plate
• Use with monolithic tempered glass

SKU: V1E337RG

CRL Adjustable Vienna Series — a precision adjustable shower door hinge engineered for frameless glass shower doors. Adjust the closing angle up to 90° after the door is hung: loosen the Allen set screws, rotate the door to the desired position, then tighten to self-center. The hinge supports 90° inward and 90° outward swing (adjusting from factory position reduces swing in that direction). For outward-swing installations using a clear door jamb, set the hinge to close 5° inside the shower for a snug jamb seal.

Standard Reversible Pivot Pin: Each Vienna hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models are set to 85° for a 5° tighter closure into the shower. The pin can be rotated to switch sides.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations—specify the needed angle (up to 45°) when standard adjustment does not achieve the desired closure.

Load Capacity: Using two hinges with 3/8" to 1/2" (10–12 mm) tempered glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm). Using three hinges with 3/8" to 1/2" (10–12 mm) tempered glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request—contact CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door
