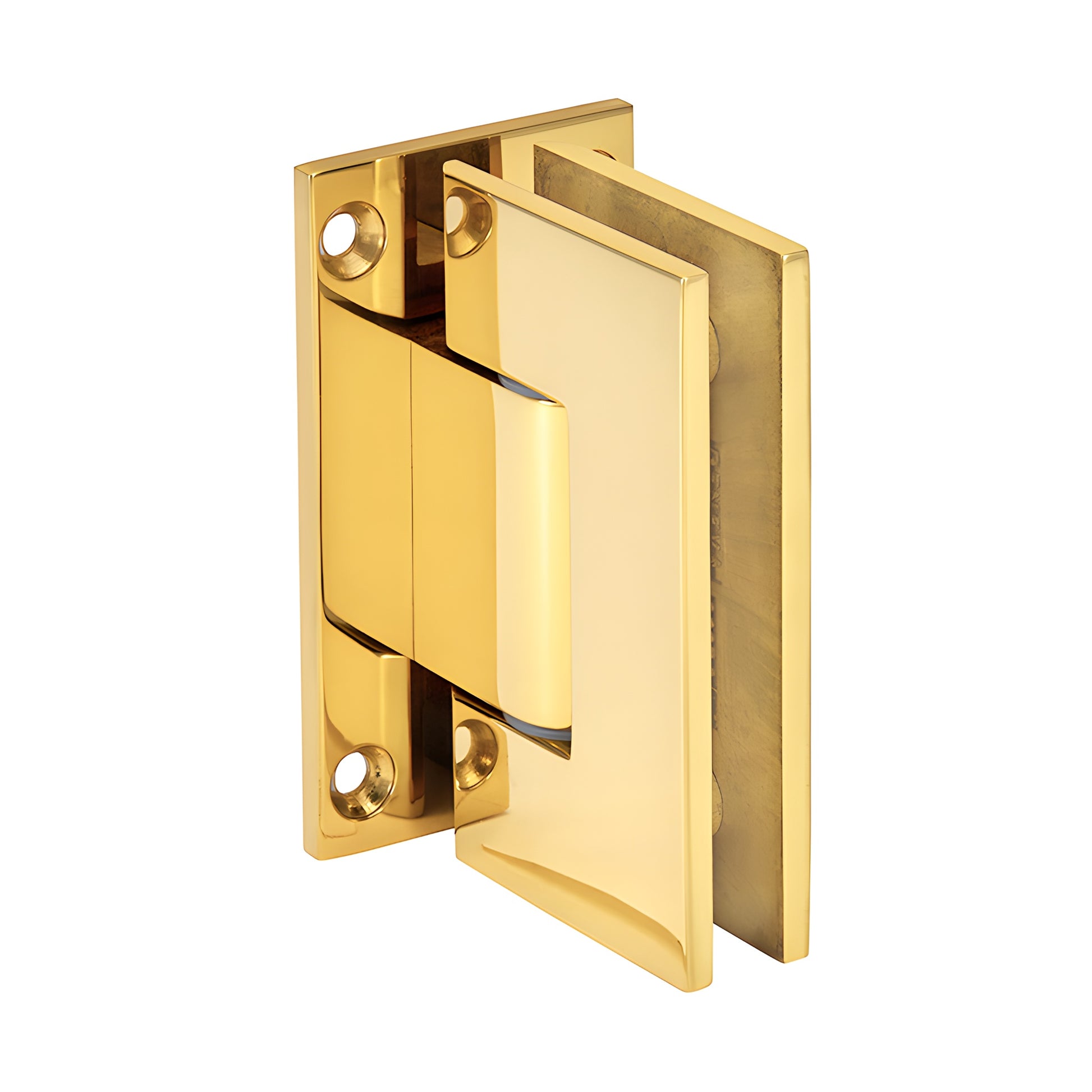

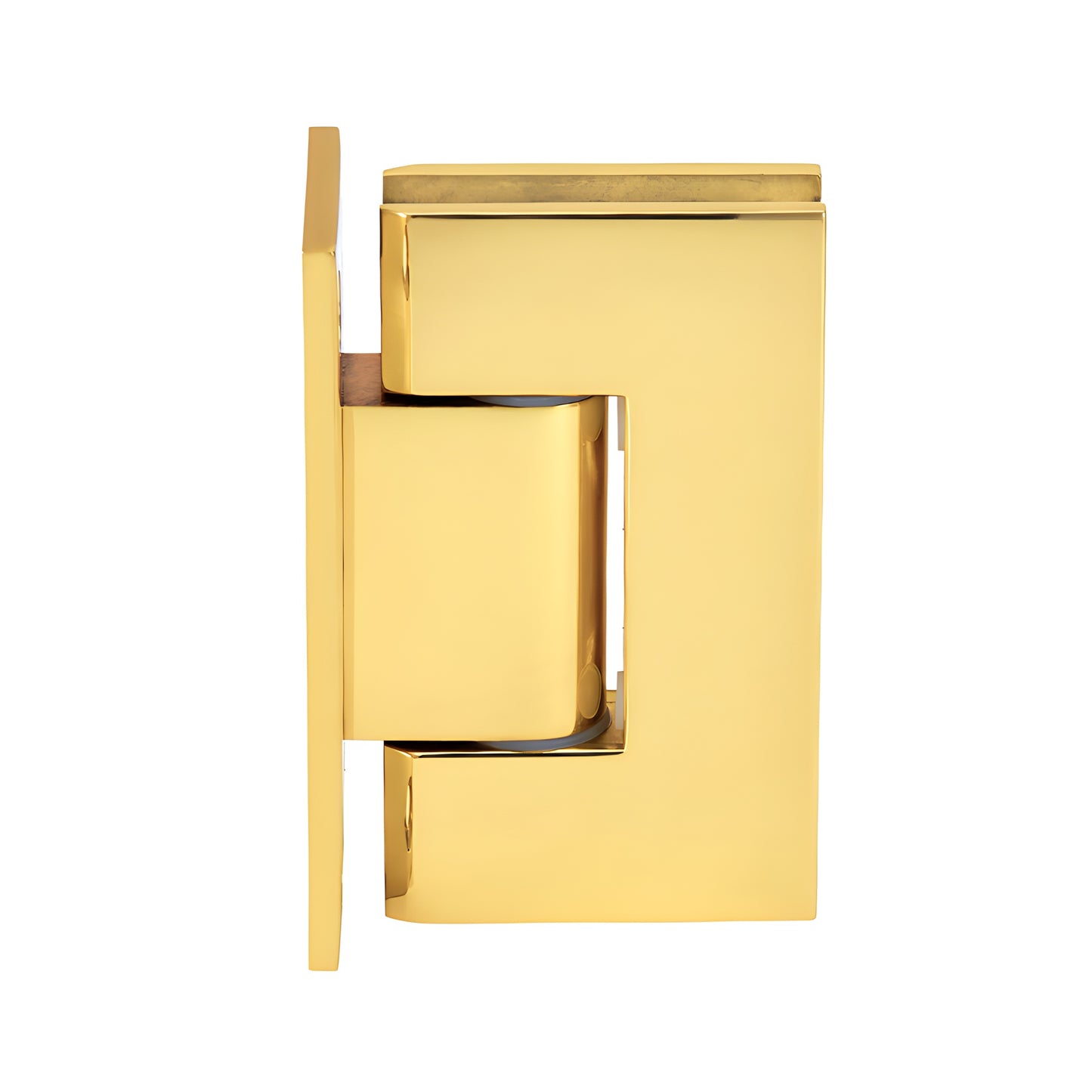

CRL Vienna 337 Unlacquered Brass Adjustable Backplate Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several beautiful finishes
• 3 Year Warranty

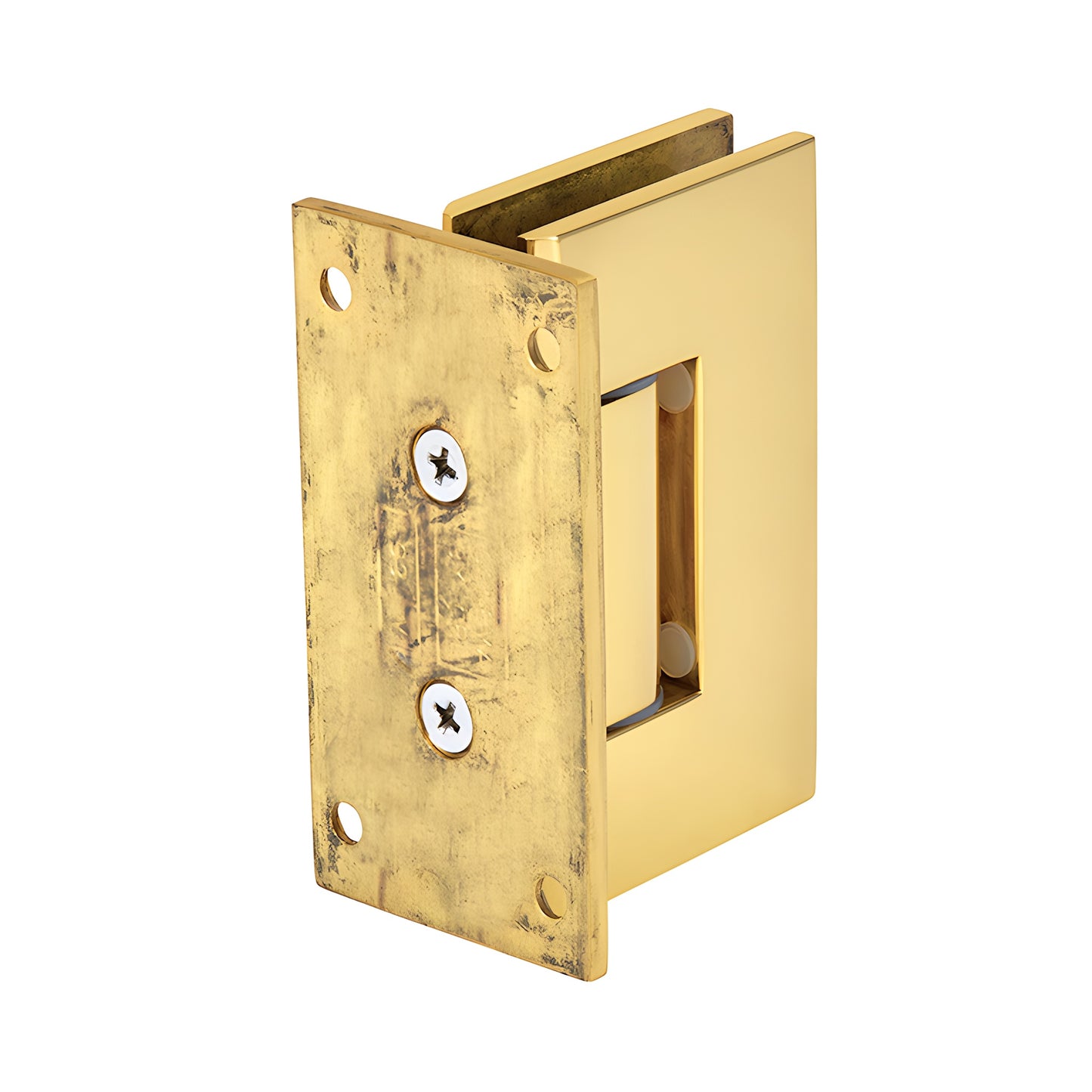

• Adjustable wall mount full back plate
• Use with monolithic tempered glass

CRL Adjustable Vienna Series — premium adjustable shower door hinge (SKU: V1E337ULBR) engineered for glass shower doors and frameless enclosures. Adjust the closing angle up to 90° after the door is hung: loosen the Allen set screws, rotate the door to the desired position, then tighten to self-center. Door swing: 90° in and 90° out at factory setting (adjusting angle reduces swing in that direction). For outward-pulling doors with a clear jamb, set the hinge to close 5° into the shower for a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Factory standard is 90°; pre-set models use 85° for a tighter 5° closure into the shower. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations—specify the angle required up to 45° if the standard 5° pin does not achieve the desired closure.

LOAD CAPACITY:

Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 110 lbs (50 kg), max door width 36" (914 mm).

Using three hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Adjustable to any angle up to 90° without removing the door

Construction: Solid brass

Hinge Swings: 90° in and 90° out (at factory set position)

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
