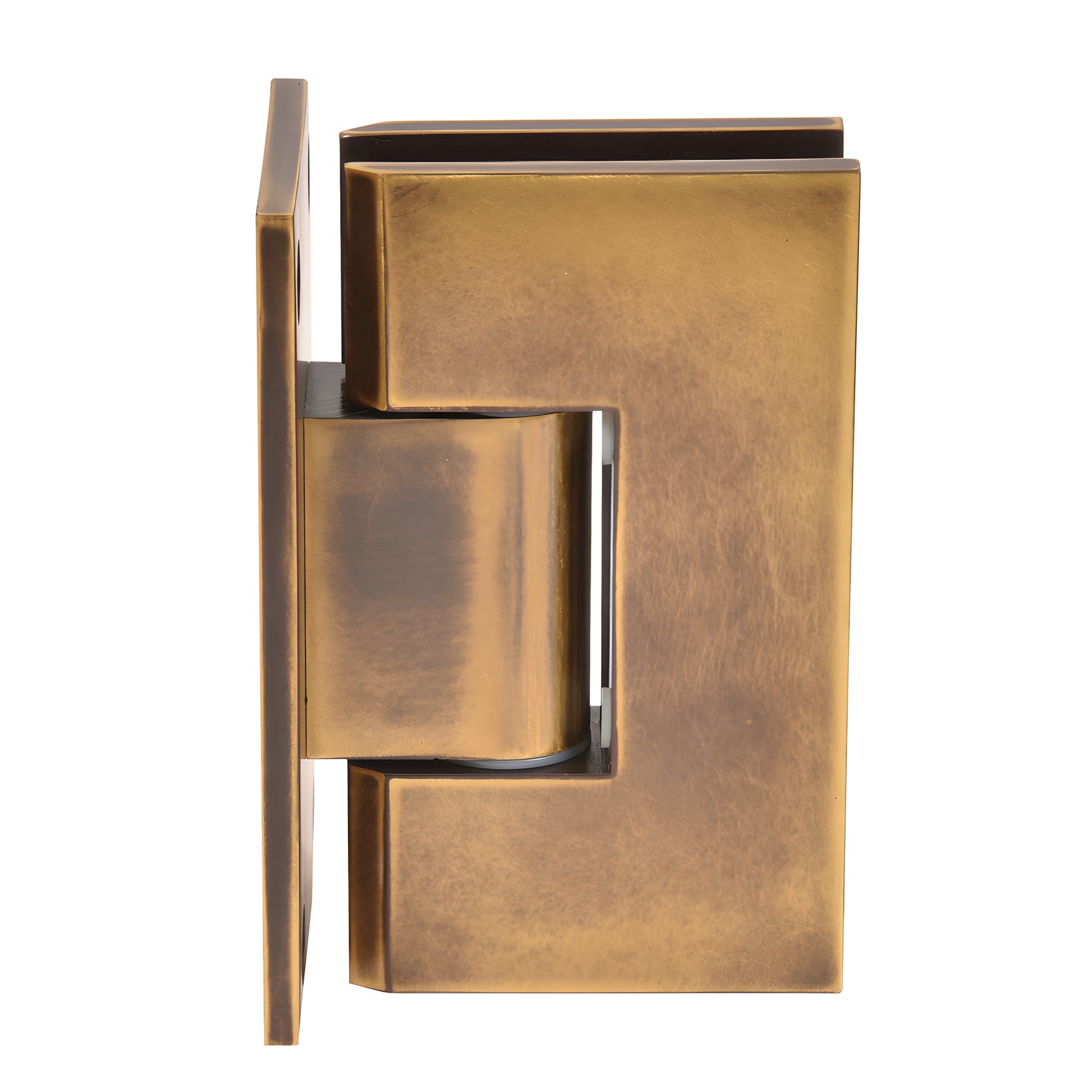

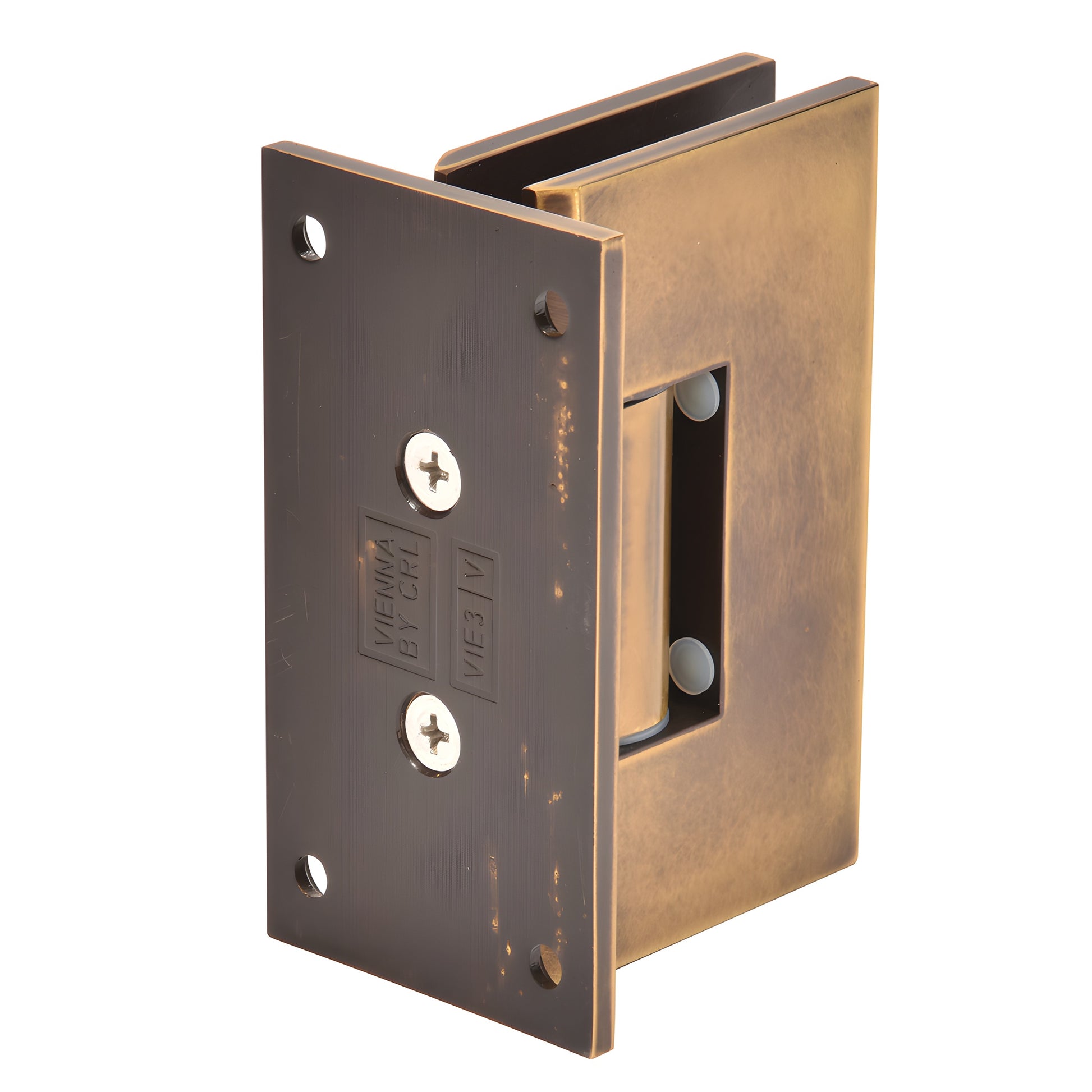

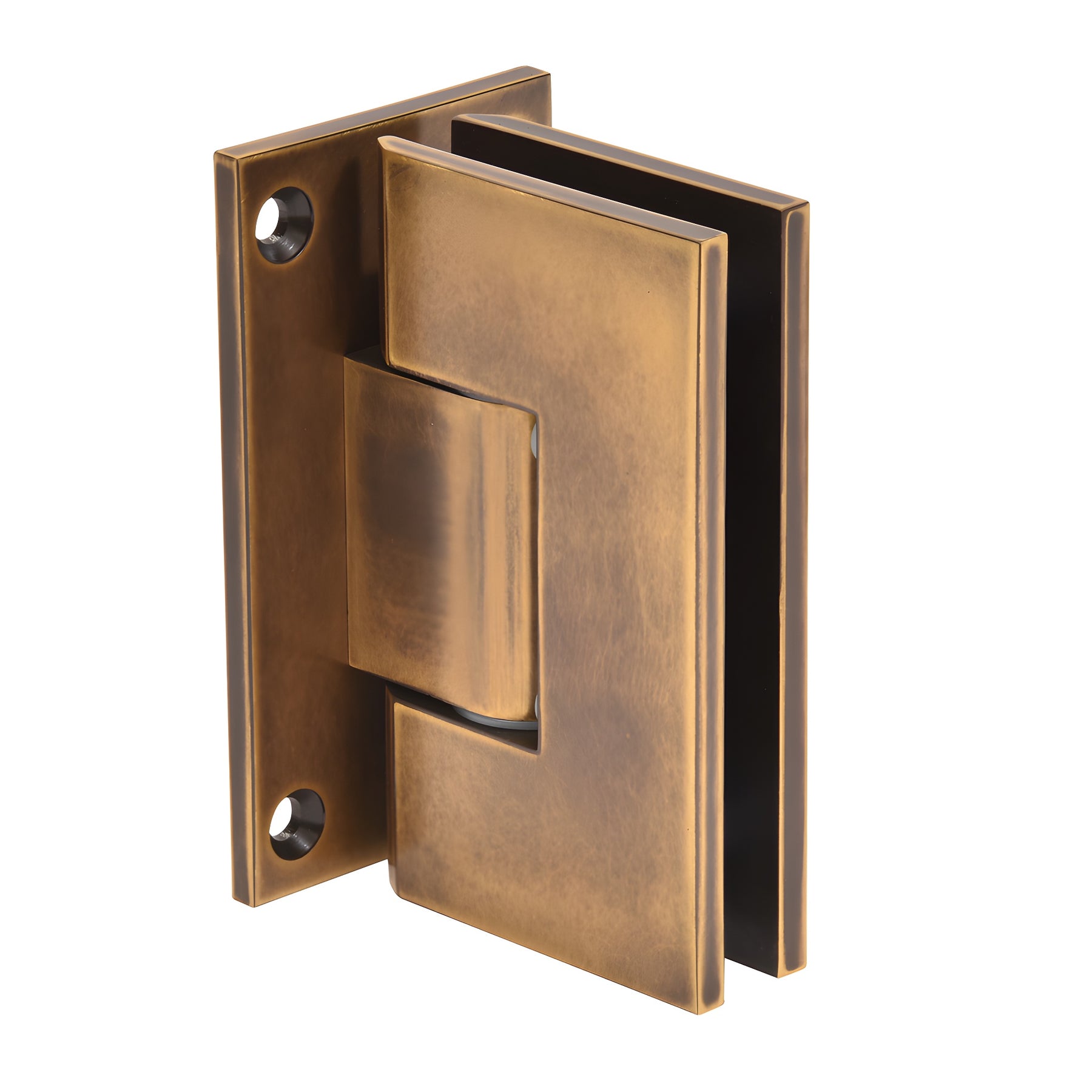

CRL Vienna 337 Vintage Brass Adjustable Wall Hinge, Full Back Plate

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable wall mount full back plate
• Use with monolithic tempered glass

CRL Adjustable Vienna Series (SKU: V1E337VBR) — a precision adjustable shower door hinge engineered for easy field adjustment after the door is hung. Loosen the Allen set screws, rotate the door to the desired position (up to 90°), then retighten—your door will self-center to the chosen closed position. The hinge supports 90° swing in and 90° swing out at the factory set position and can be adjusted for inward or outward closing as needed.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side active. Rotate the pin to engage the 85° side for a 5° tighter closure into the shower interior (pre-set models may ship 85°).

Custom Pivot Pins: Specify a custom pivot pin for off-angle installations—available up to 45° when the standard adjustment does not achieve the required closure.

Load Ratings: Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass: up to 110 lbs (50 kg), maximum door width 36" (914 mm). Using three hinges with 3/8"–1/2" (10–12 mm): up to 140 lbs (63 kg), maximum door width 36" (914 mm).

Specifications
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request—contact CRL Technical Sales, Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
