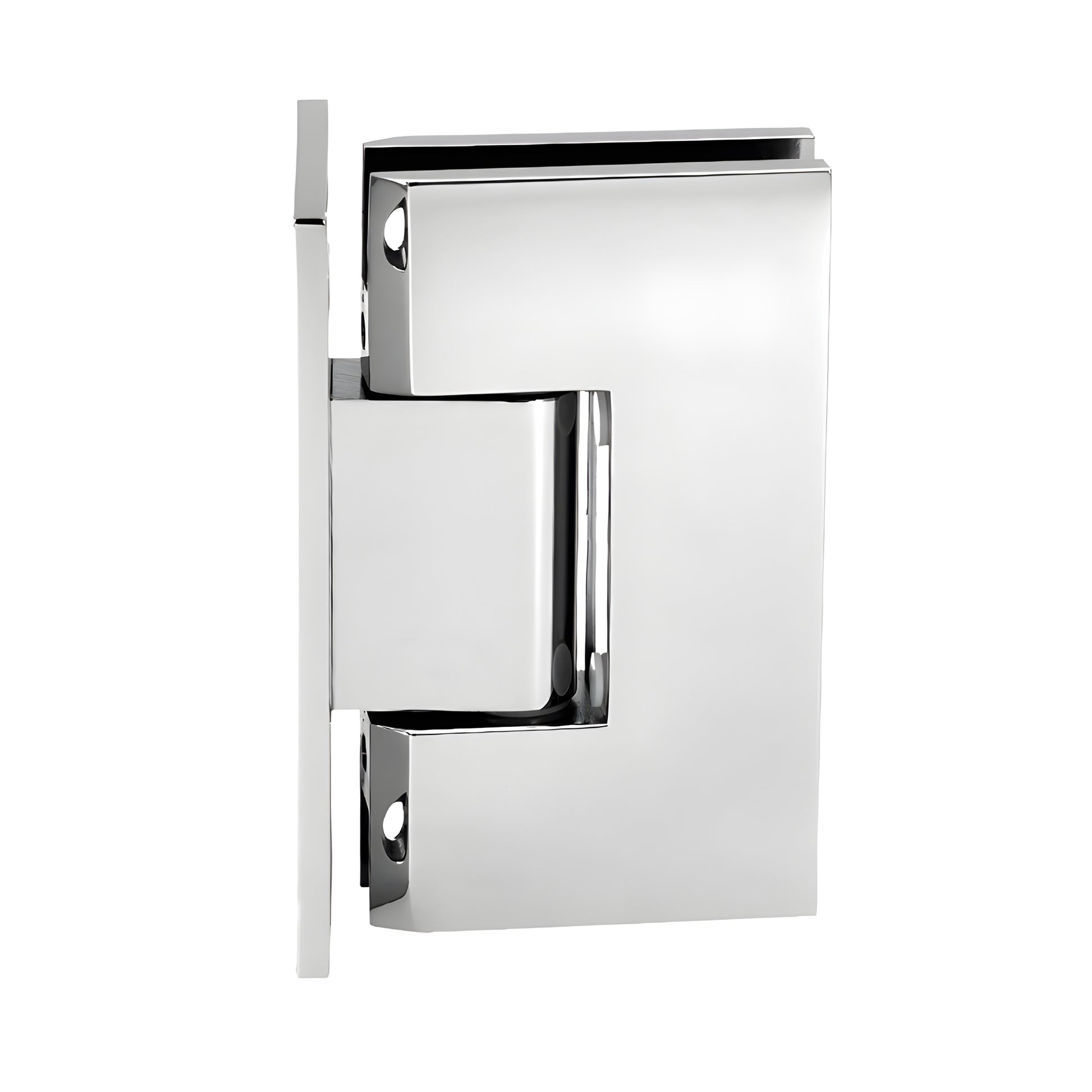

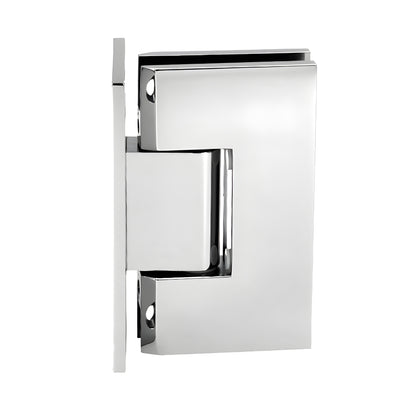

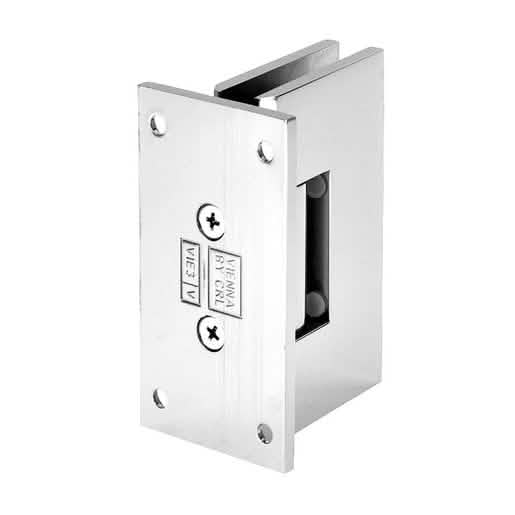

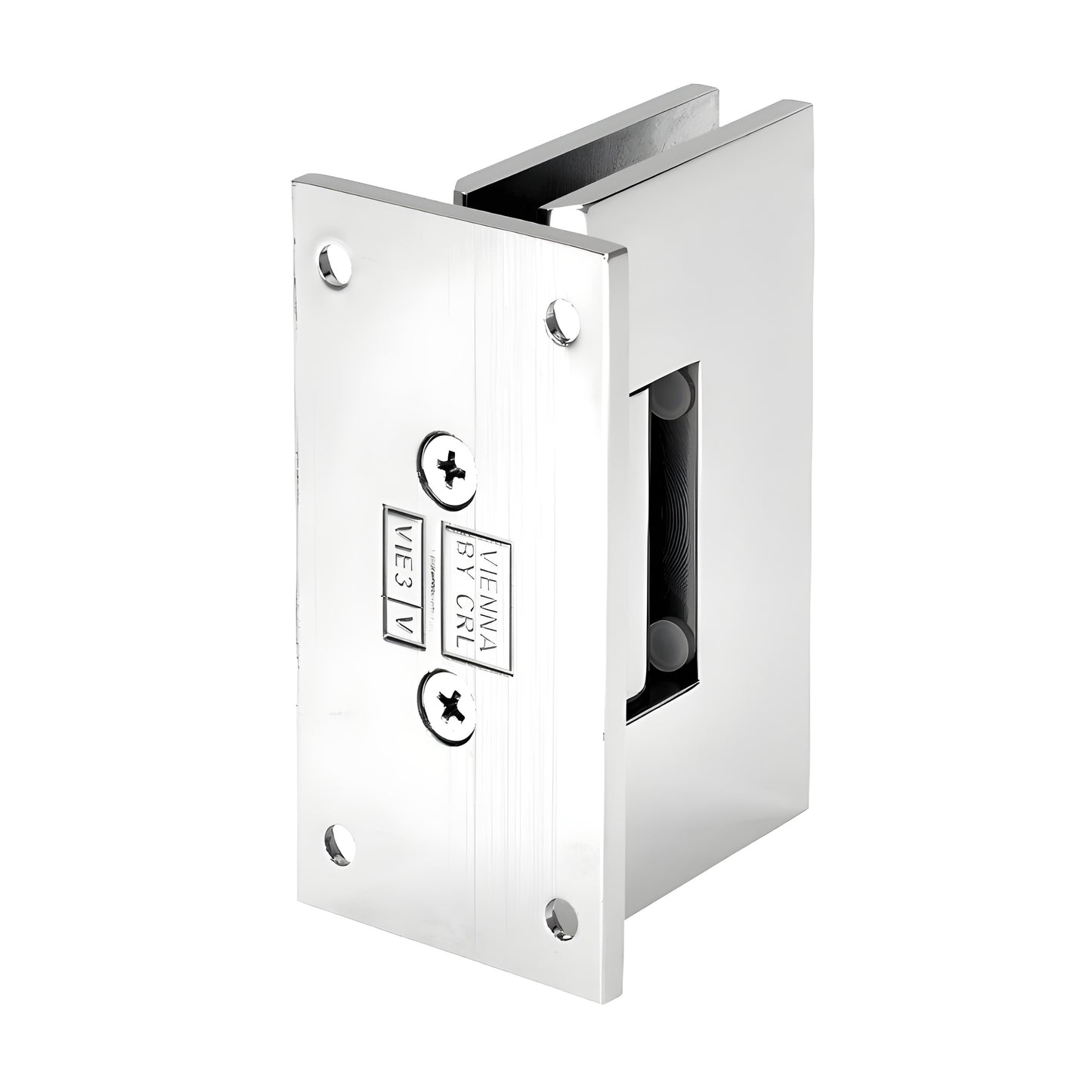

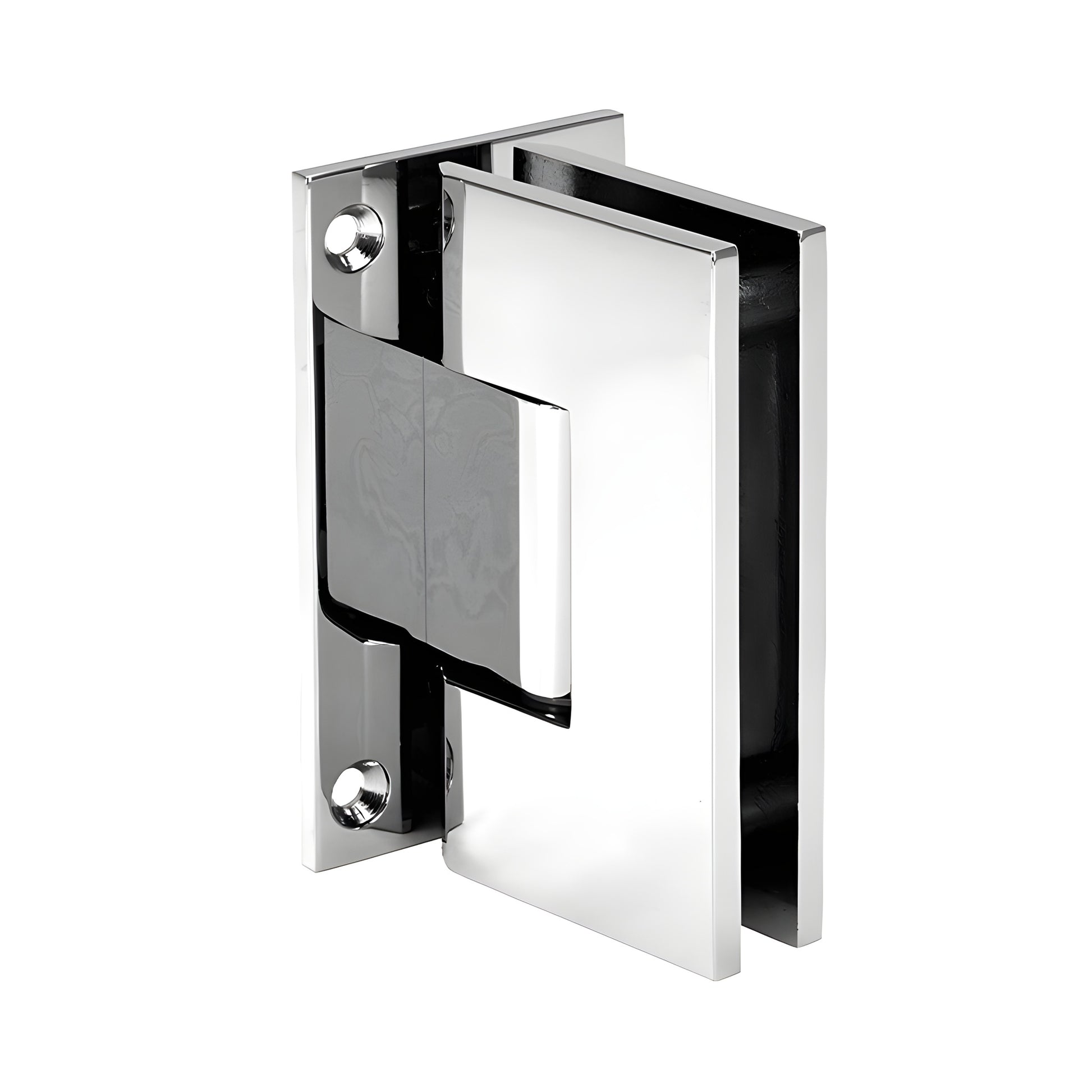

CRL Polished Chrome Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge
CRL Polished Chrome Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge
Regular price
$120.84 CAD
Regular price
Sale price
$120.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E337CH
Shipping Weight: 2.12 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.12 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | Yes |
| Back | Plate Full |
| Design | Style Squared |
| Enclosure | Type Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Polished Chrome |
| Glazing Thickness | 1/2 in. (12 mm) |

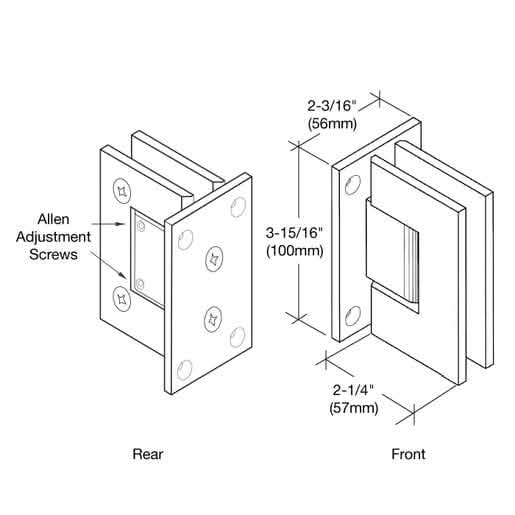

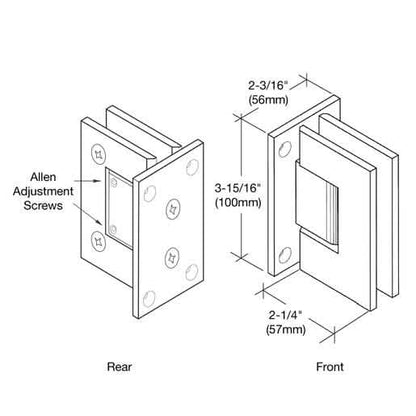

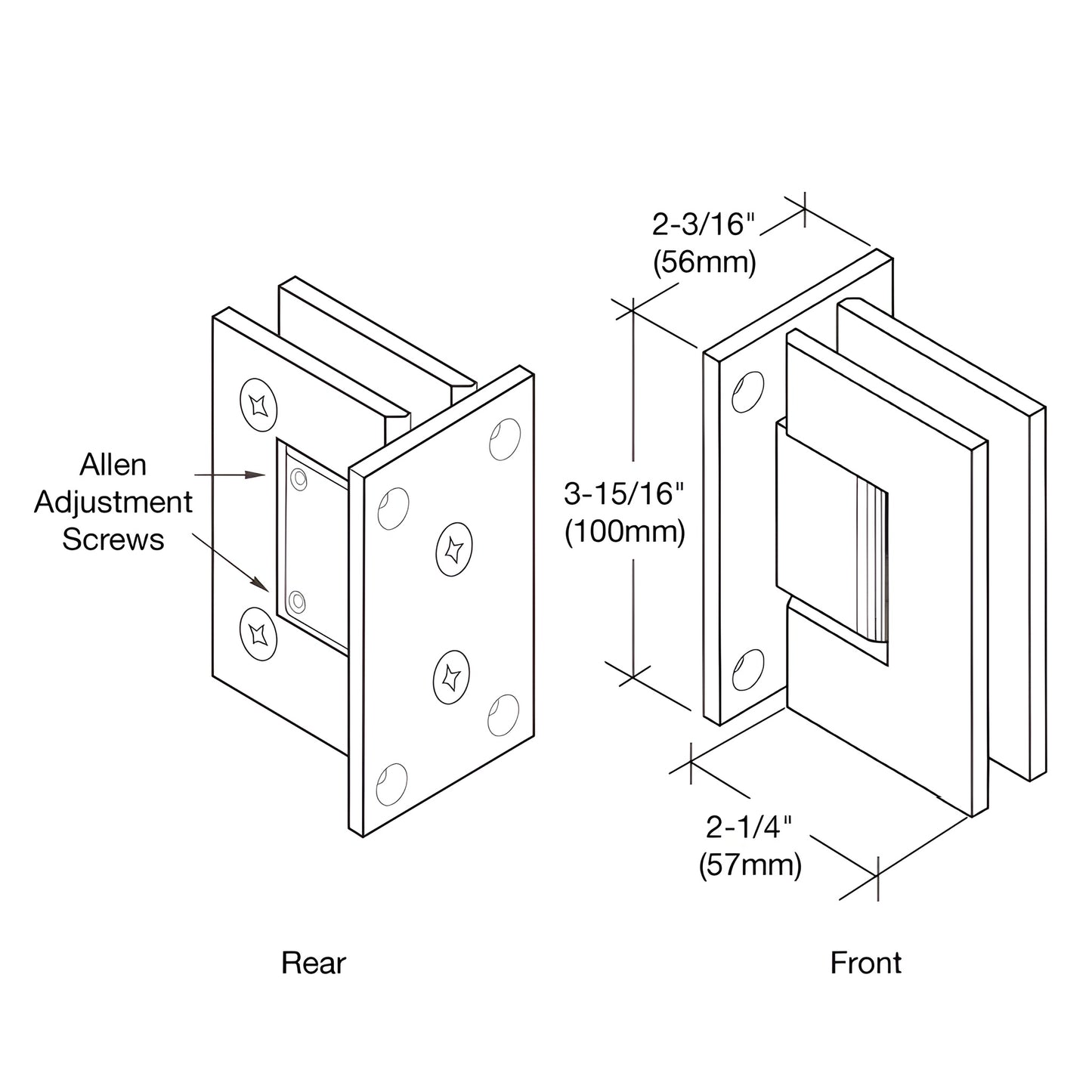

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Wall Mount |
| Opening Style Swing | (side) |
| Positive | Close No |
| Self-Centering Yes | Vienna |
| Width 2-1/4 in. | (57 mm) |
Overview
The CRL Adjustable Vienna Series takes the popular Vienna Hinge to new heights with its innovative design, allowing for easy angle adjustments up to 90 degrees without removing the door.
Ideal for residential or hotel shower use, this hinge is available in several stunning finishes and backed by a 3-year warranty.
Featuring an adjustable wall mount full back plate and accommodating monolithic tempered glass, the hinge provides smooth 90-degree inward and outward swings.
With options for both standard and custom pivot pins, the Vienna Hinge ensures seamless closure and versatility for any installation, making it a top choice for those seeking both functionality and style in shower door hinges.
For more details on custom finishes and specifications, contact CRL Technical Sales Shower Door Department.
Ideal for residential or hotel shower use, this hinge is available in several stunning finishes and backed by a 3-year warranty.
Featuring an adjustable wall mount full back plate and accommodating monolithic tempered glass, the hinge provides smooth 90-degree inward and outward swings.
With options for both standard and custom pivot pins, the Vienna Hinge ensures seamless closure and versatility for any installation, making it a top choice for those seeking both functionality and style in shower door hinges.
For more details on custom finishes and specifications, contact CRL Technical Sales Shower Door Department.
