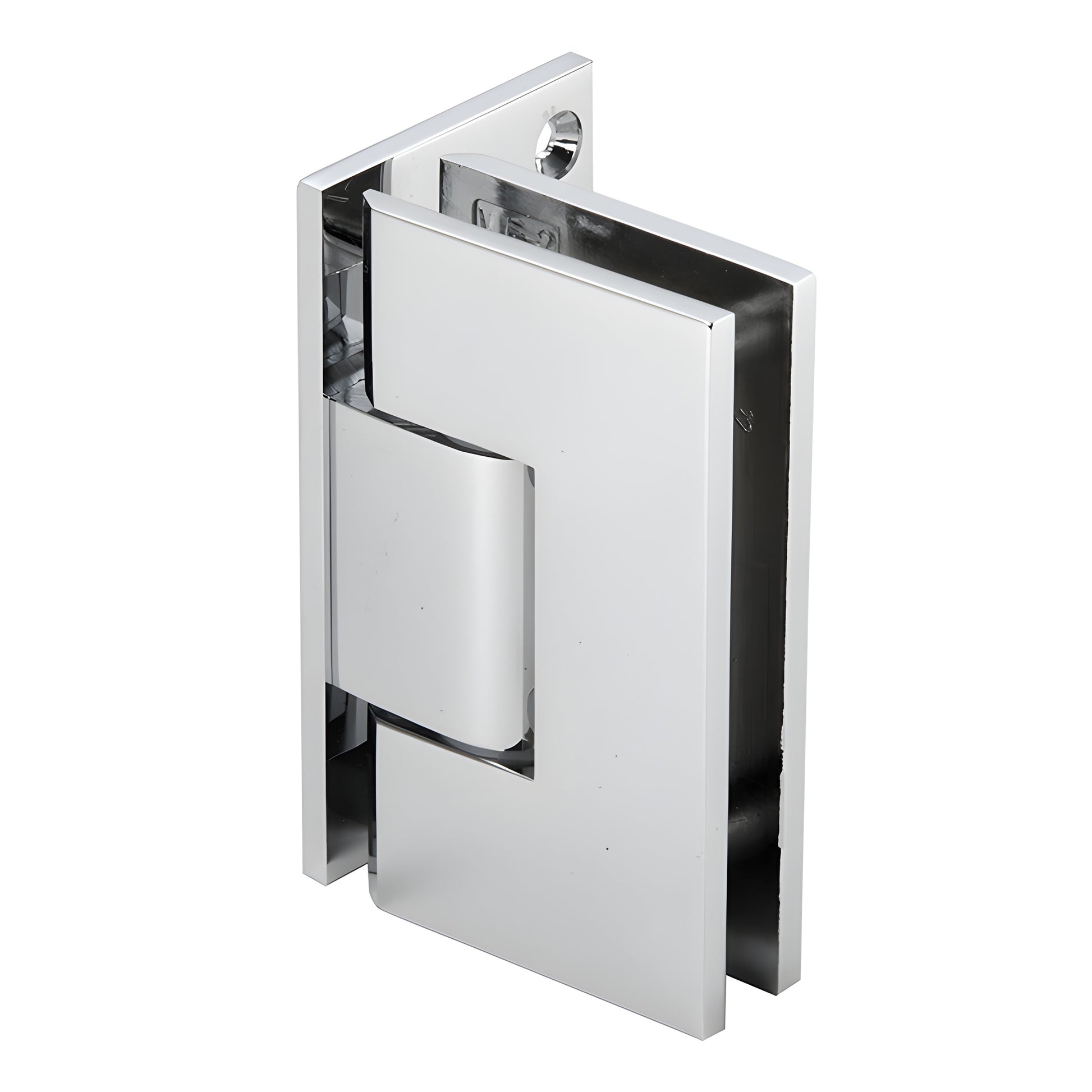

CRL Vienna Polished Chrome Adjustable Offset Hinge for Glass Doors
CRL Vienna Polished Chrome Adjustable Offset Hinge for Glass Doors
Regular price
$140.56 CAD
Regular price
Sale price
$140.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E344CH
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
Offset
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

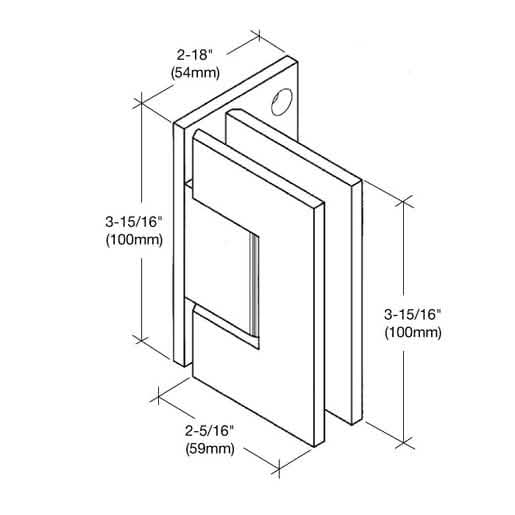

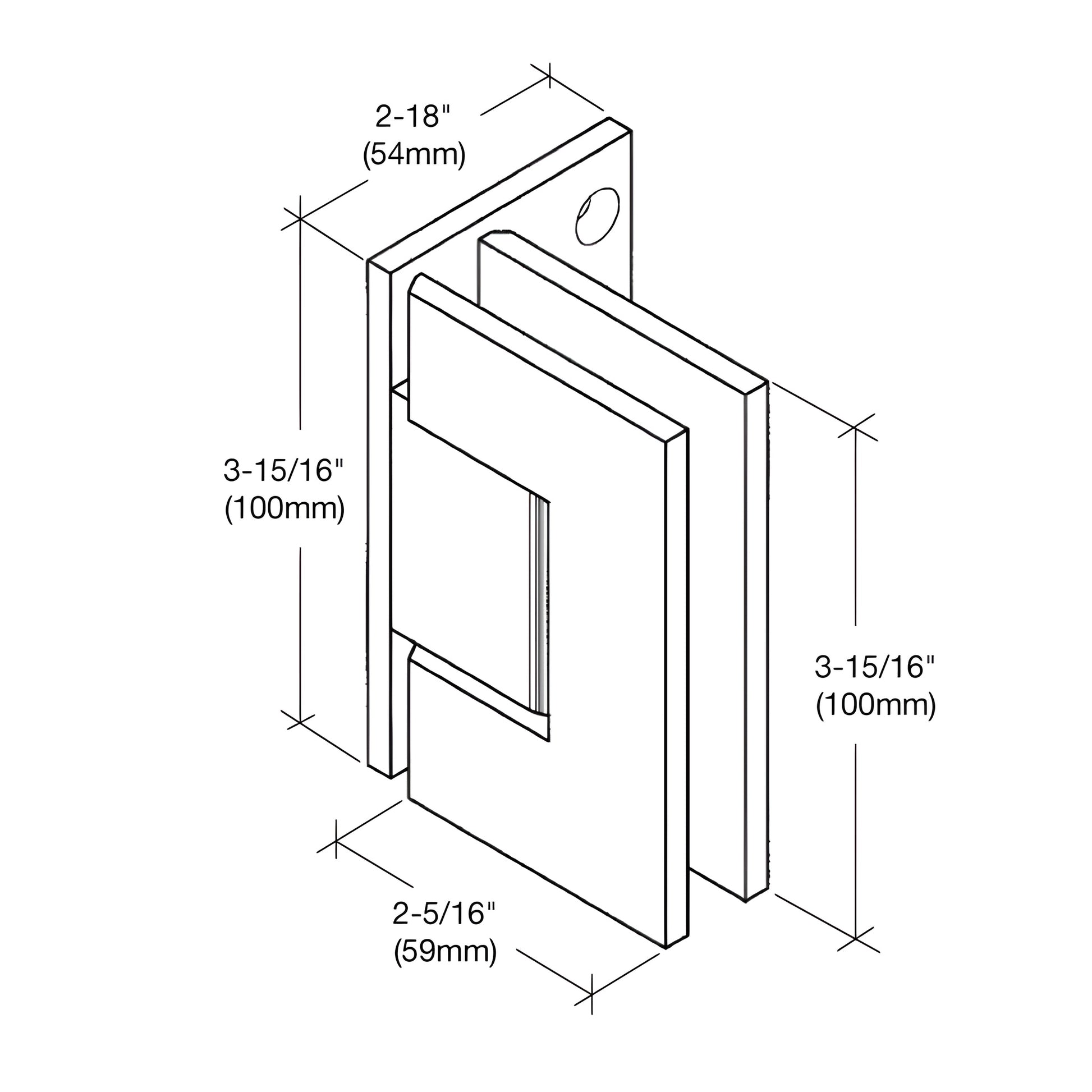

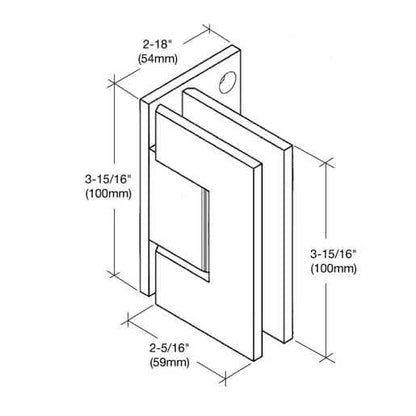

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-5/16 in. (59 mm)
Overview
- Adjustable up to 90 degrees
- Offset wall mount plate for clean sight line
- Available in multiple finishes

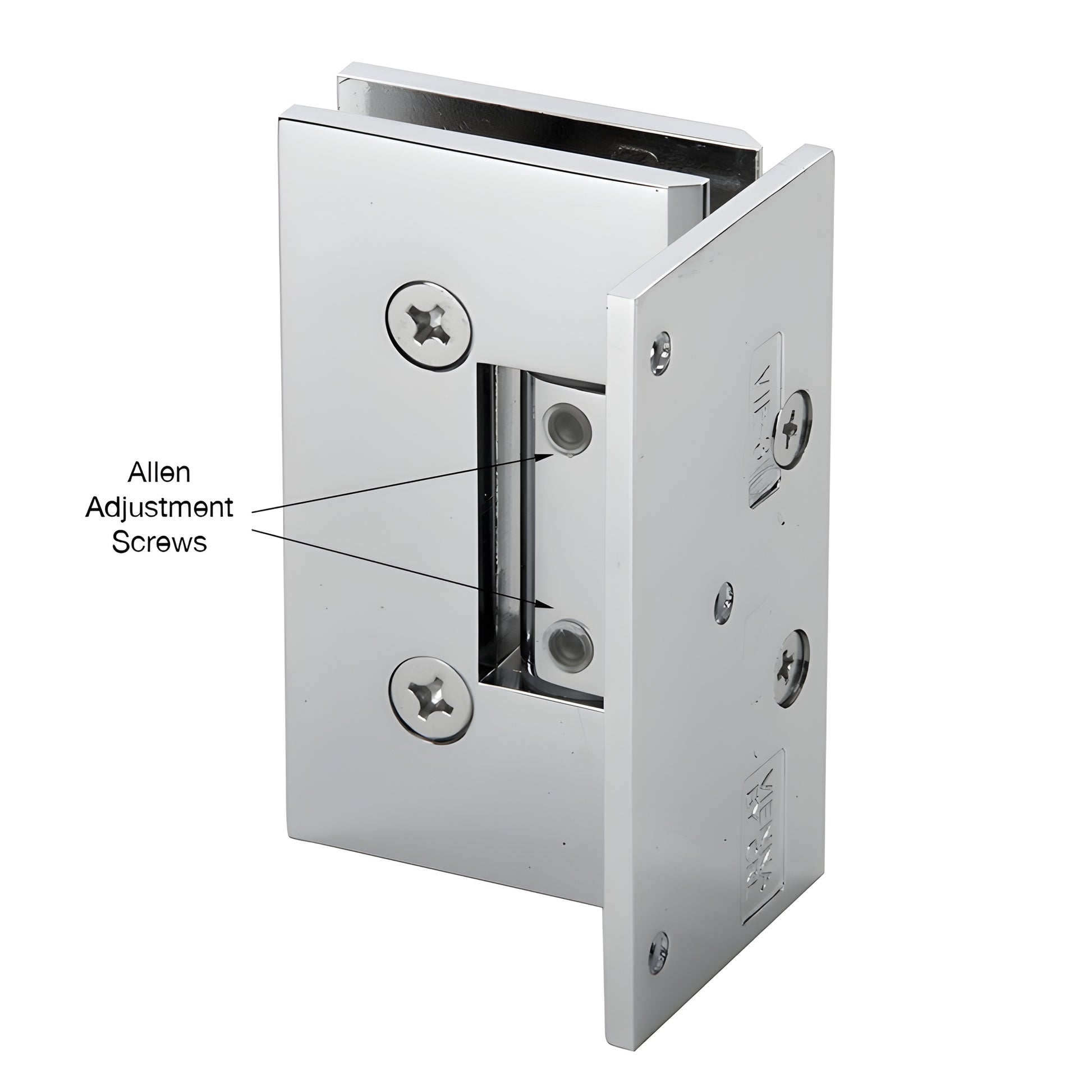

The Vienna Offset Wall Mount Plate Adjustable Hinge (SKU: V1E344CH) provides precise, tool-assisted adjustment up to 90 degrees for residential and hotel shower doors. Loosen the rear Allen screws, set the door to the desired closing angle, then retighten. For a snug, consistent close, use with a strike jamb and position the door to bear against the jamb. The offset wall mount plate maintains a clean sight line and hides mounting hardware for a streamlined shower-door appearance.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
For finishing options and ordering information for the Vienna Offset Wall Mount Plate Adjustable Hinge (V1E344CH), contact CRL or add to cart today.
