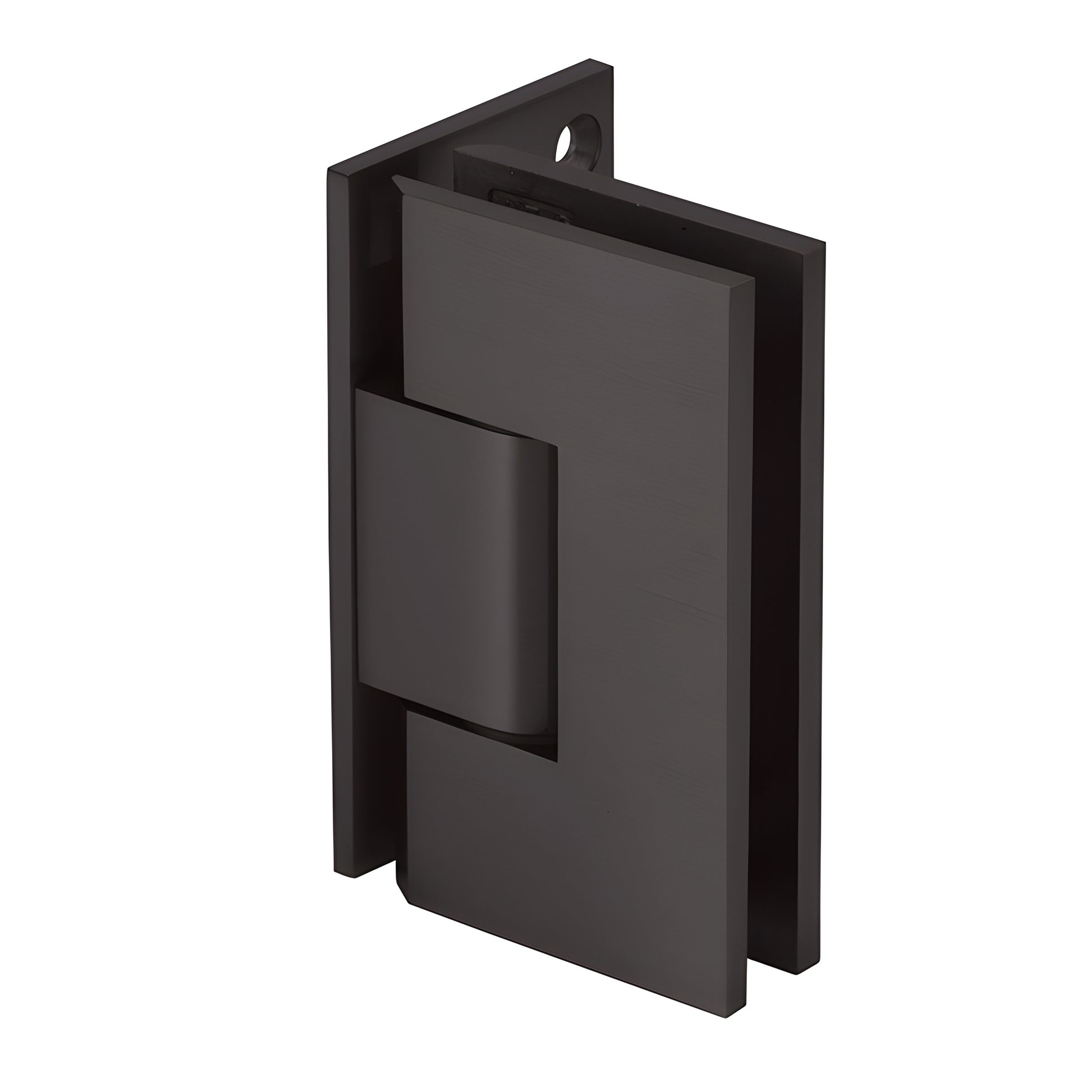

CRL Vienna Adjustable Offset Wall-Mount Hinge Oil Rubbed Bronze

CRL Vienna Adjustable Offset Wall-Mount Hinge Oil Rubbed Bronze

$157.48 CAD
$157.48 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E3440RB
Shipping Weight: 2.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
Offset
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

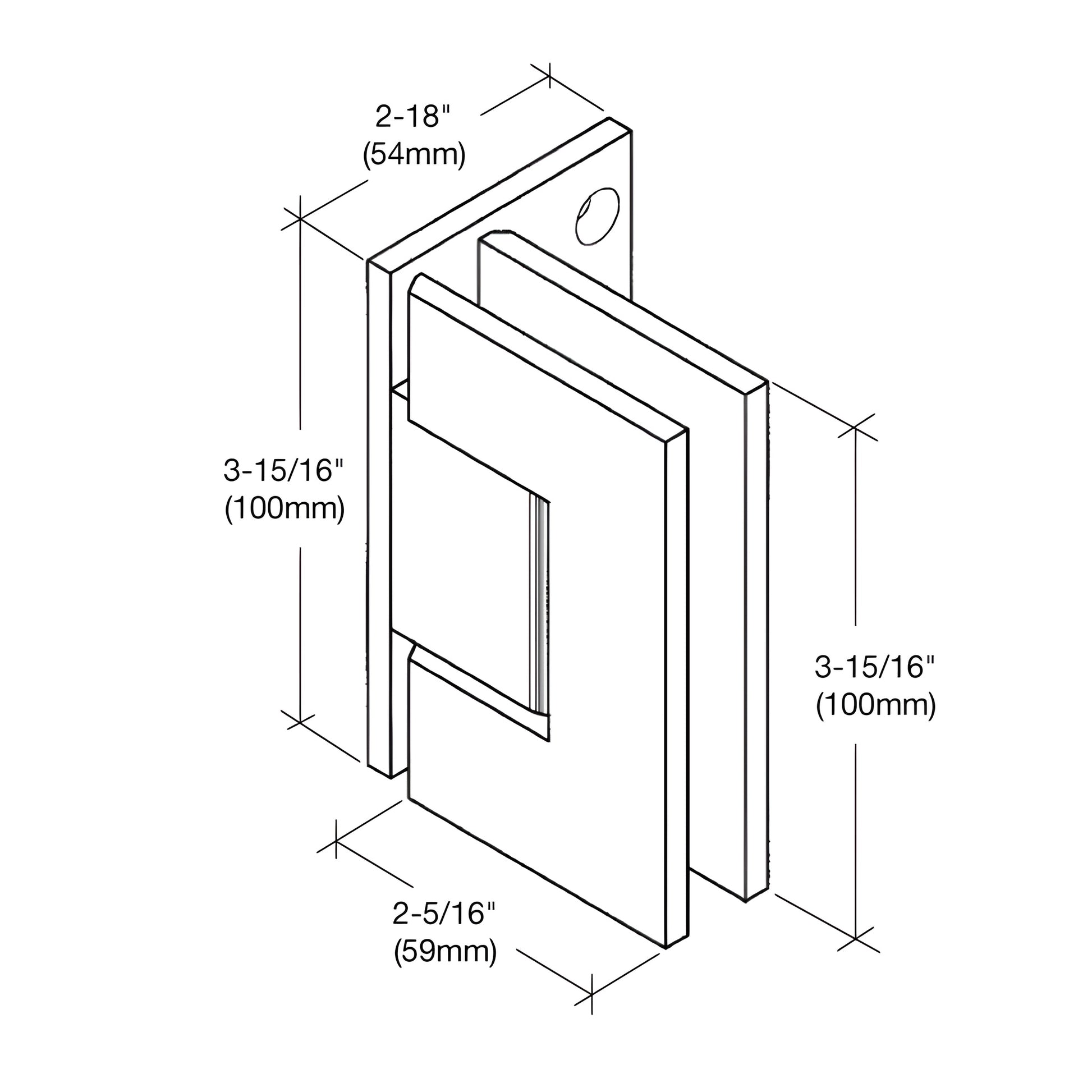

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-5/16 in. (59 mm)

Overview

  • Adjustable up to 90 Degrees for precise door positioning
  • Offset wall mount plate provides a clean sight line
  • Available in multiple finishes (see options)

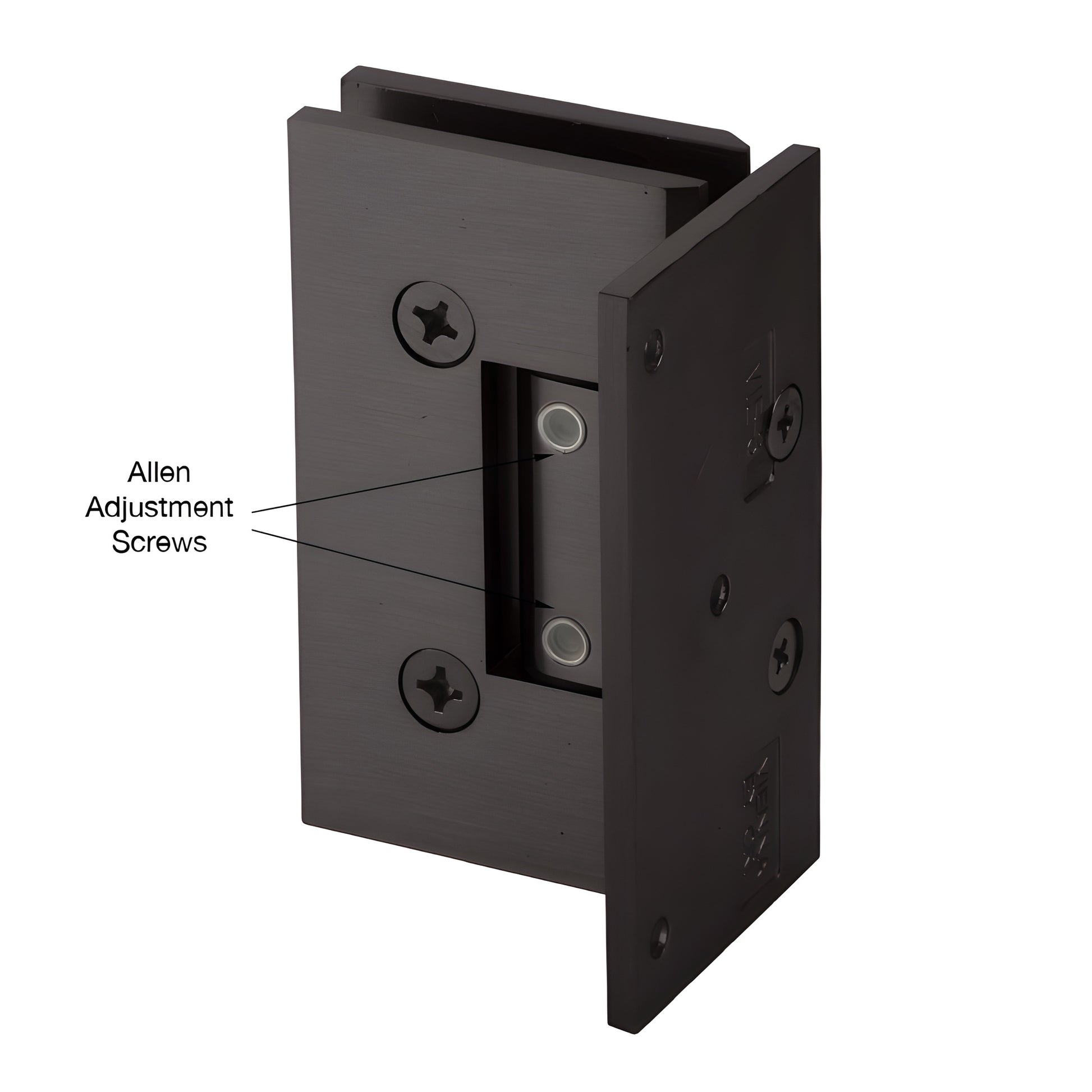

The Vienna Offset Wall Mount Plate Adjustable Hinge (SKU: V1E3440RB) adjusts to accommodate door angles up to 90°. Loosen the rear Allen screws, set the door to the desired closing position, then re-tighten the screws. For a snug close, install with a strike jamb and position the door to press against the jamb. The offset wall mount plate maintains a clean sight line for a streamlined shower opening.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.

Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images show the actual product or a close representation; colors may vary by monitor and video card settings.



Order the Vienna Offset Wall Mount Plate Adjustable Hinge (SKU: V1E3440RB) today to achieve a clean sight line and reliable 90° adjustability.

Specifications

Templates
V1E344 Template
