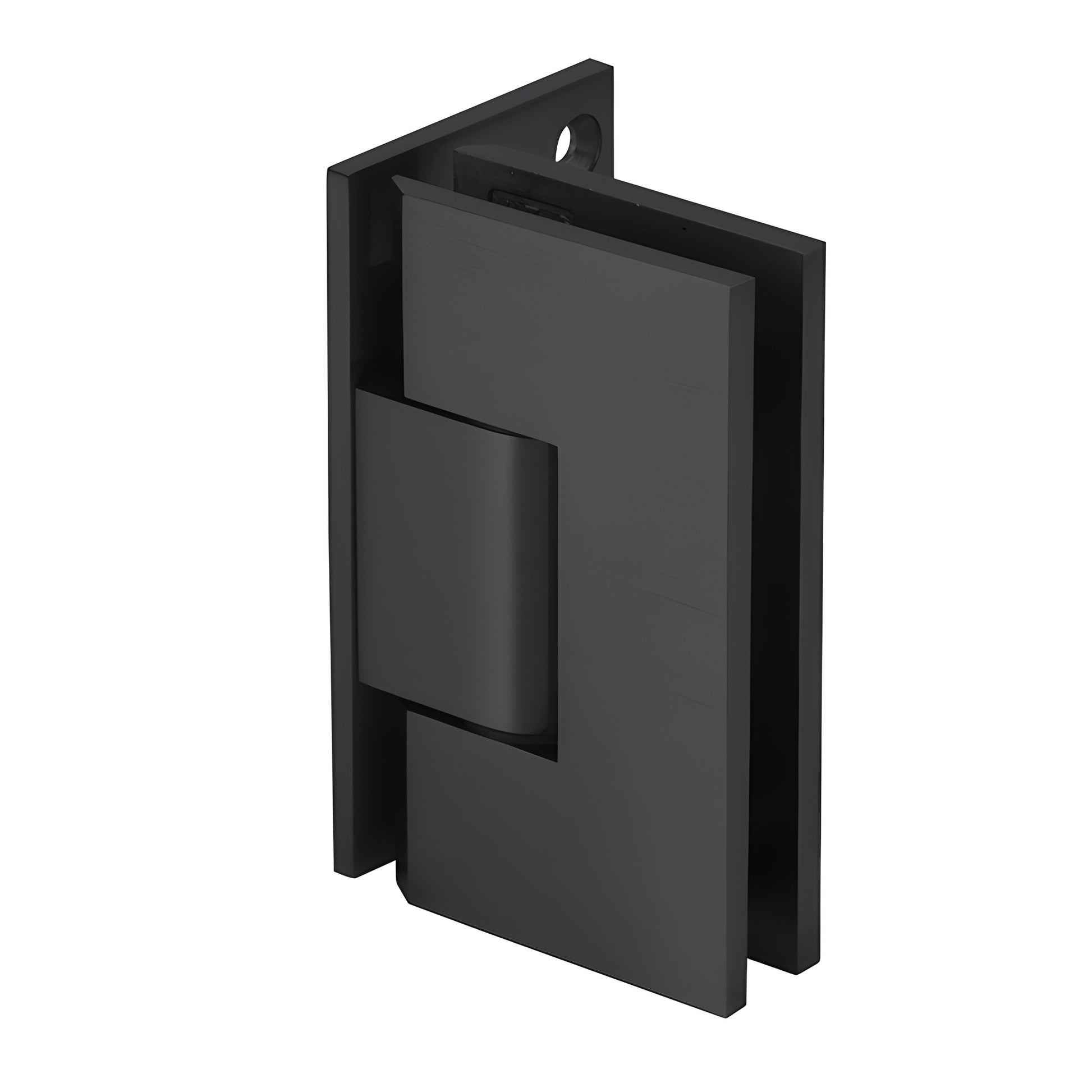

CRL Matte Black Vienna Adjustable Offset Wall-Mount Glass Door Hinge
CRL Matte Black Vienna Adjustable Offset Wall-Mount Glass Door Hinge
Regular price
$140.56 CAD
Regular price
Sale price
$140.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E344MBL
Shipping Weight: 2.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
Offset
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

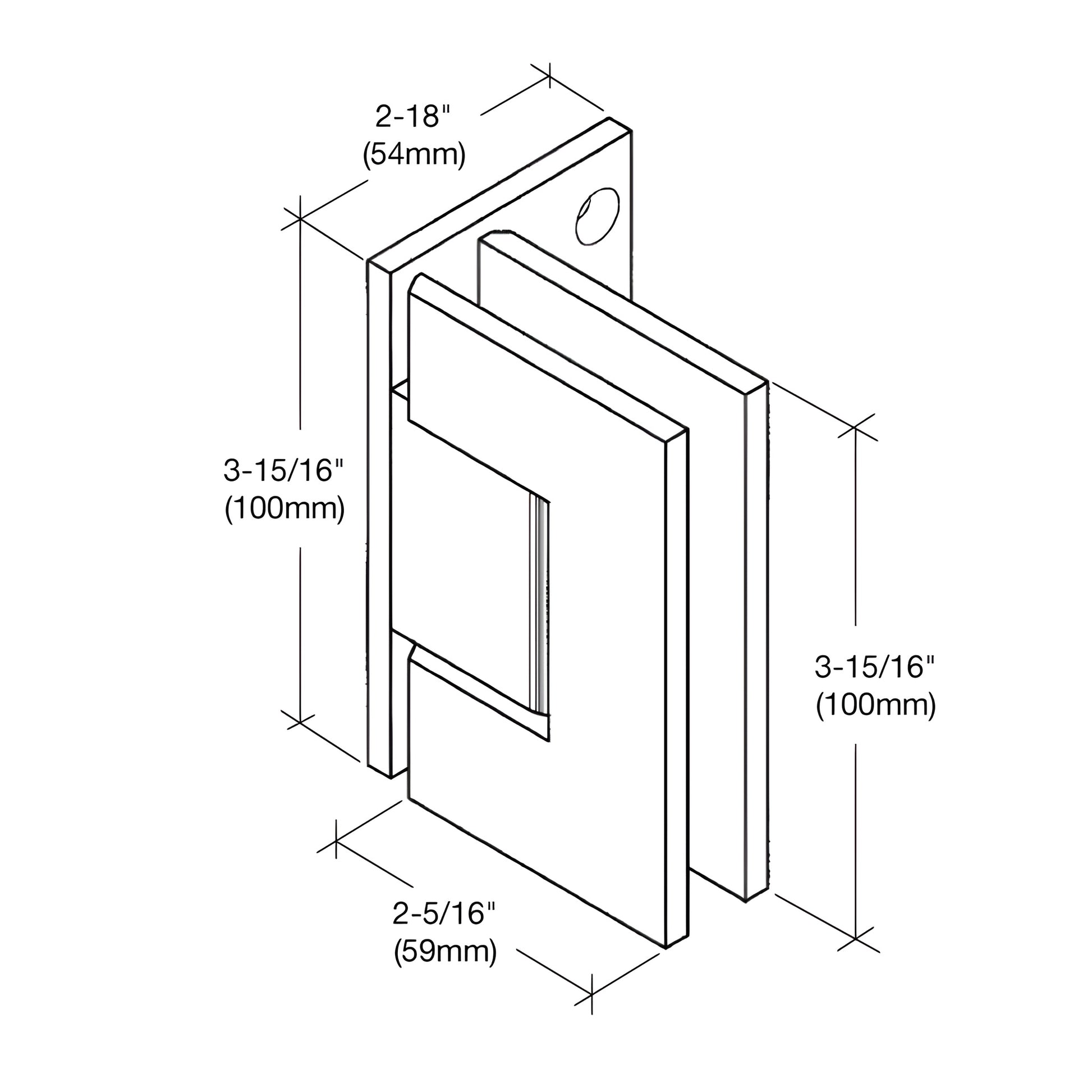

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Pre-Applied Tape
No
Self-Centering
Yes
Series
Vienna
Width
2-5/16 in. (59 mm)
Overview
- Adjustable up to 90 Degrees — ideal for custom shower layouts
- Offset Wall Mount Plate for a clean sight line
- Available in multiple finishes
SKU: V1E344MBL

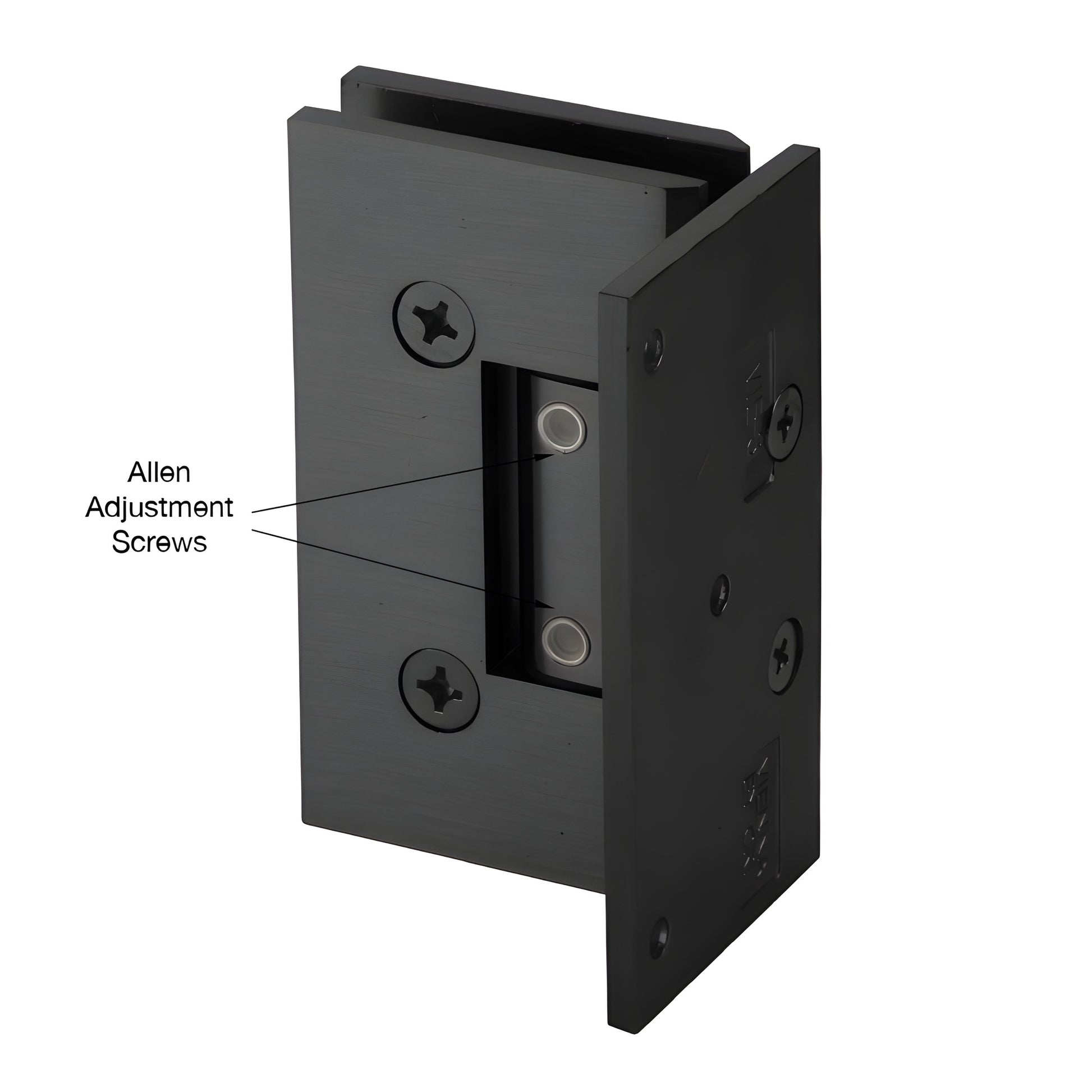

The Vienna Offset Wall Mount Plate adjustable hinge is a heavy-duty shower door hinge that adjusts to accommodate door positions up to 90 degrees. To set the angle, loosen the Allen screws on the rear of the hinge, position the door to the desired closing point, then re-tighten the Allen screws. For a snug, consistent close, install with a strike jamb so the door pushes against the jamb. The offset wall mount plate creates a clean sight line for frameless and semi-frameless shower glass installations.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use only. If you intend to use these hinges for other purposes, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
Find the right adjustable shower door hinge for your remodel — add SKU V1E344MBL to your cart or contact CRL for ordering and finish options.
