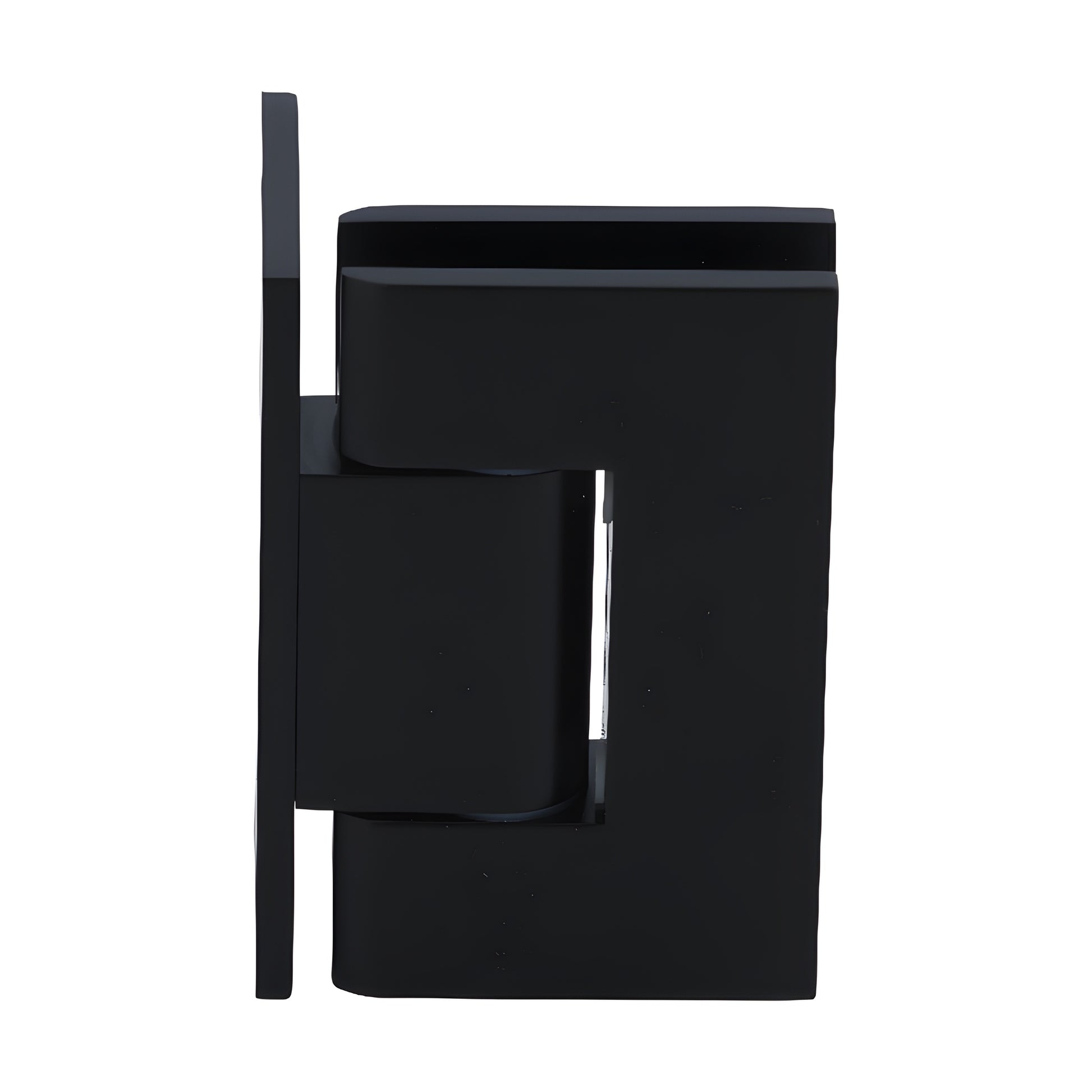

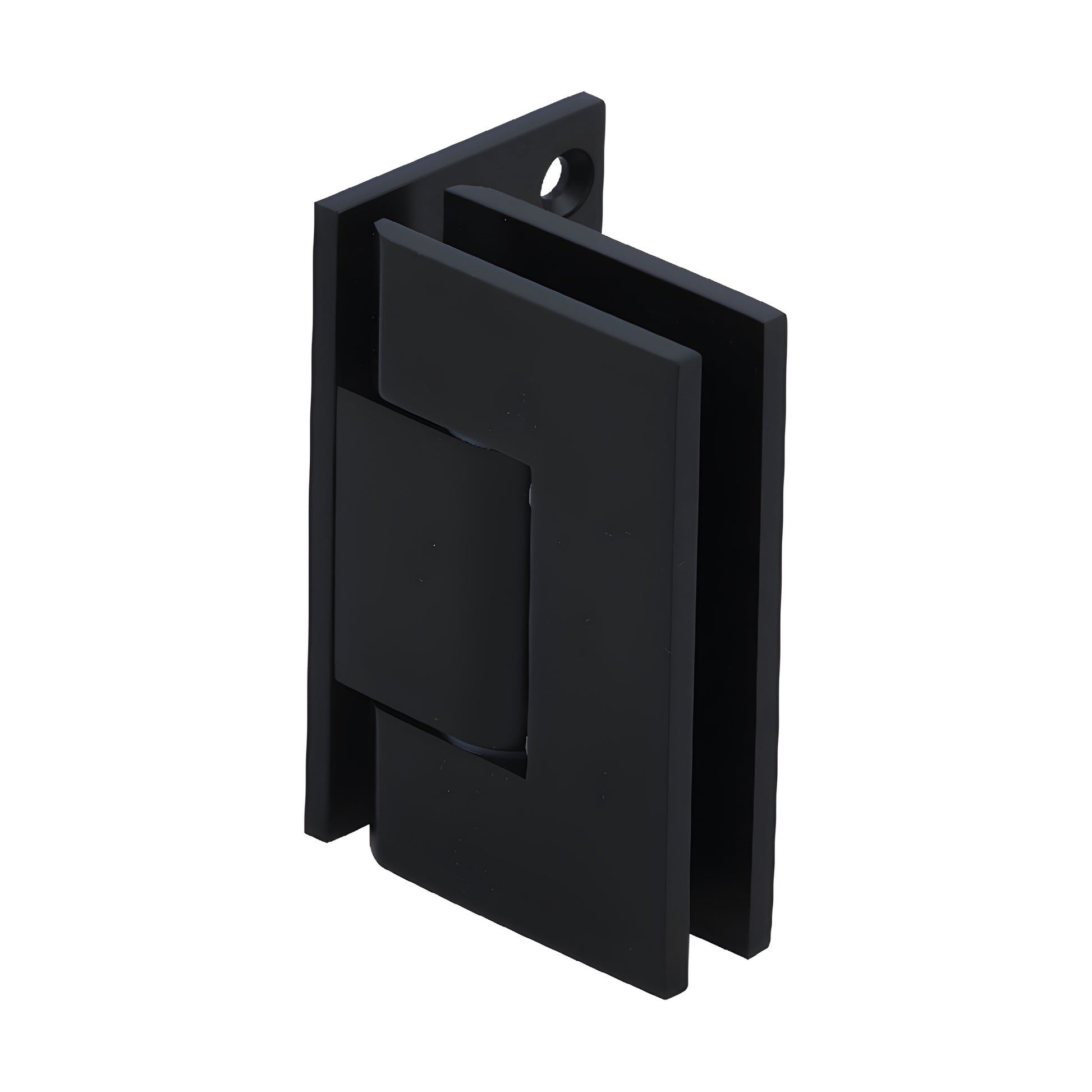

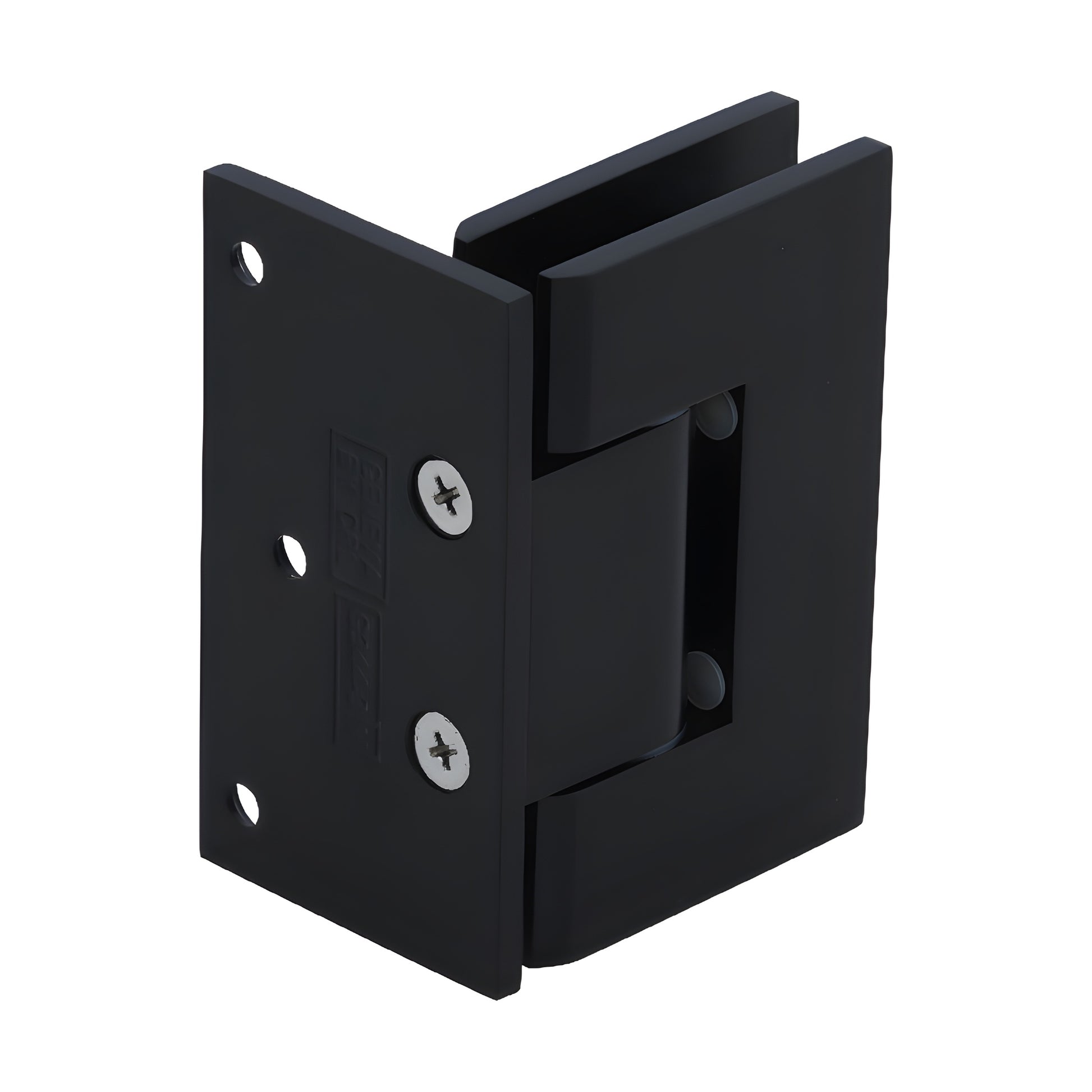

CRL Matte Black Adjustable Wall-Mount Offset Hinge for Glass Doors

• Adjustable to any angle up to 90° without removing the door
• Available in several beautiful finishes
• 3-year warranty
• Designed for monolithic tempered glass

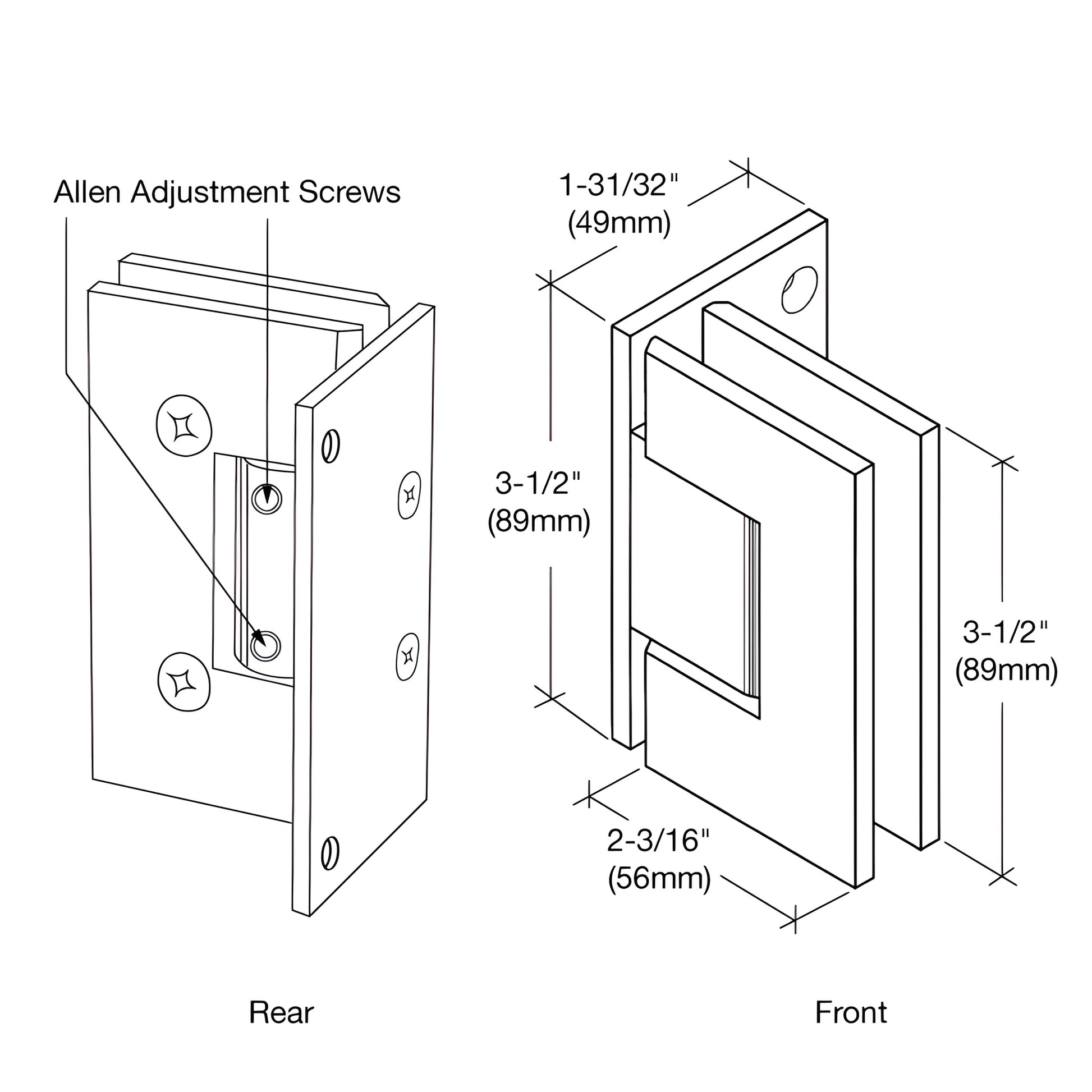

The CRL Adjustable Geneva Series (SKU: GEN344MBL) upgrades the popular Geneva hinge into a fully adjustable shower door hinge. Make on-site angle adjustments up to 90° after the door is installed — no door removal required. Loosen the Allen set screws, rotate the door to the desired position, then tighten to self-center the door. The hinge allows 90° inward and 90° outward swing at the factory set position; adjusting away from that position will reduce swing range in that direction. For outward-swing installations with a clear jamb, you can set the door to close 5° into the shower for a snug fit against the jamb.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8–12 mm) tempered safety glass
Special Features: Field-adjustable to any angle up to 90° — no door removal required (adjustable shower door hinge, Geneva hinge)
Construction: Solid brass
Hinge Swings: 90° in / 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack sold separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require modification from standard clearance deductions when adjusting angles. Contact CRL for details.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut-out dimensions may differ from other brands.

Get the GEN344MBL Geneva adjustable hinge for reliable, field-adjustable performance — order or request a quote today.
