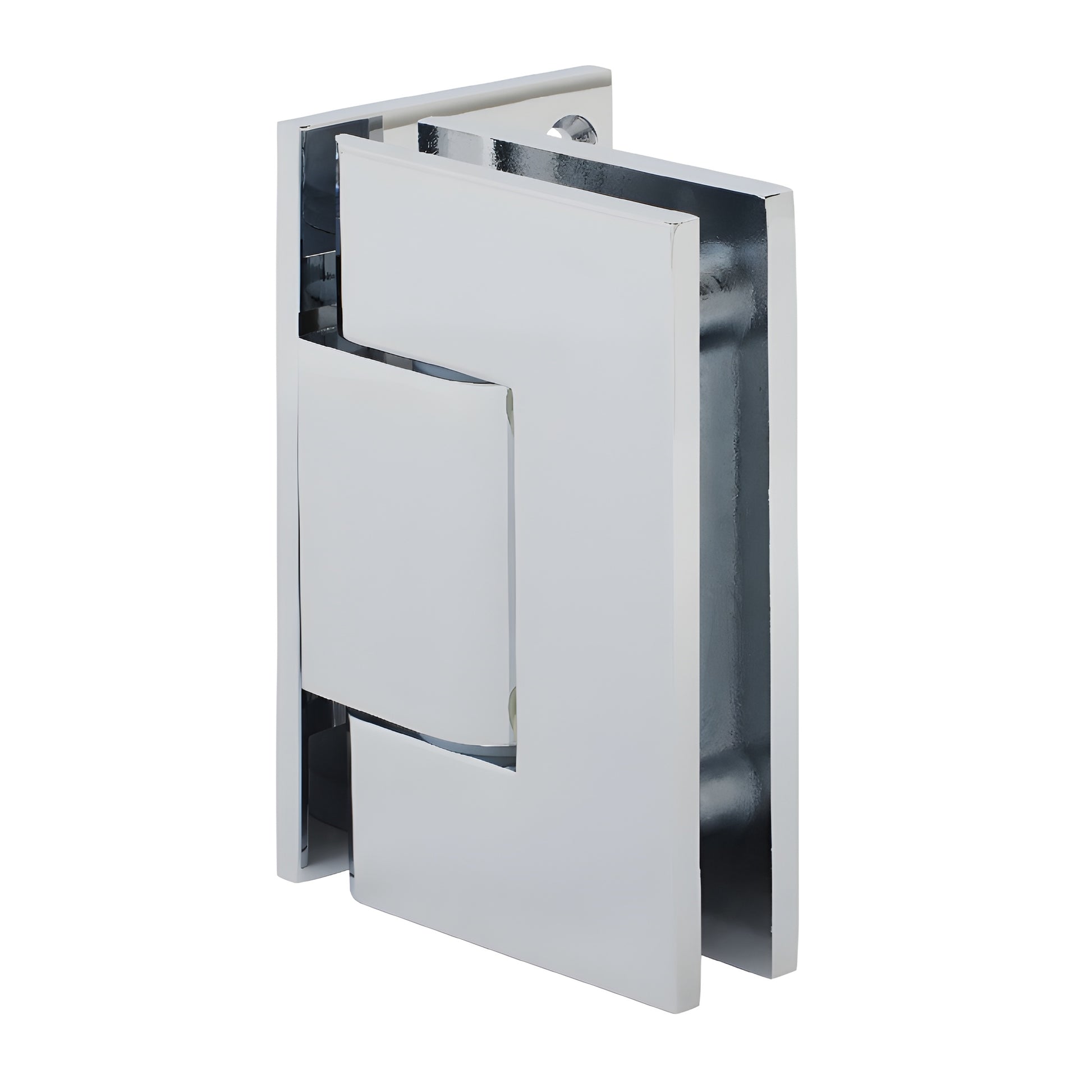

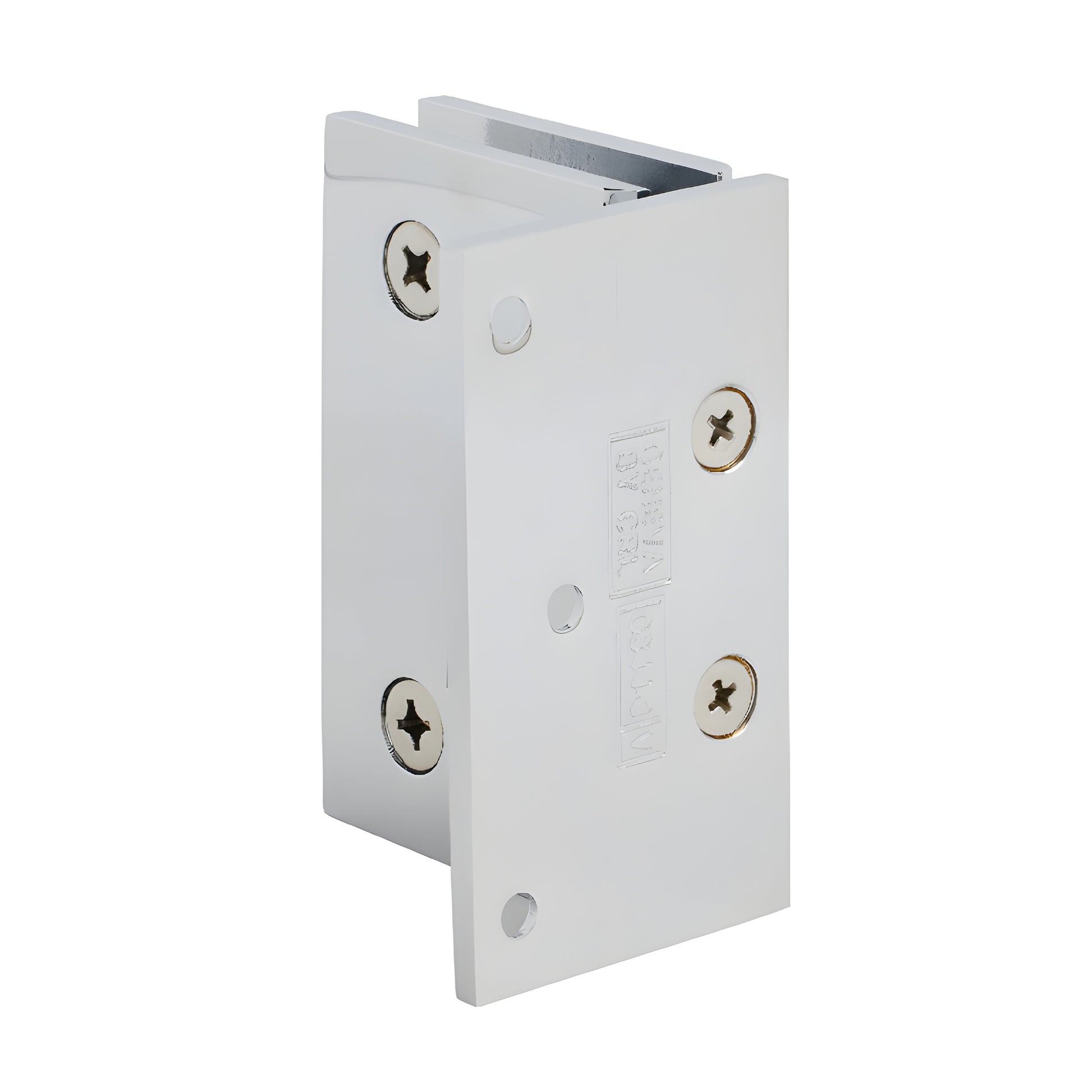

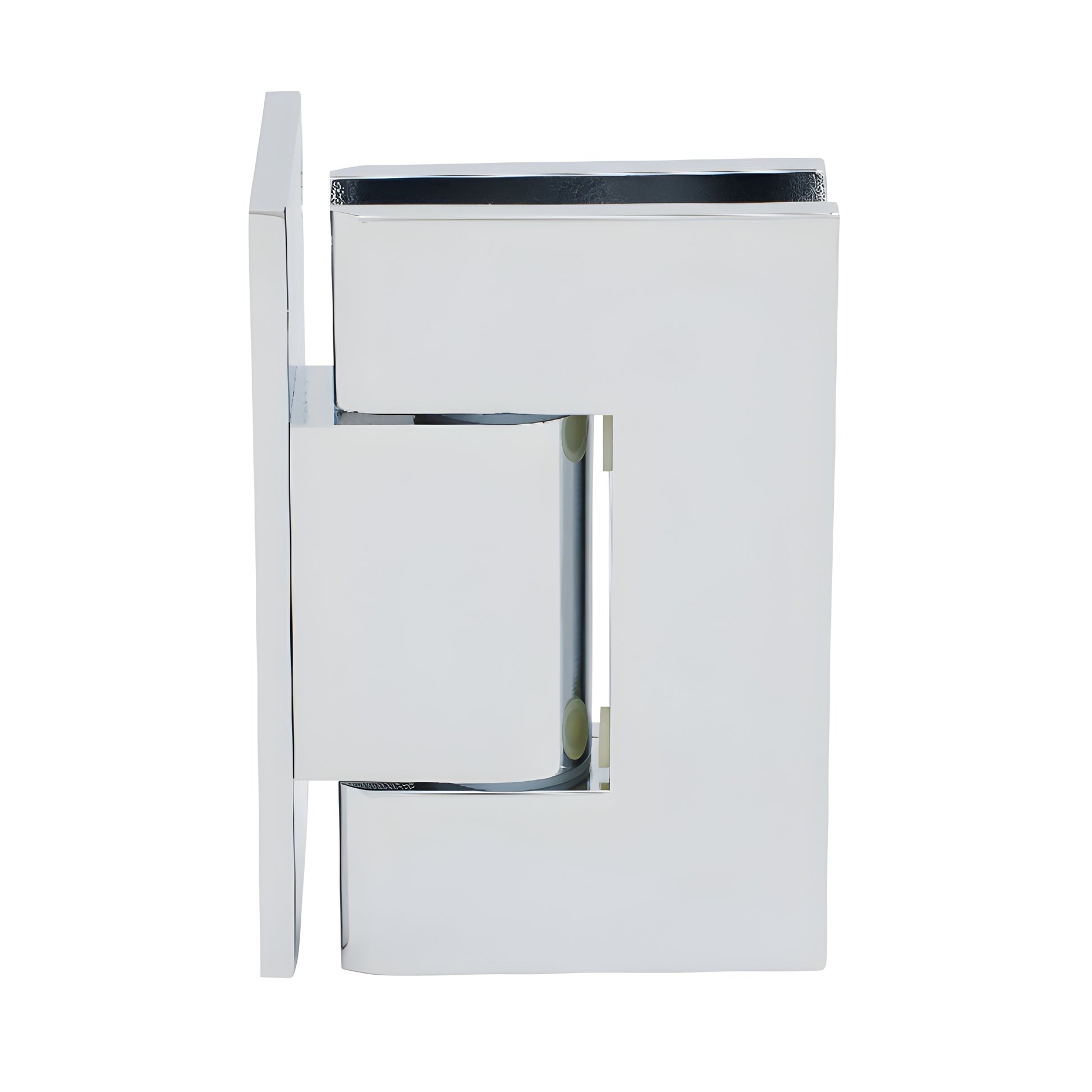

CRL Polished Chrome Adjustable Offset Backplate Glass Door Hinge
CRL Polished Chrome Adjustable Offset Backplate Glass Door Hinge
Regular price
$97.60 CAD
Regular price
Sale price
$97.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GEN344CH
Shipping Weight: 1.635 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.635 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
Offset
Edge Profile
Square
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Geneva
Width
2-3/16 in. (56 mm)
Overview
- Adjustable to any angle up to 90° without removing the door
- Available in several durable finishes
- 3‑year warranty
- Compatible with monolithic tempered safety glass

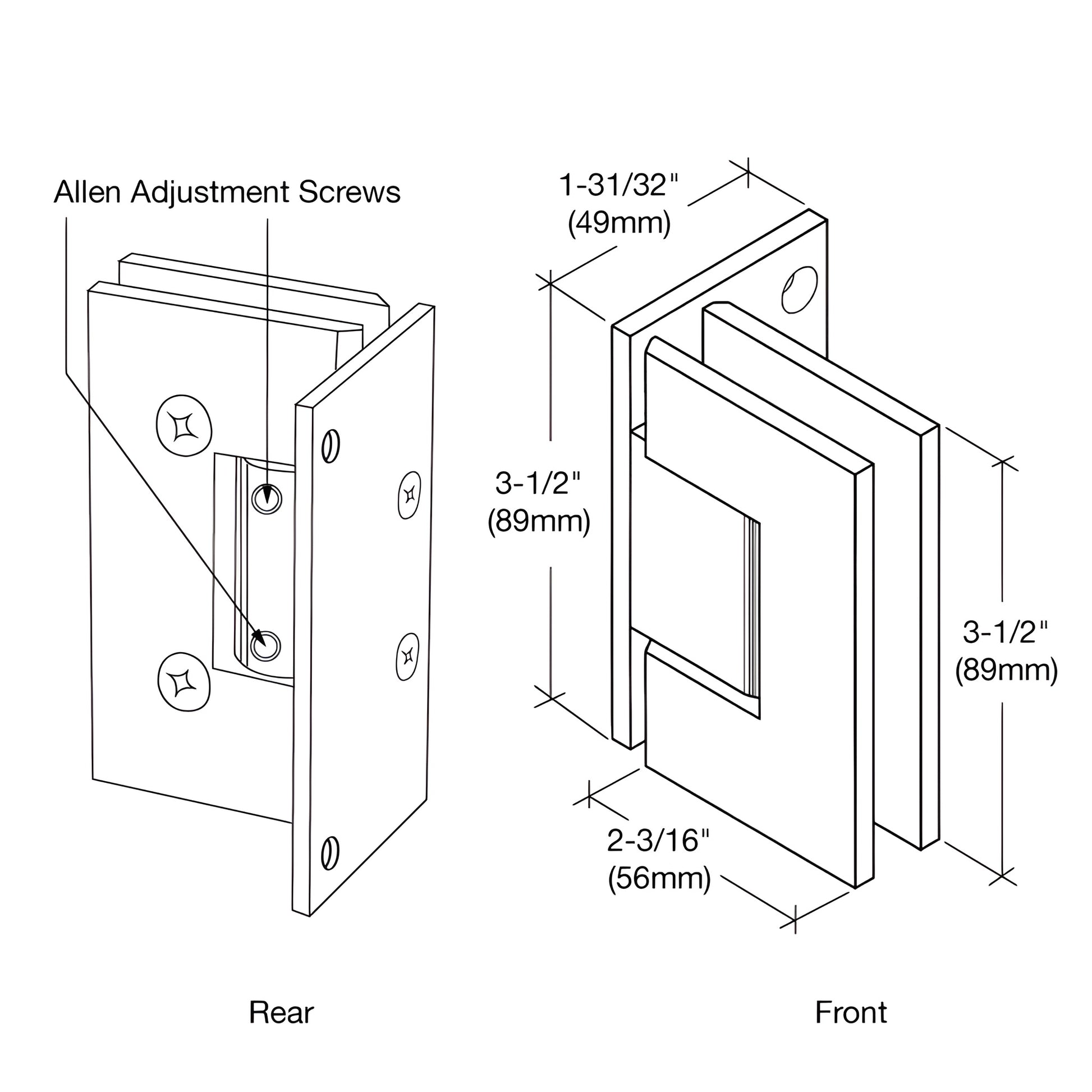

The CRL Adjustable Geneva Series (SKU: GEN344CH) upgrades the popular Geneva hinge into a fully adjustable shower hinge ideal for frameless and clear‑jamb installations. Adjust the closing angle up to 90° after the door is installed by loosening the Allen set screws, rotating the door to the desired position, then retightening — the hinge self‑centers when within 15° of closed. The hinge allows 90° swing in and 90° swing out at the factory set position; reducing the factory angle will proportionally reduce swing in that direction. For outward‑swing installations using a clear jamb, you can set the hinge to close 5° into the shower for a snug seal. These features make it a top choice for adjustable shower door hinges, brass shower hinges, and tempered glass shower door hardware.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Post‑installation adjustment up to 90° without removing the door
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self‑centering within 15° of the closed position
Cut‑Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.
NOTE: Door glass width may require modification from standard clearance deductions when adjusting angles. Contact CRL for details.
Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut‑out dimensions may differ from other brands.
Ready to upgrade your shower hardware with an adjustable brass hinge for tempered glass doors? Contact CRL or add SKU GEN344CH to your cart today.
