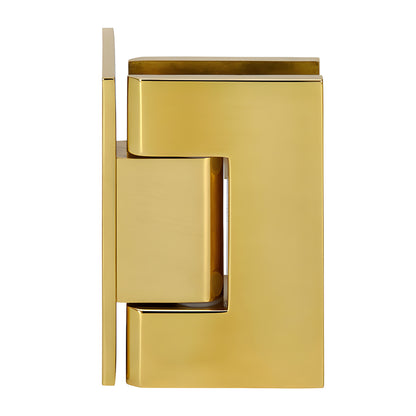

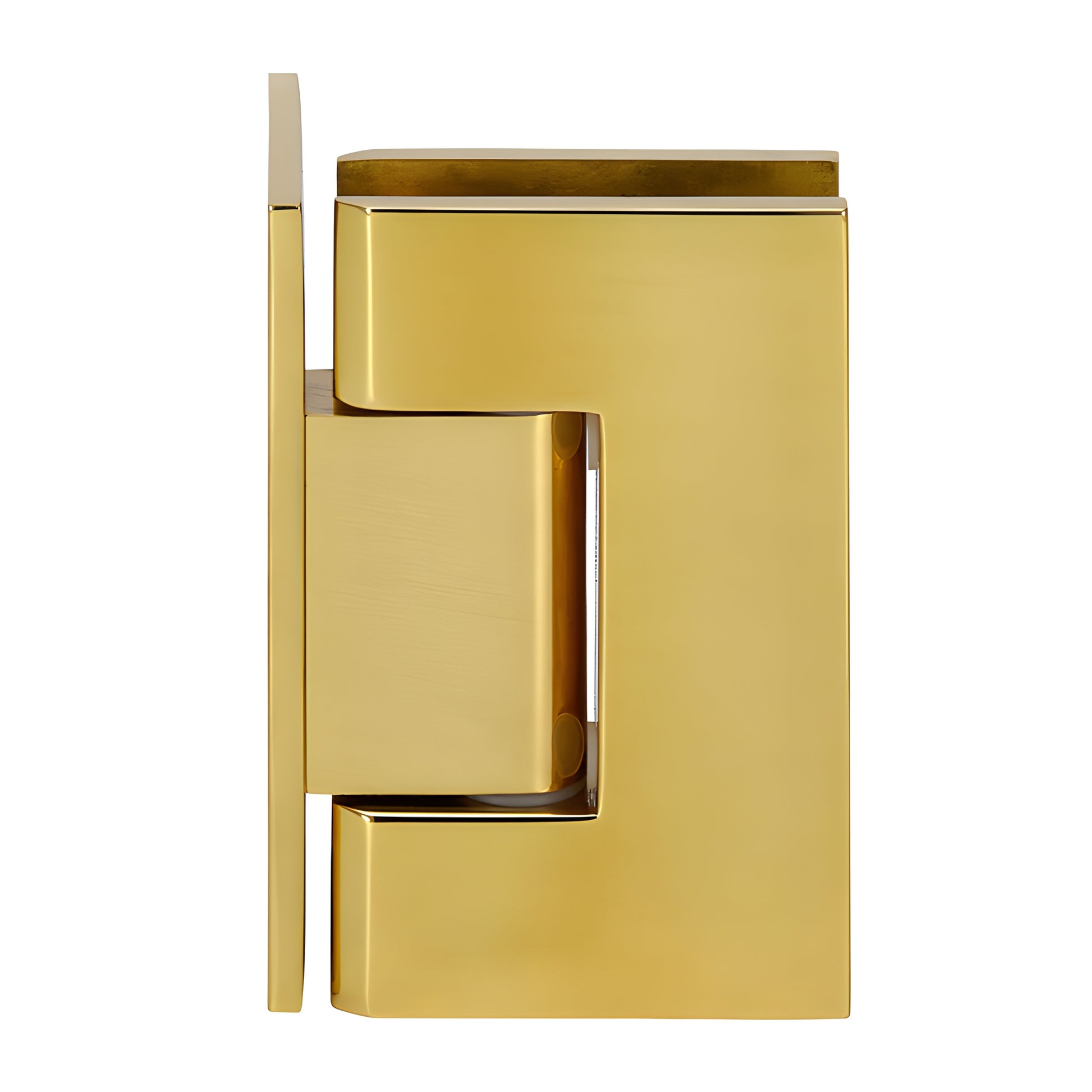

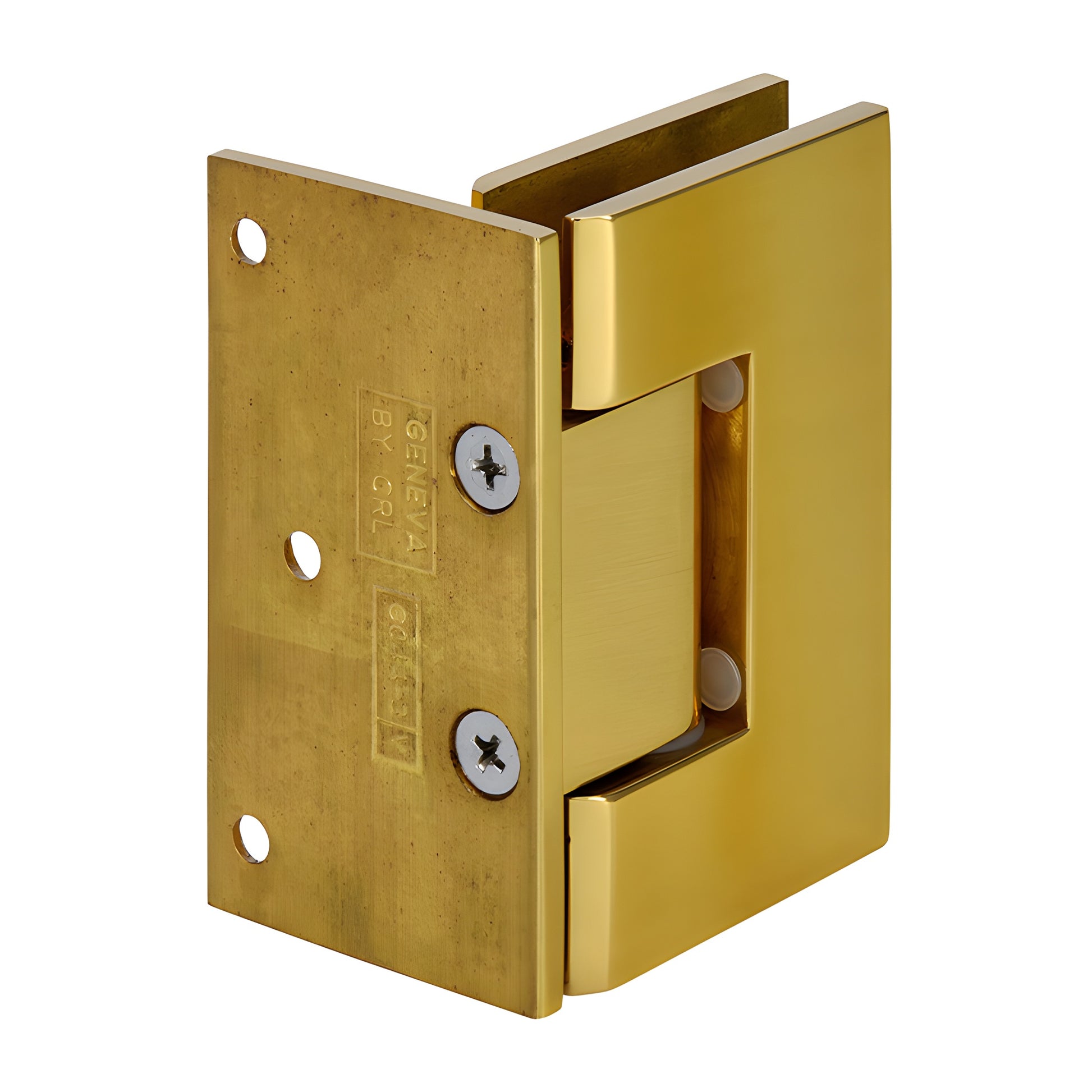

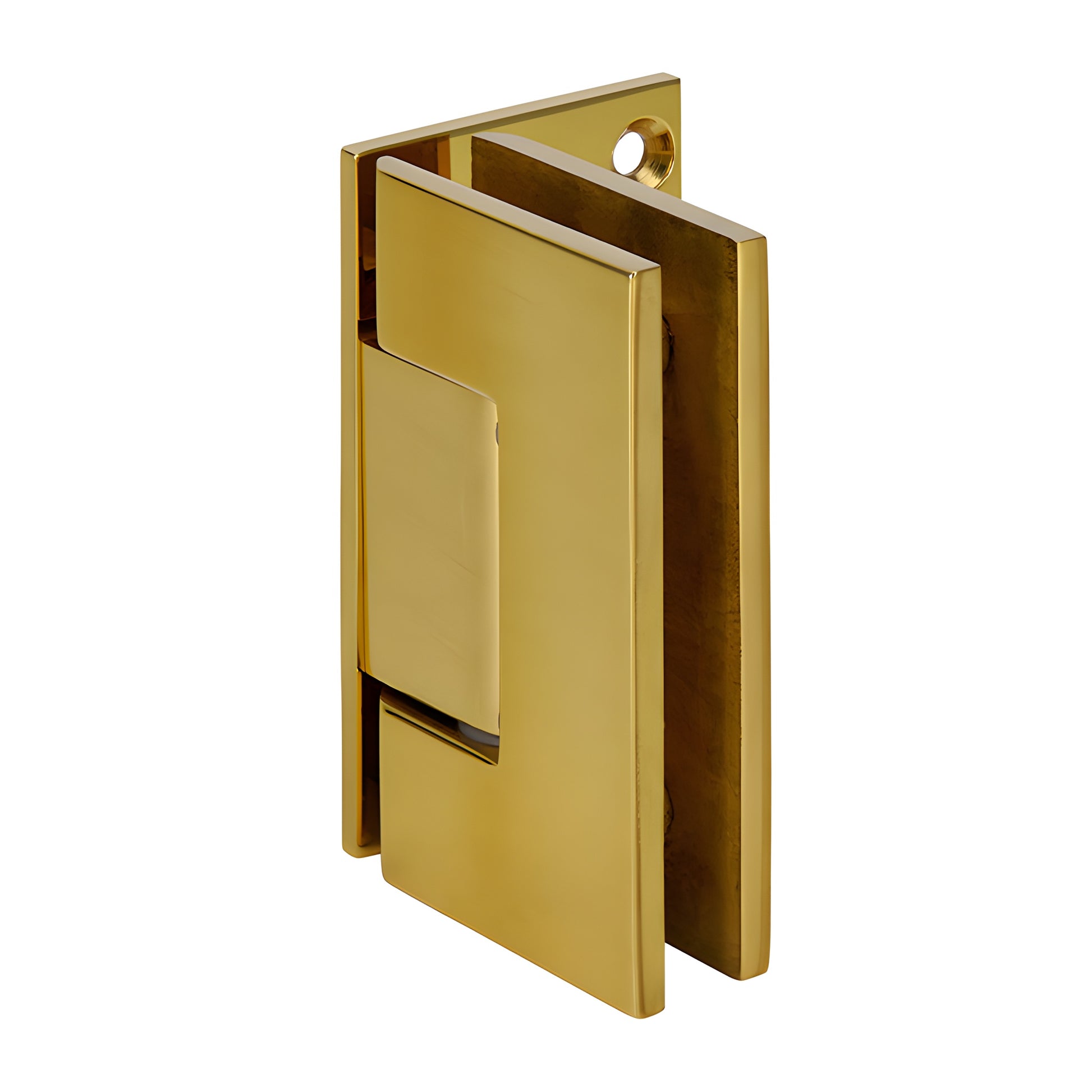

CRL Polished Brass Adjustable Offset Wall Mount Backplate Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several durable finishes
• 3-Year warranty
• Designed for monolithic tempered glass

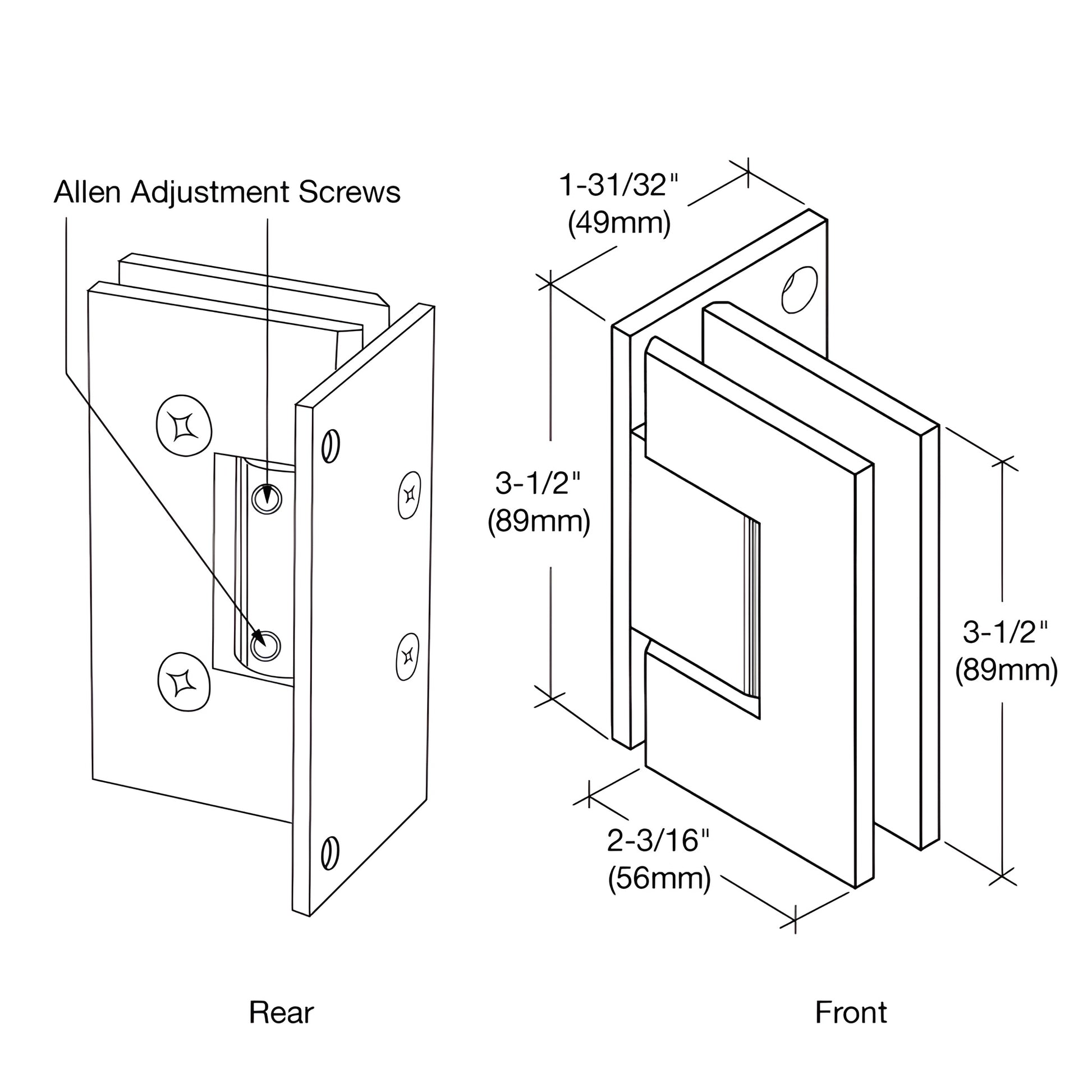

CRL Adjustable Geneva Series (SKU: GEN344BR) upgrades the popular Geneva hinge with post-install adjustment. After hanging the door, loosen the Allen set screws, rotate the door to the desired position and retighten—the hinge self-centers for a snug close. The hinge supports 90° swing inward and 90° outward at the factory set position; adjusting the angle will reduce swing in that direction. For outward-pulling doors (clear jambs), adjust the hinge to close 5° inside the shower for a tighter seal against the jamb.

SPECIFICATIONS:

Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass

Special Features: Post-install adjustable to any angle (up to 90°) — ideal as an adjustable shower door hinge for frameless glass doors

Construction: Solid brass — durable, corrosion-resistant hardware for shower doors

Hinge Swings: 90° in and 90° out (at factory set position)

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Product Warning:

CRL shower door hinges are engineered for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
