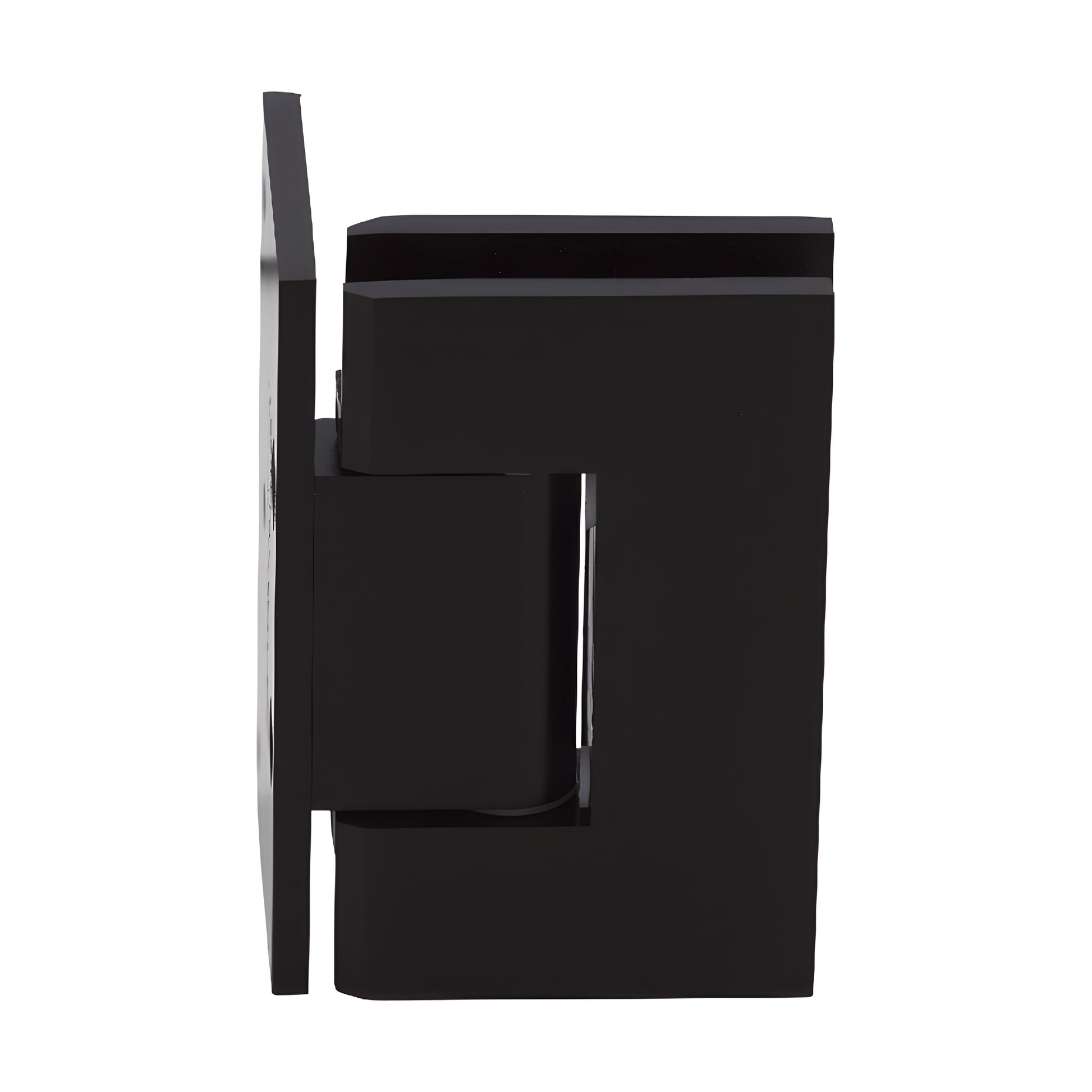

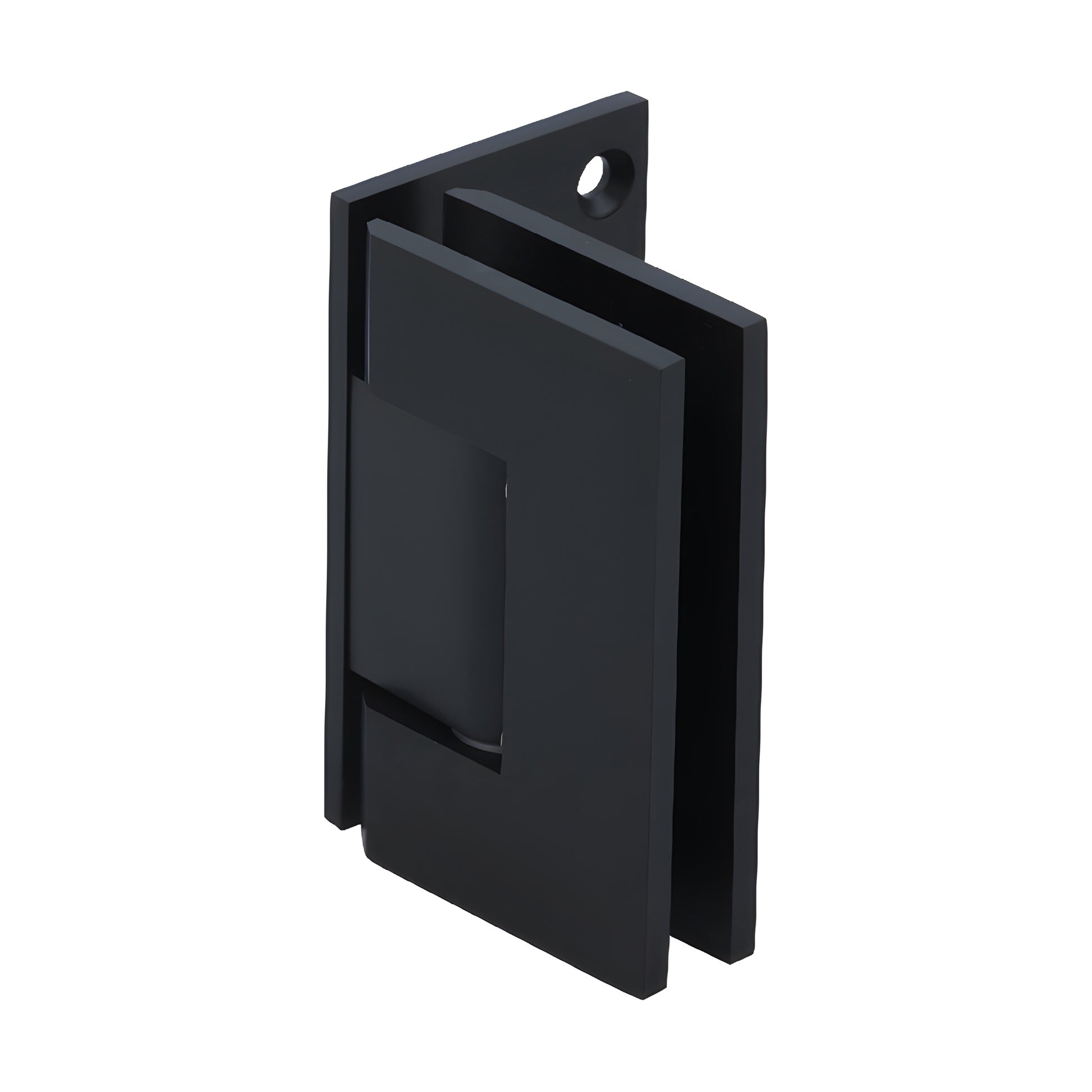

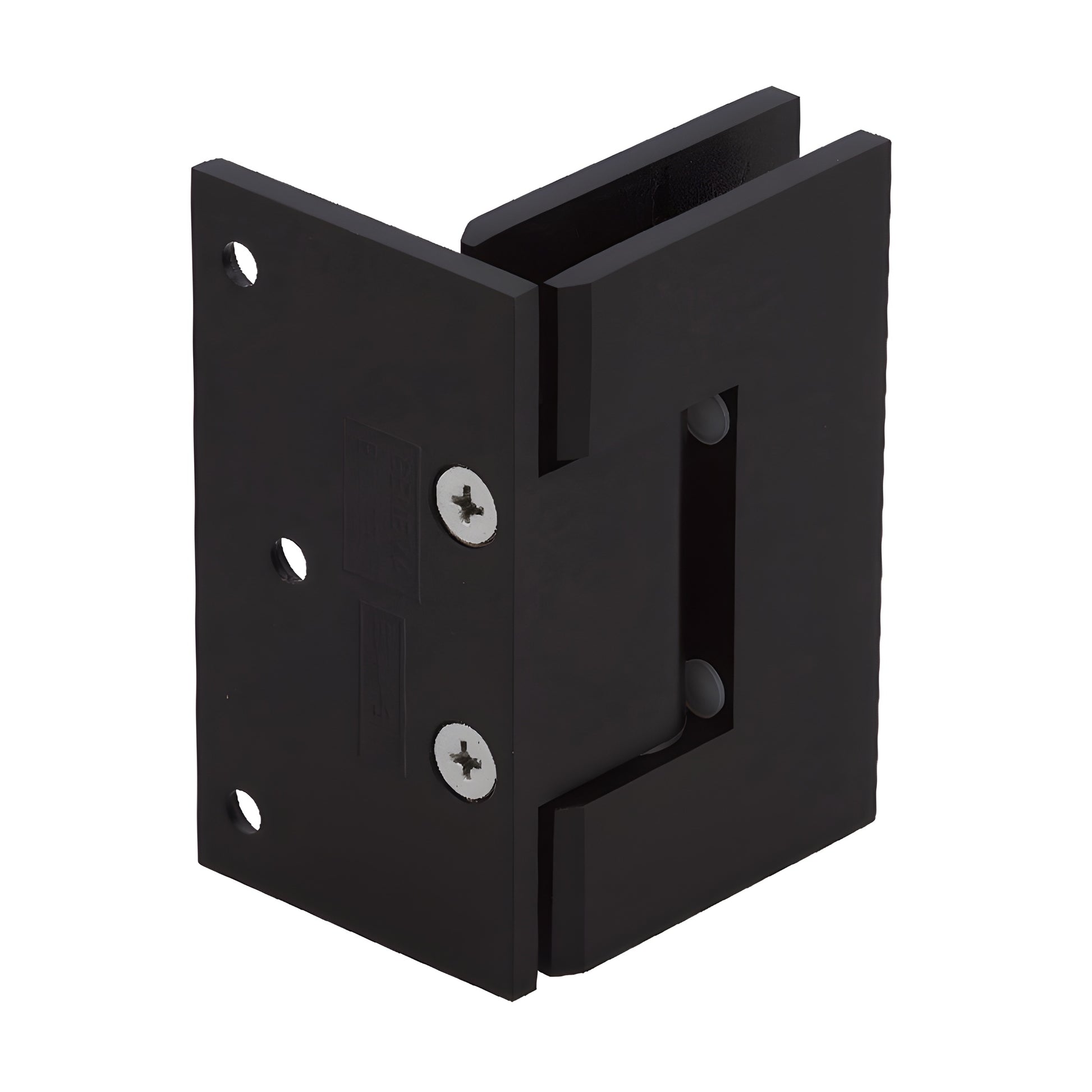

CRL Oil-Rubbed Bronze Adjustable Offset Wall-Mount Door Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several durable finishes
• 3-year warranty
• Designed for monolithic tempered glass

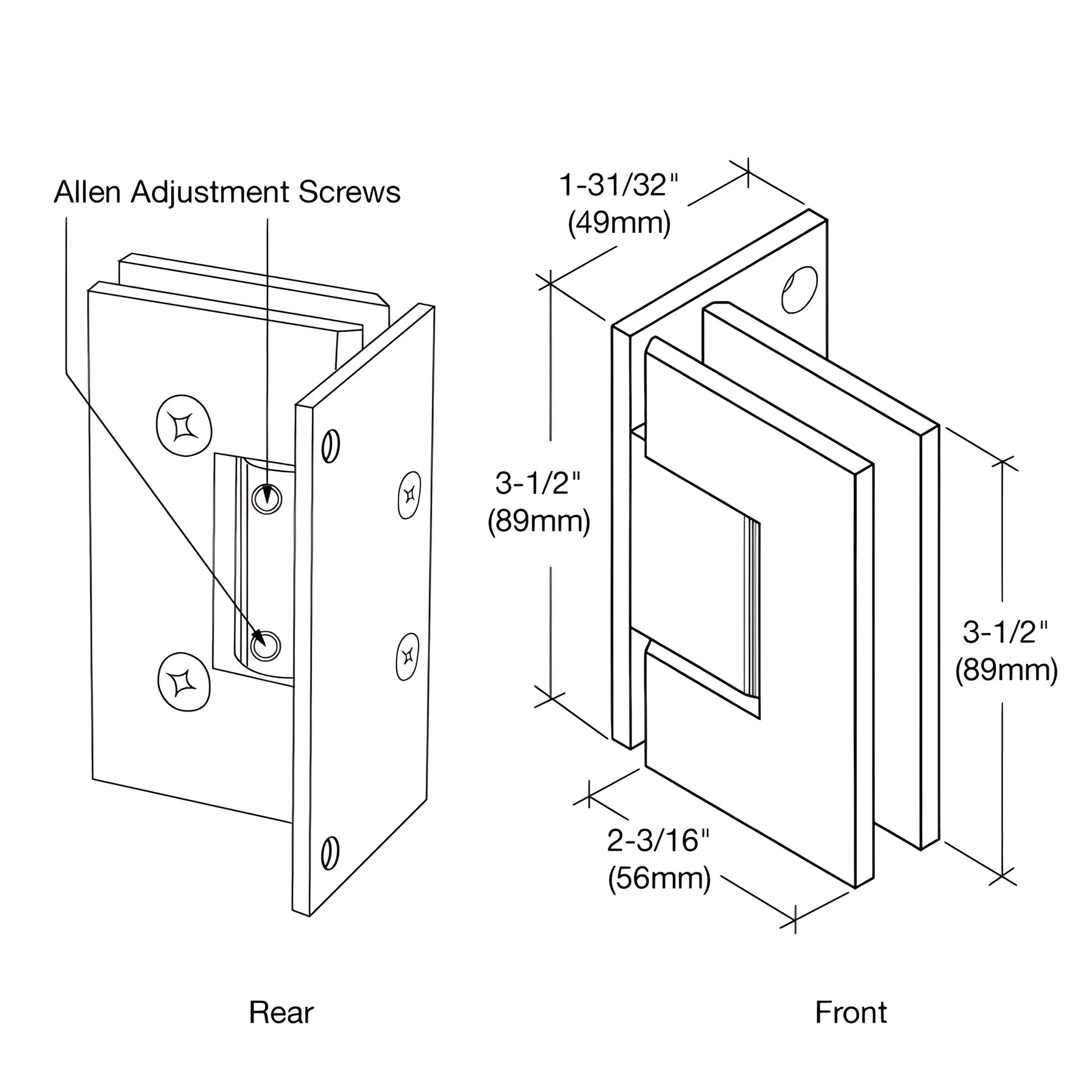

The CRL Adjustable Geneva Series (SKU: GEN3440RB) upgrades the popular Geneva hinge into a fully adjustable shower door hinge. This solid-brass, self-centering hinge lets you fine-tune the closing angle after installation—simply loosen the Allen set screws, rotate the door to the desired position, then retighten. The hinge supports 90° swing inward and 90° outward at the factory set position; adjusting the closing angle reduces swing on the adjusted side. For outward-swinging doors with a clear jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Field-adjustable to any angle up to 90° without removing the door — ideal for retrofit and new-construction shower installations
Construction: Solid brass for corrosion resistance and long life
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

NOTE: Glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use. For other applications obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—cut-out dimensions may differ from other brands.

Choose the GEN3440RB adjustable shower door hinge for reliable, field-adjustable performance and long-lasting solid-brass construction. Contact us to order or request installation guidance.
