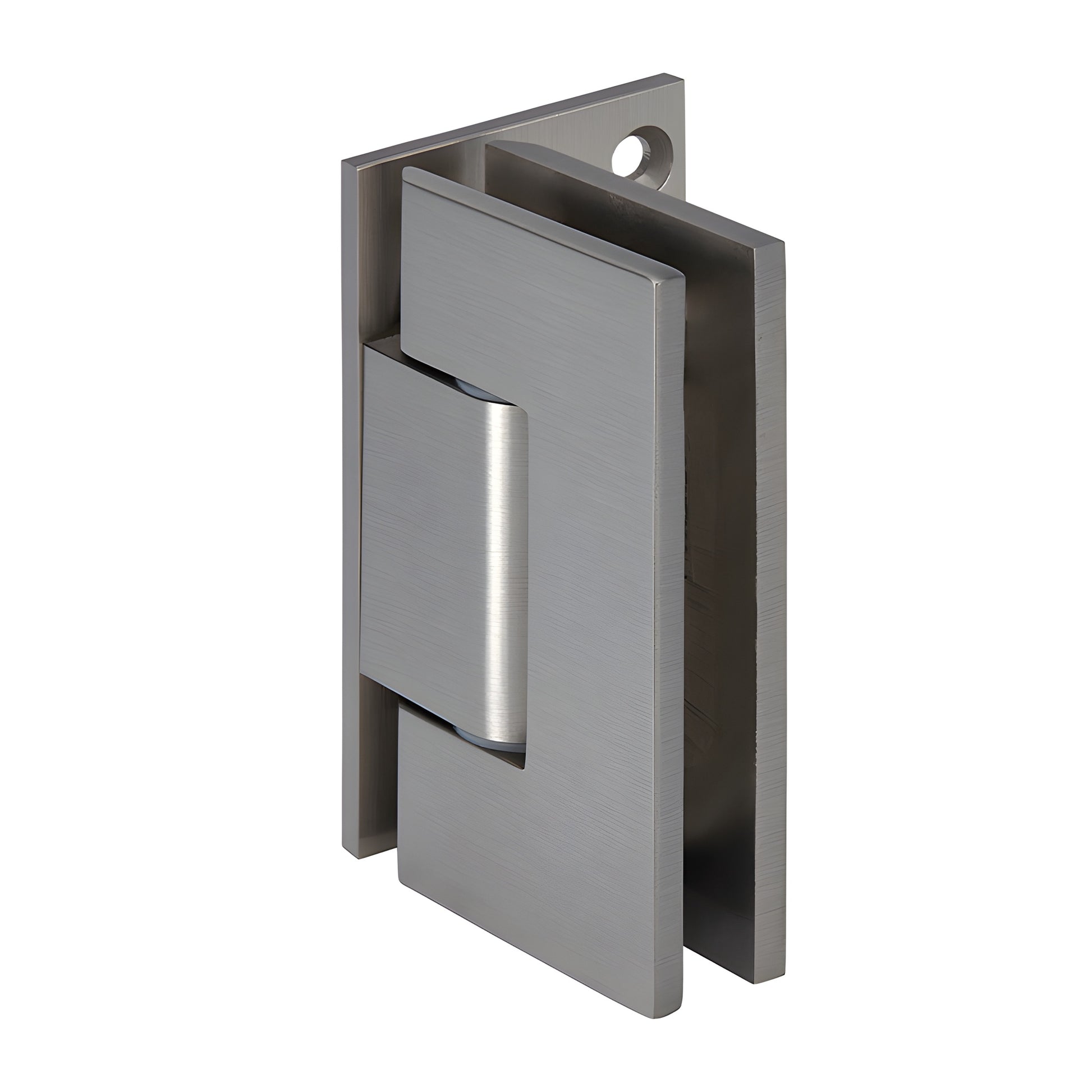

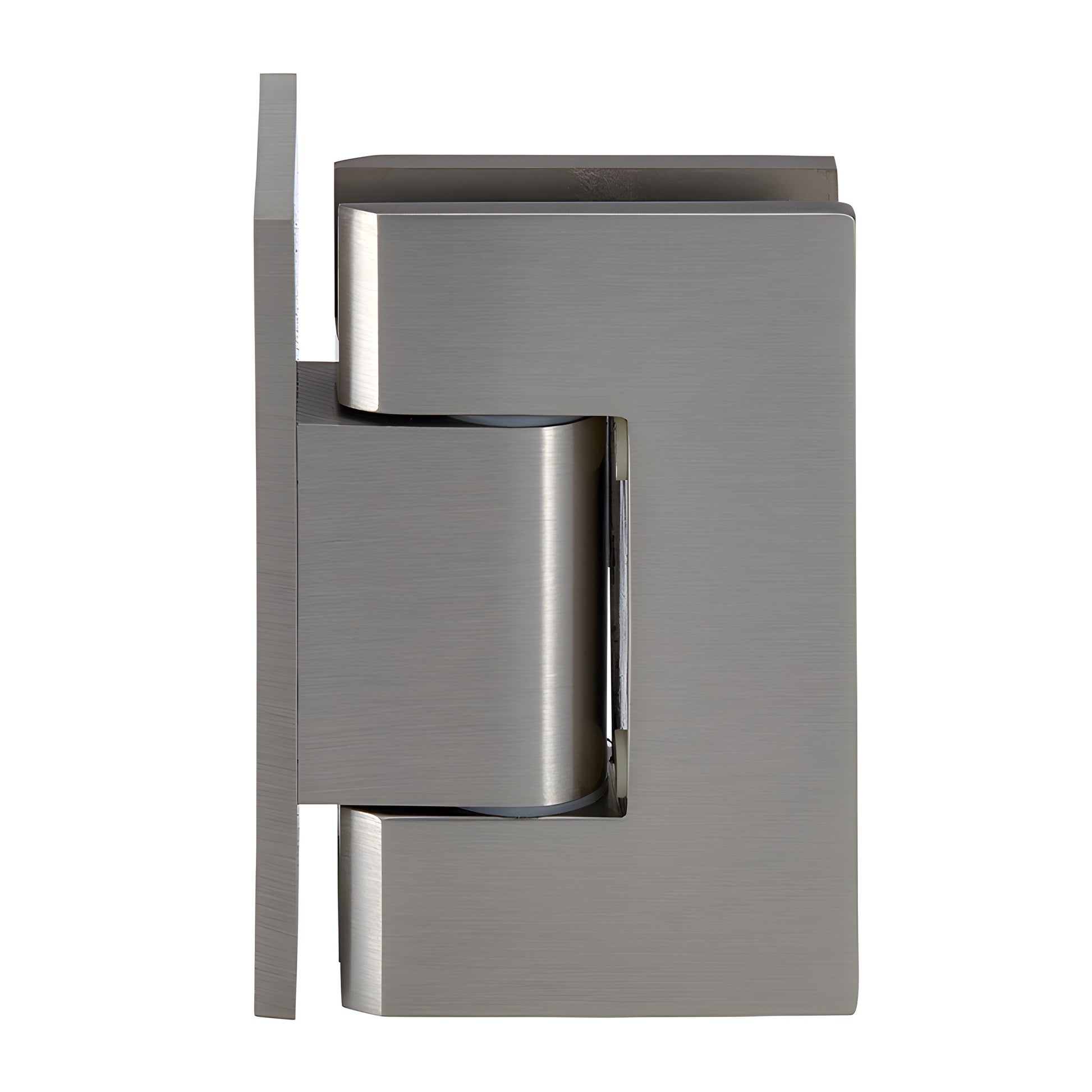

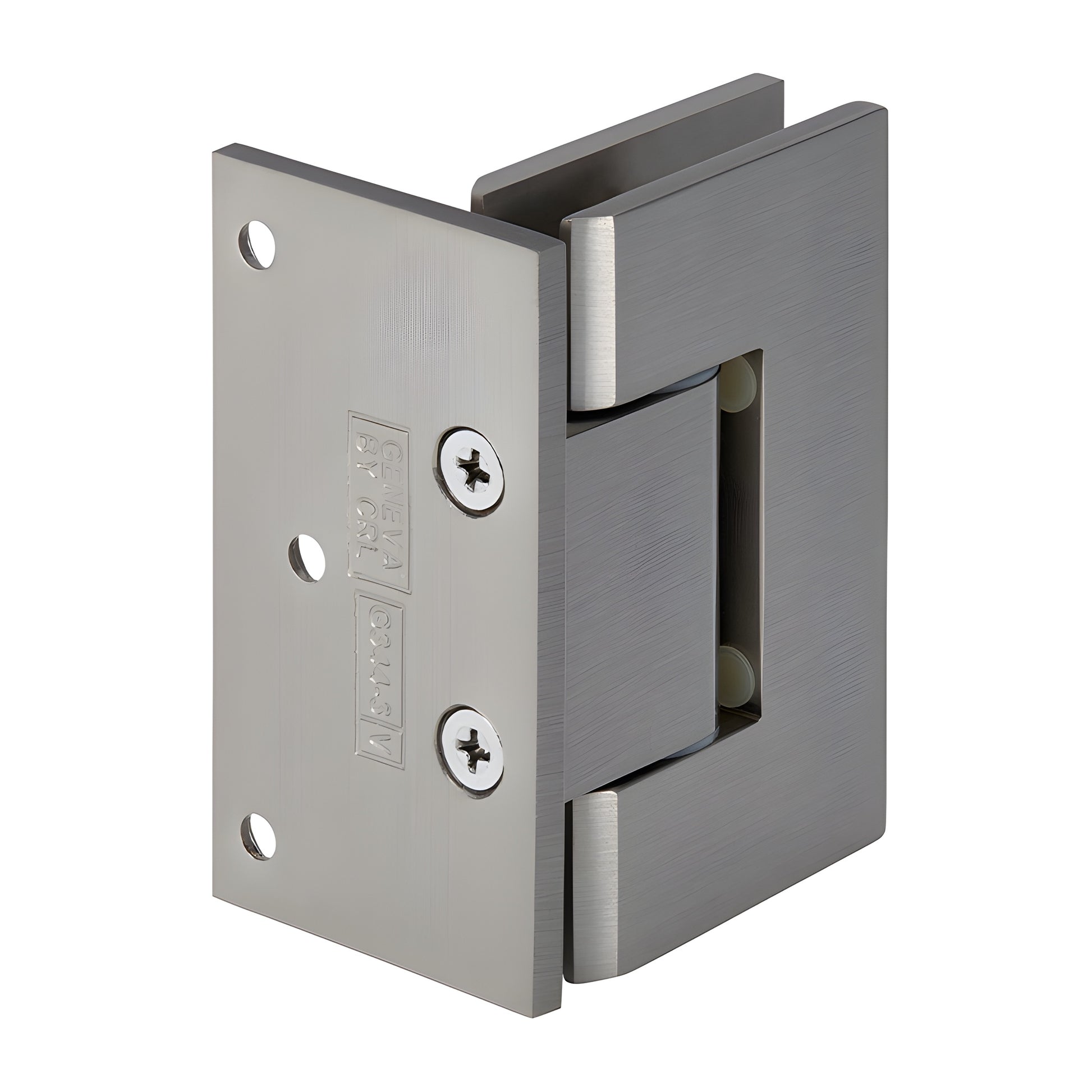

CRL Brushed Nickel Adjustable Wall-Mount Offset Back-Plate Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several beautiful finishes
• 3 Year Warranty
• For use with monolithic tempered safety glass

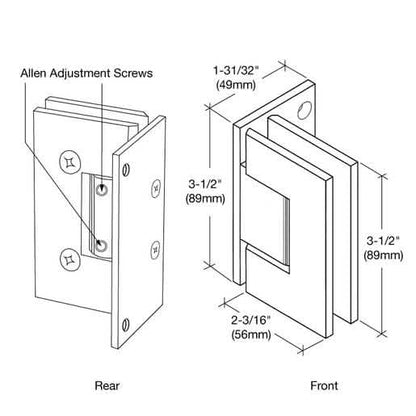

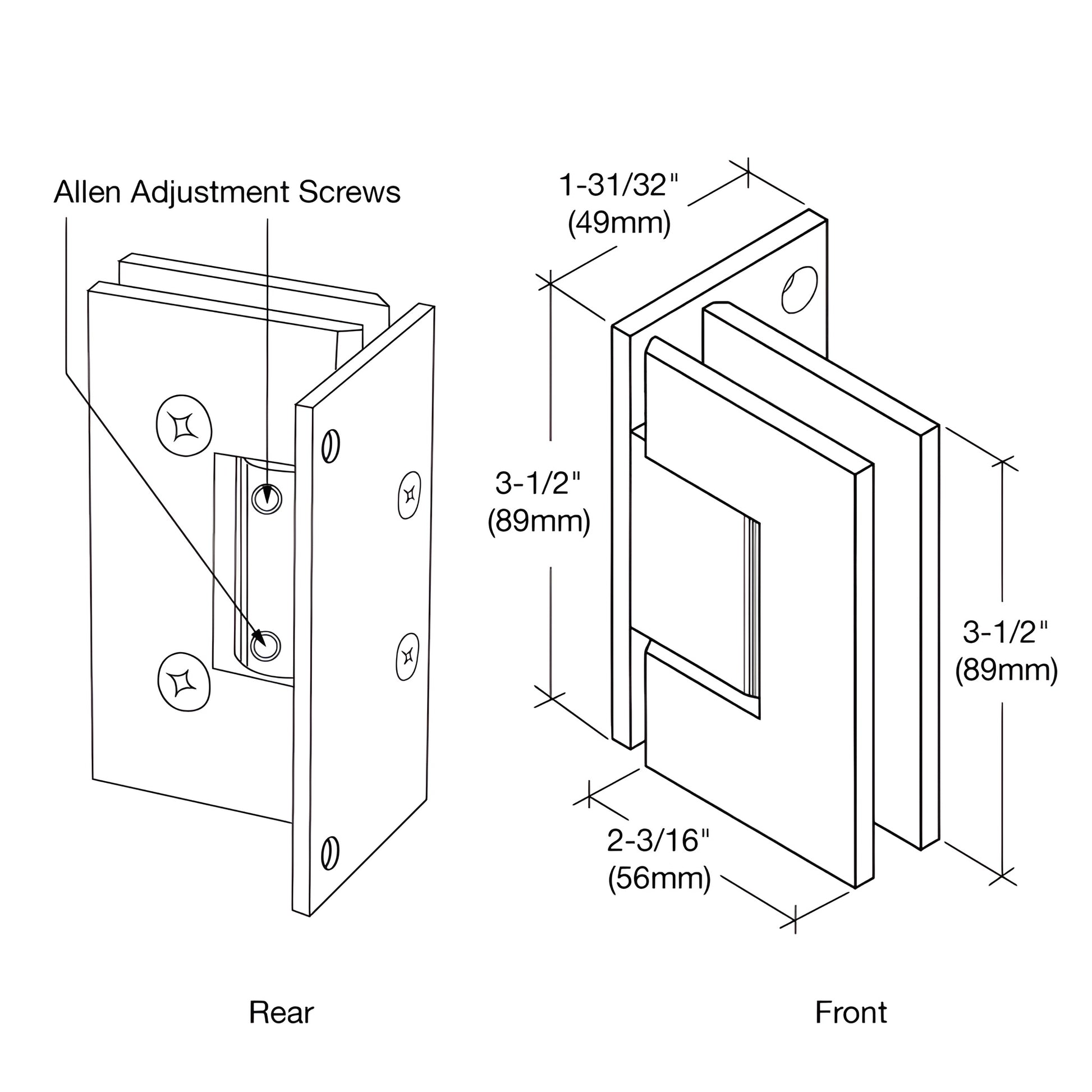

The CRL Adjustable Geneva Series (SKU: GEN344BN) upgrades the popular Geneva hinge into a fully adjustable shower door hinge. Make angle adjustments after the door is installed—simply loosen the Allen set screws, rotate the door to the desired closed position, then retighten. The hinge supports 90° inward and 90° outward swing at the factory set position; adjusting away from the factory position reduces swing in that direction. For outward-swinging doors on a clear jamb, you can set the hinge to close 5° inside the shower to ensure a snug fit. Ideal long-tail keywords: adjustable shower door hinge for glass doors, solid brass Geneva hinge for 8–12mm tempered glass.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Field-adjustable up to 90° without door removal; self-centering closing when within 15° of closed position
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require non-standard clearance deductions when adjusting angles. Call for details.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Upgrade your shower with the GEN344BN adjustable Geneva hinge—contact us or add to cart to get the correct finish and gasket pack for your glass.
