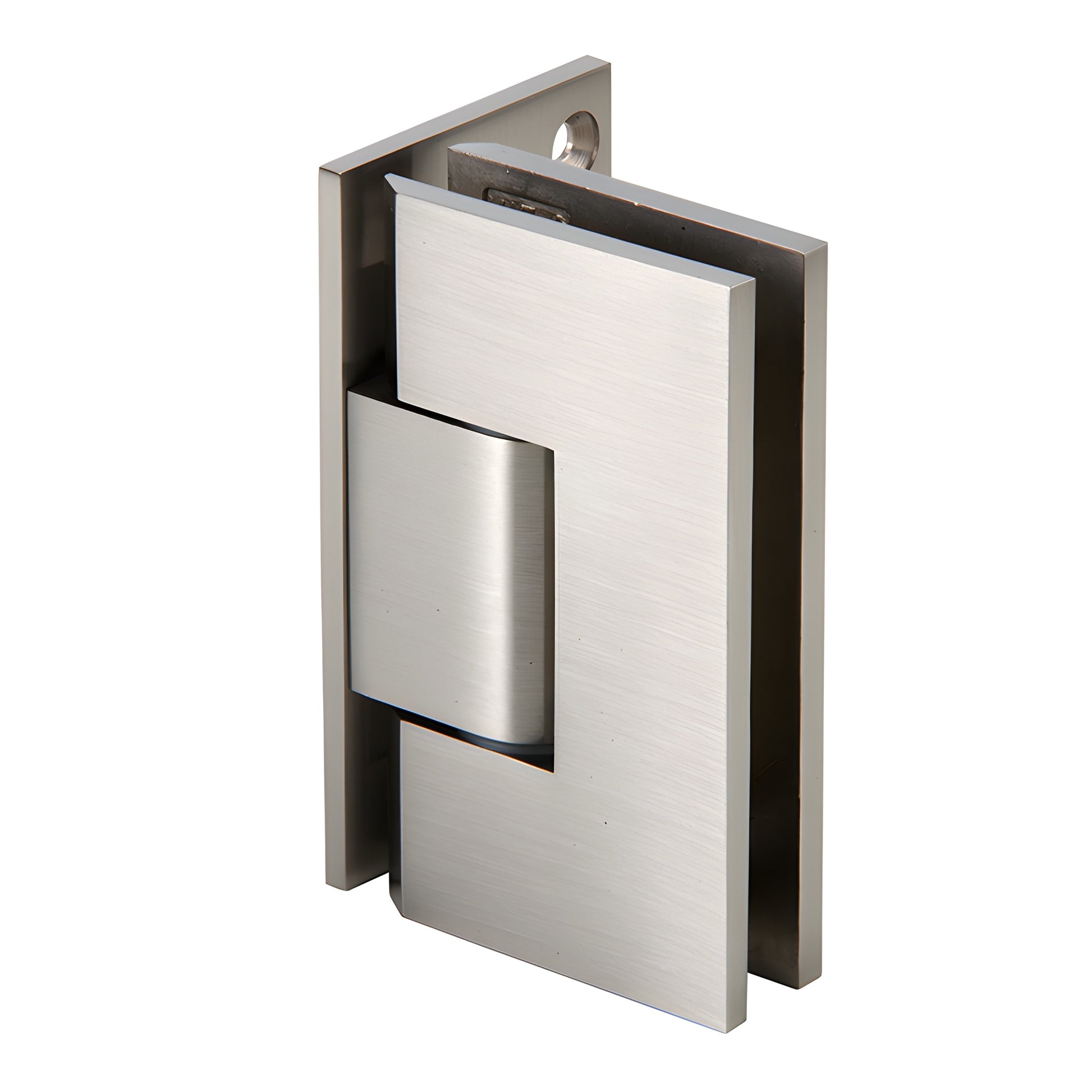

CRL Vienna Brushed Nickel Adjustable Glass Shower Door Hinge
CRL Vienna Brushed Nickel Adjustable Glass Shower Door Hinge
Regular price
$140.56 CAD
Regular price
Sale price
$140.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E344BN
Shipping Weight: 2.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
Offset
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

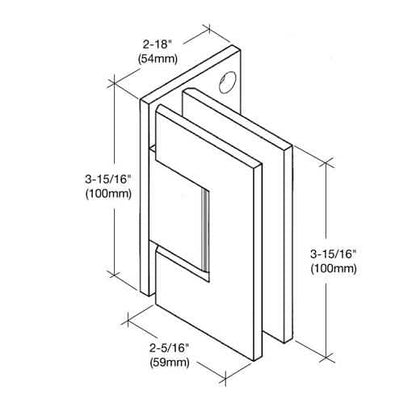

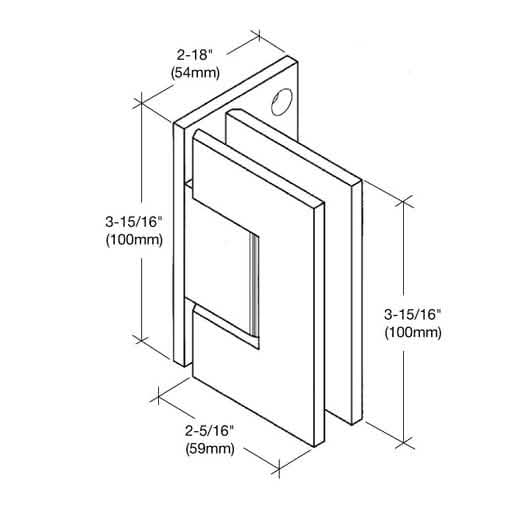

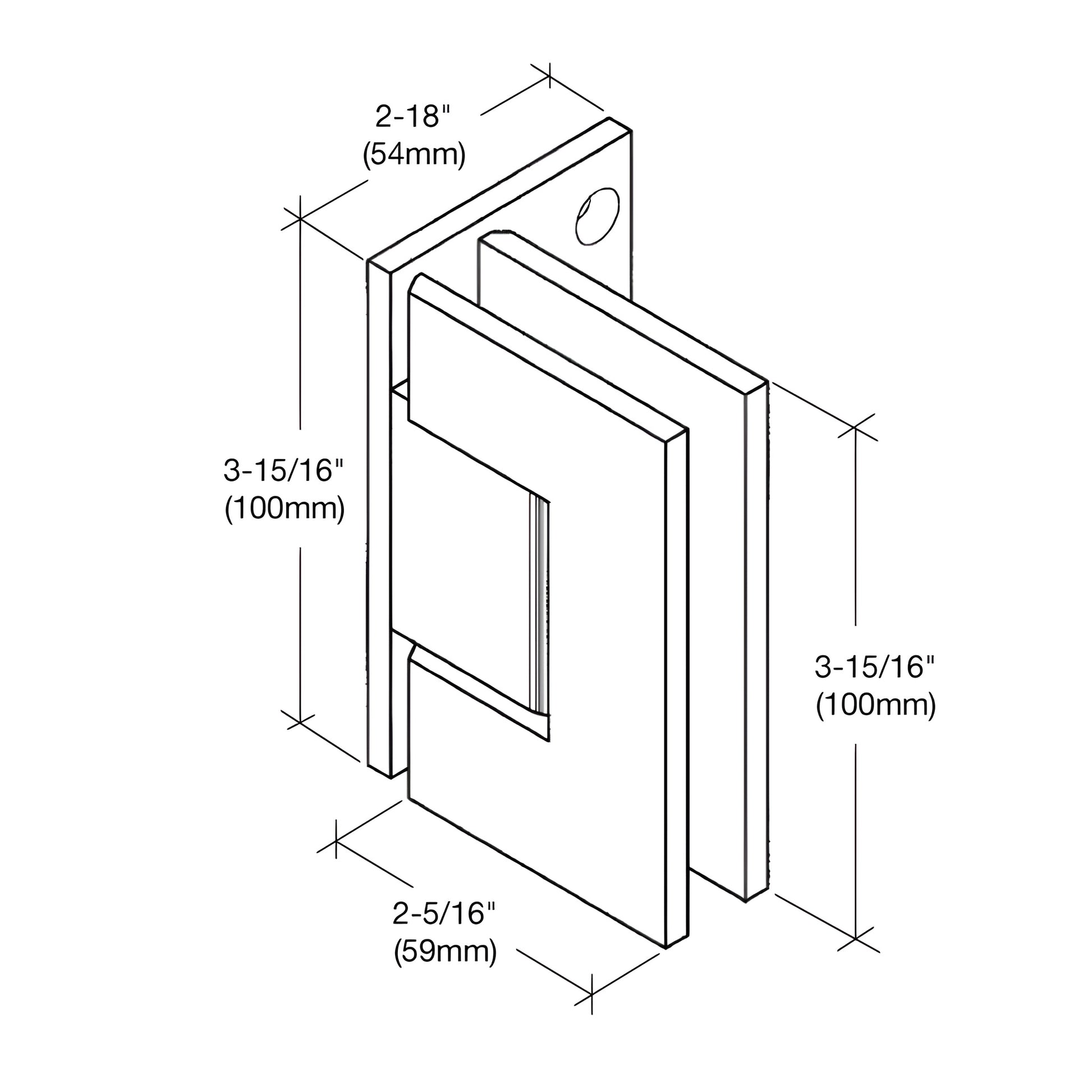

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-5/16 in. (59 mm)
Overview
- Adjustable up to 90 degrees — precise positioning for residential and hotel shower doors
- Offset wall mount plate for a clean sight line and minimalist hardware profile
- Available in multiple finishes to match shower frames and bathroom décor

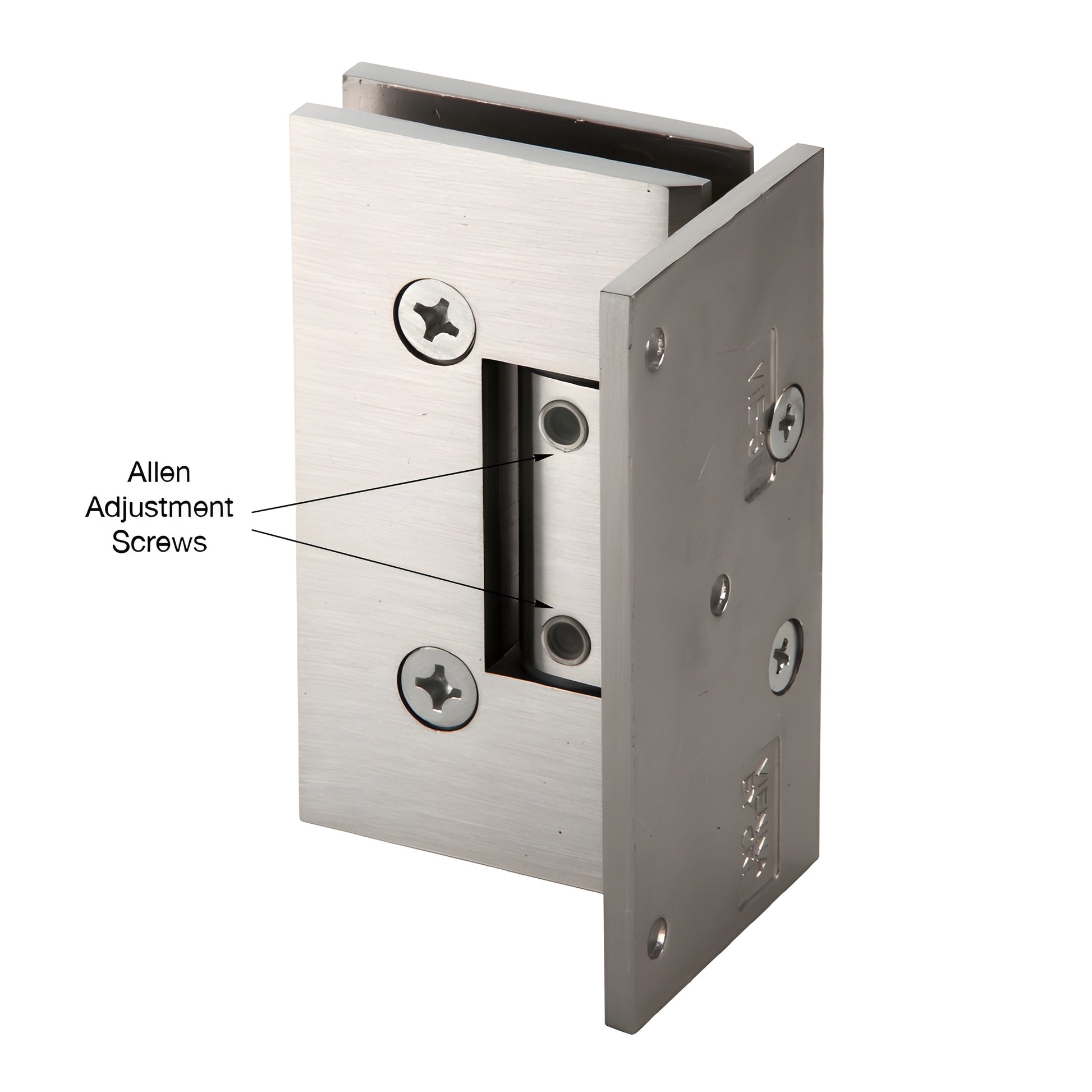

The Vienna Offset Wall Mount Plate Adjustable Hinge (SKU V1E344BN) is an adjustable shower door hinge engineered to set door closing angles up to 90 degrees. Loosen the Allen screws on the hinge rear, position the door to the desired angle, then re-tighten the screws. For optimal performance, use with a strike jamb and position the door to push against the jamb for a snug close. The offset wall mount plate creates a clean sight line for a streamlined shower appearance.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Order the Vienna adjustable offset wall mount hinge (SKU V1E344BN) today to achieve precise 90-degree shower door adjustment and a clean sight line.
Specifications
Templates
