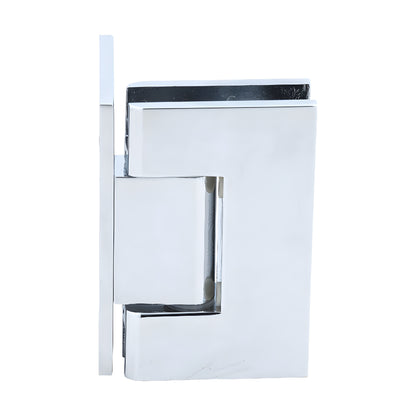

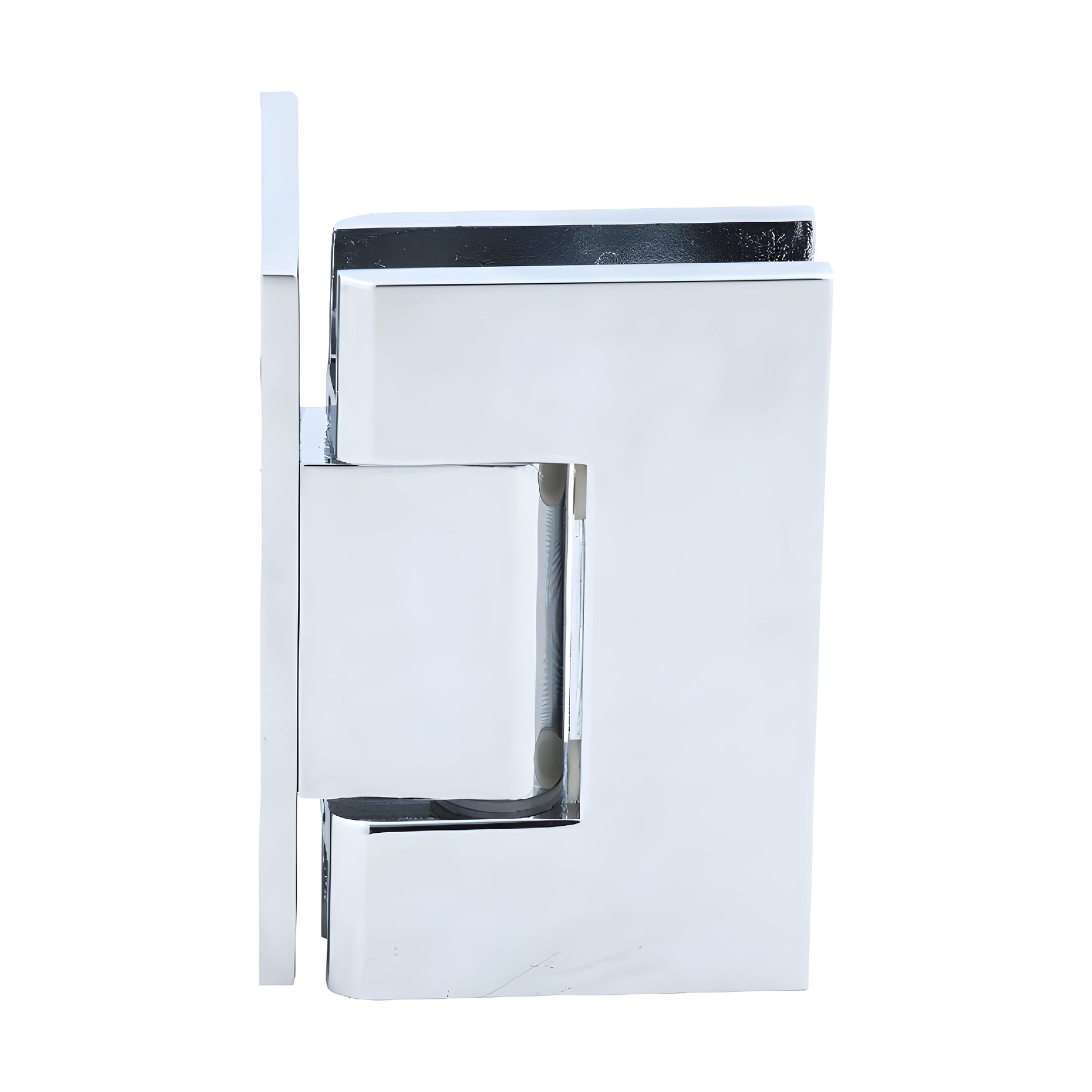

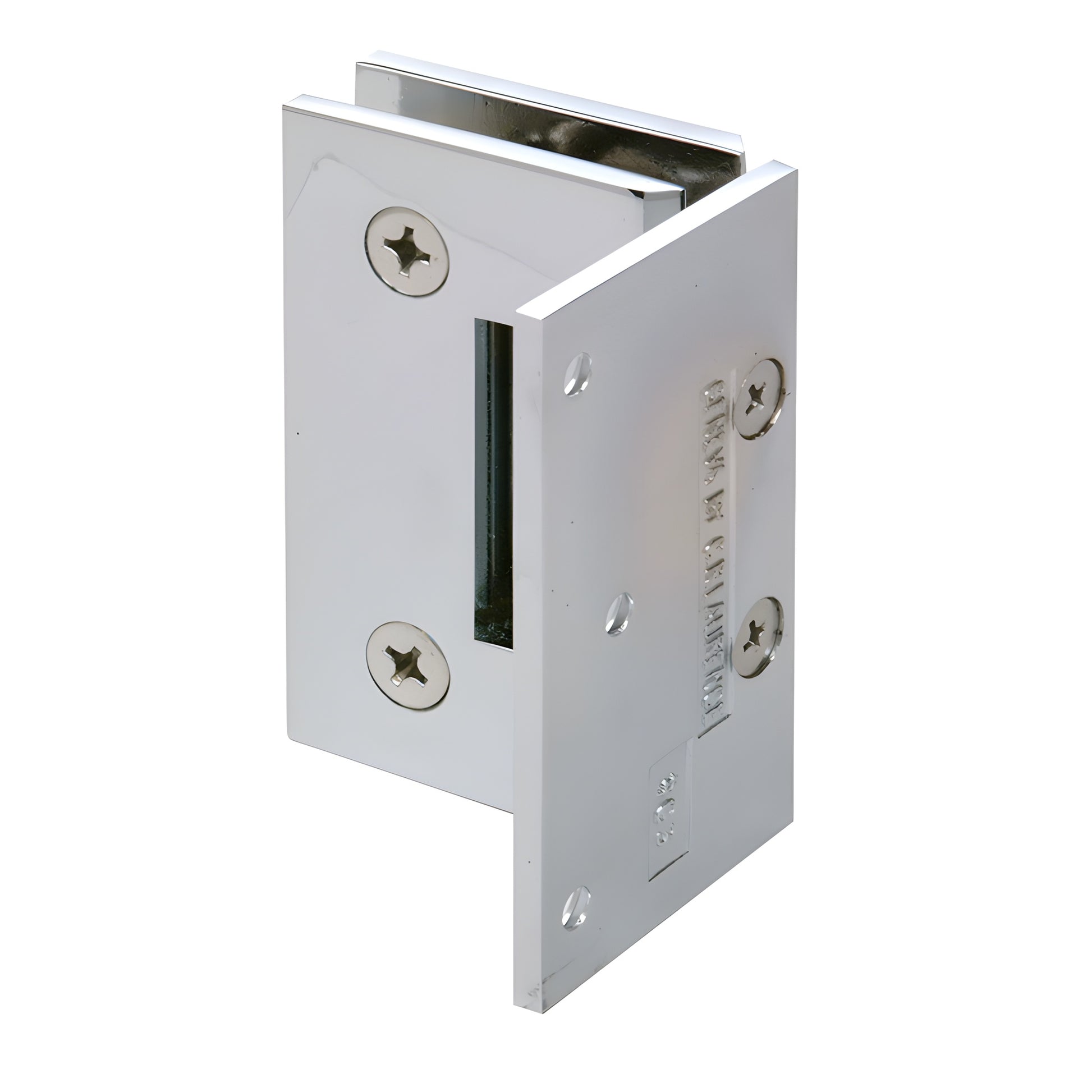

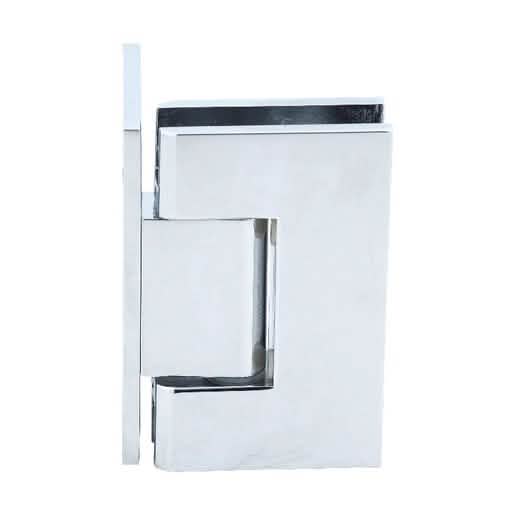

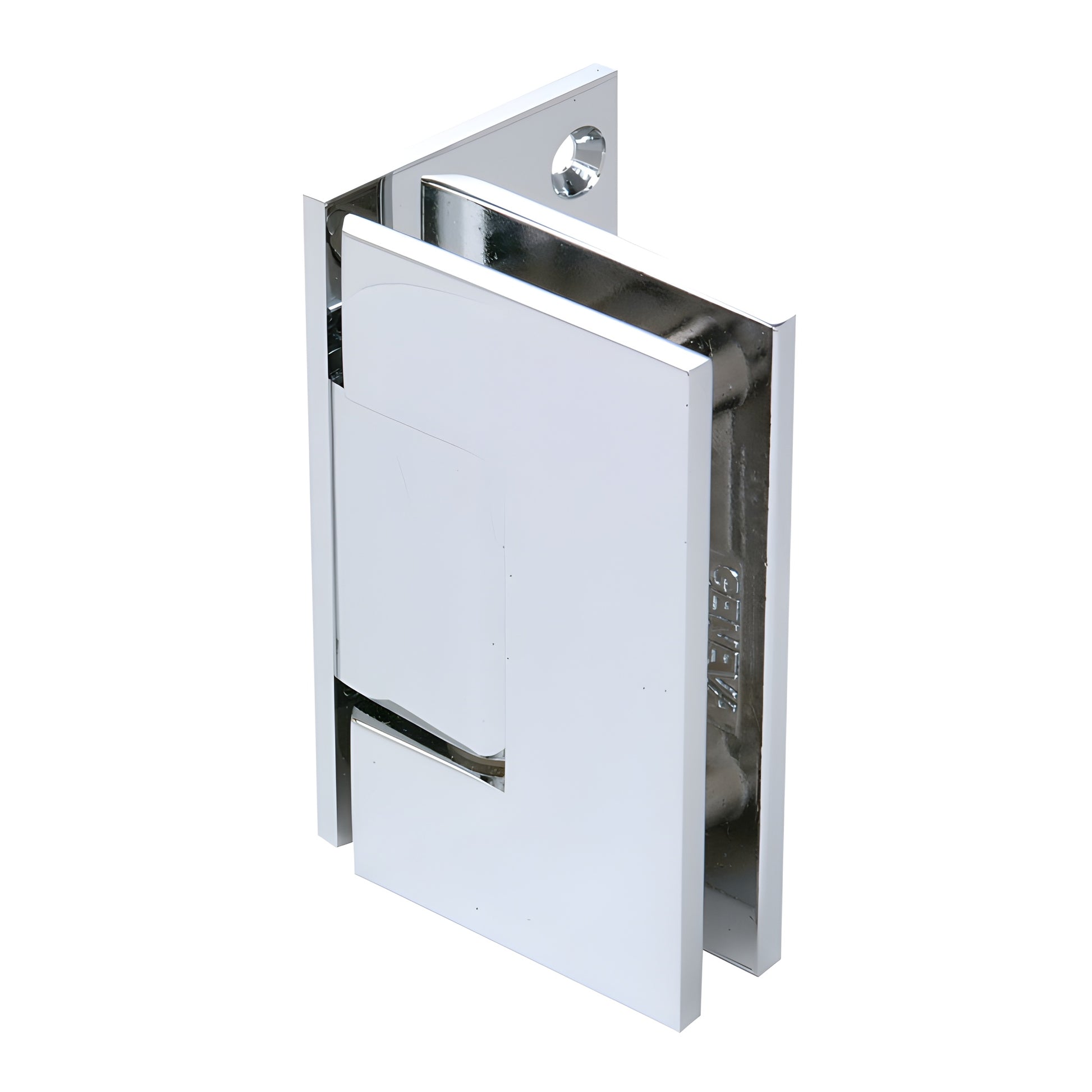

CRL Geneva 544 Polished Chrome Offset Backplate Shower Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable decorative finishes
• Three-year warranty
• Factory 5° pre-set model for tighter closure into the shower interior
• Designed for monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN544CH) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and is offered in six styles—three Wall Mount and three Glass-to-Glass—providing design flexibility for shower enclosures. Geneva Hinges are made of solid brass with stainless steel pins and springs, and are self-centering with a reversible 5° pivot pin for improved door closing performance. Custom pivot pins are available for off-angle installations.

Each Geneva hinge includes a reversible pivot pin: one side marked 90° (standard) and the opposite side marked 85° (5° pre-set for tighter closure into the shower interior). Pre-Set models ship with the 85° side activated; the pin can be rotated to select the other side.

Custom Pivot Pin: Cat. No. GENP1N custom pivot pins can be specified for off-angle installations (up to 45°). If the standard reversible pin does not achieve the desired closing position, contact our Technical Sales Shower Door Department. Using a custom pivot pin may affect glass sizing and enclosure aesthetics.

Performance:

• Two hinges (5/16"–1/2" glass): supports up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (5/16"–1/2" glass): supports up to 120 lbs (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:

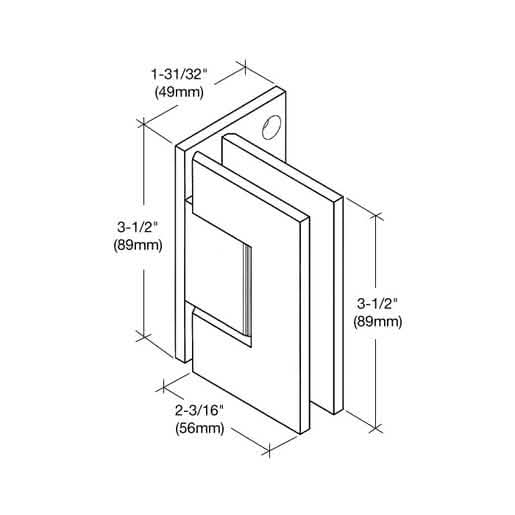

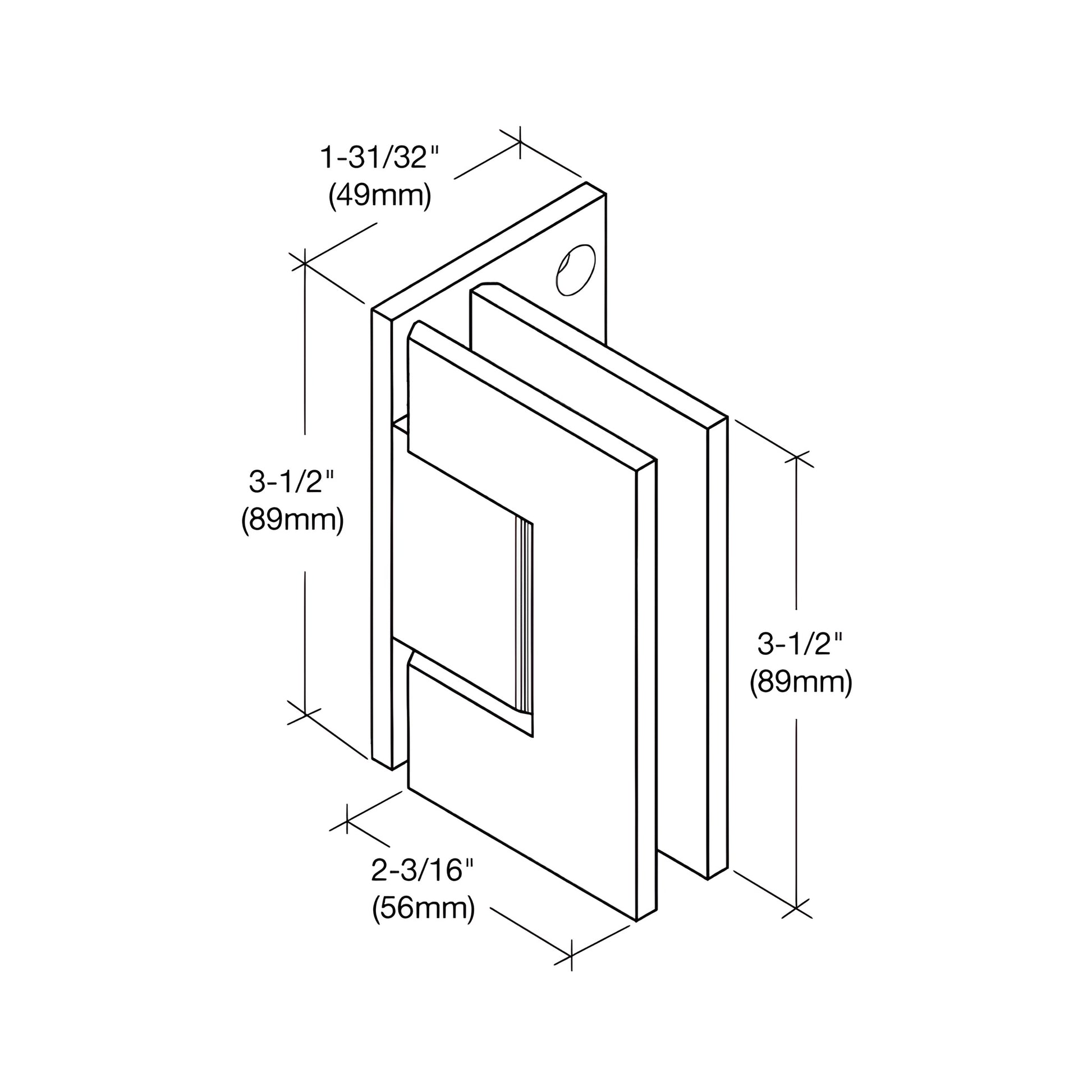

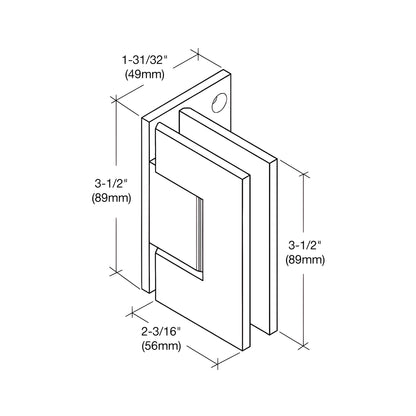

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard (0°) or 5° Pre-Set model for tighter inward closure
Construction: Solid brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
