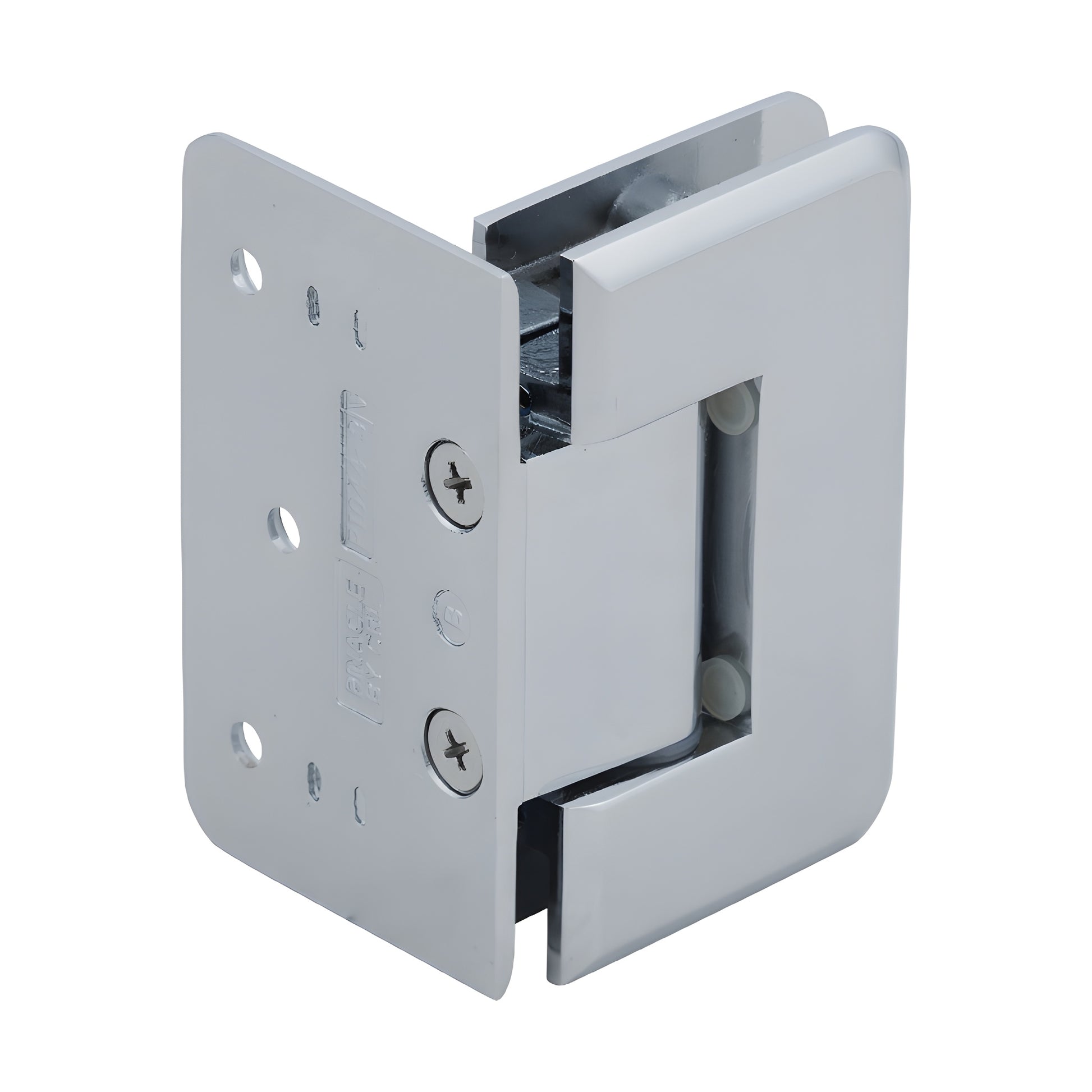

• Pinnacle polished chrome brass shower hinge (SKU P1N544CH), beveled edges, 5 pre-set, for 8-12mm tempered glass

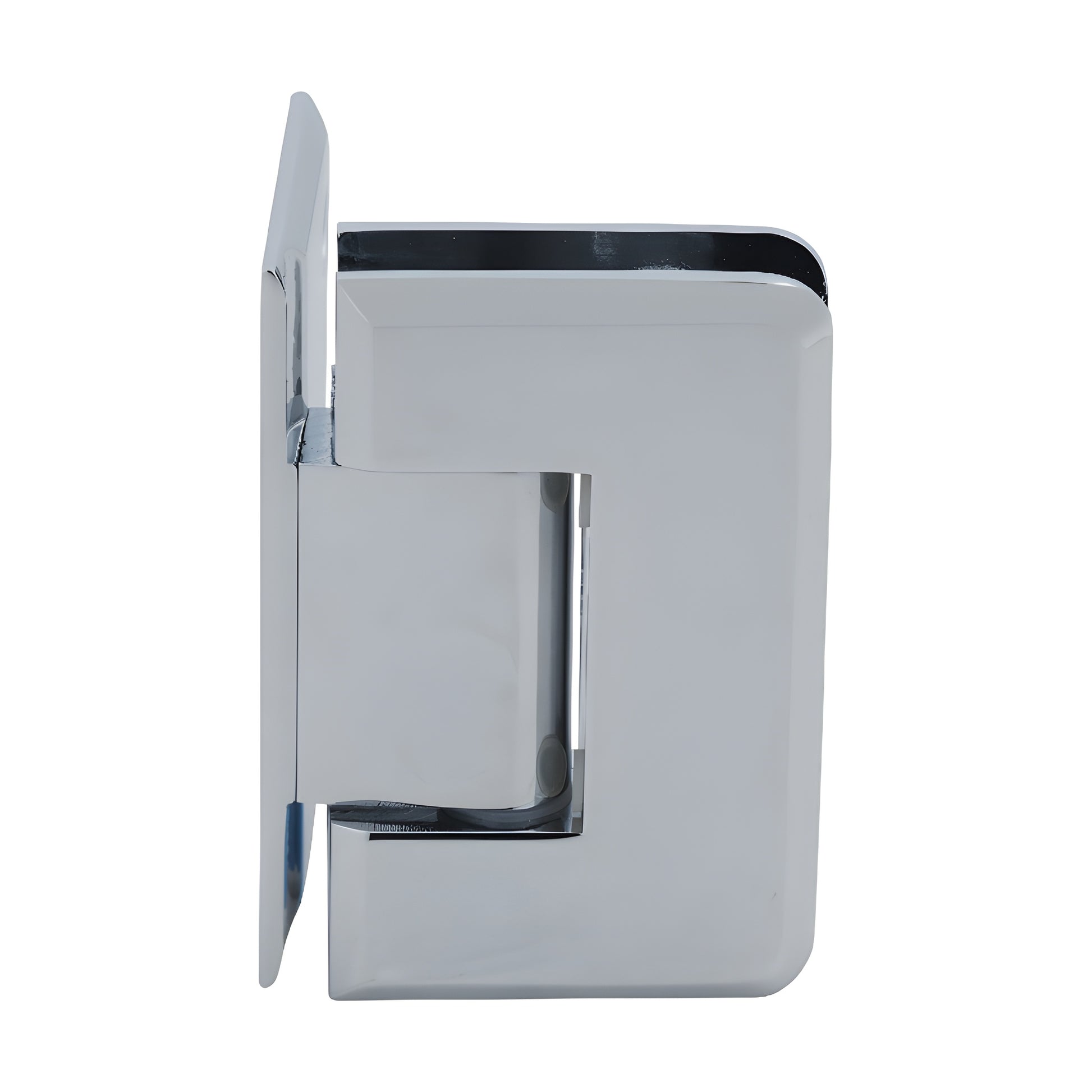

  • Pinnacle polished chrome brass shower hinge (SKU P1N544CH), beveled edges, 5 pre-set, for 8-12mm tempered glass

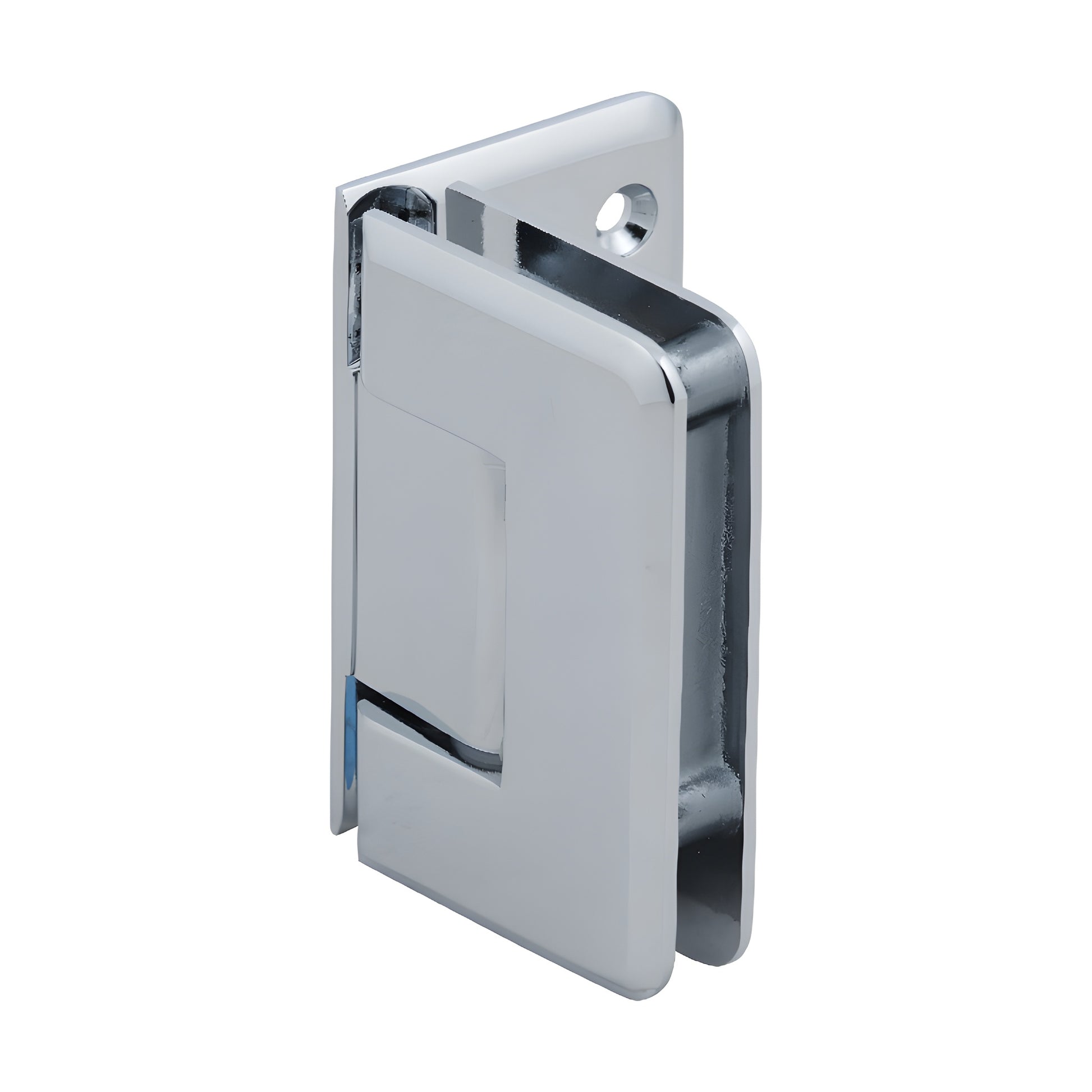

  • Pinnacle polished chrome brass shower hinge (SKU P1N544CH), beveled edges, 5 pre-set, for 8-12mm tempered glass
1 3

CRL

CRL Pinnacle 544 5° Polished Chrome Wall-Mount Offset Hinge for Glass

CRL Pinnacle 544 5° Polished Chrome Wall-Mount Offset Hinge for Glass

$70.27 CAD
$70.27 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# P1N544CH
Shipping Weight: 1.63 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
Yes
Adjustable
No
Back Plate
Offset
Edge Profile
Beveled
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Pinnacle
Width
2-3/16 in. (56 mm)

Overview

  • Self-centering hinge with reversible 5° pivot pin
  • Available in several finishes
  • Three-year warranty
  • 5° pre-set model for tighter closure into shower interior
  • For monolithic tempered safety glass (5/16"–1/2" / 8–12 mm)

The CRL Pinnacle Hinge SKU P1N544CH shares features with our Geneva Series but adds radius corners and beveled edges for a sleeker, contemporary look. Designed for frameless shower doors, Pinnacle Hinges fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed from solid brass with stainless steel plunger tips, pins, and springs, these hinges deliver durable, reliable door closure for residential and hotel shower applications.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-Set models are factory-set to 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY:
  • Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lbs (36 kg), max door width 28" (711 mm).
  • Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass hinges available as Standard (0°) or 5° Pre-Set Models for tighter shower closure.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in / 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) glass.
