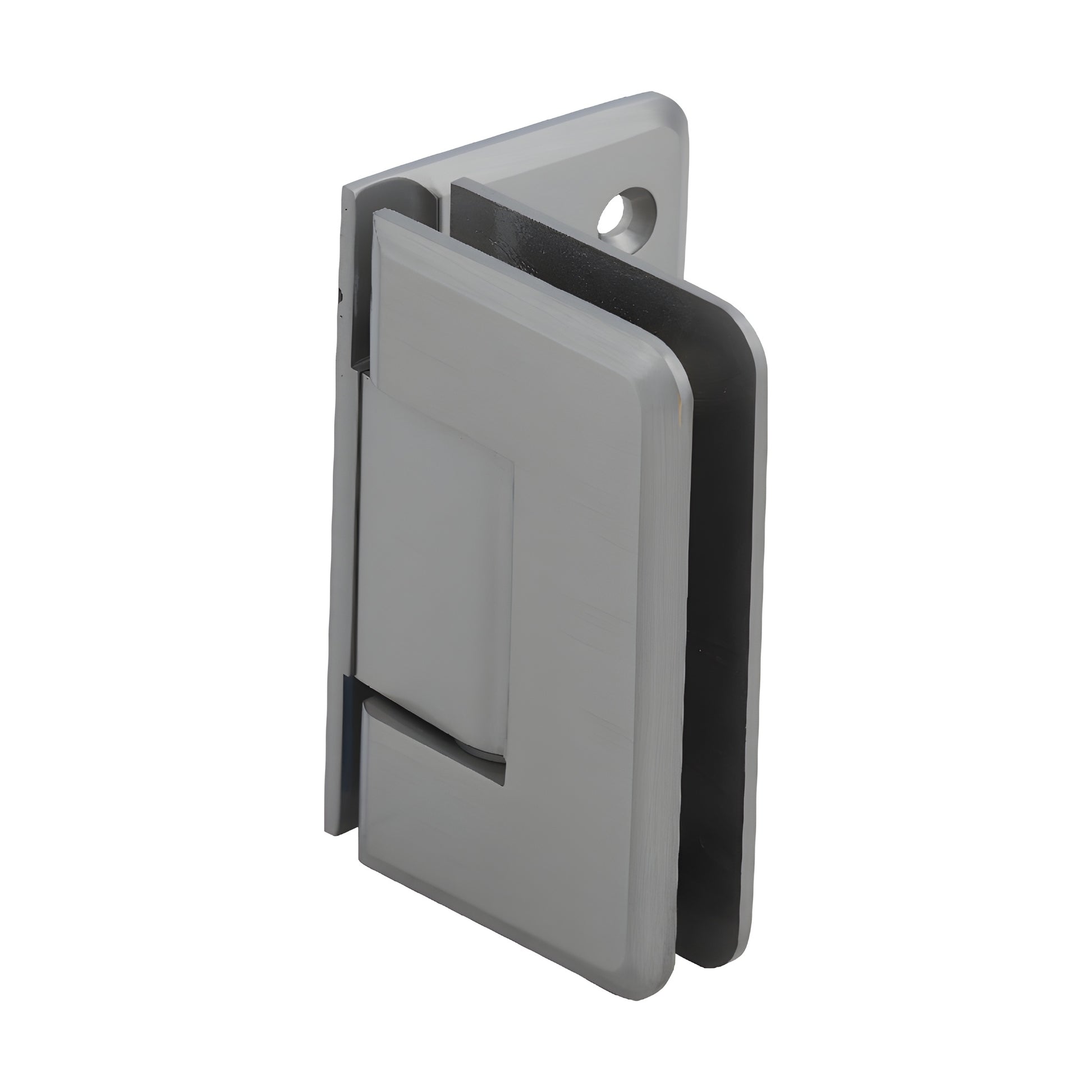

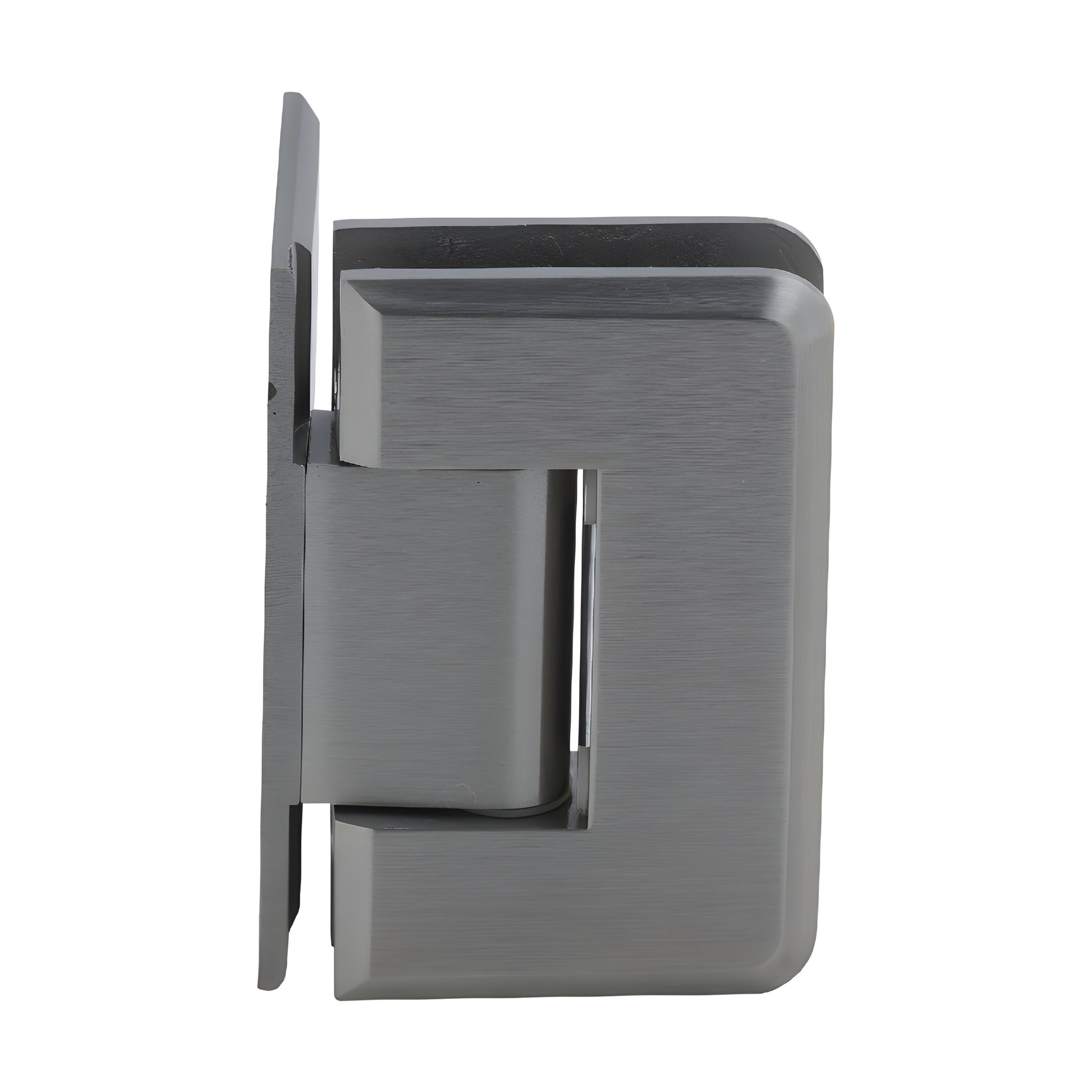

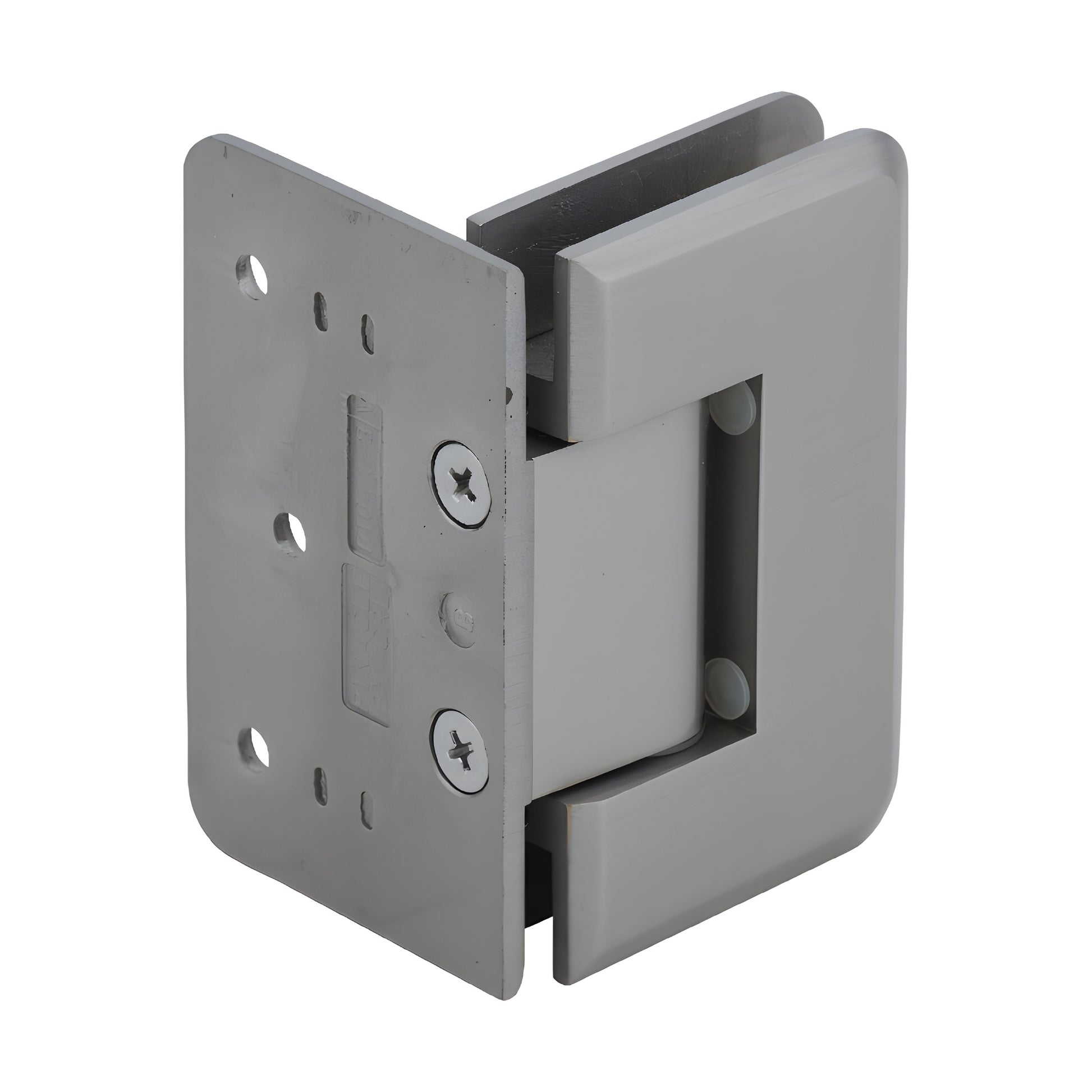

CRL Pinnacle 544 5° Brushed Nickel Wall-Mount Offset Glass Door Hinge

• Self-centering with reversible 5 degree pivot pin
• Available in several beautiful finishes
• Three year warranty
• 5 degree pre-set model (factory set for 5° tighter closure into shower interior)
• Use monolithic tempered glass

The CRL Pinnacle Hinge (SKU: P1N544BN) is a radius-corner, beveled-edge alternative to our Geneva Series designed for a sleek, modern shower appearance. Pinnacle shower door hinges fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these solid brass shower hinges deliver long service life and reliable door closure. The Pinnacle includes the reversible 5° pivot pin used in our Geneva, Cathedral, Roman, Ultimate, and Elite series; a custom pivot pin is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle hinge contains a reversible pivot pin with one side marked 90° and the opposite side marked 85°. Standard hinges ship with the 90° side active. Pre-set models ship with the pin set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to activate the other side.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° pivot does not achieve desired closure.

Capacity:
Using two hinges: With 5/16" to 1/2" (8–12 mm) glass, holds up to 80 lbs. (36 kg); maximum door width 28" (711 mm).
Using three hinges: With 5/16" to 1/2" (8–12 mm) glass, holds up to 120 lbs. (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount hinges and 180° glass-to-glass hinge available as Standard (0°) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for
