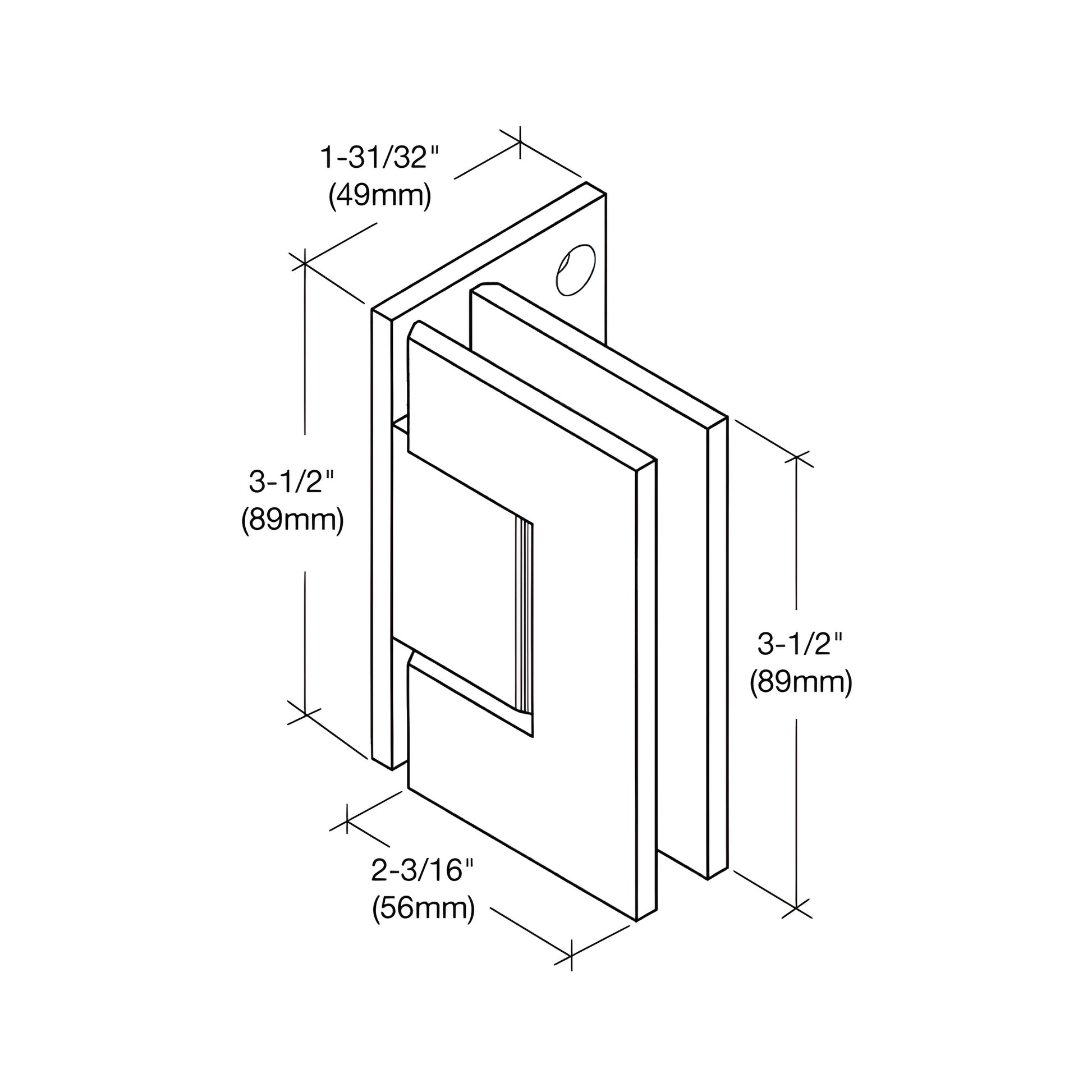

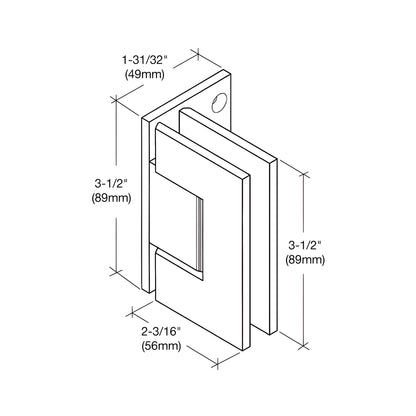

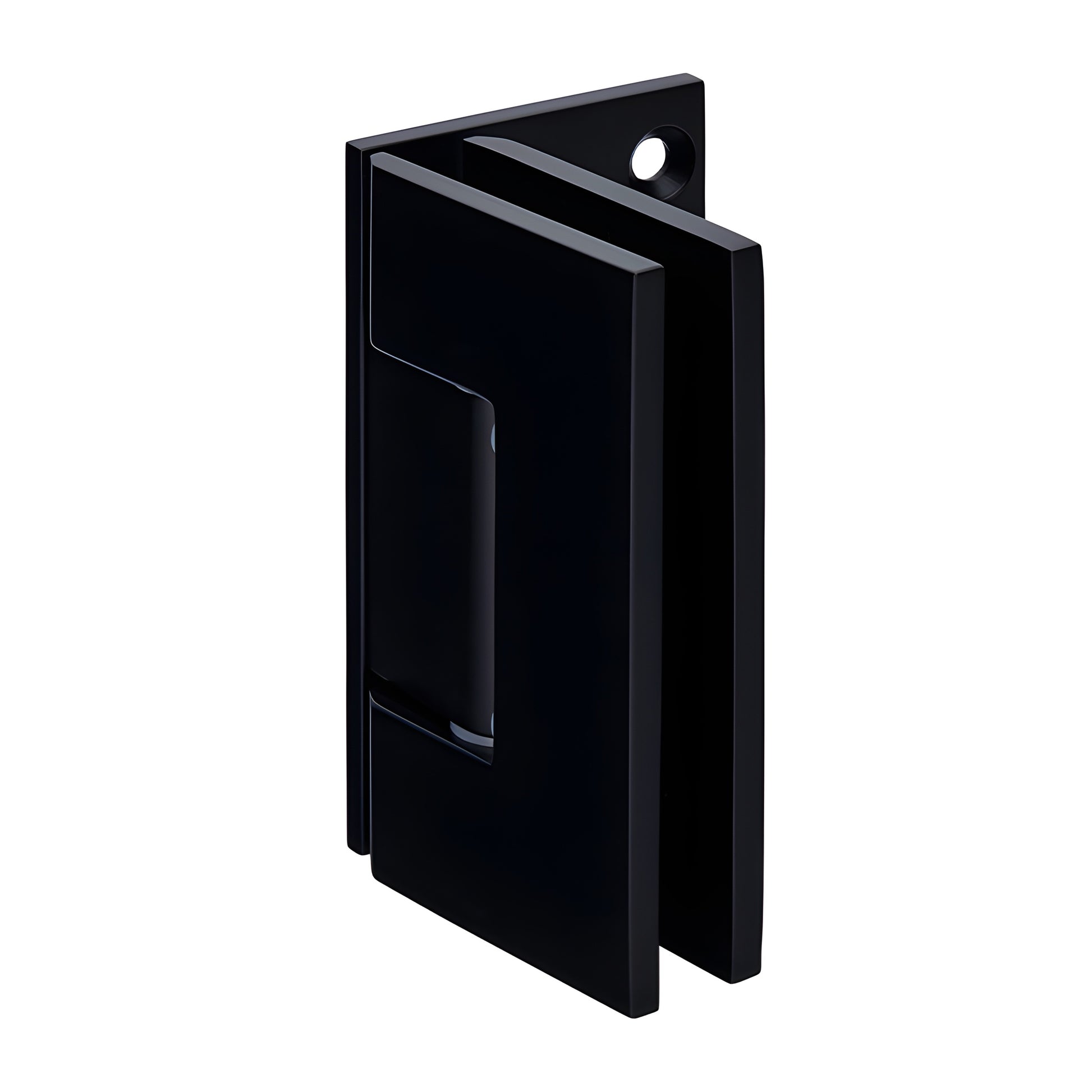

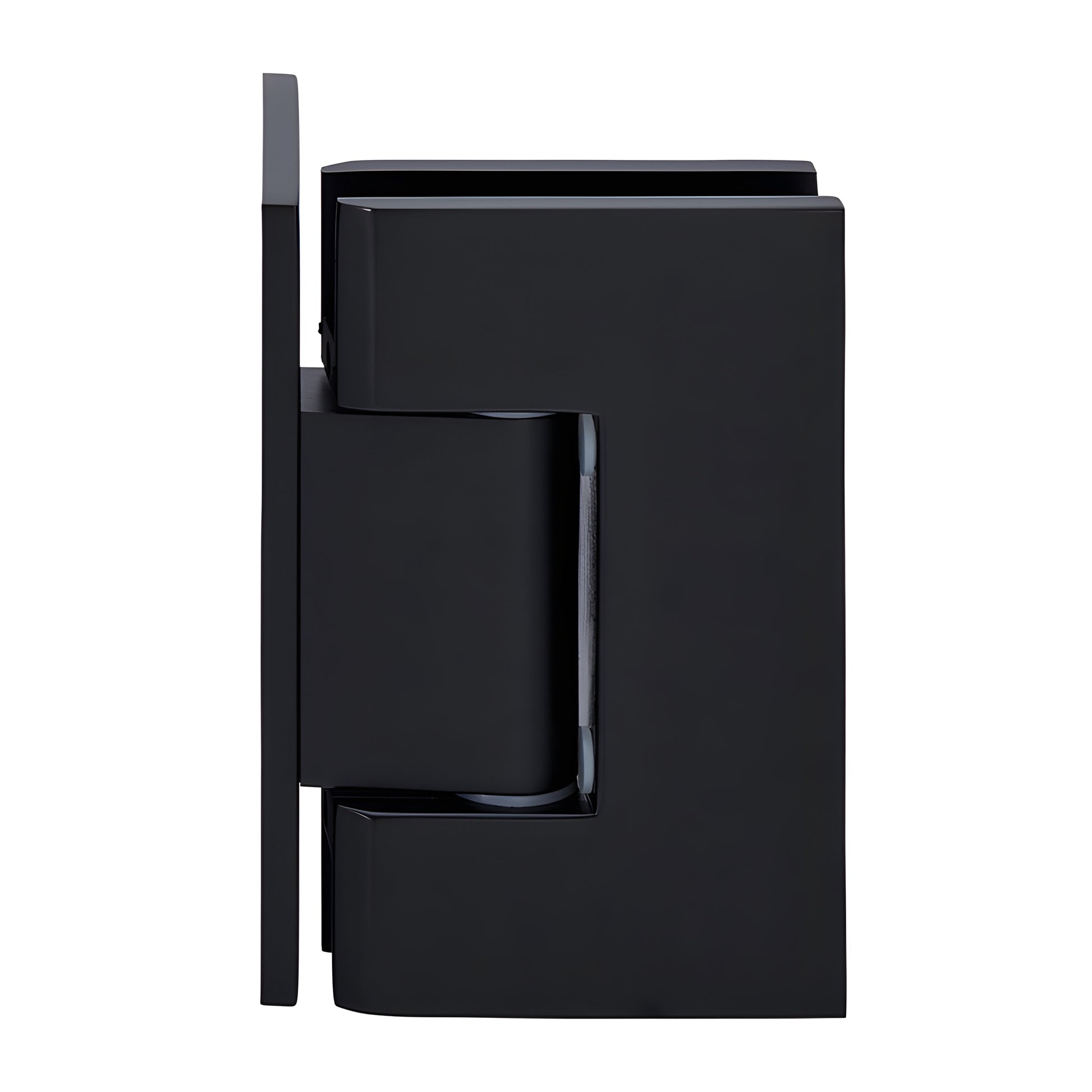

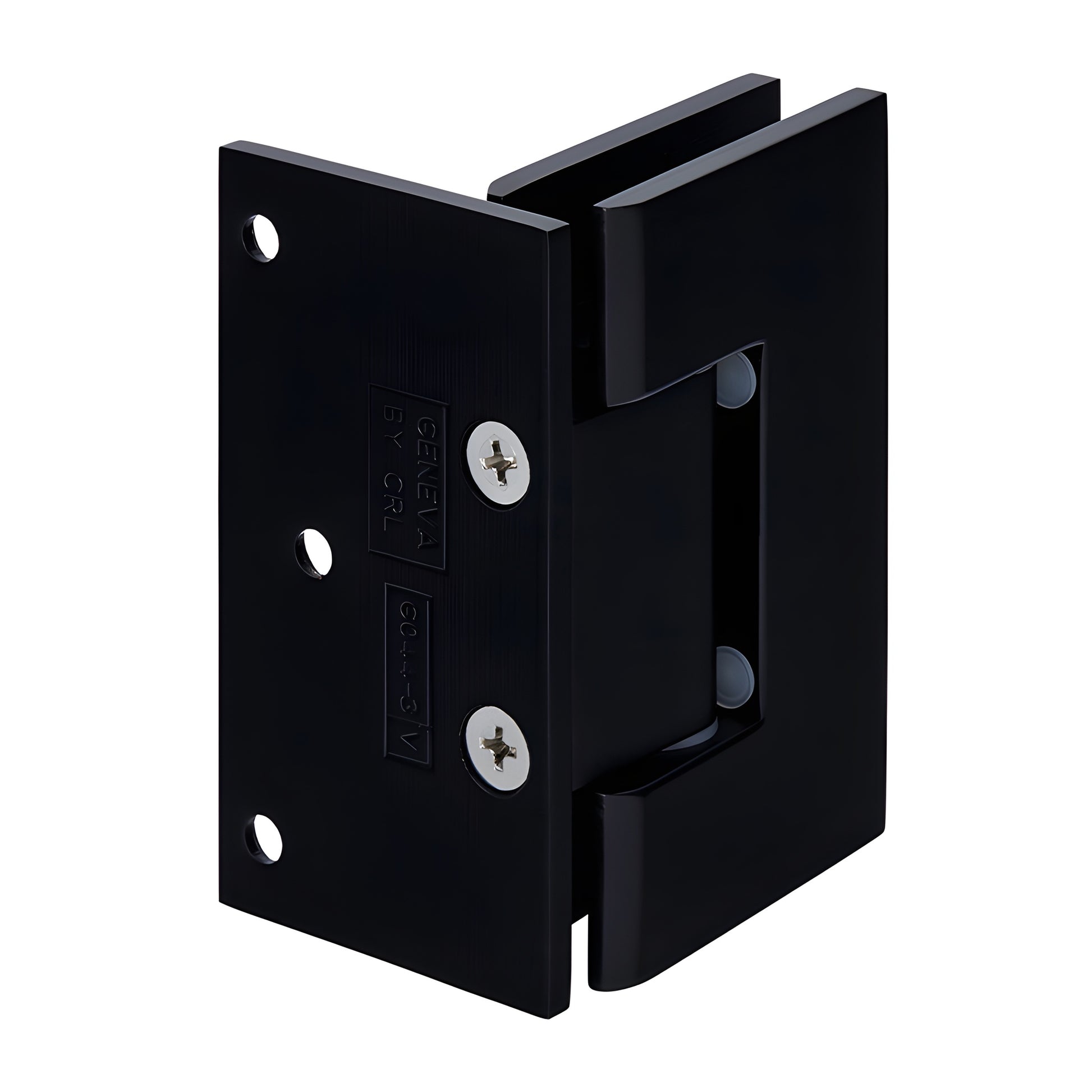

CRL Geneva 544 Matte Black Offset Back Plate Hinge for Glass Doors

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes
• Three year warranty
• 5° pre-set model (factory set for 5° tighter closure into shower interior)
• For use with monolithic tempered glass (8 mm to 12 mm)

The CRL Geneva Series professional hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six hinge styles (three Wall Mount and three Glass-to-Glass) provide design flexibility for frameless and semi-frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are also available for off-angle installations. Constructed from solid brass with stainless steel pins and springs for long-lasting corrosion resistance.

Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; Pre-Set models ship with the 85° side activated for a 5° tighter closure into the shower interior. The pivot pin can be rotated to switch activation (rotate, do not flip upside down).

Custom Pivot Pin: Cat. No. GENP1N custom pivot pins are available to specify angles up to 45° for unique installations. If the included 5° reversible pin does not achieve the desired closing position, contact our Technical Sales Shower Door Department. Note: using a custom pivot pin may affect glass sizes and enclosure aesthetics.

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° closing) or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request. Contact Technical Sales Shower Door Division for options and lead times.
<
