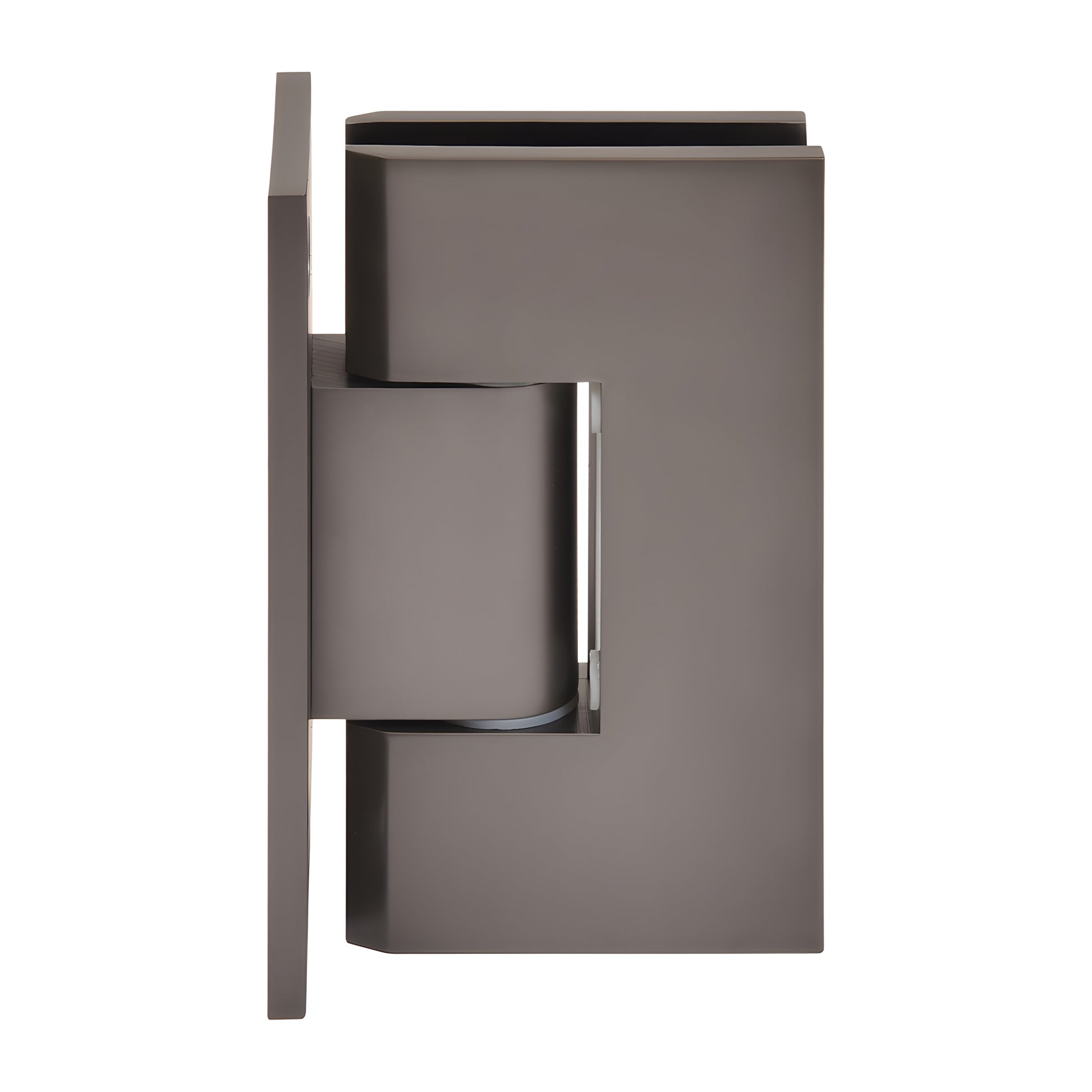

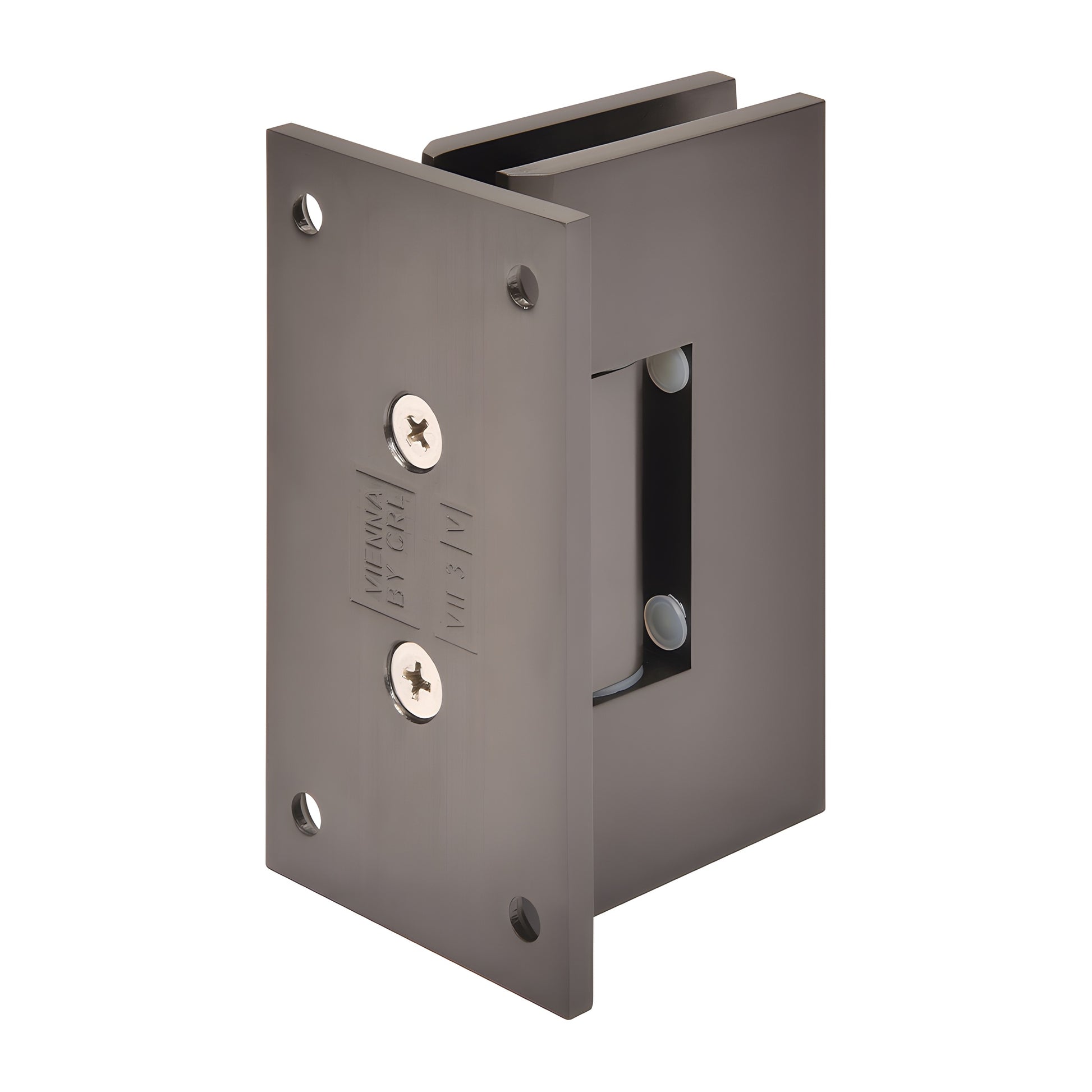

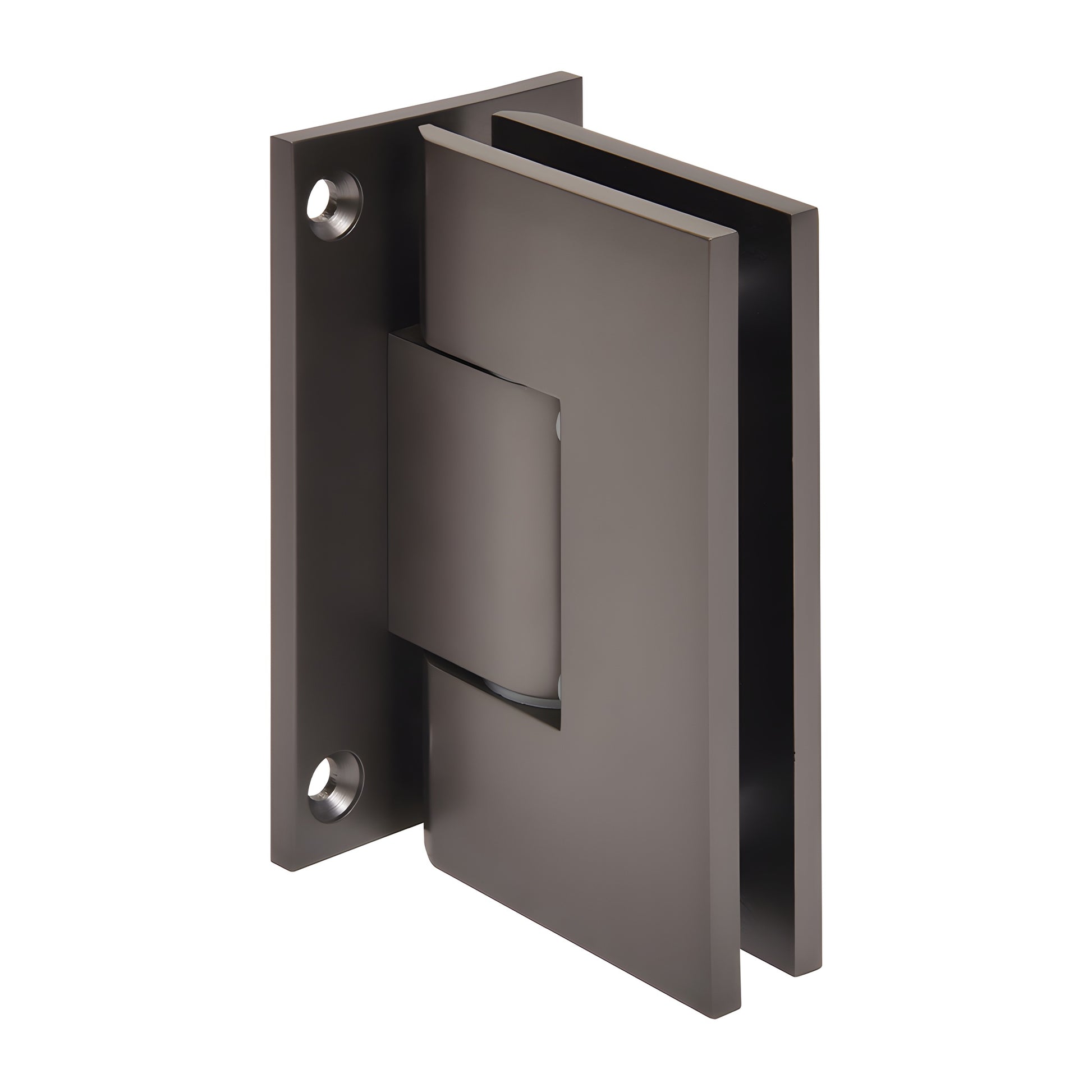

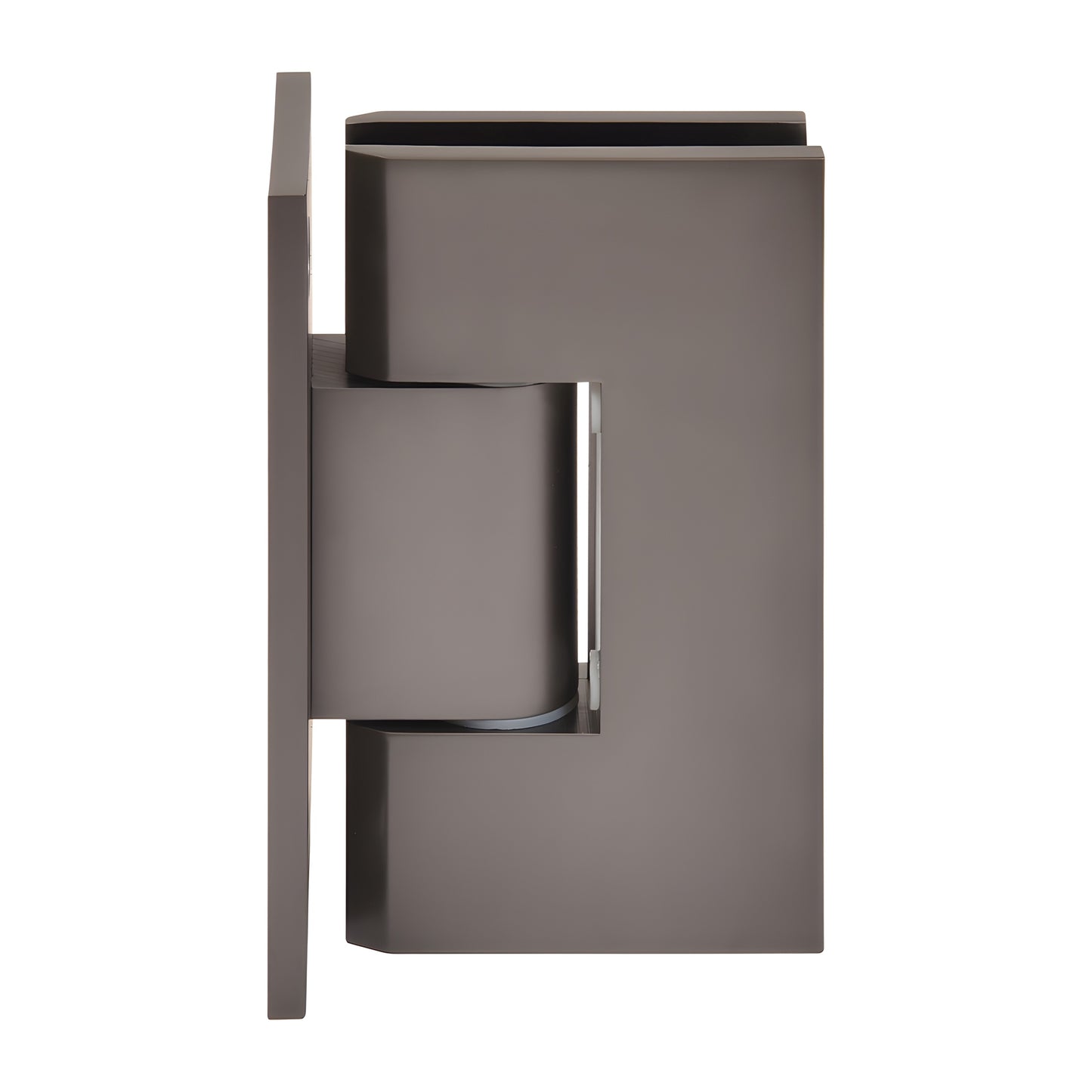

CRL Vienna 337 Series Matte Gunmetal Adjustable Wall Mount Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

CRL Adjustable Vienna Series Vienna hinge (SKU: V1E337MGM) upgrades our popular Vienna Hinge into a fully adjustable shower door hinge for tempered glass. Adjust the closing angle up to 90° after the door is hung by loosening the Allen set screws, rotating the door to the desired position, then re-tightening to self-center. The door swings 90° inward and 90° outward at the factory set position; adjusting the angle will reduce swing in that direction. For outward-pulling doors with a clear door jamb, set the hinge to close 5° into the shower to ensure a snug seal.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the opposite side. Standard models ship with the 90° side active. Pre-set models are shipped at 85° for a 5° tighter interior closure. Rotate the pin (do not flip) to activate the alternate setting.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° option is insufficient.

Load Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass, the hinge supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges increases capacity to 140 lbs (63 kg) with the same maximum door width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses
