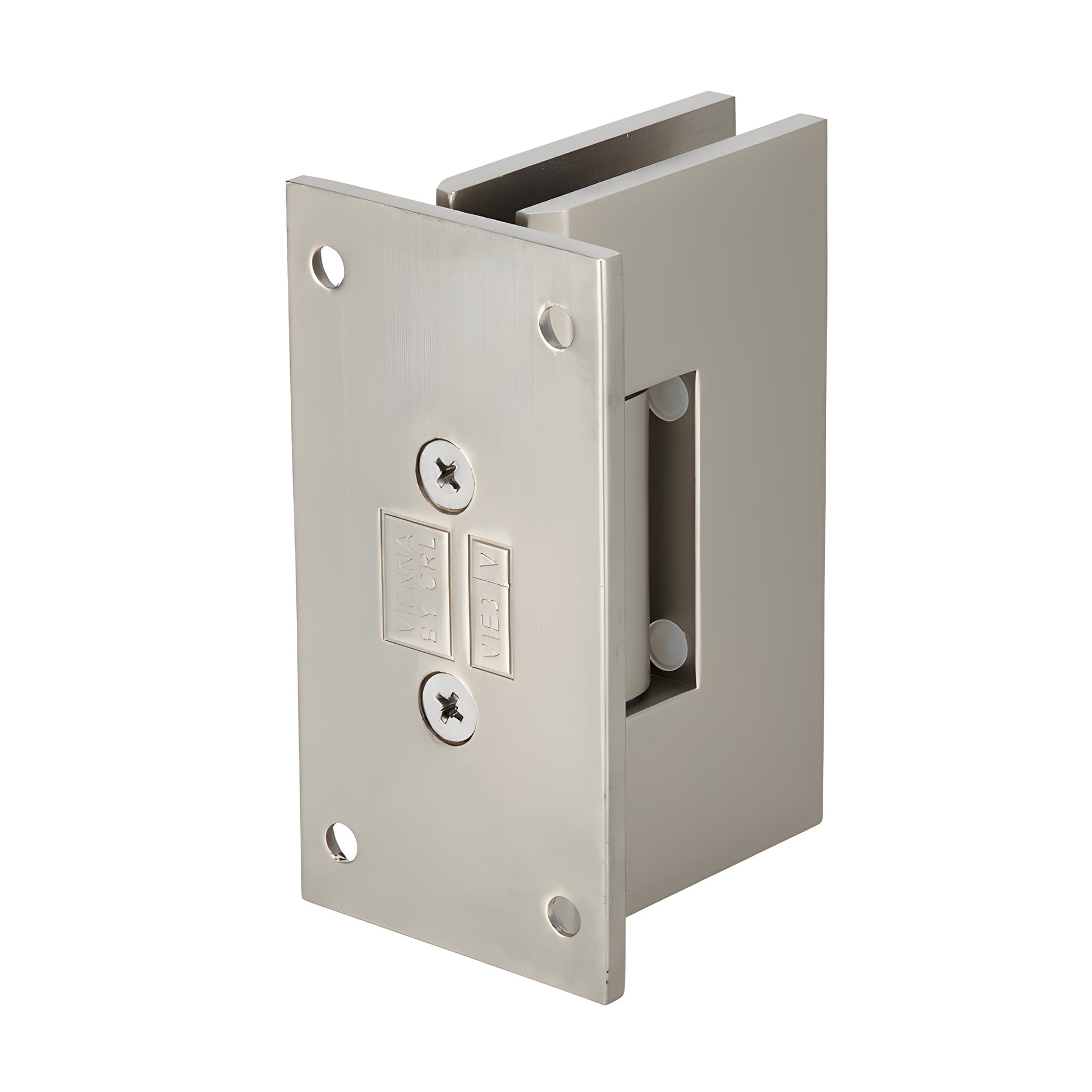

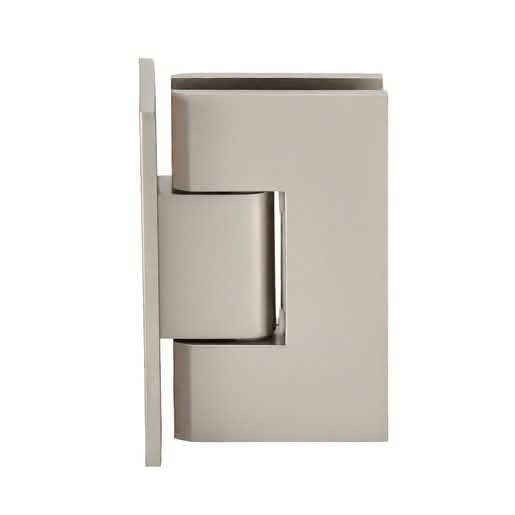

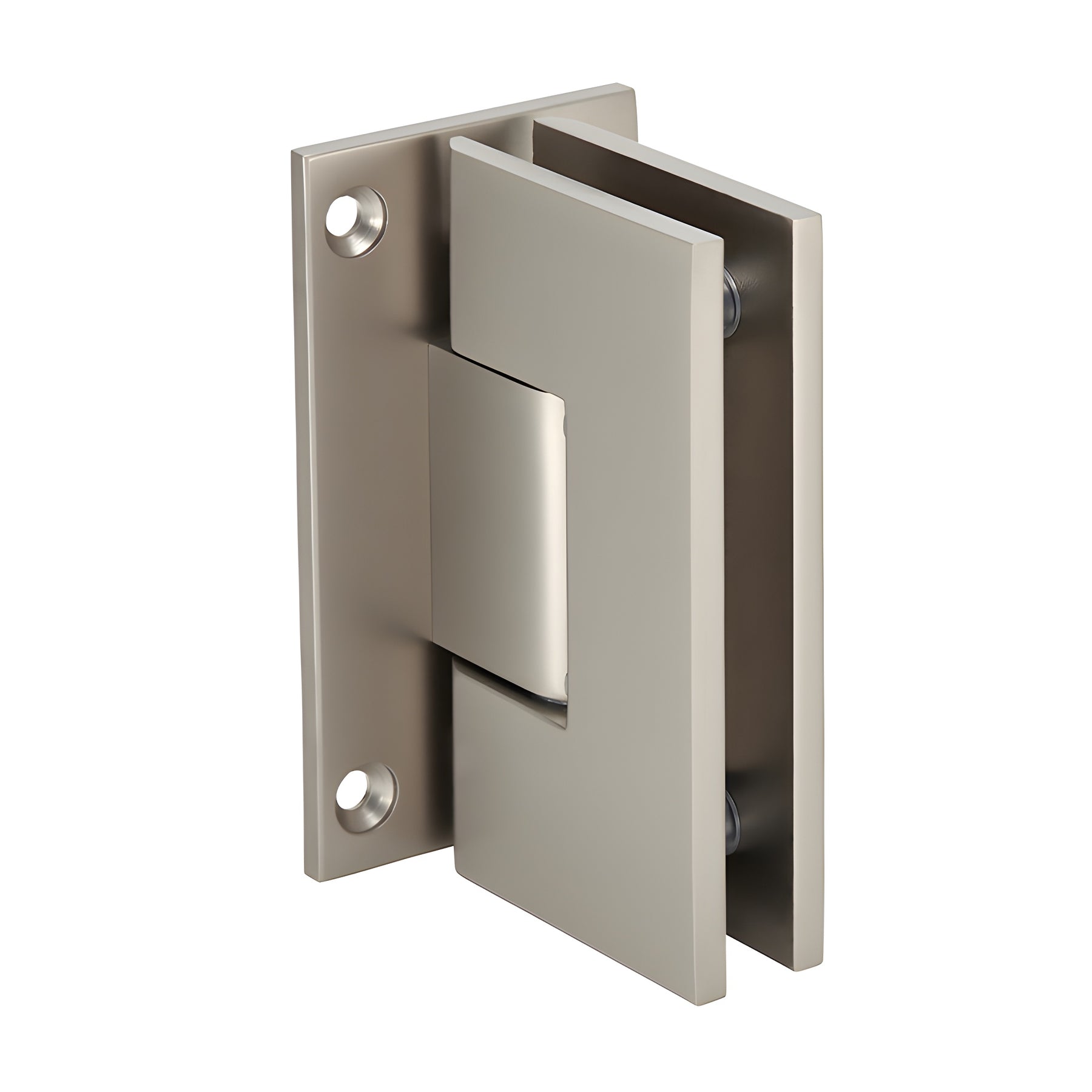

CRL Vienna 337 Satin Nickel Adjustable Wall-Mount Shower Door Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable wall mount full back plate
• Use with monolithic tempered glass

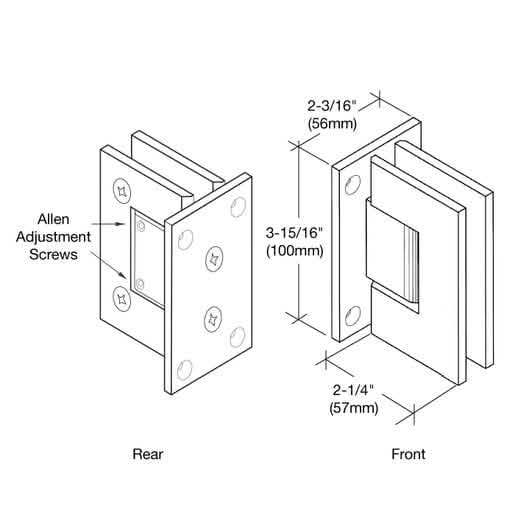

The CRL Adjustable Vienna Series enhances the popular Vienna Hinge with post-installation angle adjustment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position (up to 90°), then tighten the screws — the hinge self-centers to the set position. The door can swing 90° inward and 90° outward (adjusting from the factory-set position reduces the 90° swing in that direction). For outward-swinging doors on a clear jamb, you can preset the hinge to close 5° inside the shower for a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin with one side marked 90° and the opposite marked 85°. Standard models ship with the 90° side active; pre-set models use the 85° side for a 5° tighter closure. Rotate the pin (do not flip) to change the active side.

CUSTOM PIVOT PIN: Custom pivot pins can be specified for off-angle installations (up to 45°) when standard adjustment does not achieve the desired closure angle.

Using two hinges with 3/8" to 1/2" (10–12 mm) tempered glass, the hinge supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" (10–12 mm) tempered glass, the hinge supports up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory-set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
