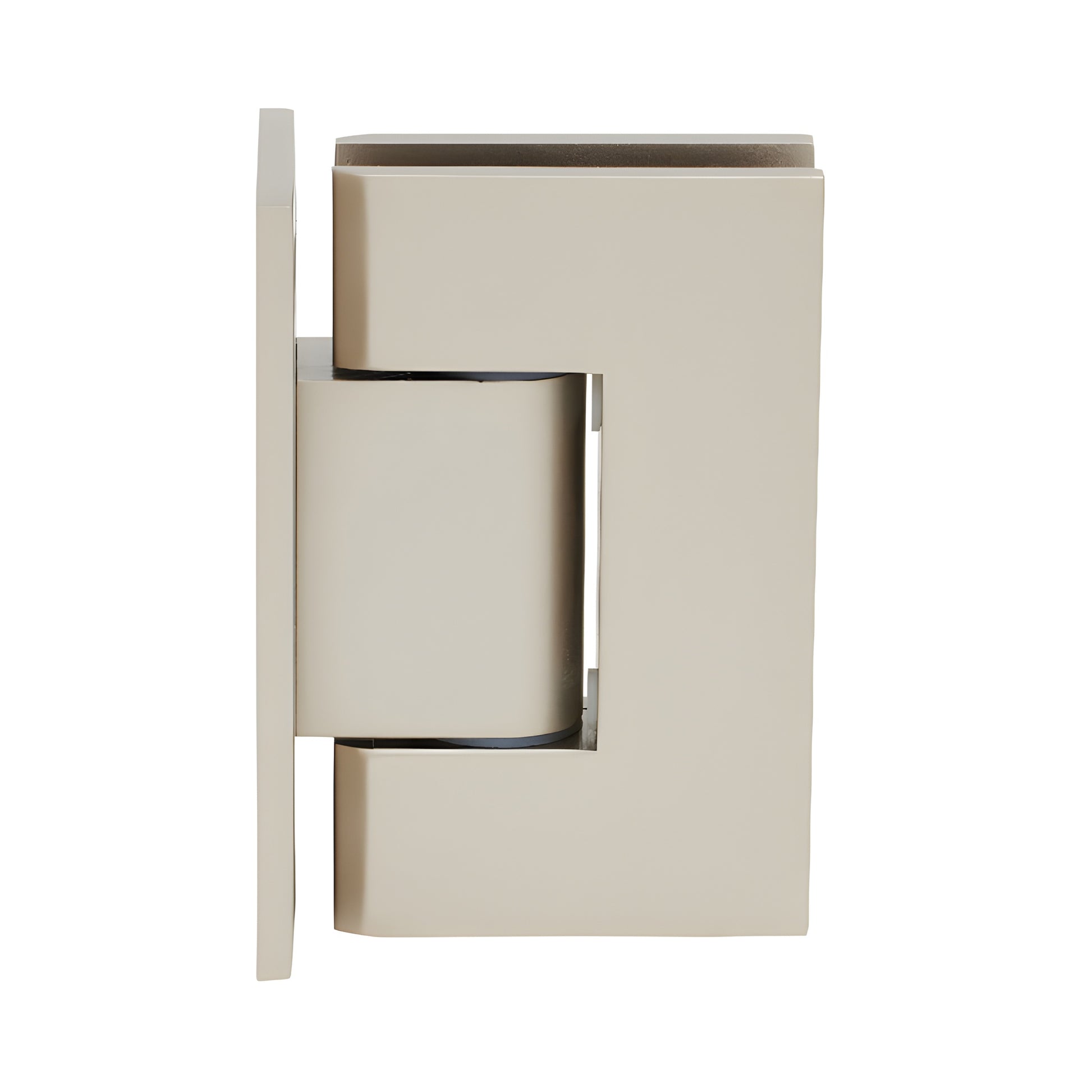

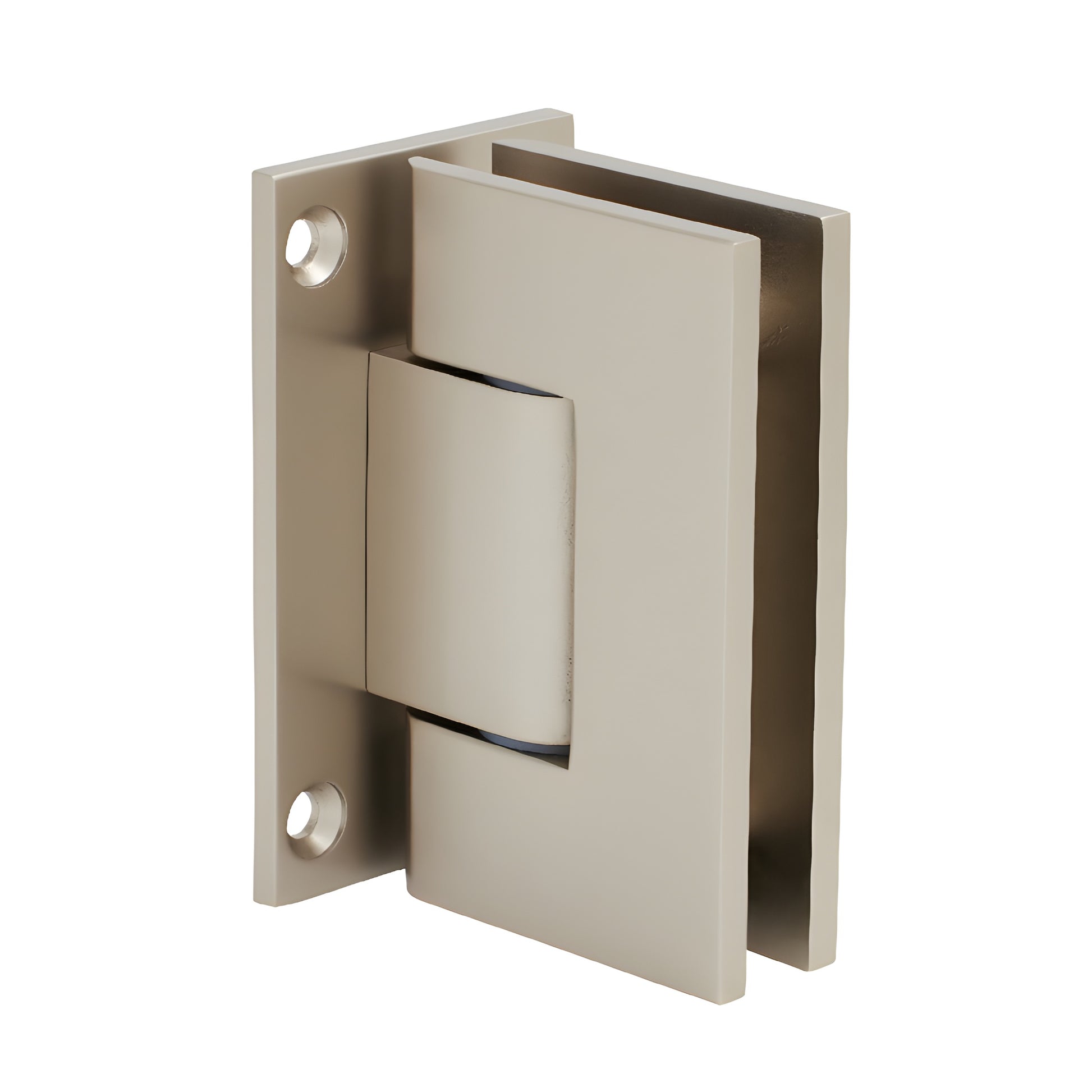

CRL Geneva 337 Satin Nickel Adjustable Wall-Mount Full Backplate Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable wall mount full back plate
• For use with monolithic tempered glass

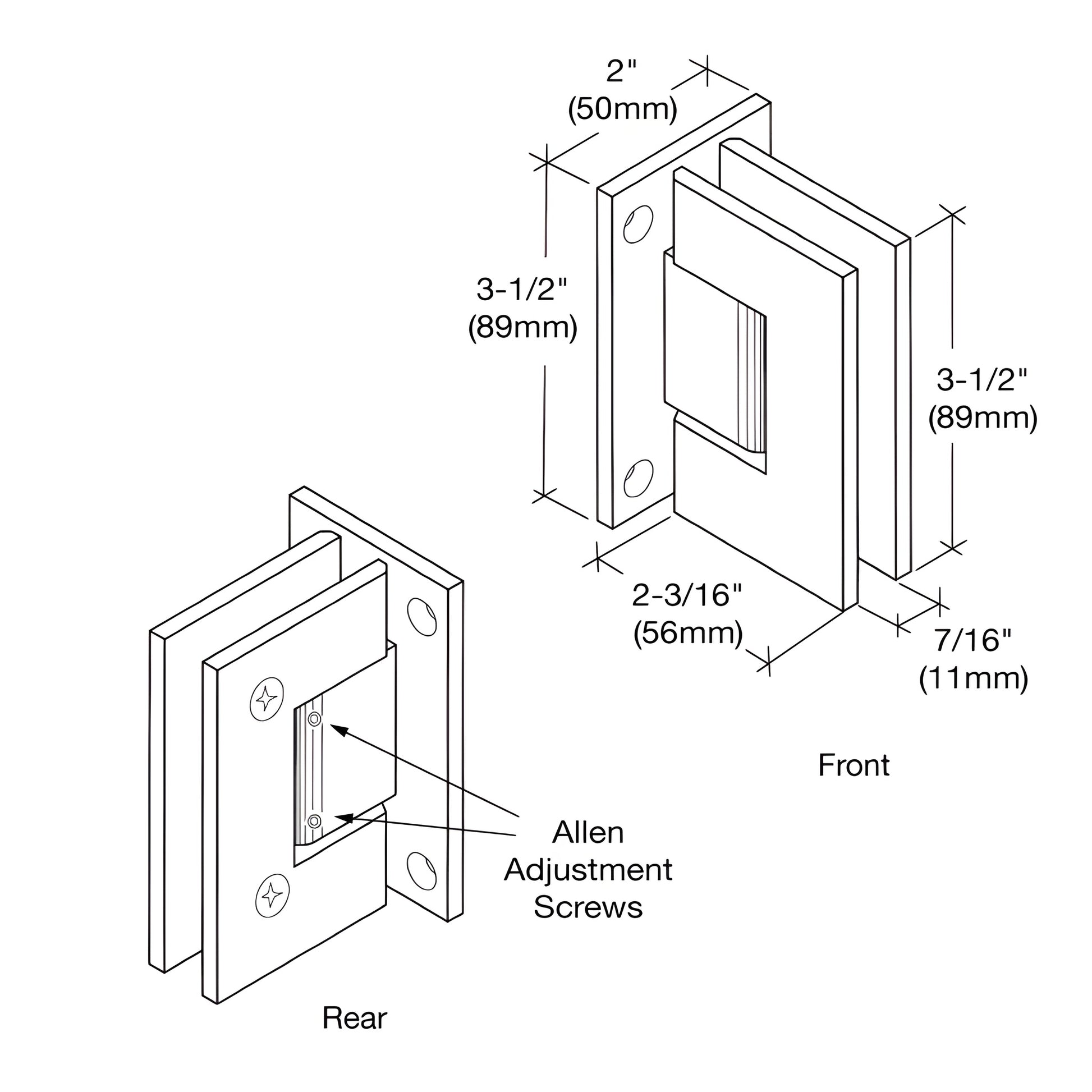

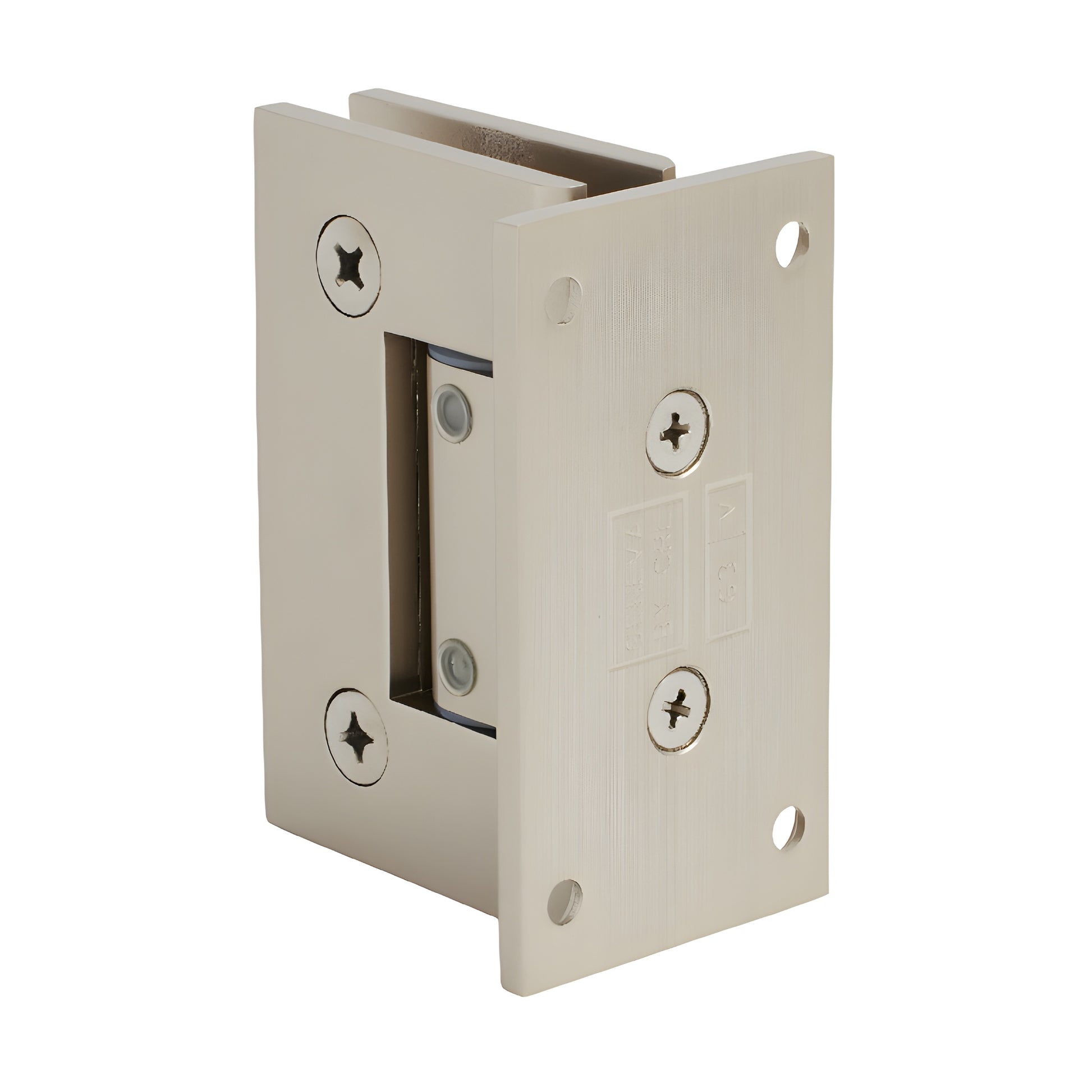

The CRL Adjustable Geneva Series builds on the popular Geneva hinge with on‑door adjustment up to 90° after installation. Loosen the Allen set screws, rotate the door to the desired closed position and retighten — the hinge self‑centers when within 15° of closed. The door can swing 90° inward and 90° outward (adjusting away from the factory position will reduce swing in that direction). For outward‑pull doors using a clear door jamb, the hinge can be set to close 5° inside the shower for a snug fit. SKU GEN337SN.

Load Capacity
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable after installation up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self‑centering within 15° of closed position
Cut‑Out Package Includes: Gaskets, screws, and glass fabrication dimensions. (Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut‑out dimensions for CRL hinges may not match other brands.
