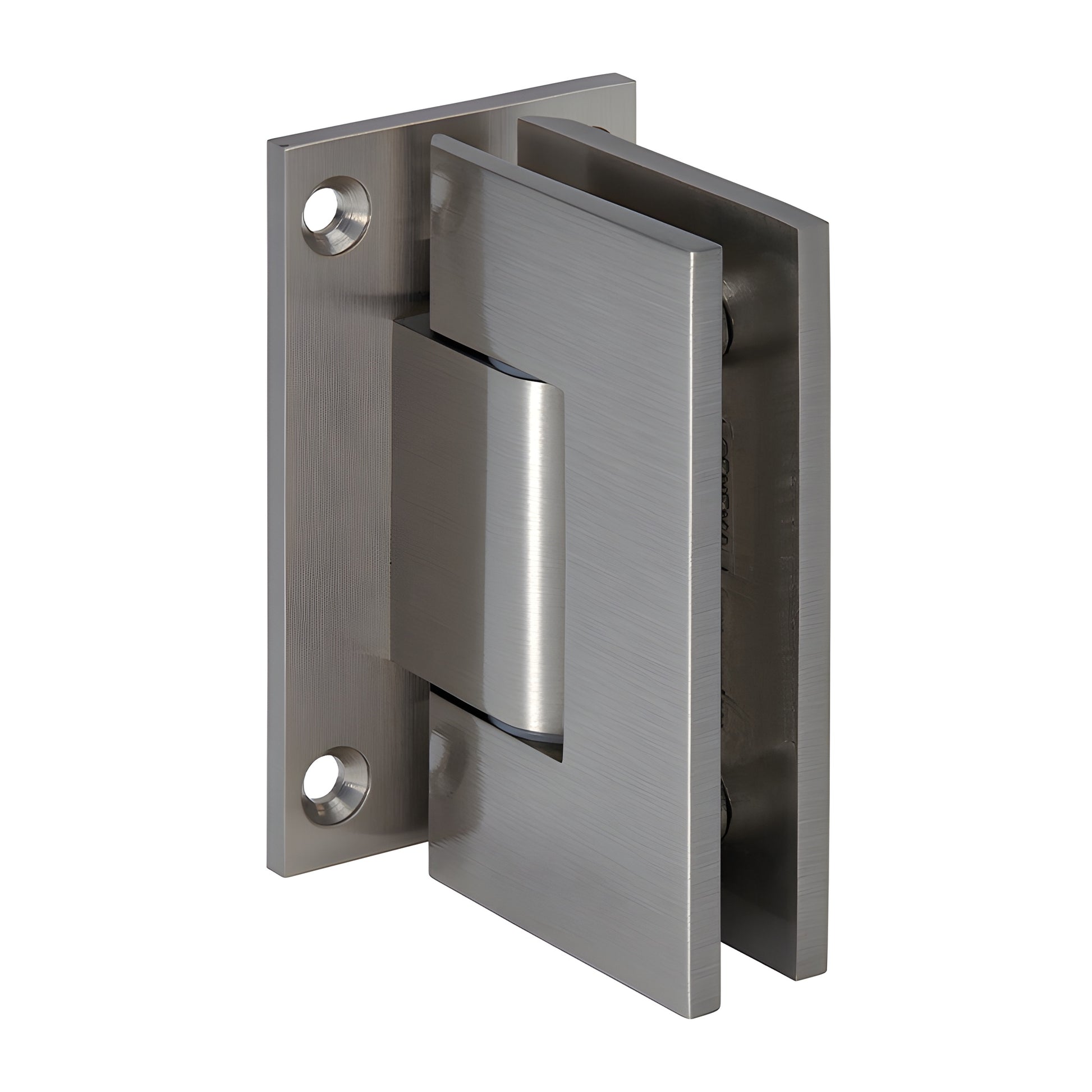

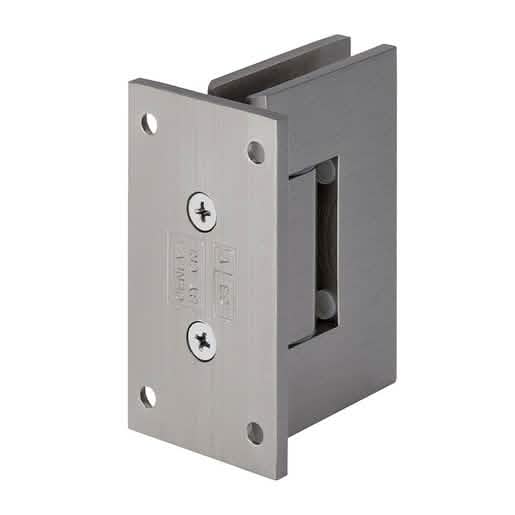

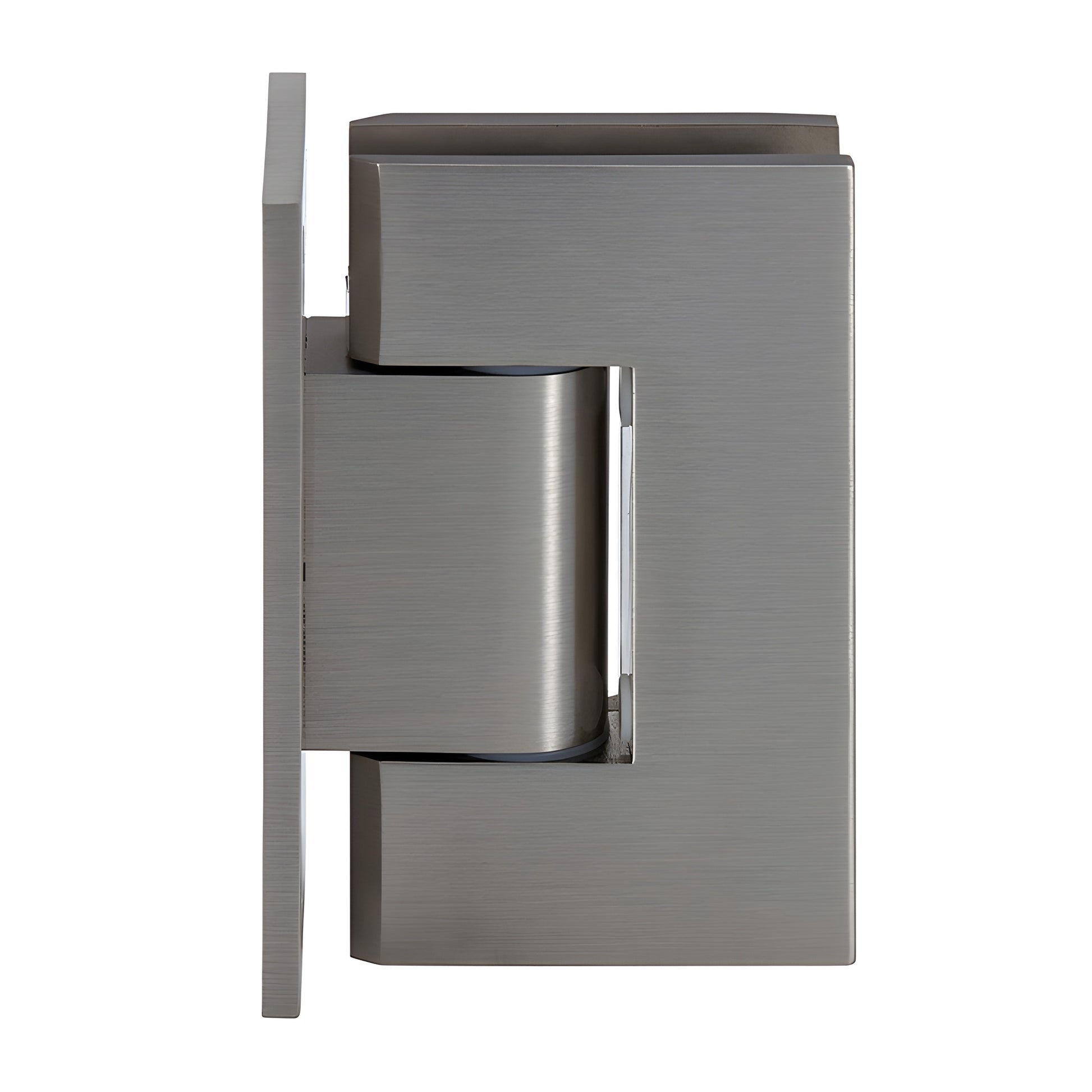

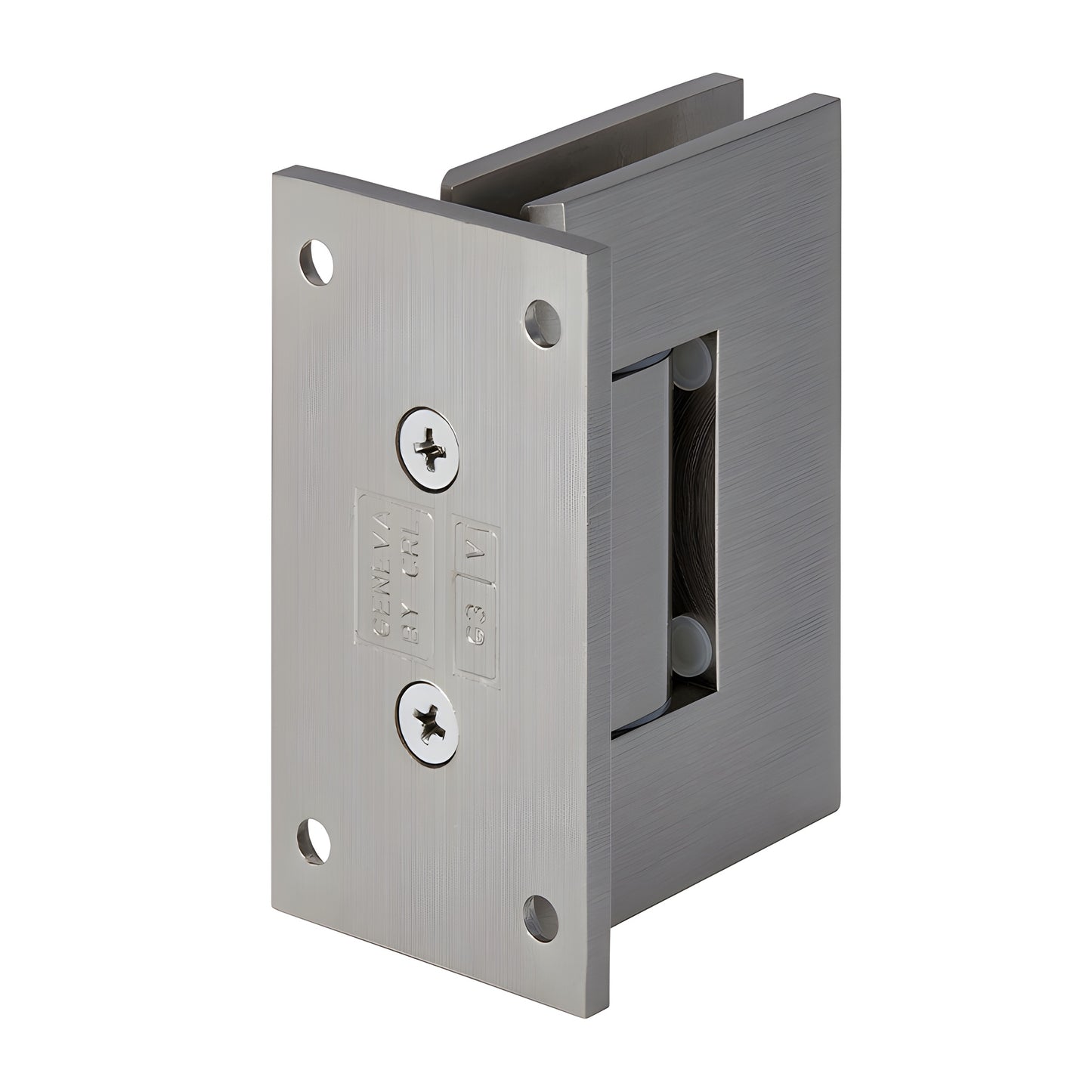

CRL Geneva 337 Brushed Nickel Adjustable Wall Hinge, Full Back Plate

• Adjustable to any angle up to 90° without removing the door
• Available in several durable decorative finishes
• Three year warranty
• Adjustable wall mount with full back plate
• Designed for monolithic tempered glass

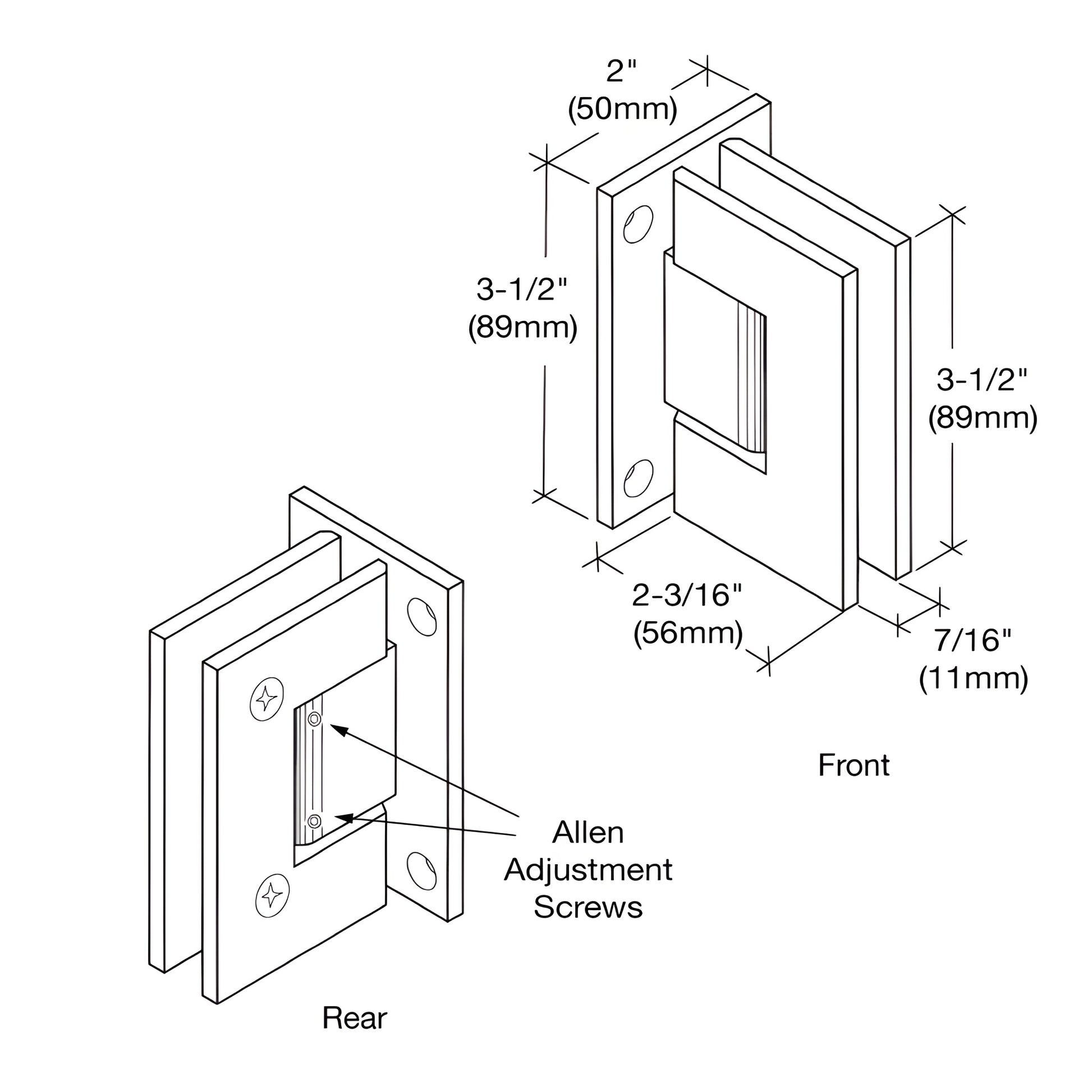

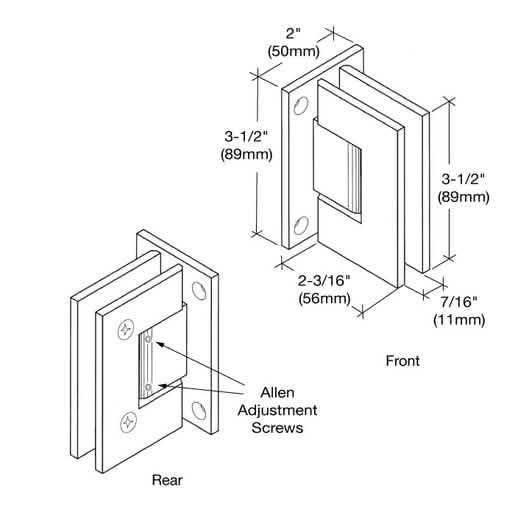

The CRL Adjustable Geneva Series (SKU: GEN337BN) upgrades the popular Geneva hinge into a fully field-adjustable shower door hinge. Adjust the closing angle up to 90° after the door is installed—no door removal required. Loosen the Allen set screws, rotate the door to the desired closed position, then retighten to self-center the door. The hinge permits 90° swing inward and 90° outward at the factory set position; adjusting the angle will reduce swing in that direction. For outward-swing doors (clear jamb), the hinge can be set to close 5° inside the shower so the door seats snugly against the jamb.

Performance: Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 80 lbs (36 kg), maximum door width 28" (711 mm). Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Field-adjustable to any angle up to 90° without removing the door; self-centering when within 15° of closed position
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Cut-Out Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available—contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications obtain approval from CRL Shower Door Technical Sales. Use only the template supplied with this hinge—cut-out dimensions may differ from other brands.
