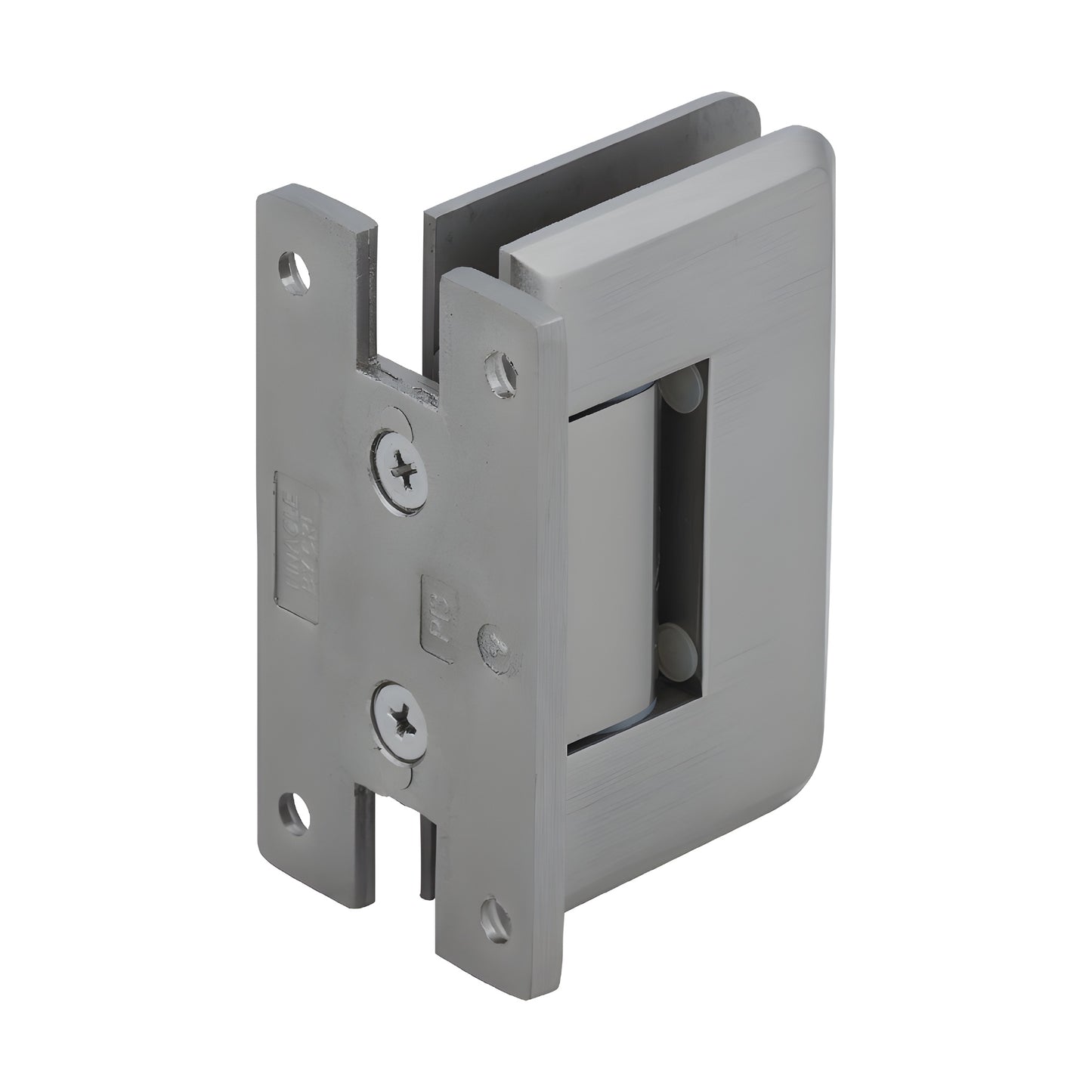

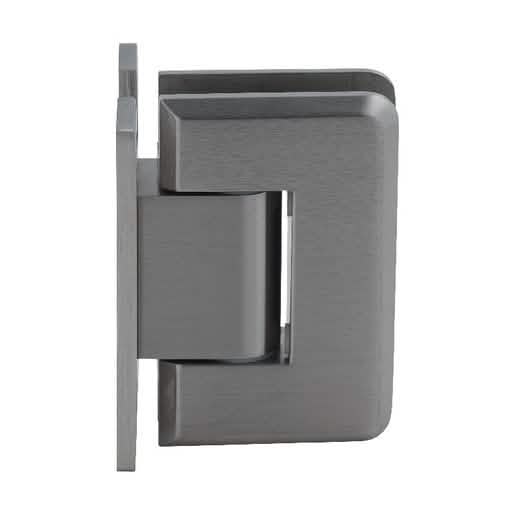

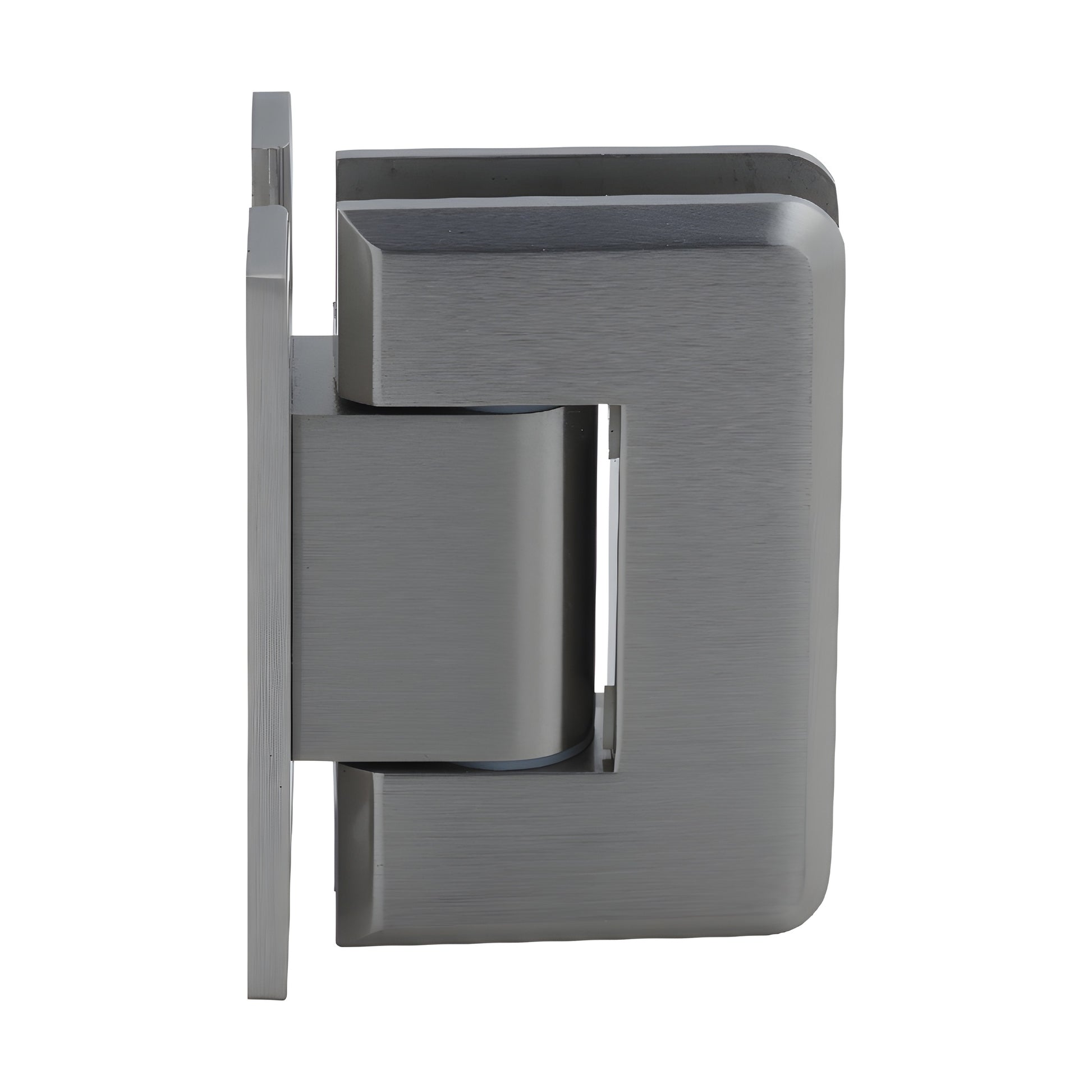

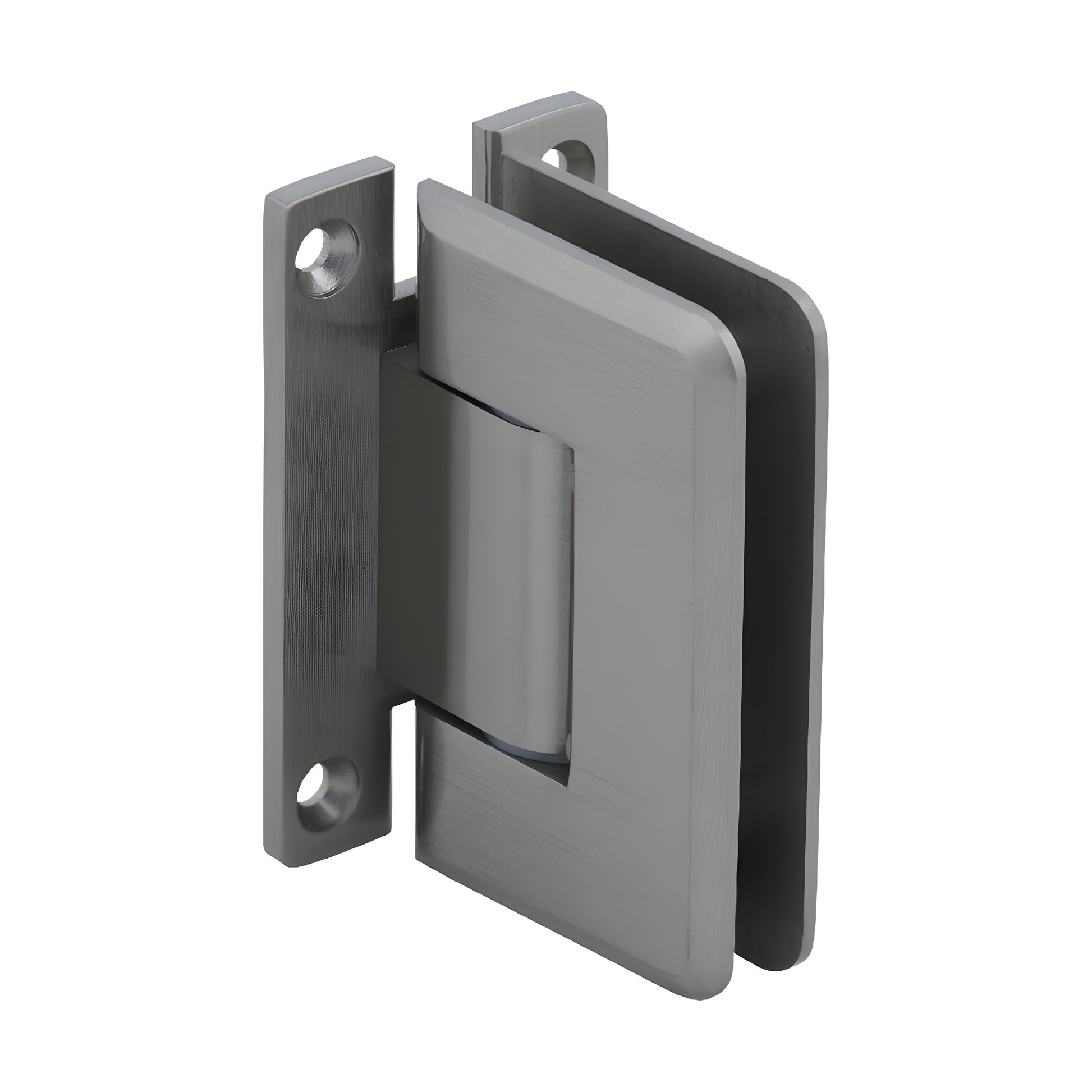

CRL Pinnacle 337 Brushed Nickel Adjustable Glass Door Wall Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several beautiful finishes
• Three-year warranty
• Adjustable wall mount "H" back plate
• For use with monolithic tempered glass

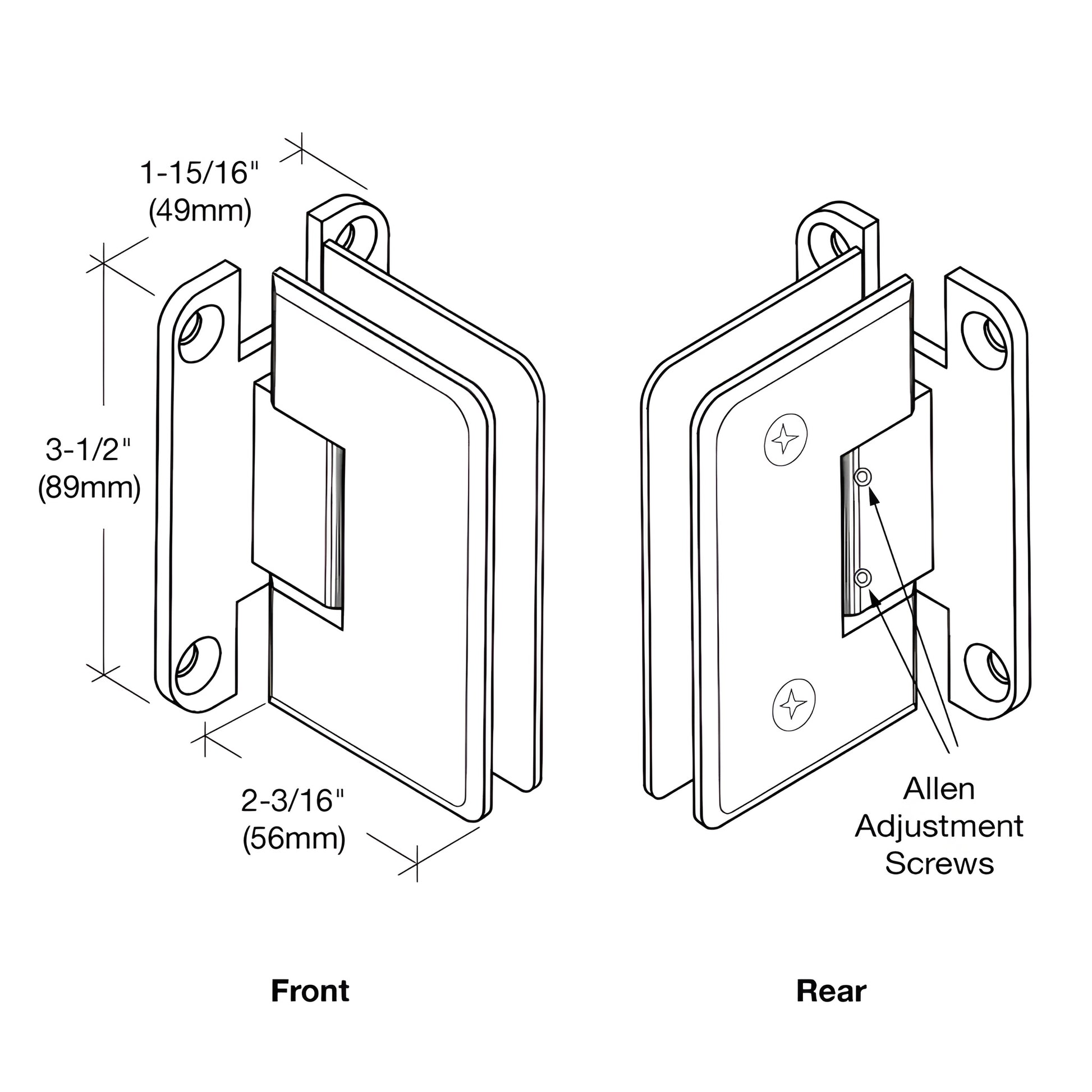

CRL Adjustable Pinnacle Series Hinges deliver a premium adjustable shower door hinge solution for frameless and semi-frameless glass shower doors. Adjustment up to 90° is made after installation—loosen the Allen set screws, rotate the door to the desired closed position, then retighten. The hinge self-centers when within 15° of the closed position. Doors can swing 90° inward and 90° outward from the factory position (note: adjusting the hinge will reduce the available 90° swing in the adjusted direction). For outward-swing doors with a clear jamb, the hinge can be set to close 5° inside the shower for a snug jamb seal.

Capacity & glass
Using two hinges with 5/16"–1/2" (8–12 mm) tempered safety glass: holds up to 80 lb (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered safety glass: holds up to 120 lb (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Post-installation angle adjustment up to 90° without removing the door
Construction: Solid brass—durable, corrosion-resistant shower hinge for wet environments
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.
Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting hinge angles. Call for details. Custom finishes available on request—contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match
