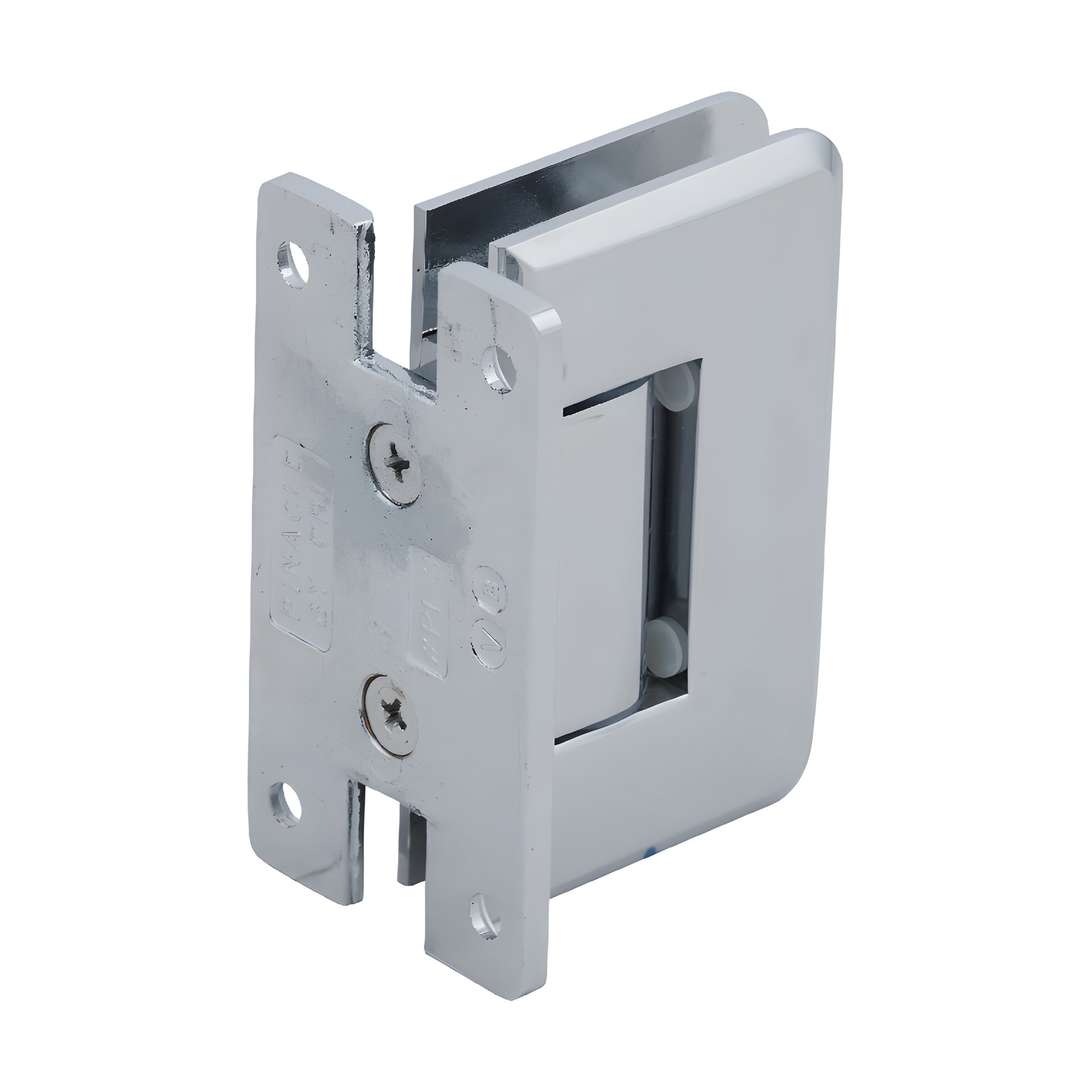

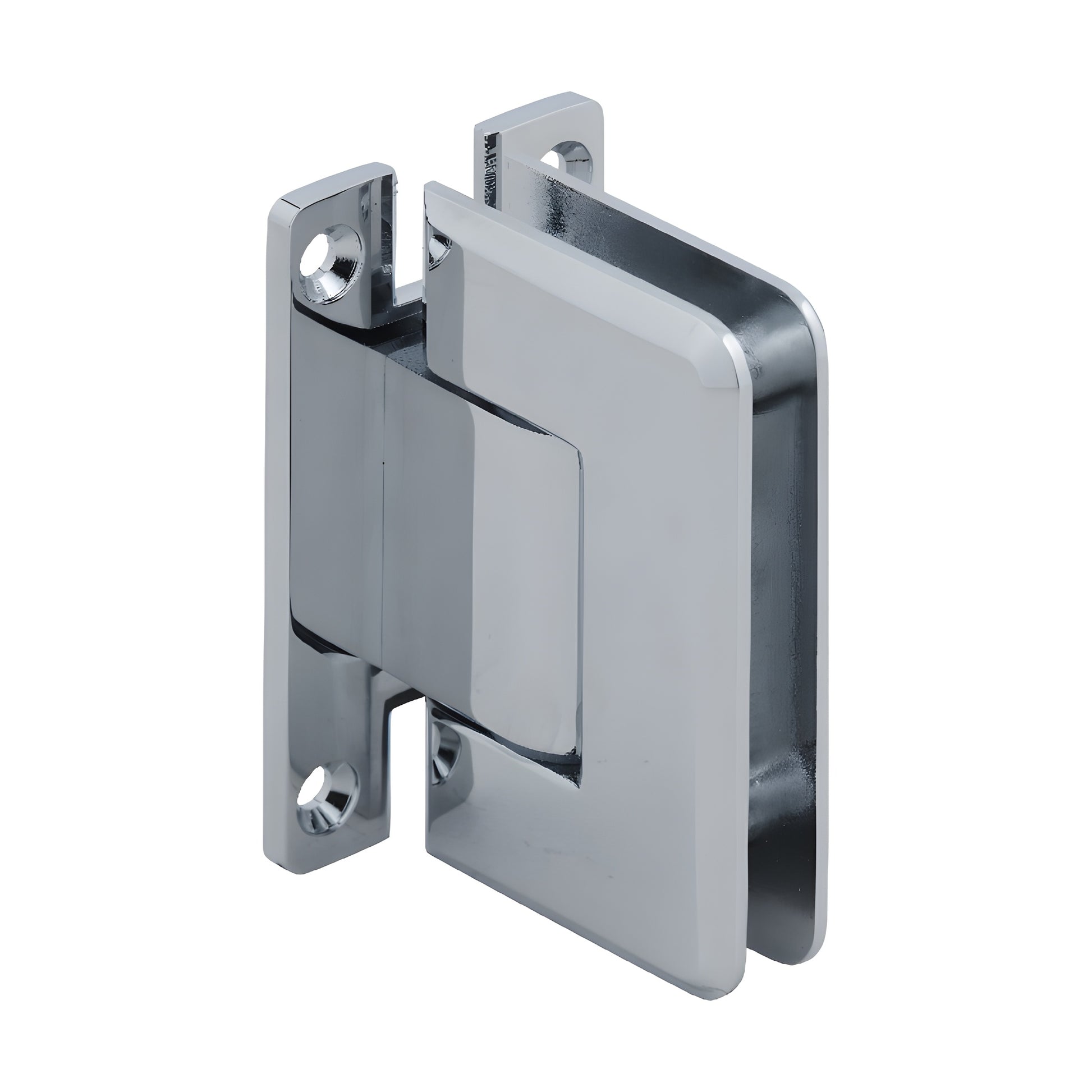

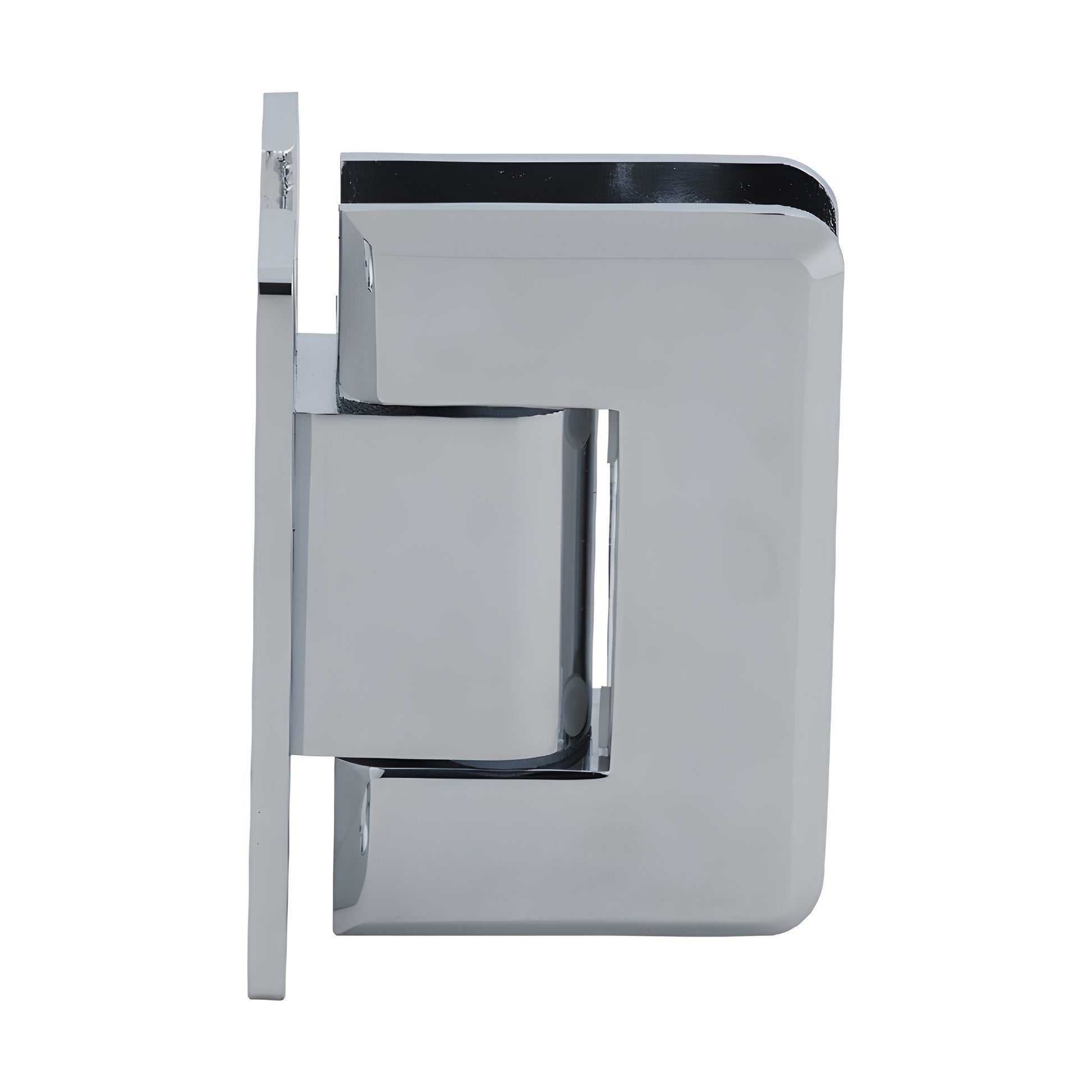

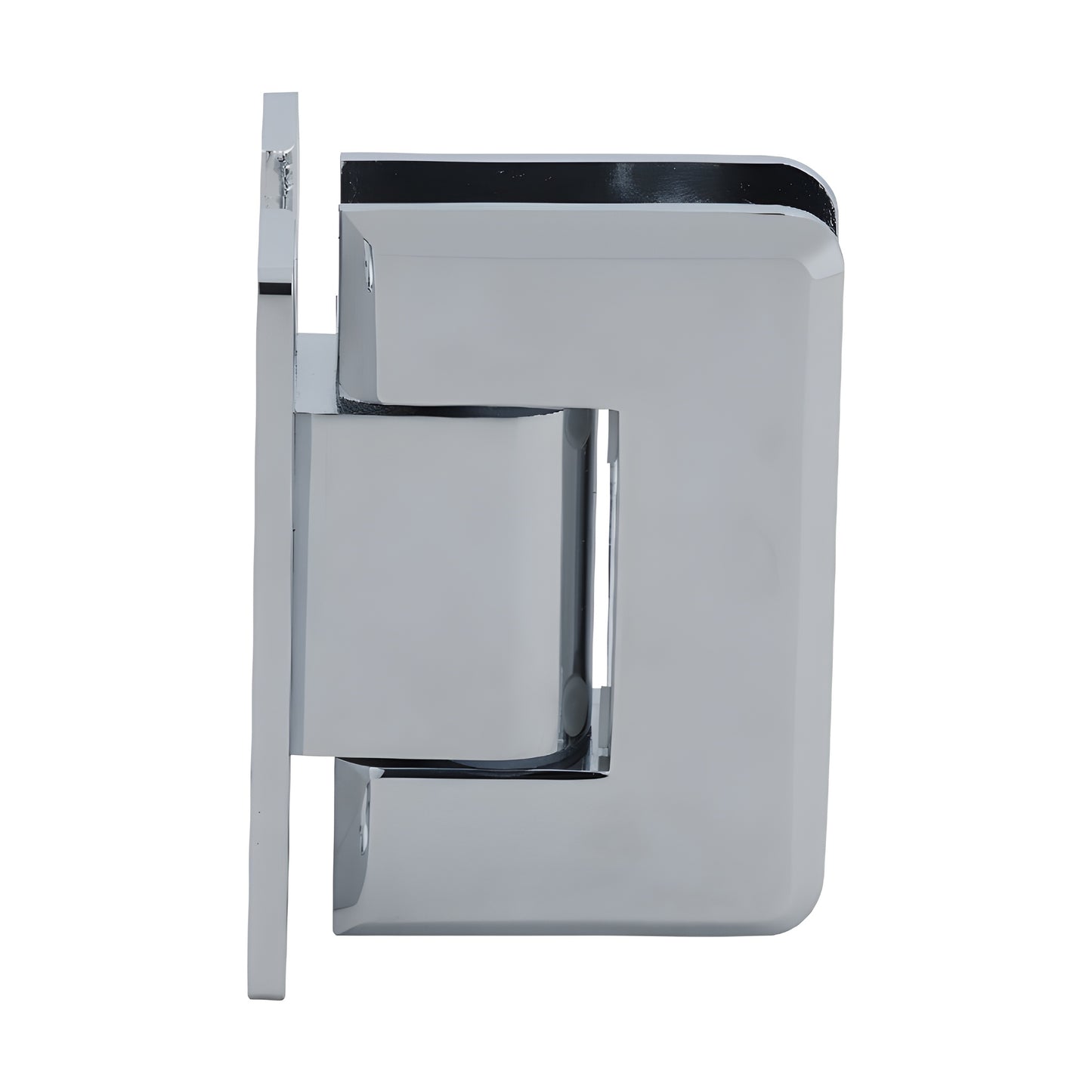

CRL Pinnacle 337 Adjustable Polished Chrome Wall-Mount H-Back Hinge

CRL Pinnacle 337 Adjustable Polished Chrome Wall-Mount H-Back Hinge

$85.90 CAD
$85.90 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# P1N337CH
Shipping Weight: 1.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
Yes
Back Plate
'H'
Edge Profile
Beveled
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)

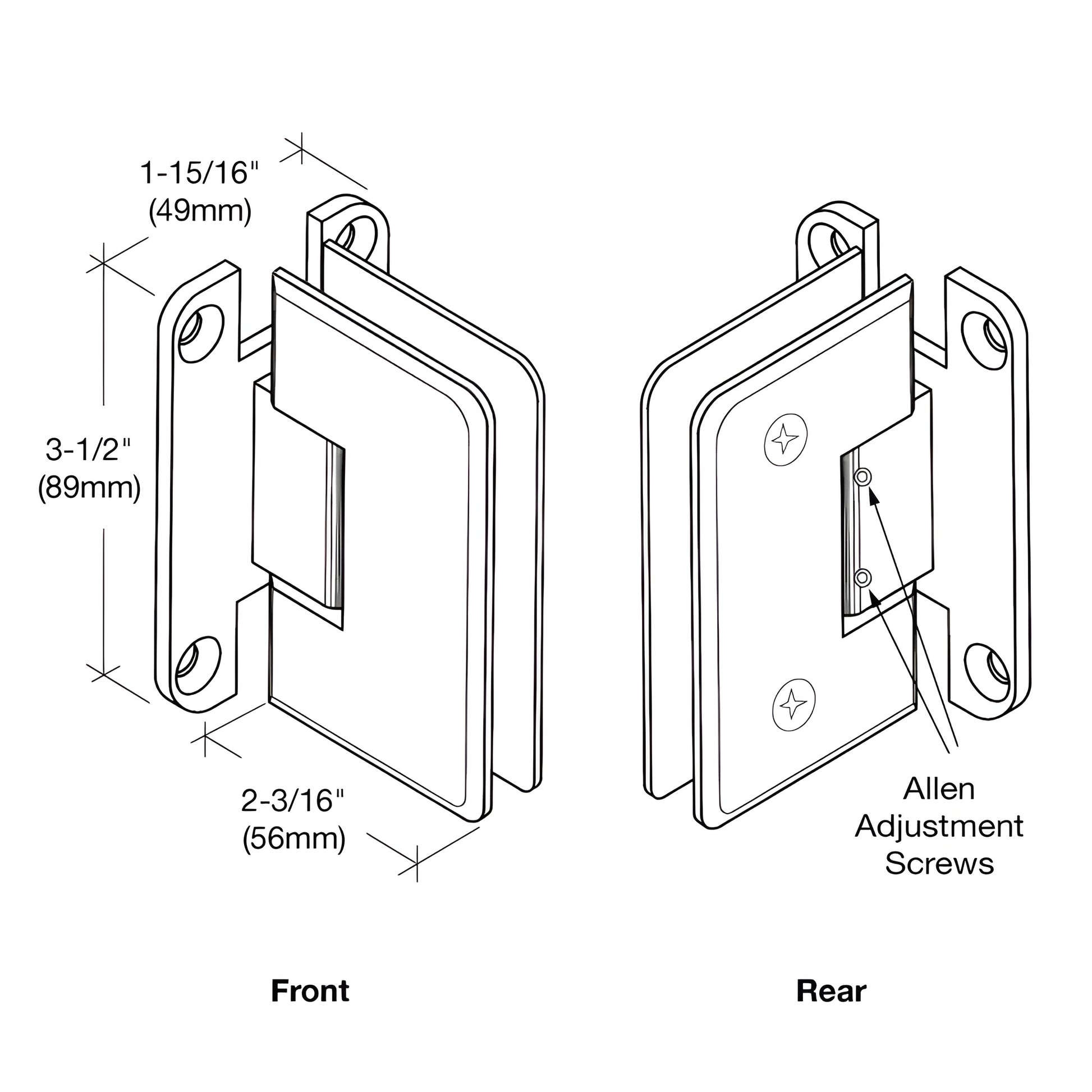

Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Pinnacle
Width
2-3/16 in. (56 mm)

Overview

  • Adjustable to any angle up to 90° without removing door
  • Available in several finishes
  • Three year warranty
  • Adjustable wall mount "H" back plate
  • For use with monolithic tempered glass (8–12 mm)

CRL Adjustable Pinnacle Series Hinges elevate the popular Pinnacle hinge with post-installation angle adjustment. After the door is hung, loosen the Allen set screws, rotate the door to the desired closed position and tighten — the hinge self-centers to that position. The hinge allows the door to swing up to 90° inward and 90° outward (adjusting from the factory set position may reduce swing in that direction). For outward-pulling doors on a clear jamb, adjust the hinge to close 5° inside the shower so the door seals snugly against the jamb.

Capacity & glass size
Using two hinges with 5/16"–1/2" glass (8–12 mm) supports up to 80 lb (36 kg) with a maximum door width of 28" (711 mm). Using three hinges with 5/16"–1/2" glass (8–12 mm) supports up to 120 lb (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

  • Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
  • Special Feature: Adjustable to any angle up to 90° without removing the door
  • Construction: Solid brass
  • Hinge Swings: 90° in and 90° out (at factory set position)
  • Closing Type: Self-centering when within 15° of closed position
  • Cut-Out Required
  • Includes: Gaskets, screws, and glass fabrication dimensions (Cat. No. P1N13 gasket pack sold separately for 5/16" (8 mm) glass)

Replacement Hardware:

  • P102** - Wall plate replacement screws
  • P615** - Cover plate replacement screws

Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact the CRL Technical Sales Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department
