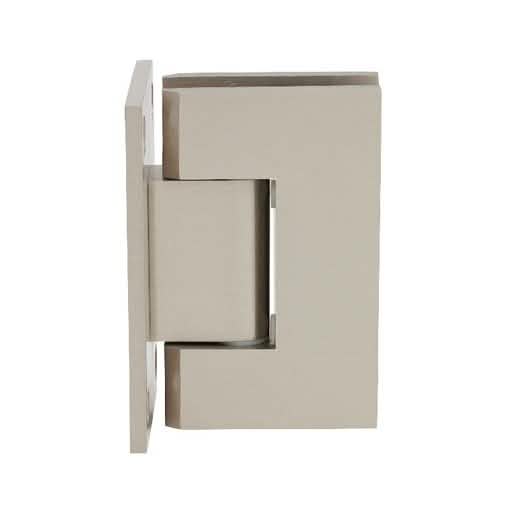

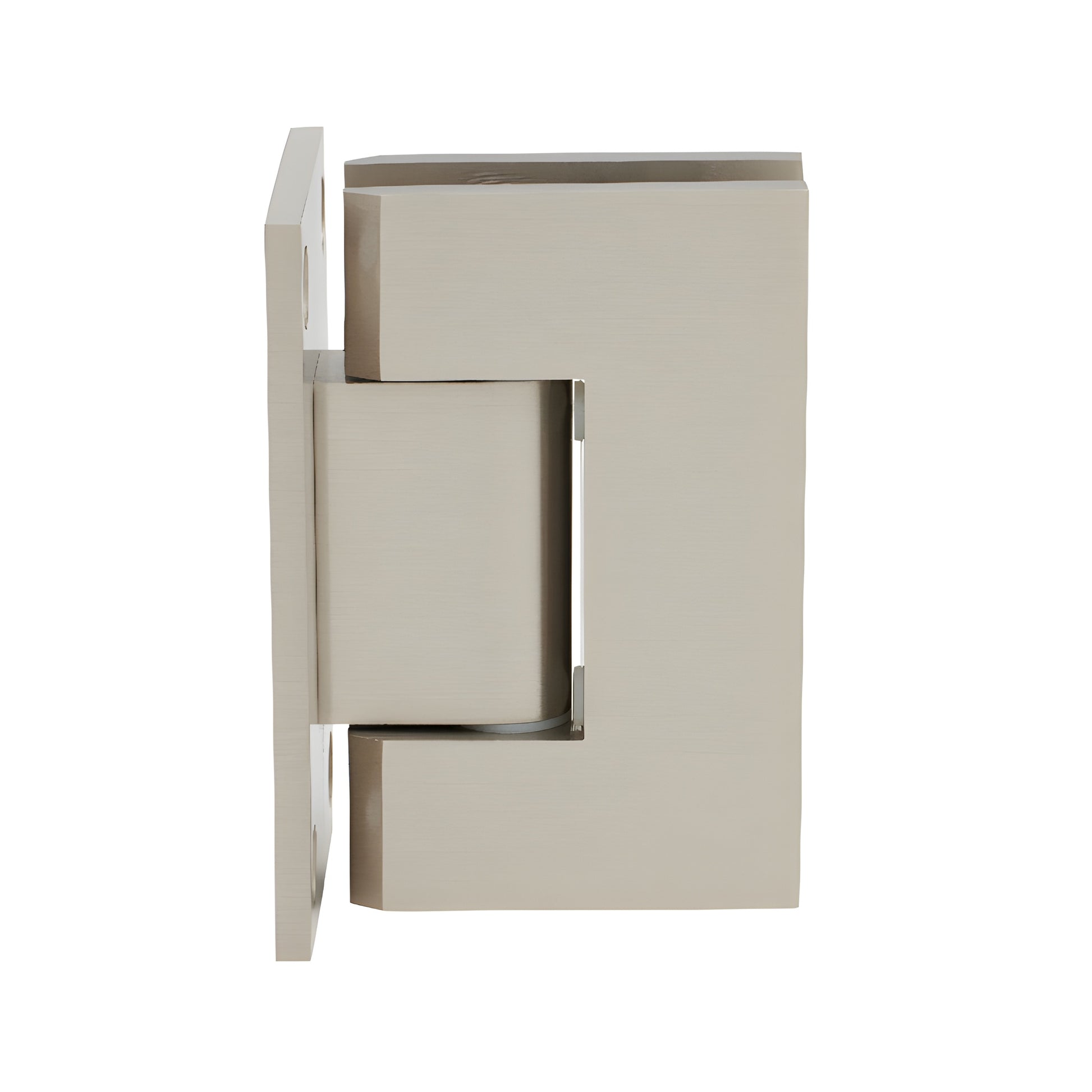

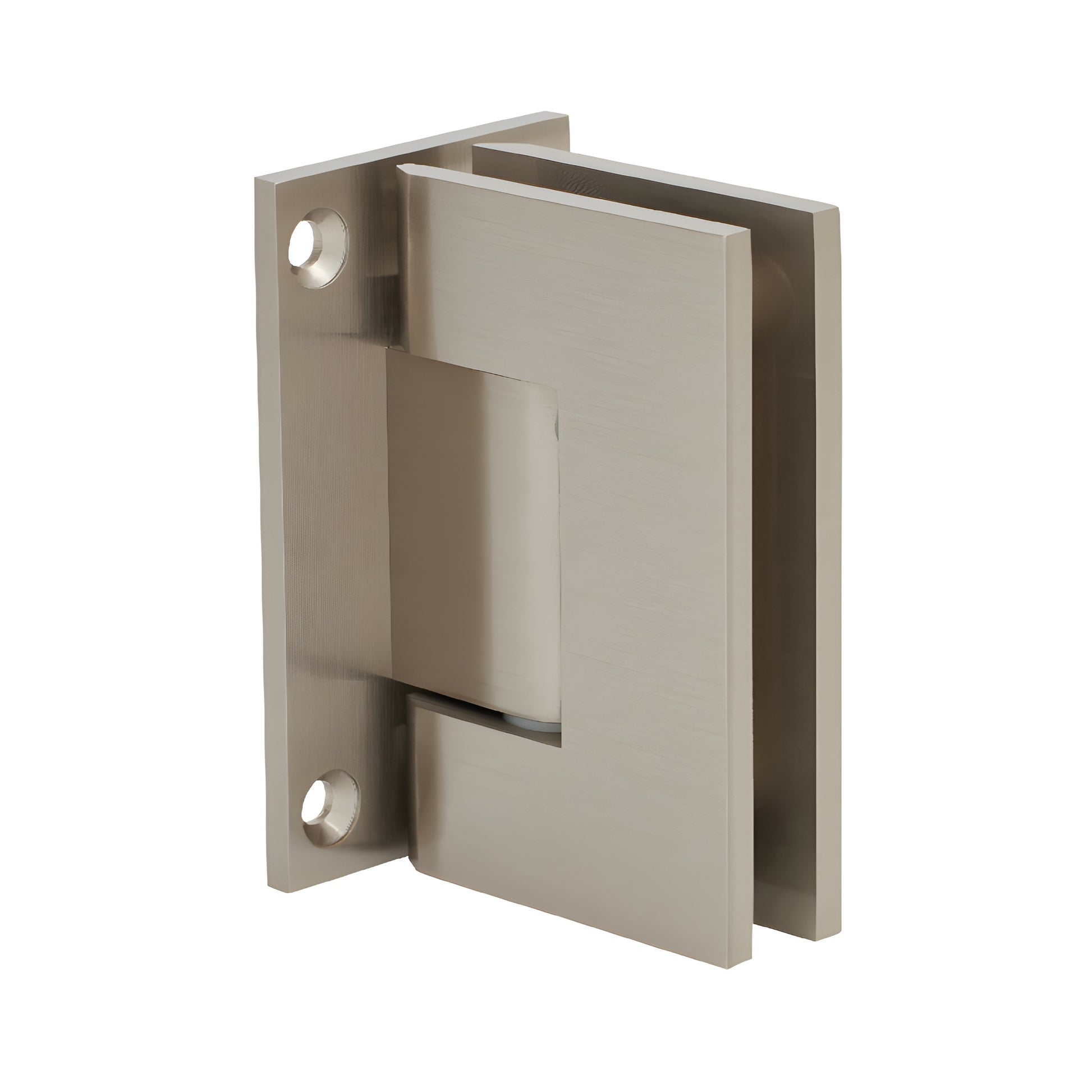

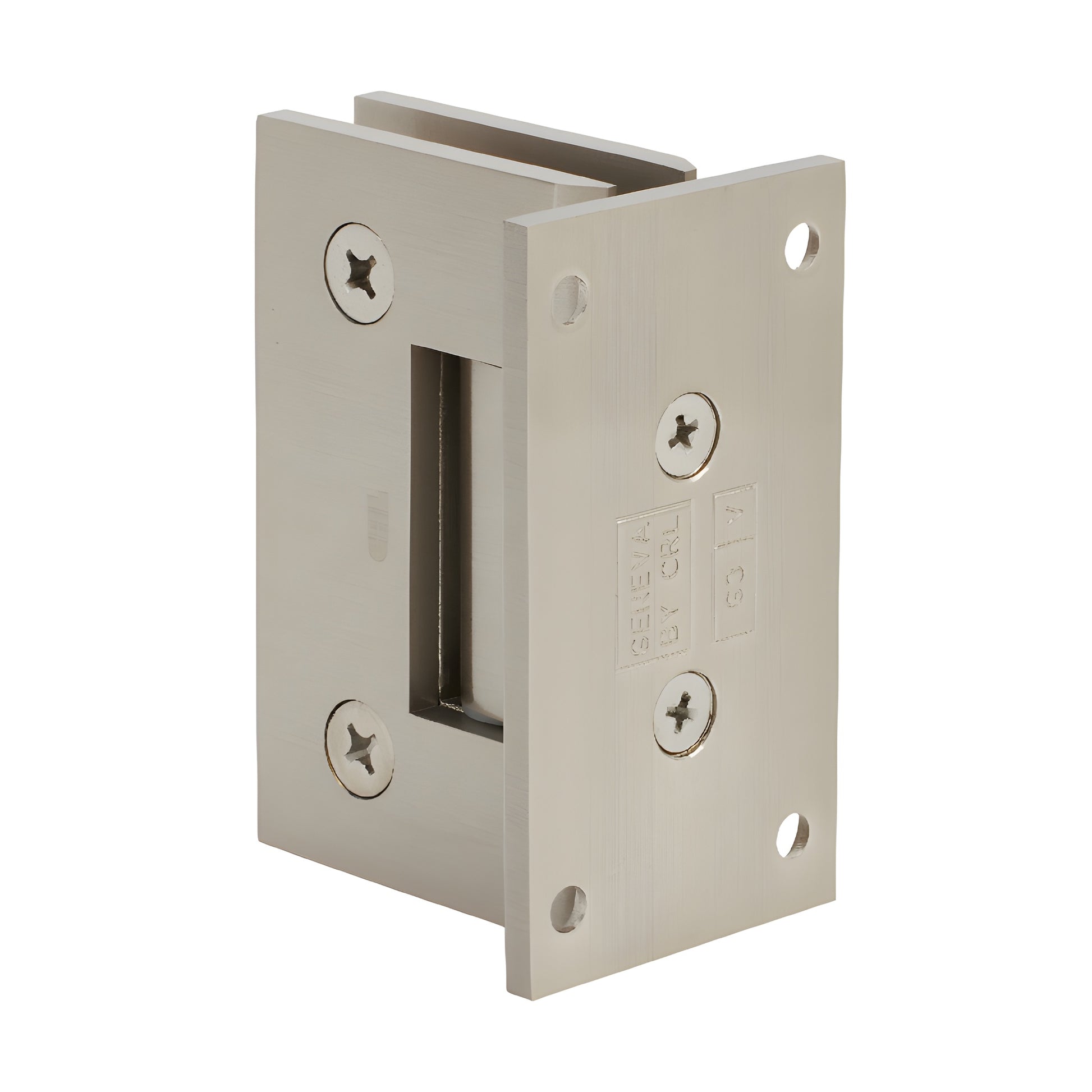

CRL Geneva 537 Brushed Nickel Wall Mount Hinge, Full Back Plate, 5° Offset

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• For monolithic tempered glass (5/16"–1/2")

The CRL Geneva Series professional hinges (SKU GEN537BN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six style options (three Wall Mount and three Glass-to-Glass) provide design flexibility for frameless shower doors. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Solid brass construction with stainless steel pins and springs ensures long-lasting performance.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° and 85°. Standard hinges ship with the 90° side active; offset models are pre-set to 85° (5° tighter closure into the shower interior). Rotate the pin to activate the other side—do not flip the pin.

Using two hinges on 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg), max door width 28" (711 mm).

Using three hinges on 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg), max door width 32" (813 mm).

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be ordered for off-angle installations up to 45°. If the reversible 5° pin doesn't achieve the desired closing position, specify the required angle and contact Technical Sales Shower Door Department. Note: glass sizes and enclosure aesthetics may be affected by custom pins.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard (0°) or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out
