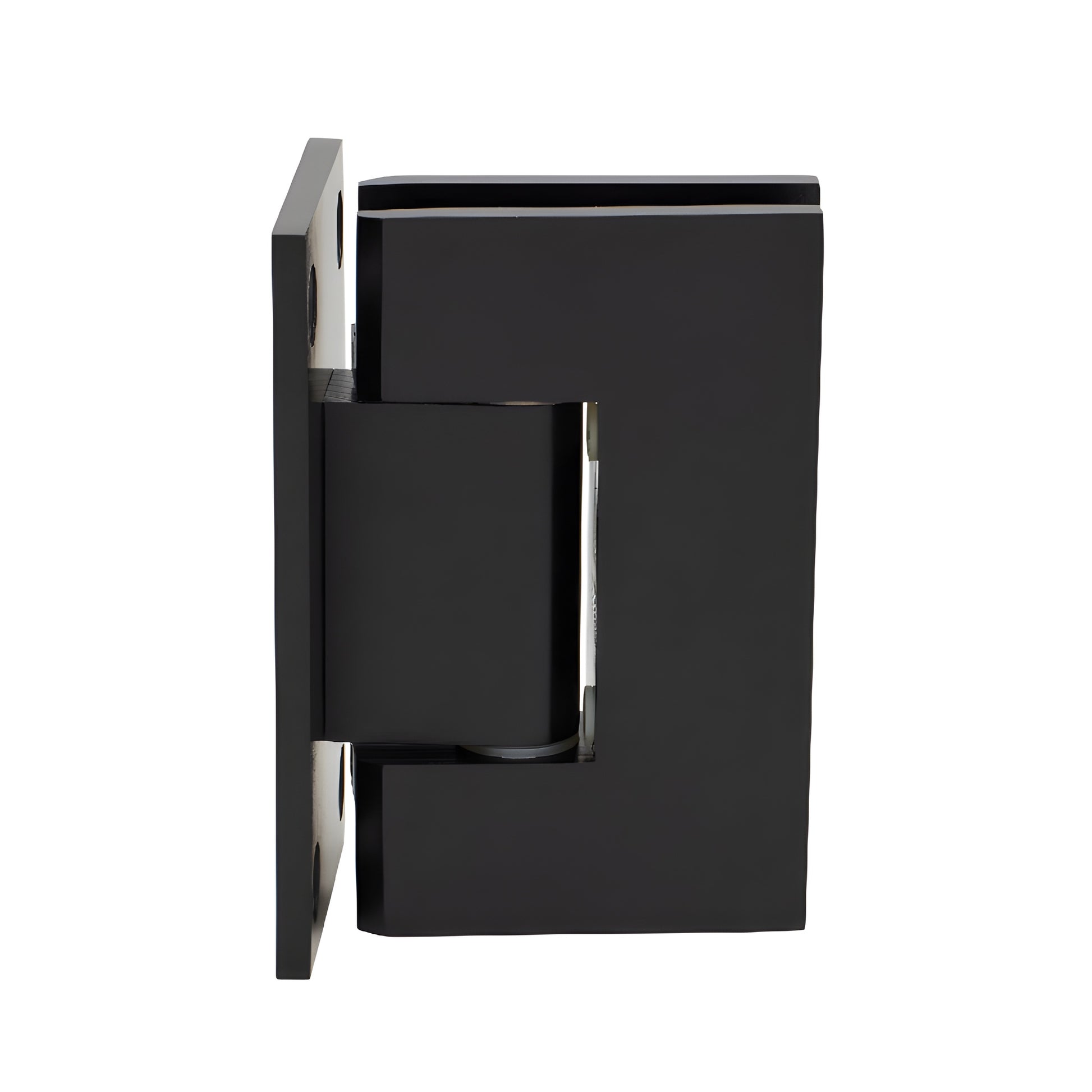

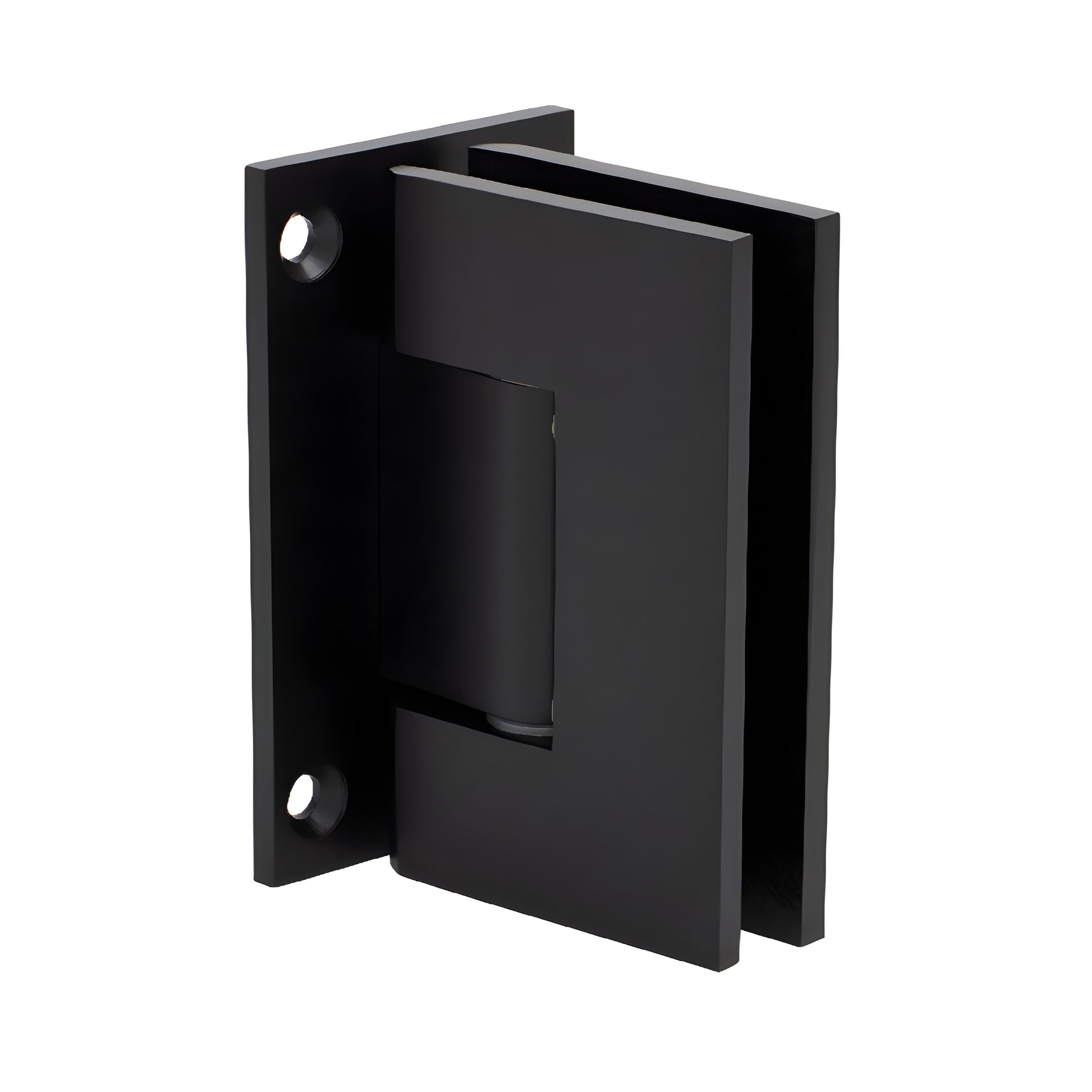

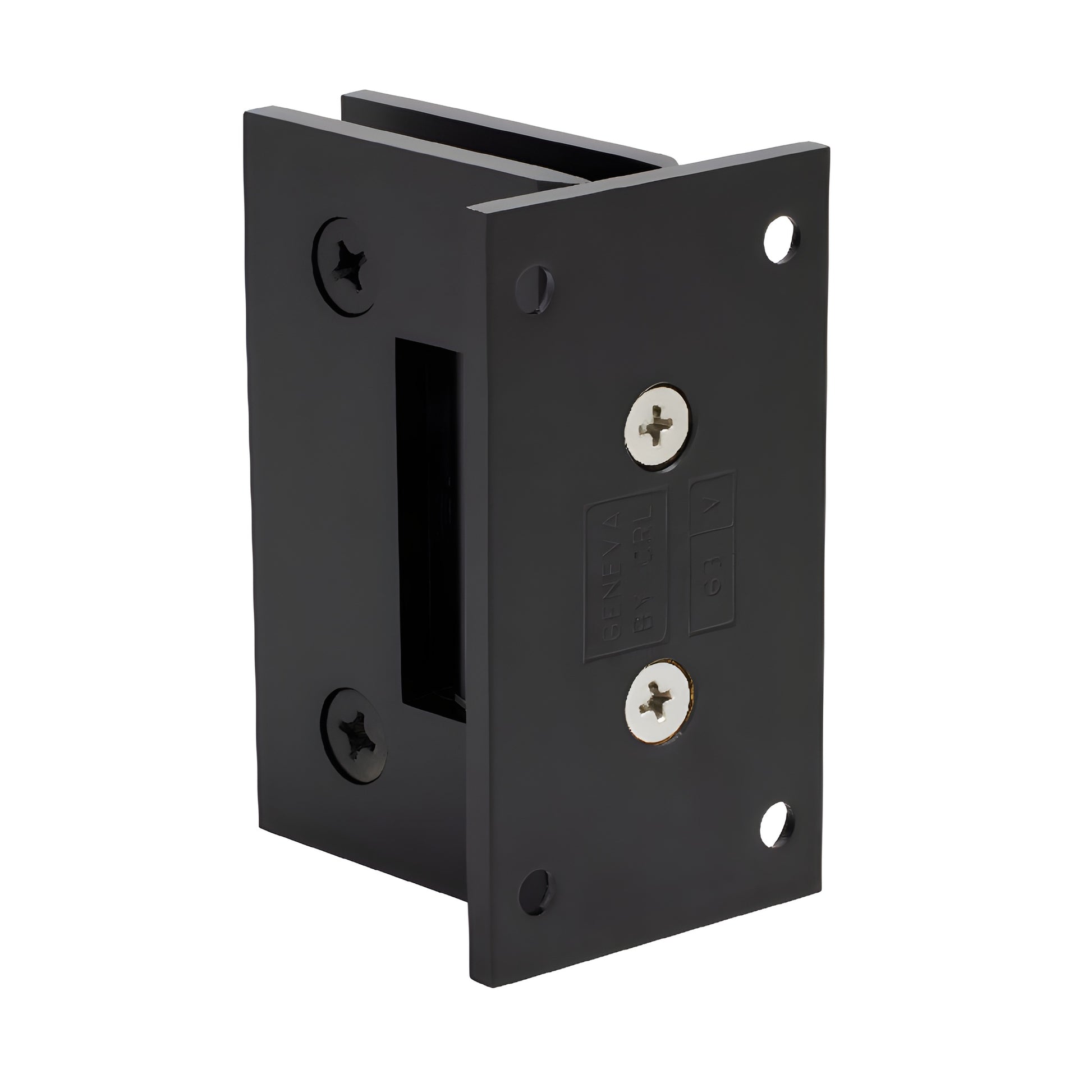

CRL Geneva 537 Oil-Rubbed Bronze Wall-Mount Backplate Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin for controlled closing
• Available in several beautiful finishes
• Three-year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• Designed for use with monolithic tempered glass

The CRL Geneva Series professional hinge (SKU: GEN5370RB) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and offers six styles—three Wall Mount and three Glass-to-Glass—providing design flexibility for frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for corrosion resistance and long life.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Offset models are factory pre-set to 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to switch sides.

Using two hinges with 5/16"–1/2" (8–12 mm) glass, the hinge supports up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges, it supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available for off-angle installations up to 45°. If the 5° reversible pin doesn't achieve the desired closure angle, specify the needed angle. Note: using a custom pivot pin may affect glass dimensions and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard 0° closing or 5° pre-set model for tighter inward closure (ideal for frameless shower doors)
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for use with 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from
