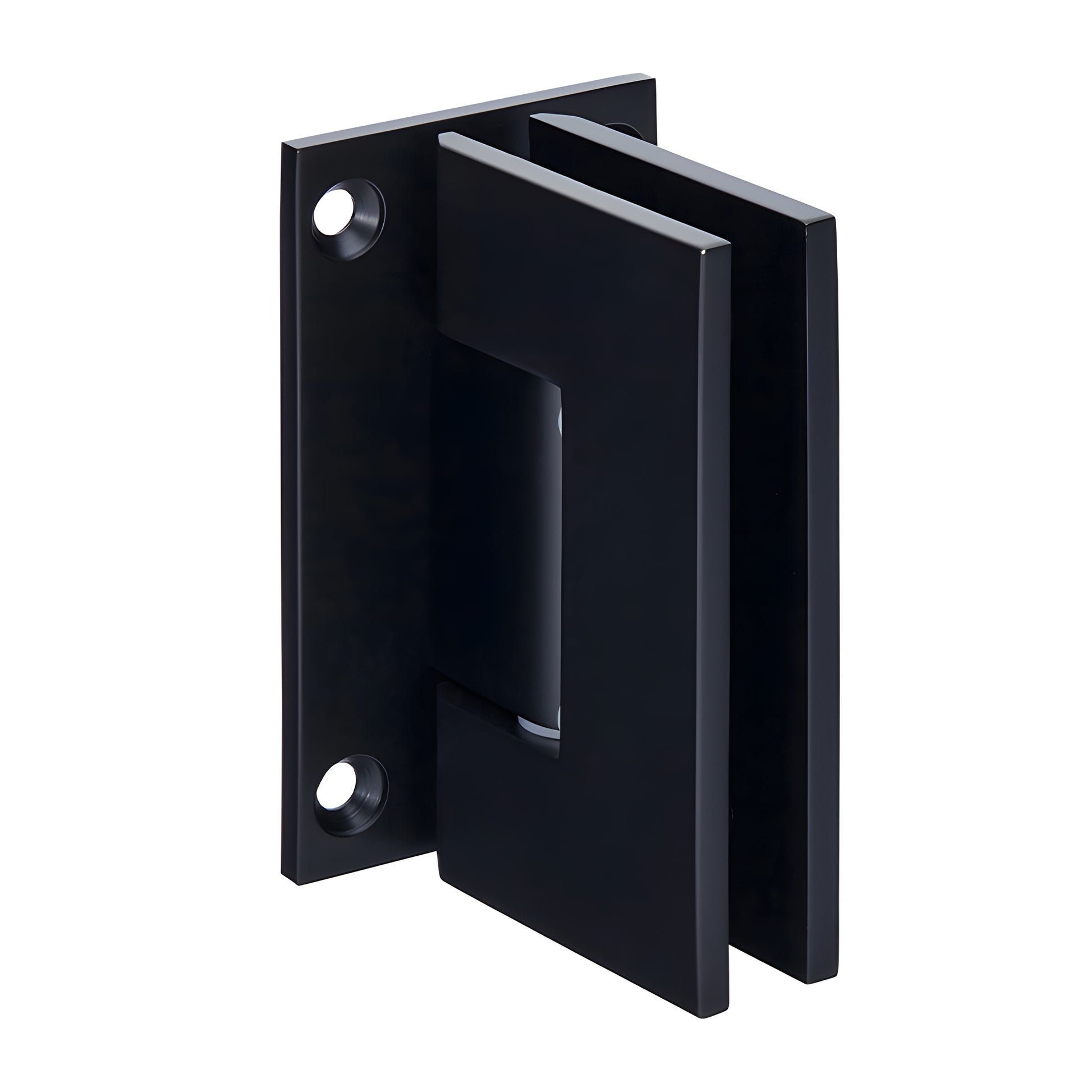

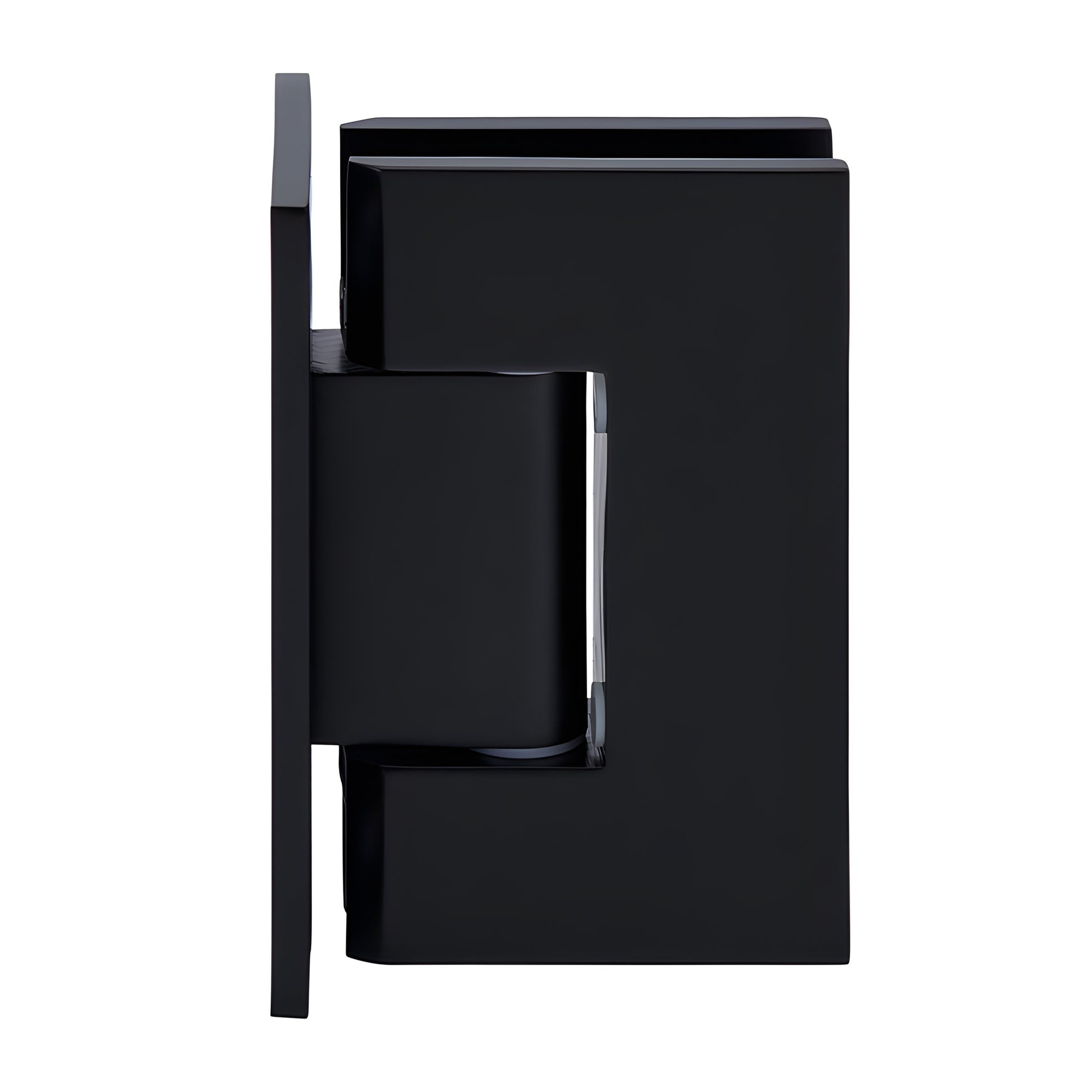

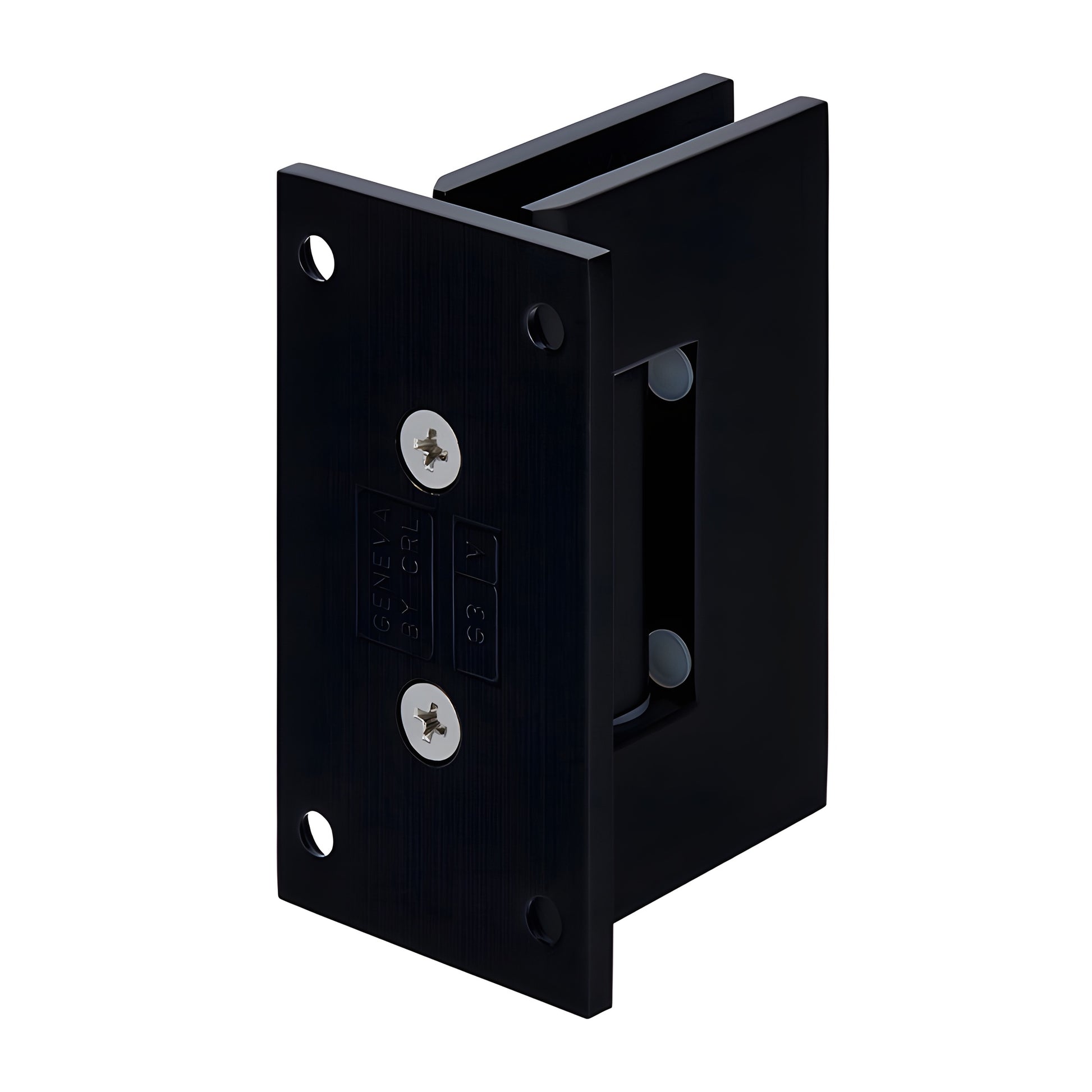

CRL Geneva 537 Matte Black Shower Door Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• Uses monolithic tempered glass

The CRL Geneva Series professional hinge (SKU: GEN537MBL) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles — three Wall Mount and three Glass-to-Glass — provide design flexibility for frameless glass shower doors. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for long-lasting corrosion resistance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated. Offset models ship pre-set to 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges: holds up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available for off-angle installations up to 45°. If the 5° reversible pin does not achieve the desired closing position, specify the required angle and contact our Technical Sales Shower Door Department. Note: custom pins may affect glass sizes and enclosure aesthetics.

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Choice of standard 0° closing or 5° pre-set model for tighter interior closure

Construction: Solid brass with stainless steel internal components

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes are
