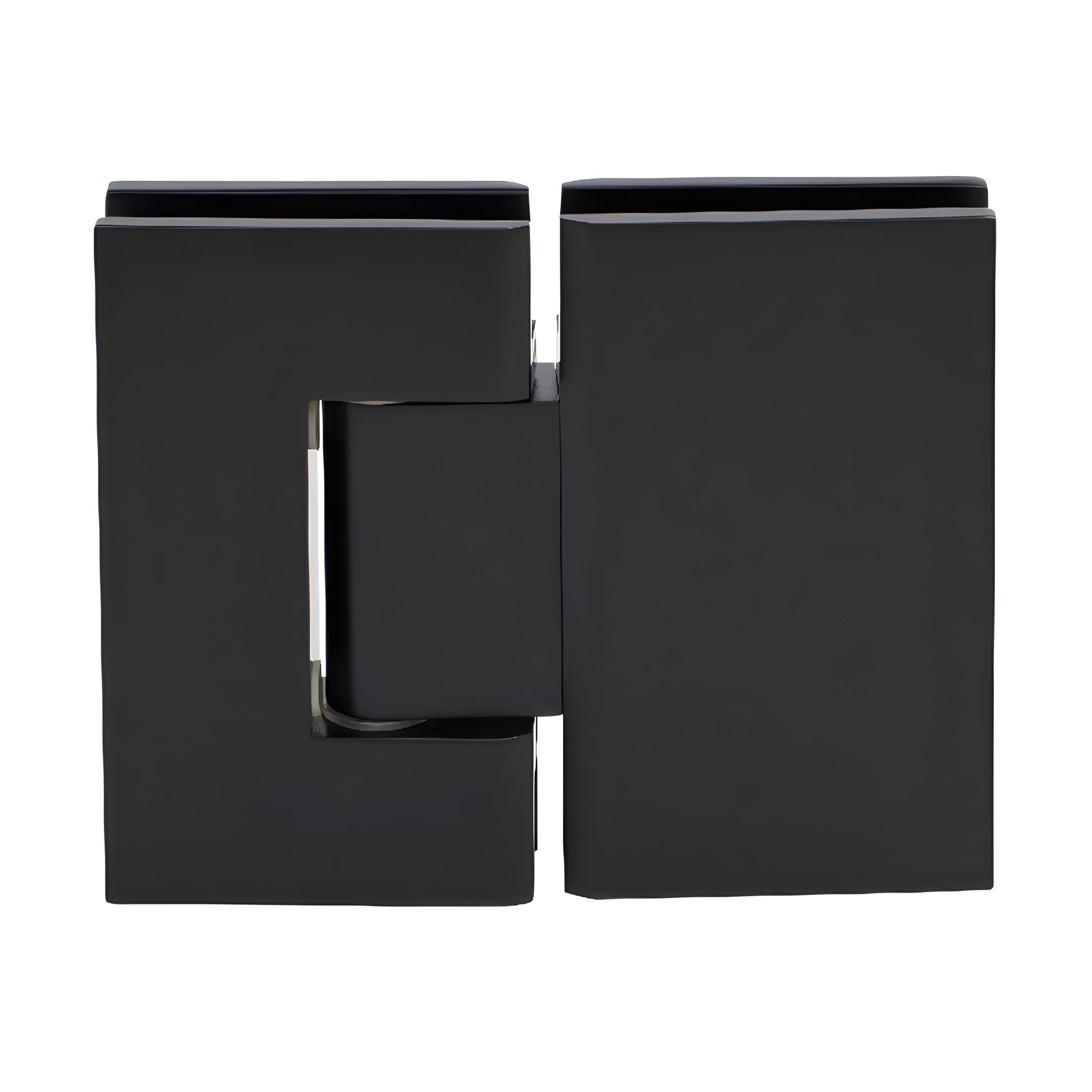

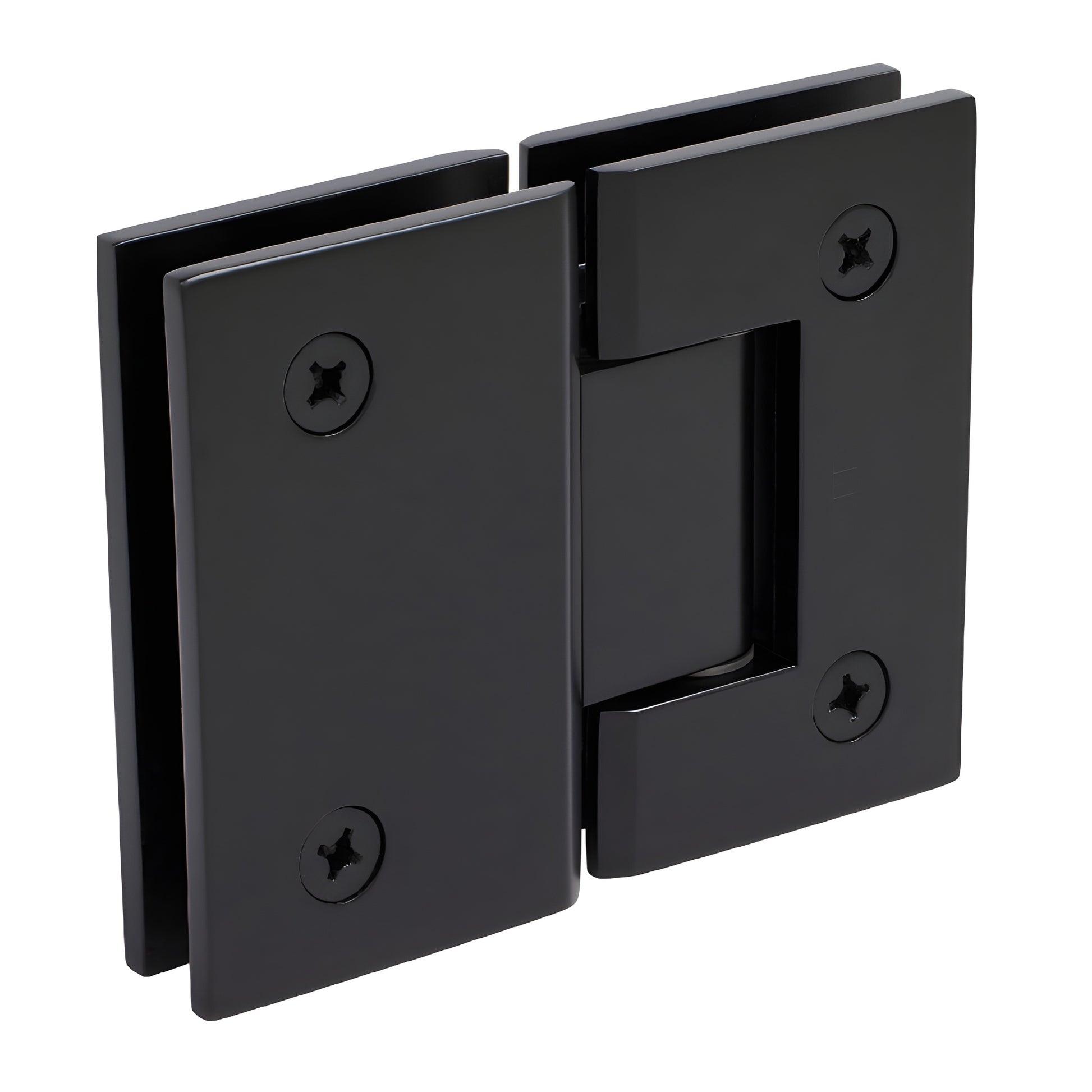

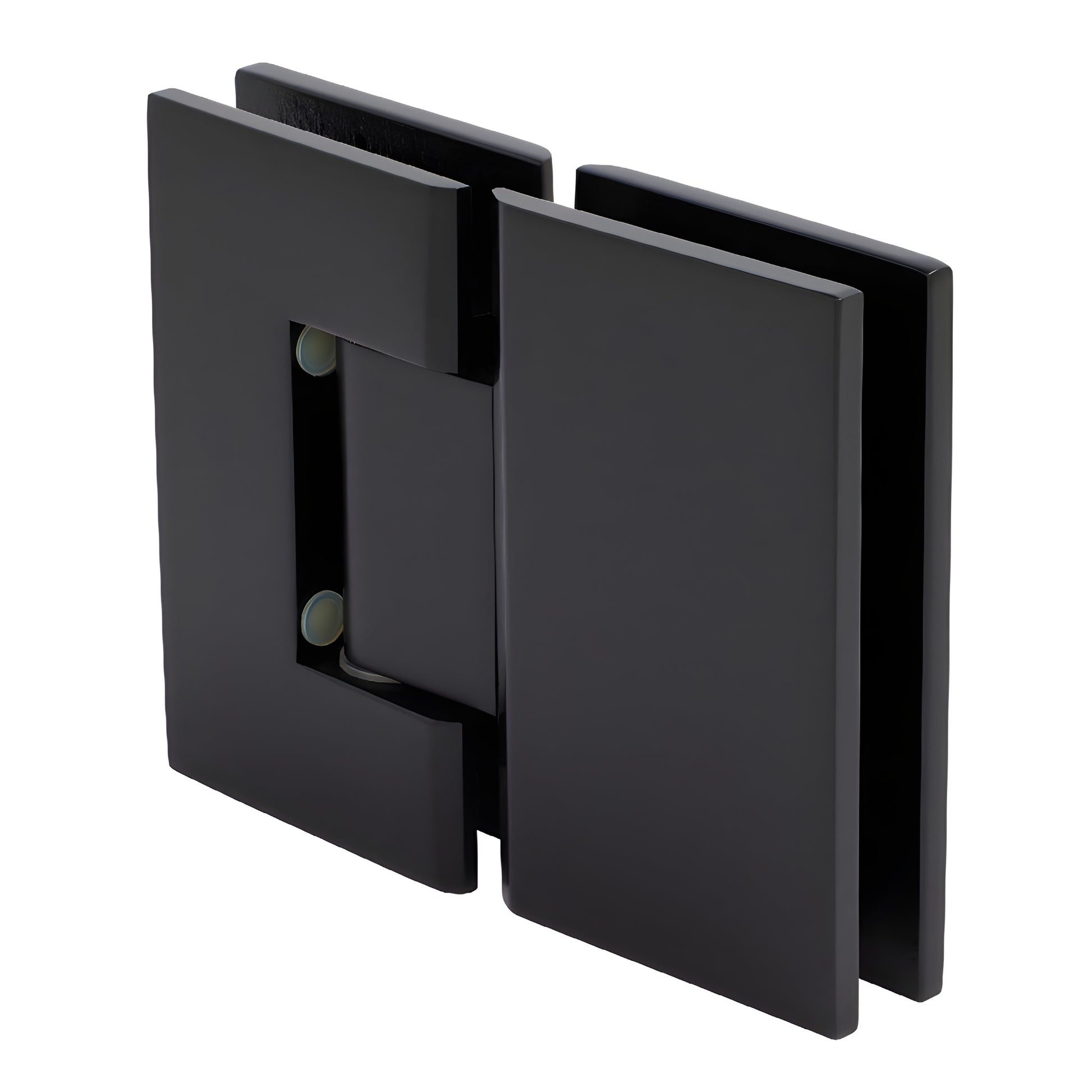

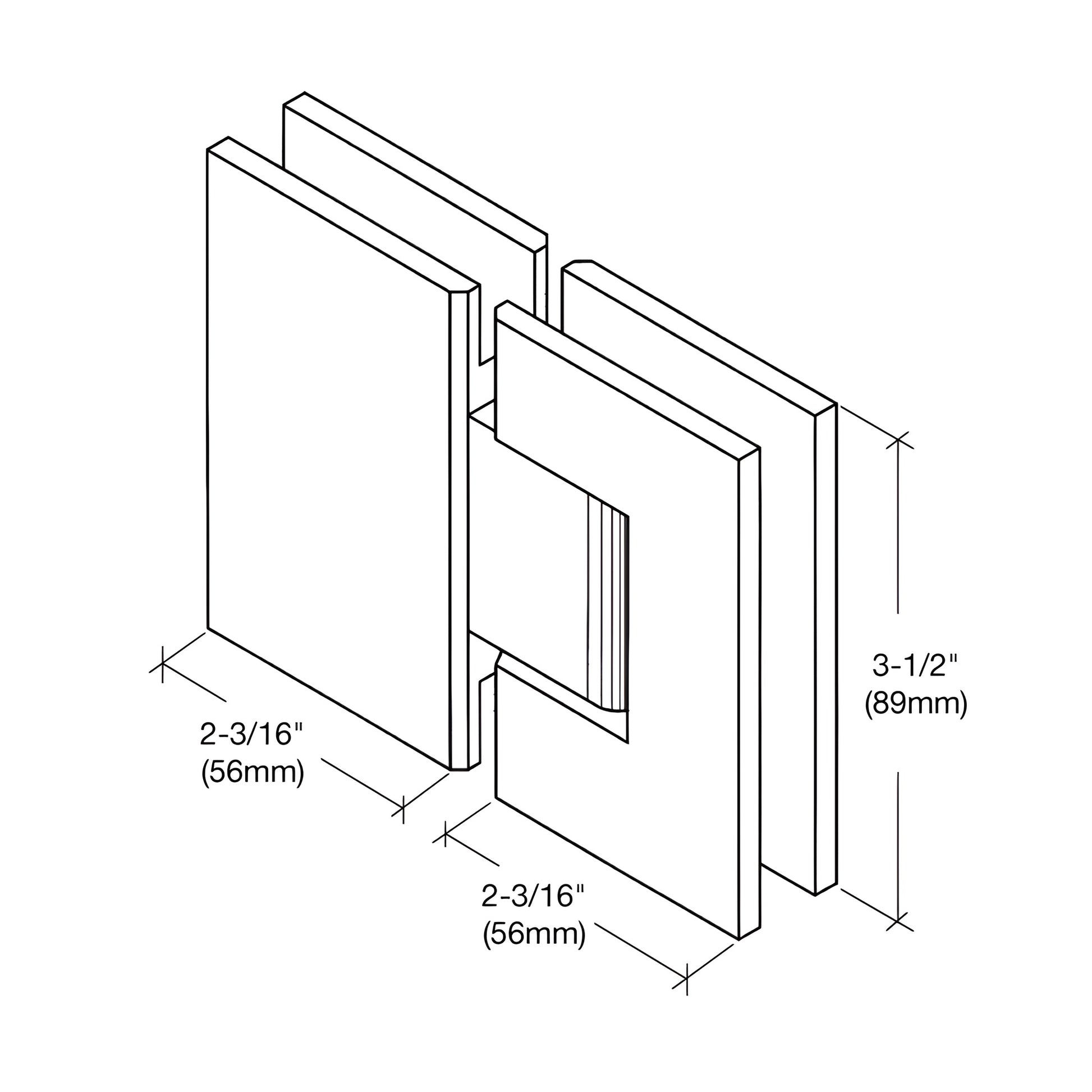

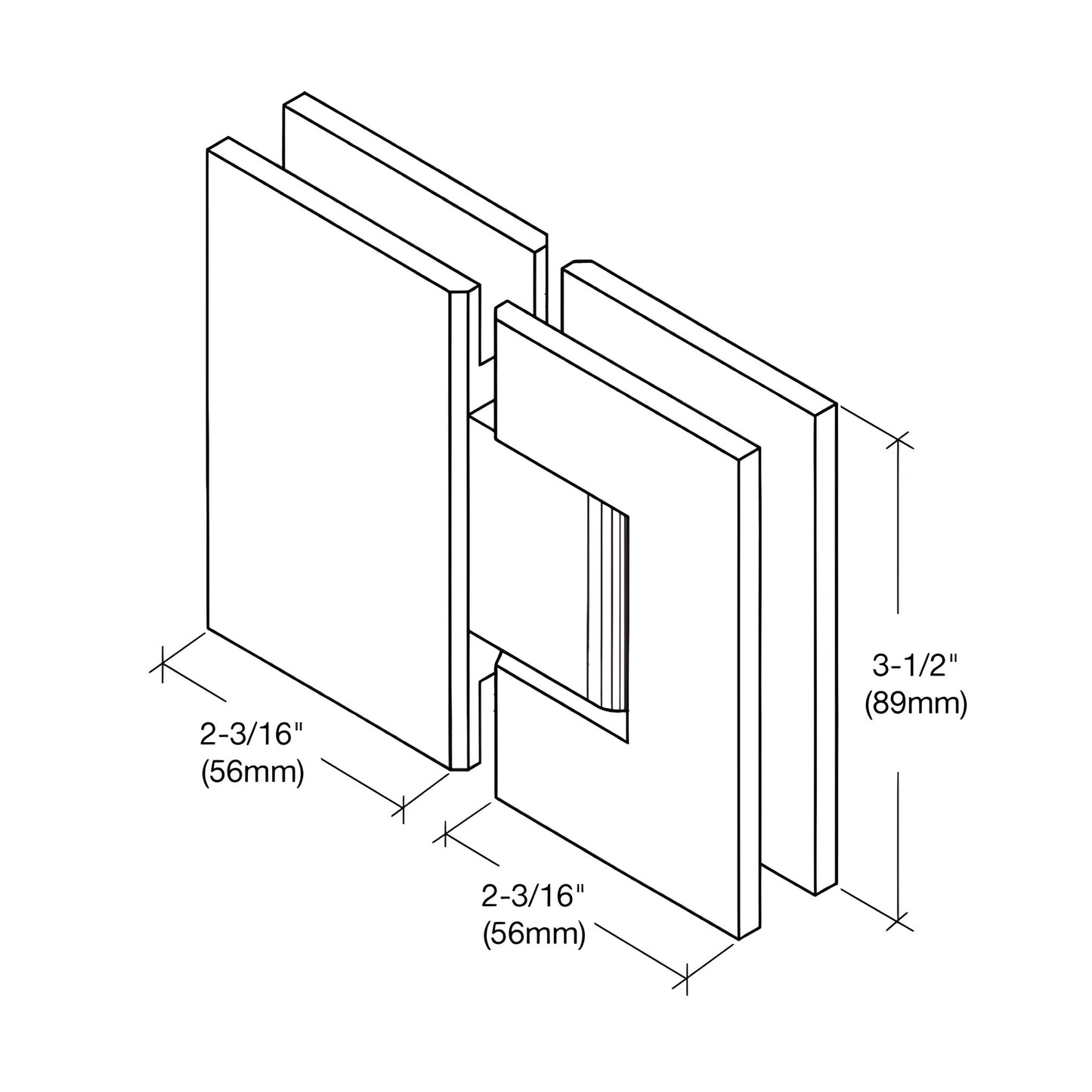

CRL Geneva 580 Matte Black 180° Glass-to-Glass Shower Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin for controlled closing
• Available in several durable decorative finishes (custom finishes available on request)
• Three-year warranty
• Factory 5° pre-set model available for tighter closure into shower interior
• Designed for monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN580MBL) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and is offered in six styles—three Wall Mount and three Glass-to-Glass—to provide design flexibility for frameless shower doors and glass enclosures. Geneva Hinges are solid brass with stainless steel pins and springs and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Offset (pre-set) models ship with the 85° side active for a 5° tighter closure into the shower interior. The pin can be rotated to change the active side.

Custom Pivot Pin (Cat. No. GENP1N): If the reversible 5° pin does not achieve the desired closing angle, specify a custom pivot pin (up to 45°). Custom pins may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Capacity and sizing:

• Two hinges (5/16"–1/2" glass) support up to 80 lb (36 kg), max door width 28" (711 mm)
• Three hinges (5/16"–1/2" glass) support up to 120 lb (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° closing) or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid brass body with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes and custom pivot pins are available—contact Technical Sales Shower Door Division for quotes and guidance.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge; cut-out dimensions may
