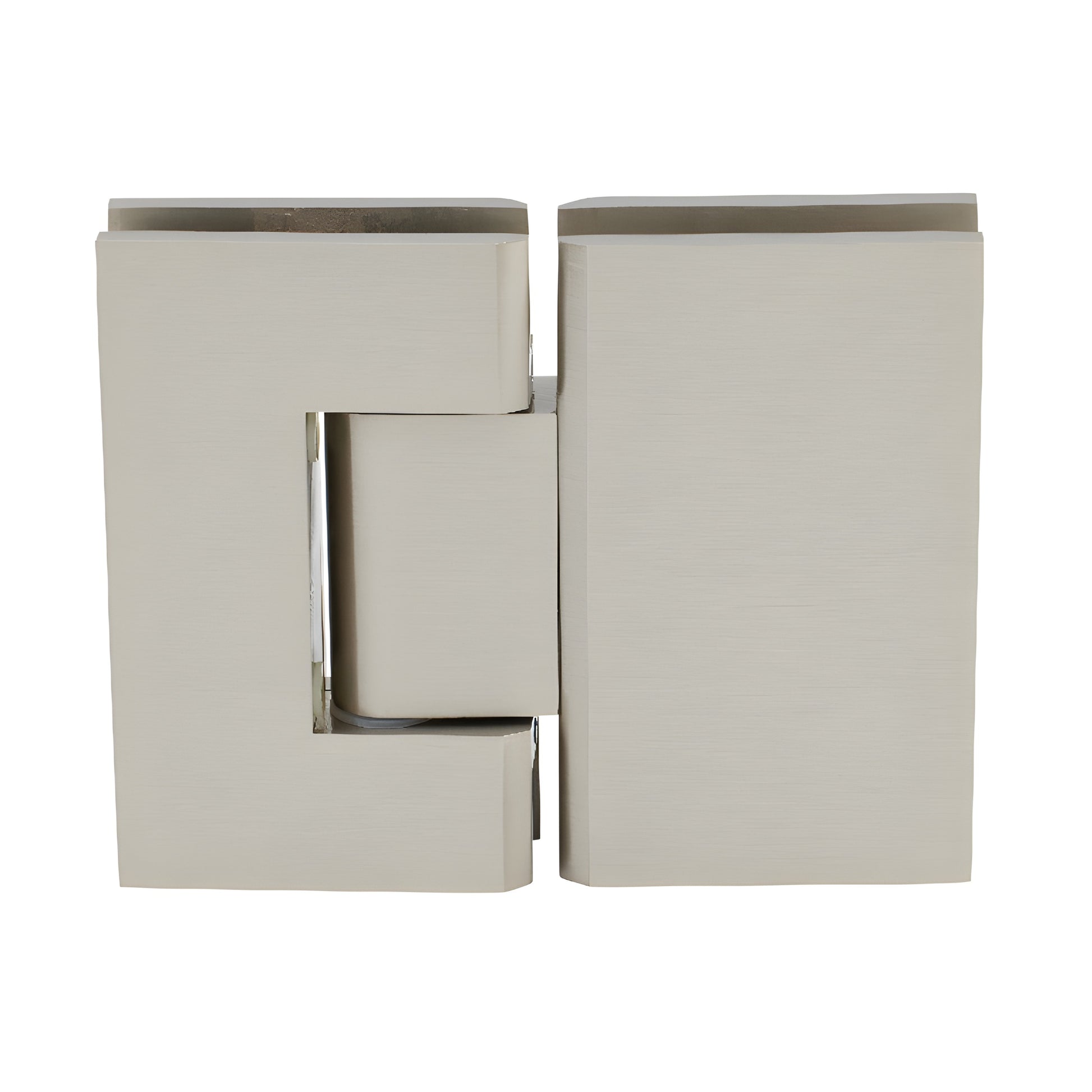

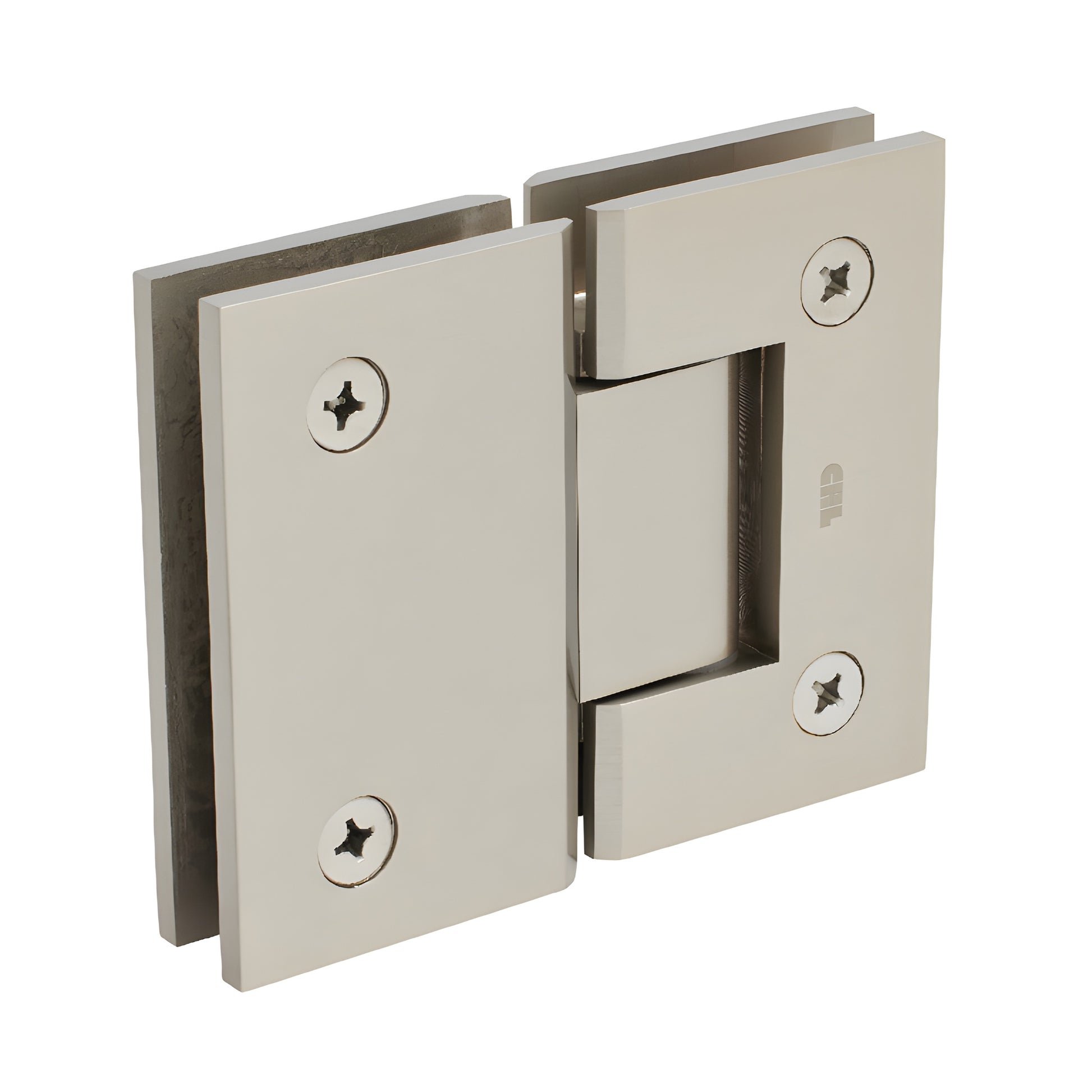

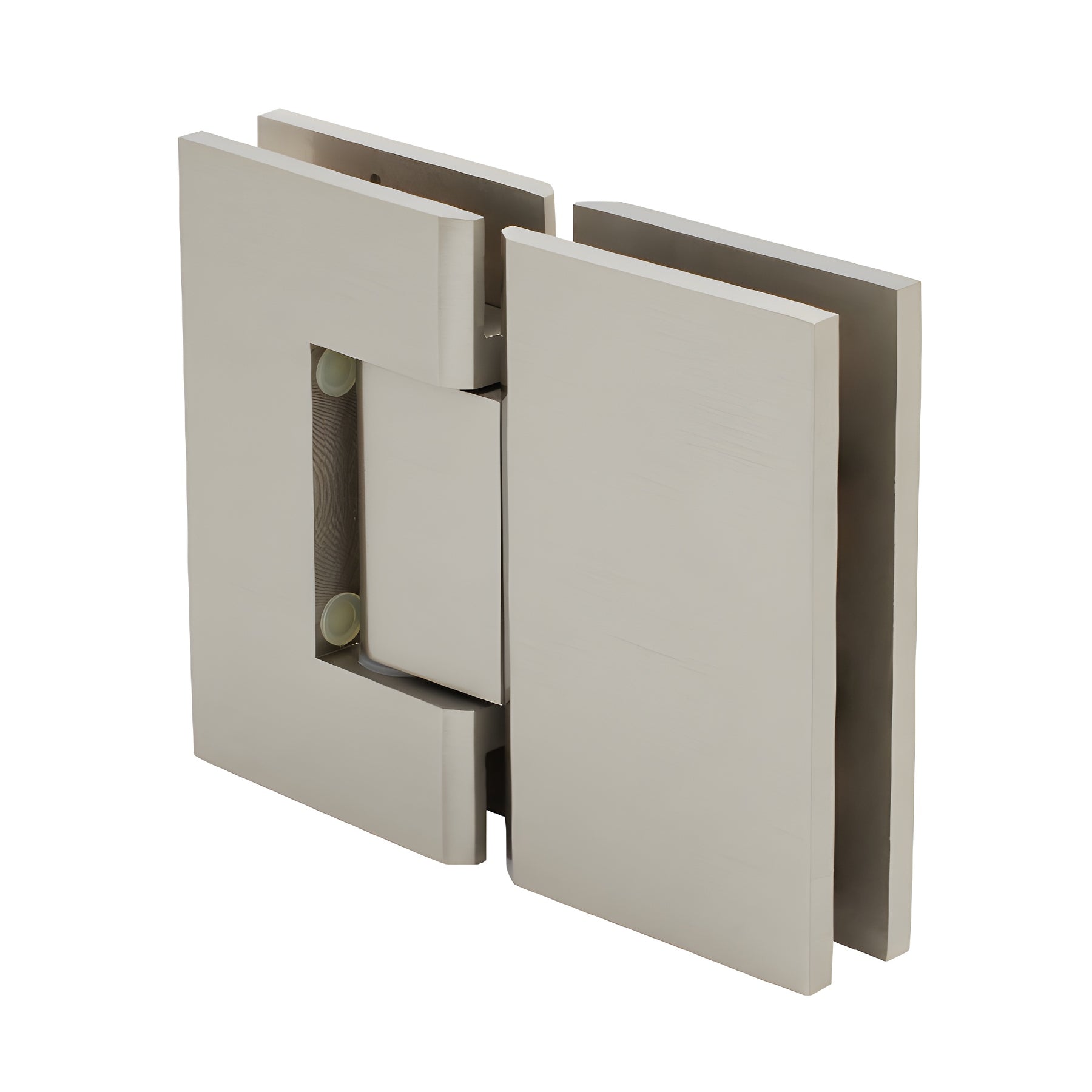

CRL Geneva 580 Brushed Nickel 180° Glass Shower Door Hinge 5° Offset

• Self-Centering hinge with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three year warranty
• 5 Degree Pre-Set Model (factory set for 5° tighter closure into shower interior)
• Use with monolithic tempered glass (8 mm–12 mm)

The CRL Geneva Series professional shower door hinges (SKU: GEN580BN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three Wall Mount and three Glass-to-Glass—provide design flexibility for frameless and semi-frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for long-lasting corrosion resistance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° (standard) and 85° (5° closure). Standard models ship with 90° activated; offset models ship pre-set to 85°. Rotate the pin to change the active angle.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available up to 45° for off-angle installations. If the reversible 5° pin does not achieve the desired closure, specify the required angle and contact Technical Sales Shower Door Department. Note: using a custom pivot pin may affect glass sizes and enclosure aesthetics.

Capacity:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard 0° closing or 5° Pre-Set Model for tighter closure into the shower interior
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request — contact Technical Sales Shower Door Division.
