• CRL Oil Rubbed Bronze Glass-to-Glass Hinge, 180° with 5° Offset, Geneva 580 Series
  • CRL Oil Rubbed Bronze Geneva 580 Glass-to-Glass Hinge, 180° with 5° Offset, Elegant Design
  • CRL Oil Rubbed Bronze Geneva 580 180° Glass Hinge with 5° Offset - Elegant and Durable
  • CRL Oil Rubbed Bronze Geneva 580 Series 180° Glass-to-Glass Hinge with 5° Offset
1 4

crlaurence.ca

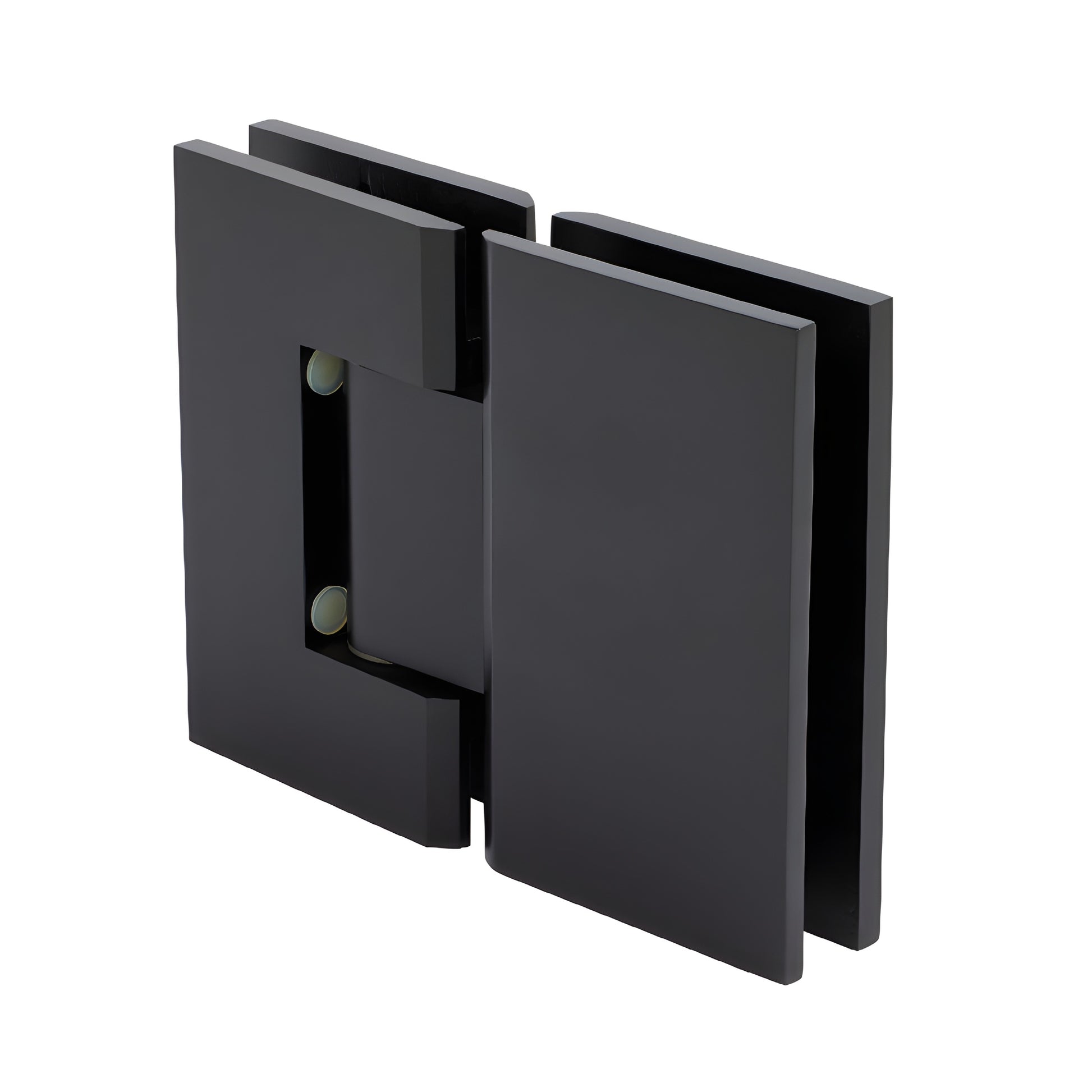

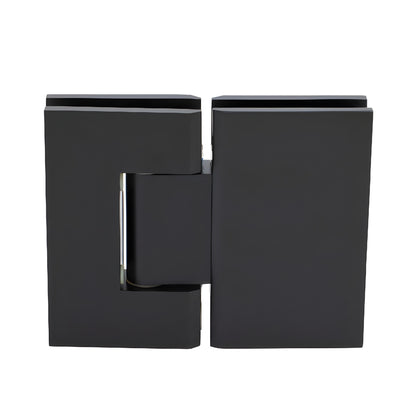

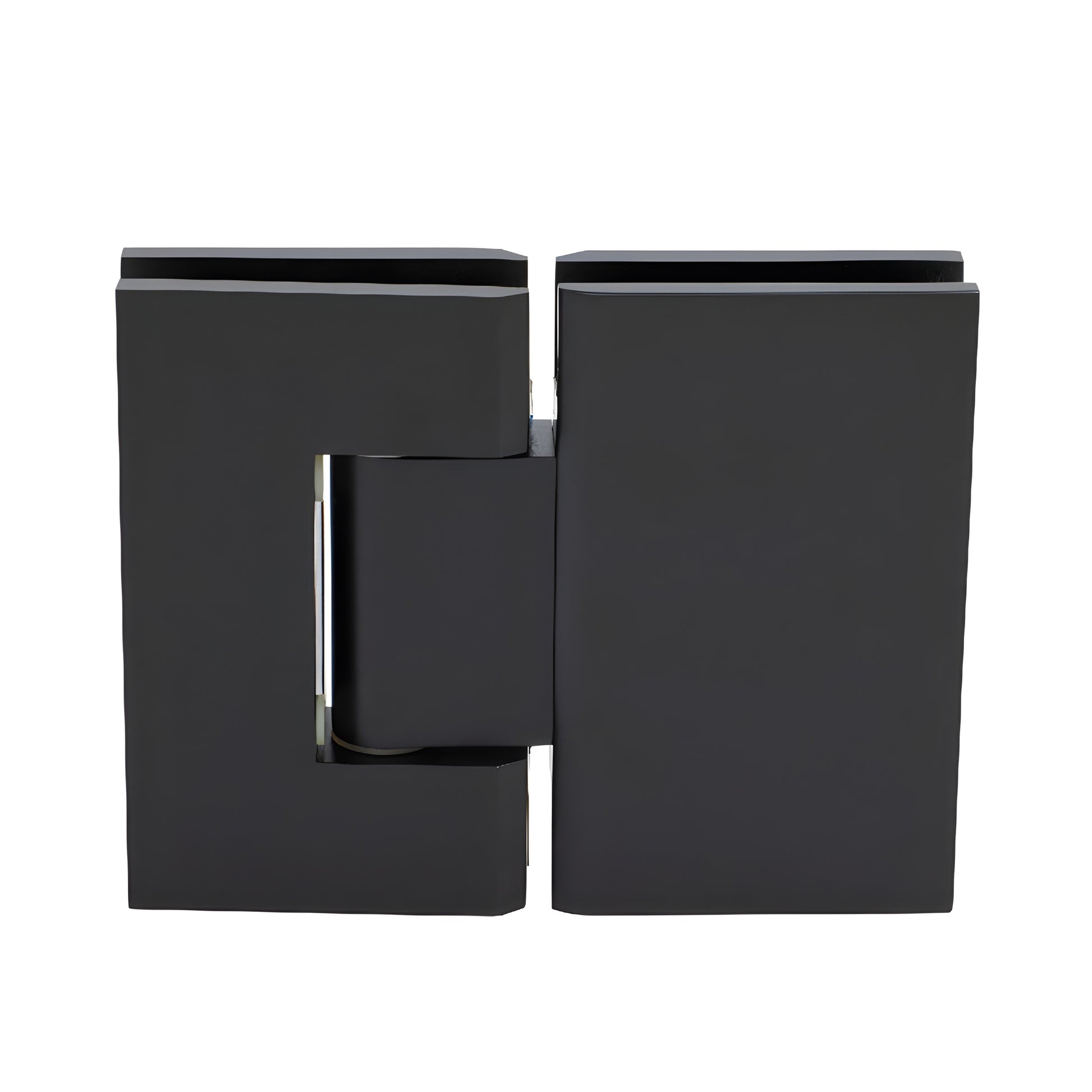

CRL Oil Rubbed Bronze Geneva 580 Series 180 Degree Glass-to-Glass Hinge with 5 Degree Offset

CRL Oil Rubbed Bronze Geneva 580 Series 180 Degree Glass-to-Glass Hinge with 5 Degree Offset

$148.88 CAD
$148.88 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GEN5800RB
Shipping Weight: 2.565 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set YesNo
EdgeProfile Square
Finish/ColorOil Rubbed Bronze
Glass To Glass Angle180
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)

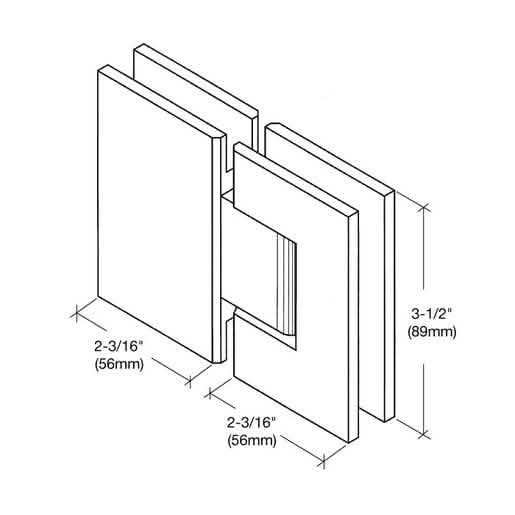

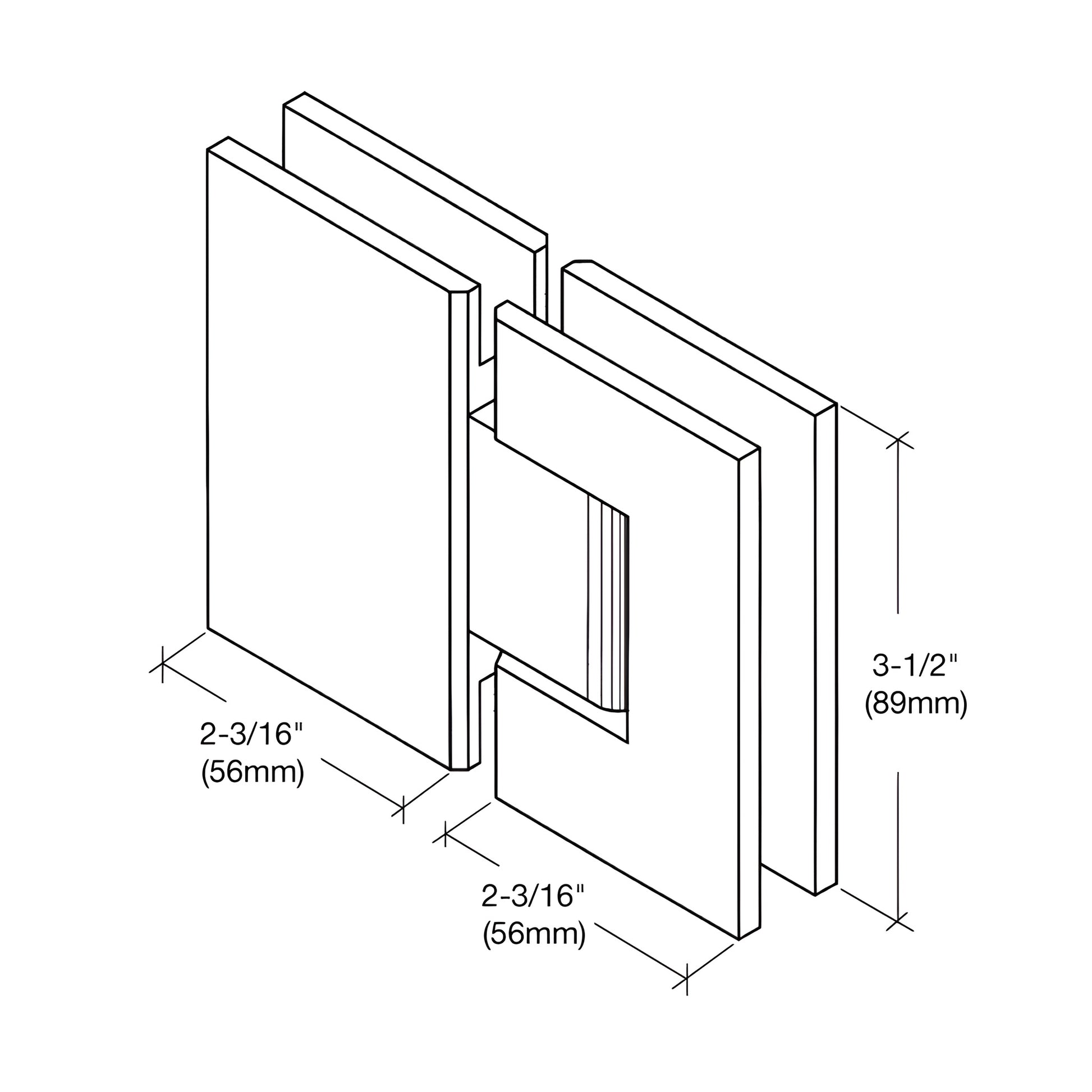

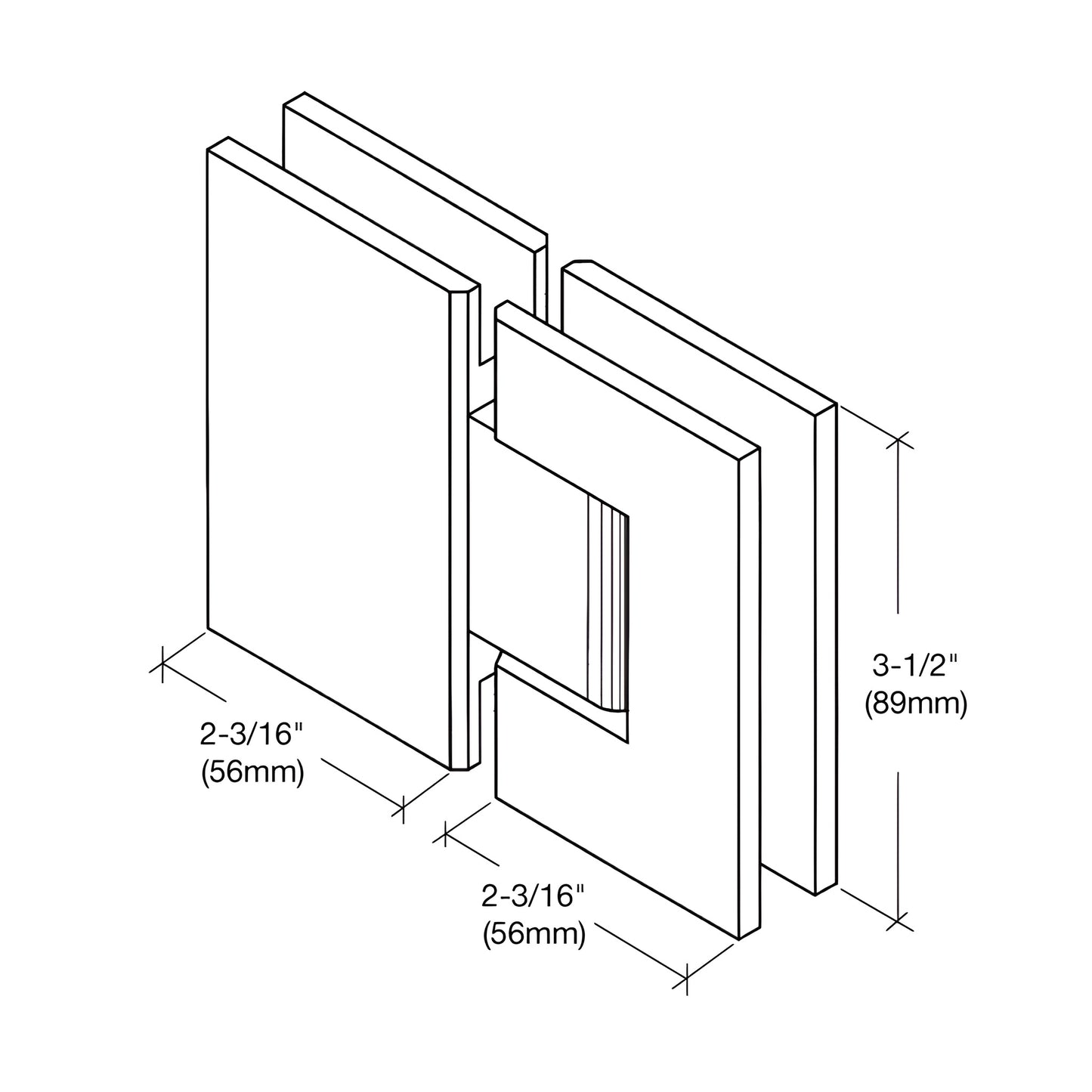

Height 3-1/2 in.(89 mm)
MaterialBrass
Maximum Door Weight - 2 Hinges 80 lbs.(36.3 kg)
Maximum Door Weight - 3 Hinges 120 lbs.(54.4 kg)
Maximum Door Width -2 Hinges 28
Maximum Door Width -3 Hinges 32
MountingType Glass To Glass
Self-Centering YesGeneva
Width - Door Portion 2-3/16 in.(56 mm)
Width - Sidelite Portion2-3/16

Overview

The CRL Geneva Series professional Hinges are designed for superior performance, accommodating 5/16" (8 mm) to 1/2" (12 mm) glass, and offering flexibility with six distinct styles including wall mount and glass-to-glass types.
These durable hinges, constructed from solid brass with stainless steel moving parts, feature a self-centering design and a reversible 5-degree pivot pin, allowing for precise shower door closure.
For unique installations, custom pivot pins are available, supporting angles up to 45 degrees.
Ideal for residential or hotel showers, Geneva Hinges promise reliability with a three-year warranty and are available in several stunning finishes.
For more precision and customization, contact our Technical Sales Shower Door Department.
