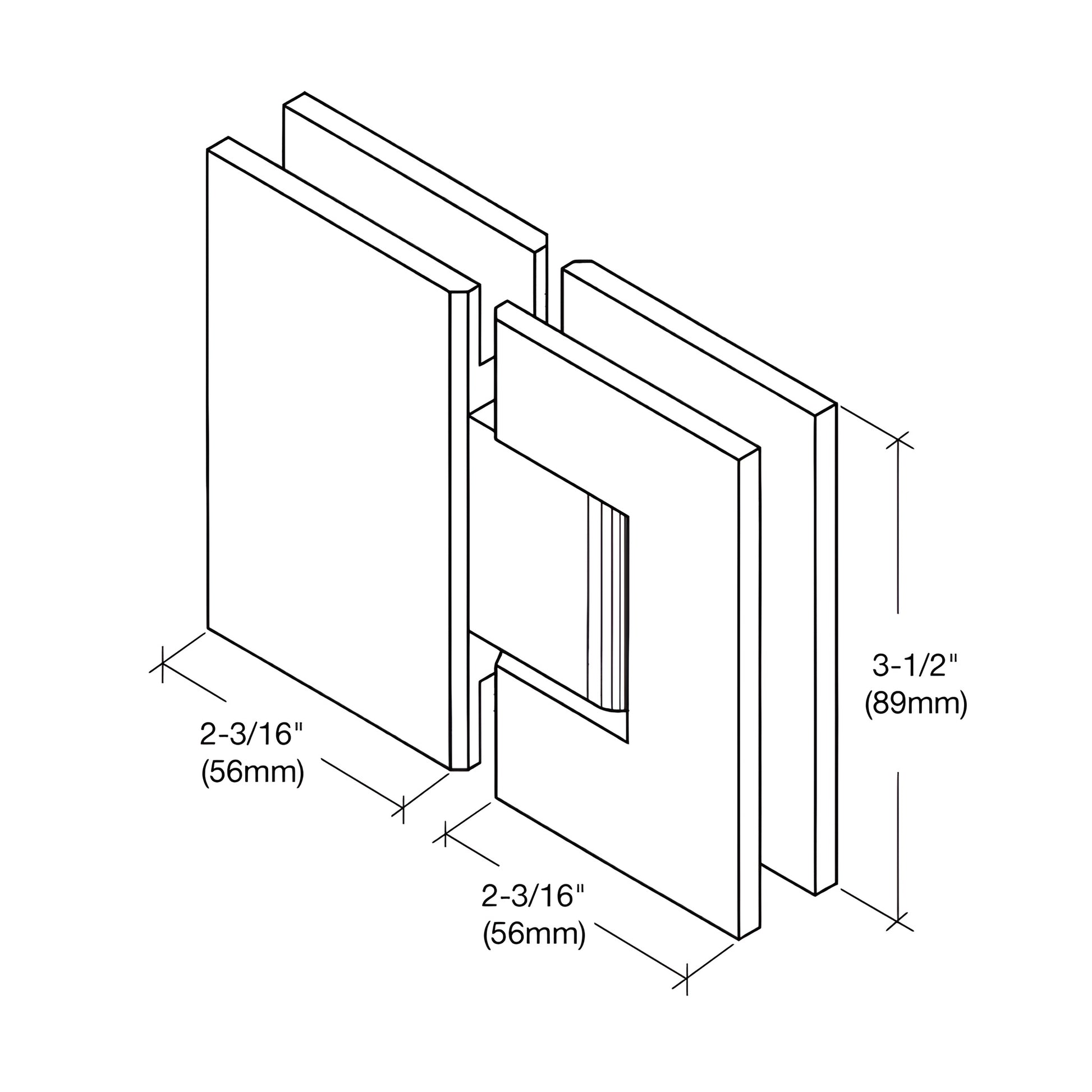

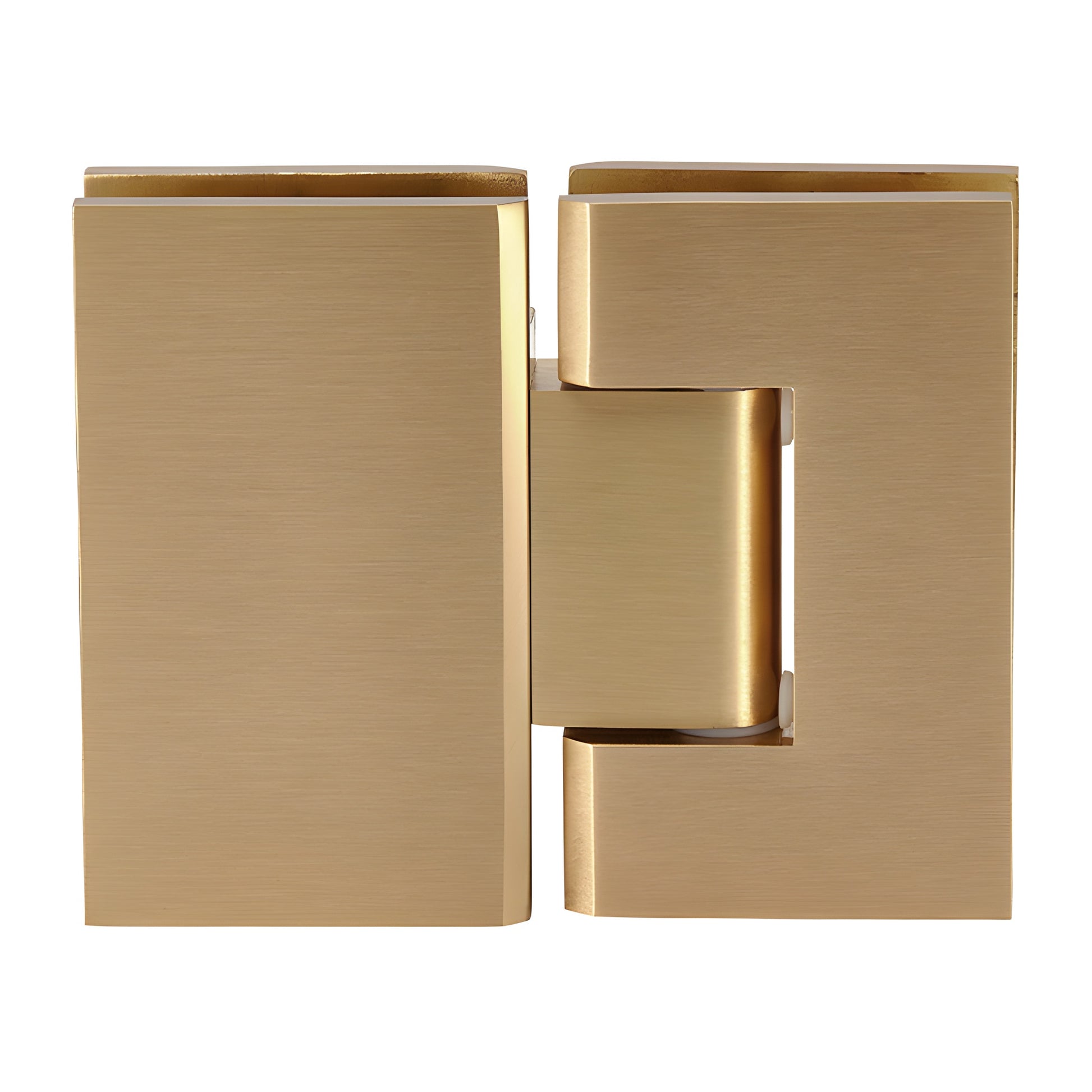

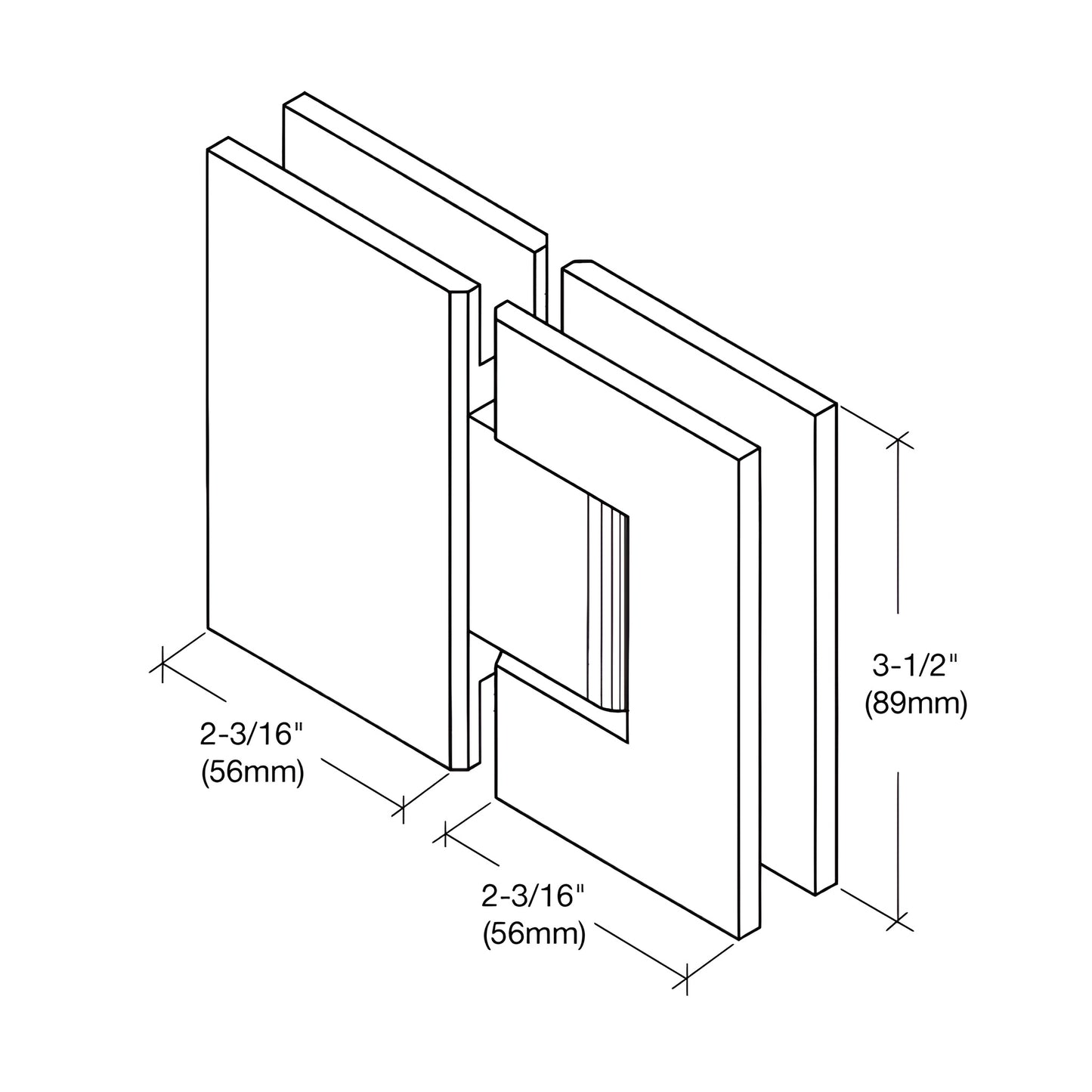

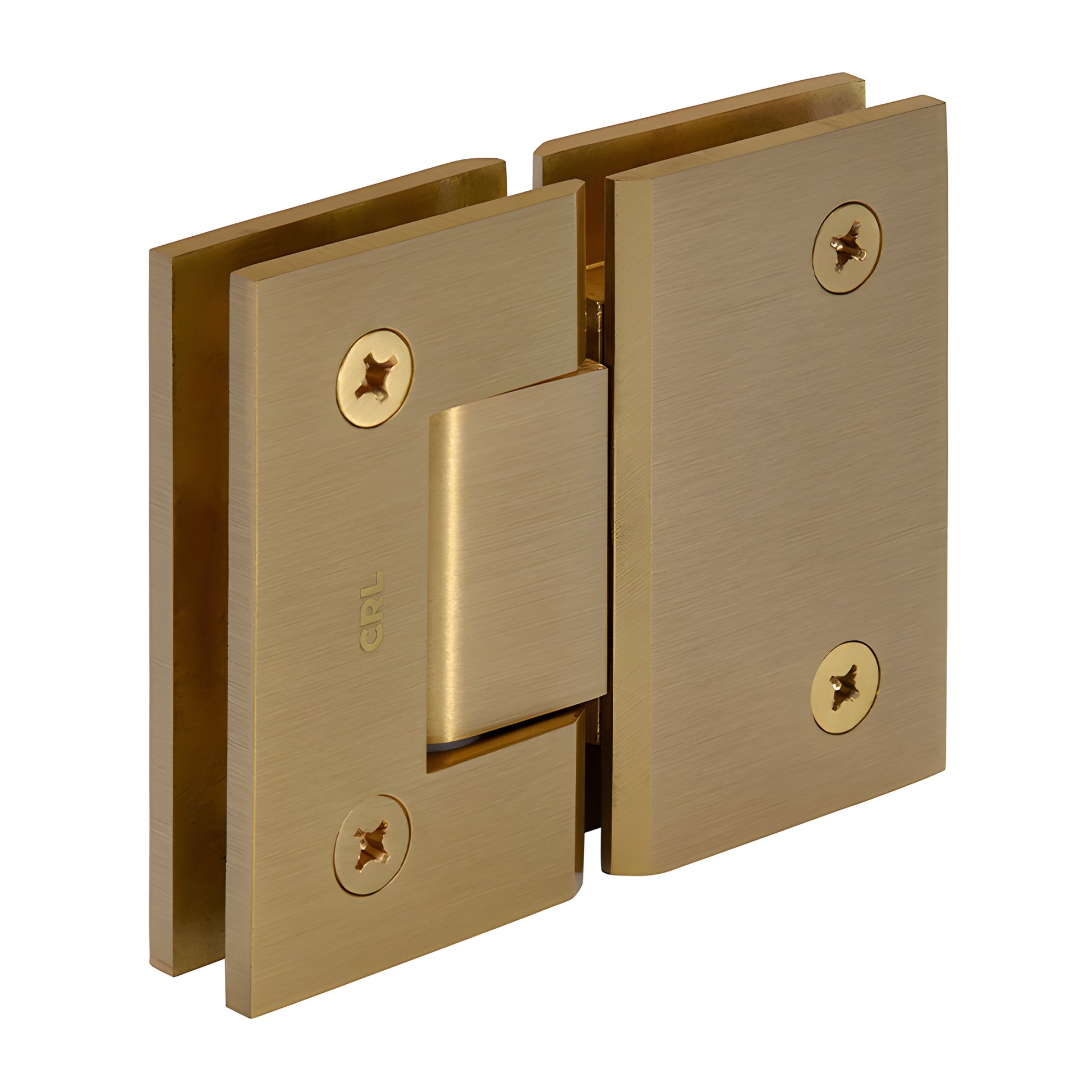

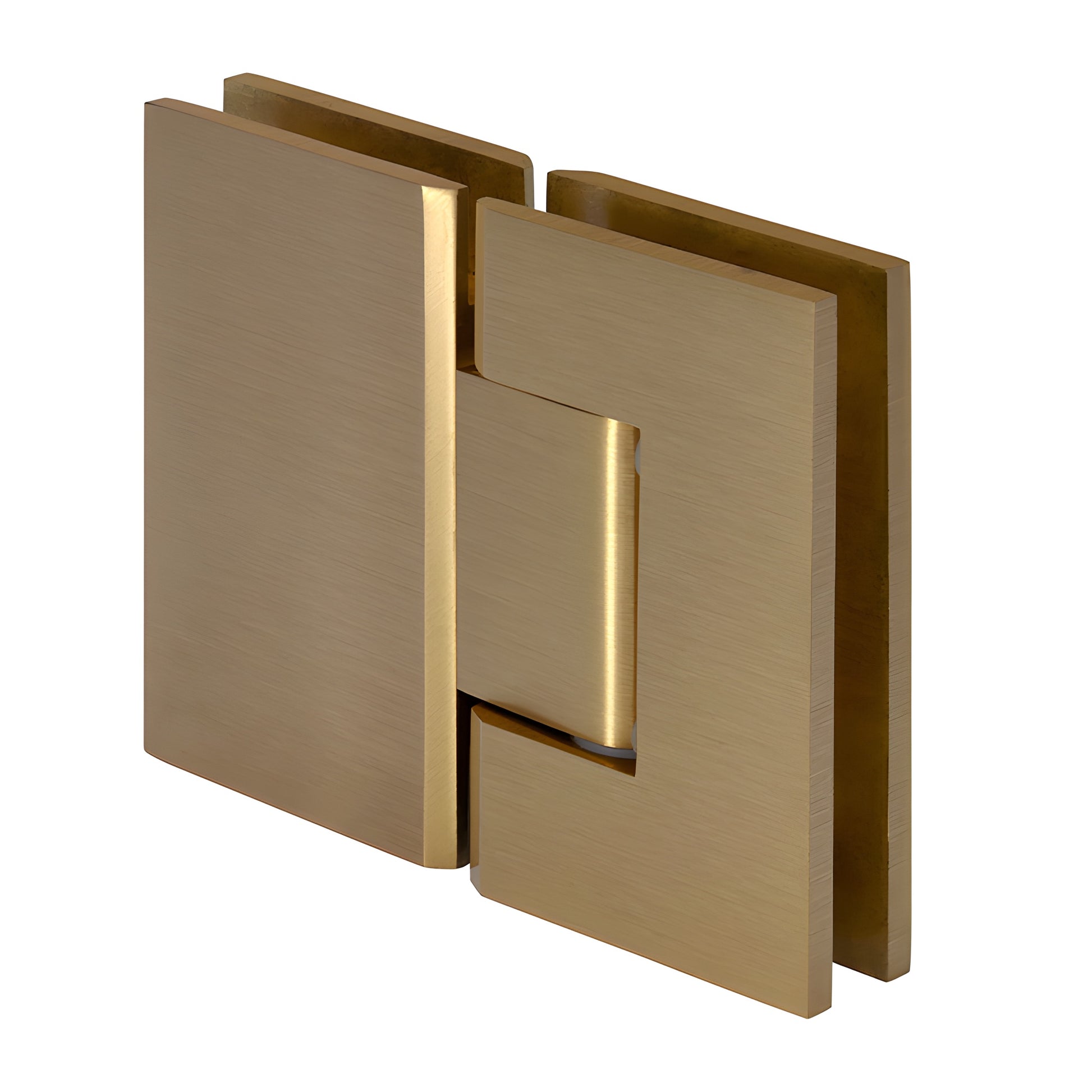

CRL Geneva 580 Satin Brass 180° Frameless Shower Door Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 5° pre-set model for tighter closure into shower interior
• For use with monolithic tempered glass (8–12 mm)

The CRL Geneva Series professional hinges (SKU: GEN580SB) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six style options—three Wall Mount and three Glass-to-Glass—provide design flexibility for frameless shower enclosures and custom glass doors. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for durable shower hardware.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard Geneva Hinges ship with the 90° side activated. Offset/pre-set models ship with the 85° side activated for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available up to 45° for off-angle installations. If the standard 5° reversible pin does not achieve the desired closing position, specify the required angle and contact Technical Sales Shower Door Department. Using a custom pivot pin may affect glass sizing and enclosure aesthetics.

Two hinges installed on 8–12 mm glass support up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Three hinges support up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° factory set) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For alternative uses, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may
