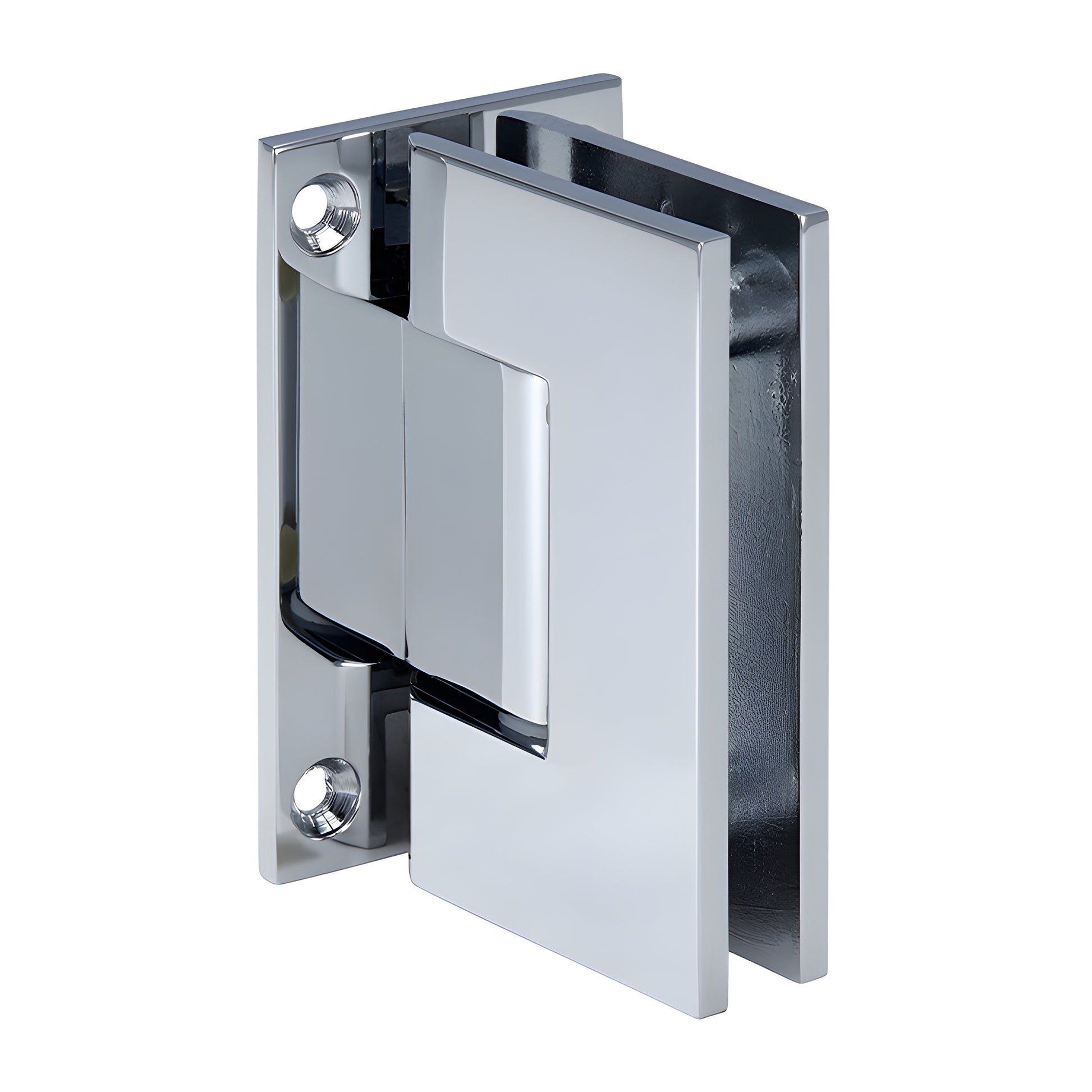

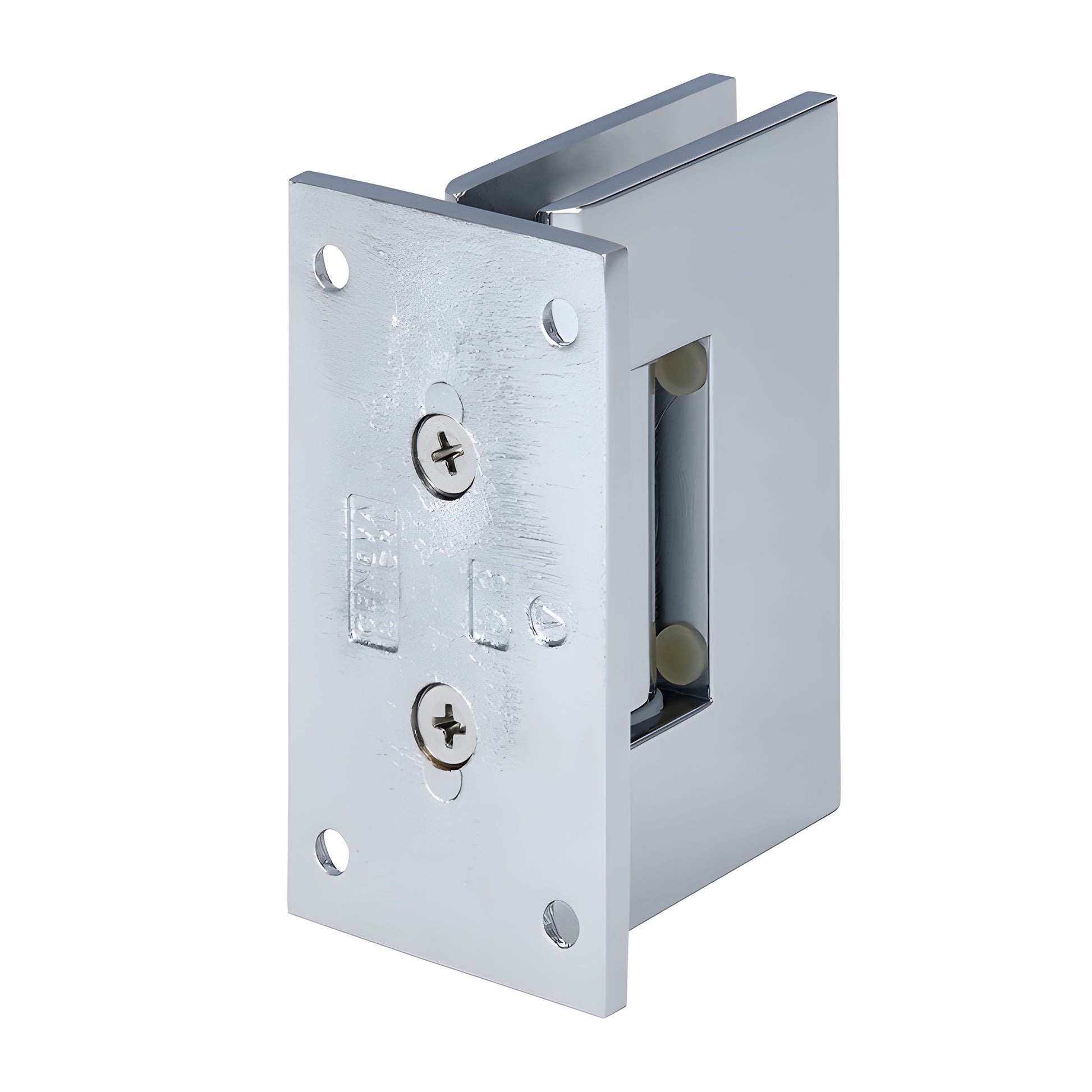

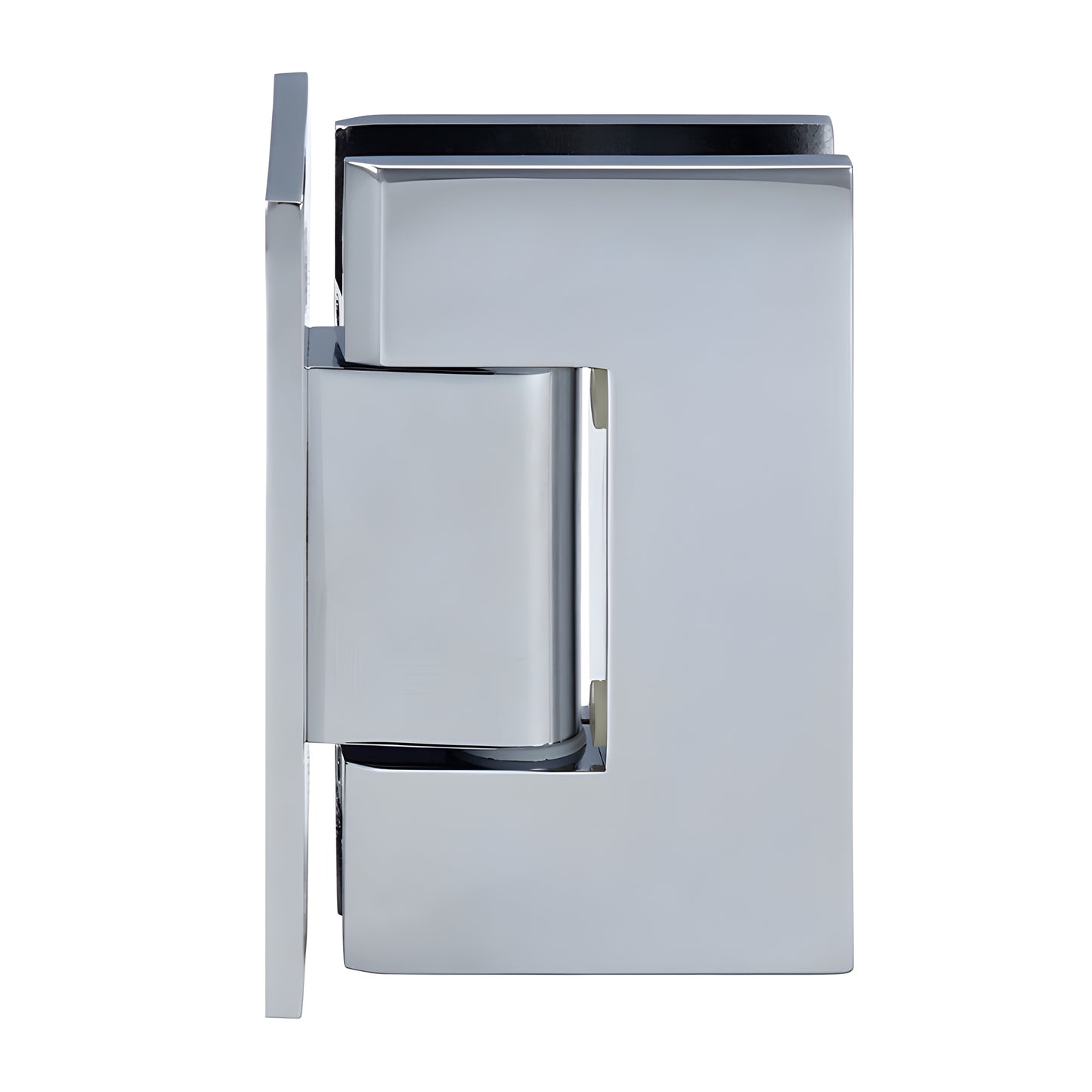

CRL Geneva 537 Polished Chrome Shower Wall-Mount Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishing options
• Three-year warranty
• 5° pre-set model for tighter closure into shower interior
• Designed for monolithic tempered safety glass

CRL Geneva Series (SKU: GEN537CH) professional hinges fit 5/16" (8 mm) to 1/2" (12 mm) tempered glass and are ideal for frameless shower door installations. Six styles (three Wall Mount, three Glass-to-Glass) provide design flexibility. Geneva hinges are solid brass with stainless-steel pins and springs and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. These features make them a strong choice for shower door hardware, backing up durability and precise self-centering performance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side active. Offset models ship pre-set to 85° (5° tighter closure into shower interior). Rotate the pin (do not flip) to change the active side.

Capacity:

• Two hinges: holds up to 80 lbs. (36 kg), maximum door width 28" (711 mm)
• Three hinges: holds up to 120 lbs. (54 kg), maximum door width 32" (813 mm)

Custom Pivot Pin (Cat. No. GENP1N): Available to accommodate off-angle installations up to 45°. Contact Technical Sales Shower Door Department for custom angle specifications. Note: custom pins may affect glass sizes and enclosure aesthetics.

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
• Special Feature: Choice of Standard 0° closing or 5° pre-set model for tighter shower closure
• Construction: Solid brass body; stainless-steel pins and springs
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering within 15° of closed position
• Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes are available on request — contact the Technical Sales Shower Door Division for options.

Product Warning:
Designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales Department. Use only the included hinge template—cut-out dimensions for CRL hinges may differ from other brands.
