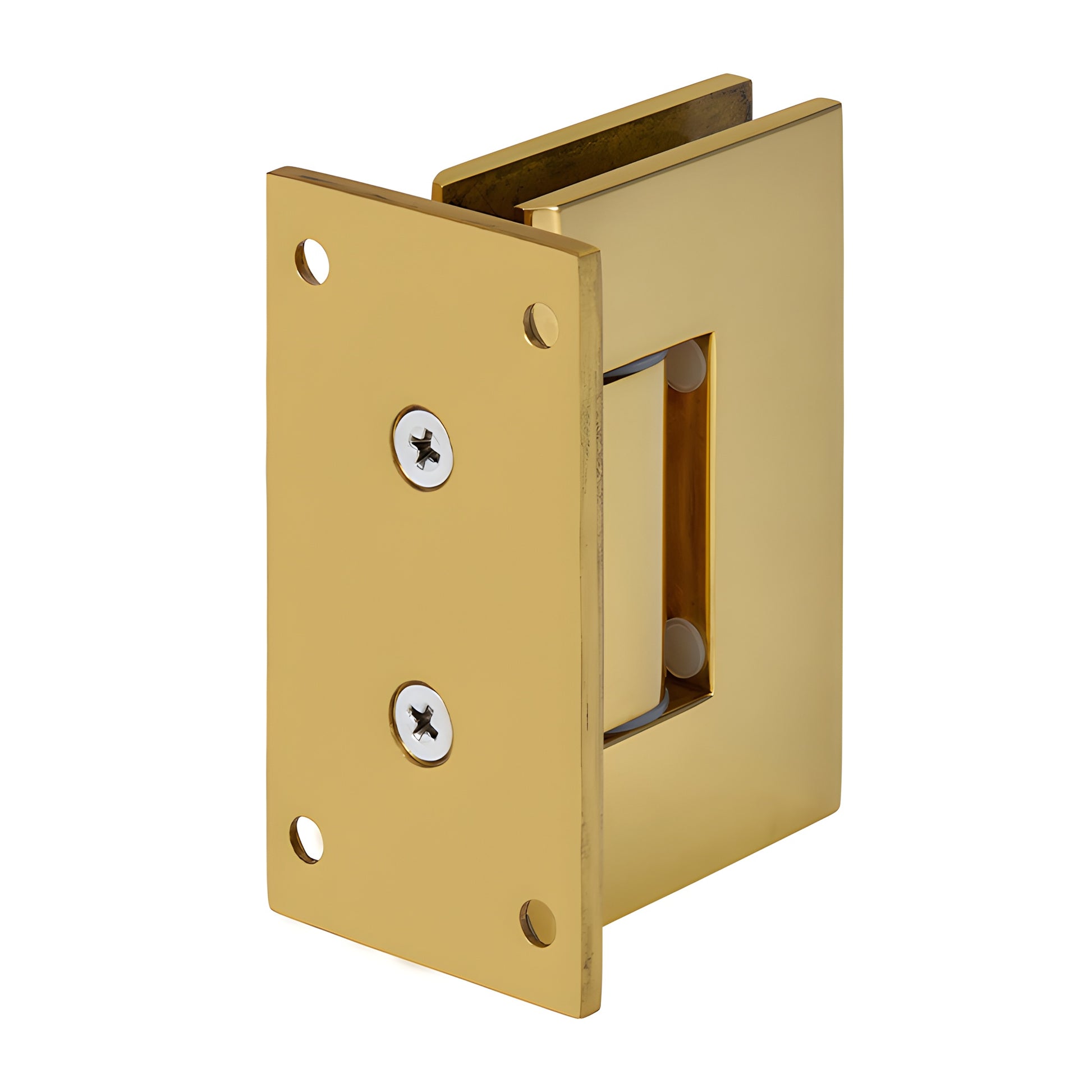

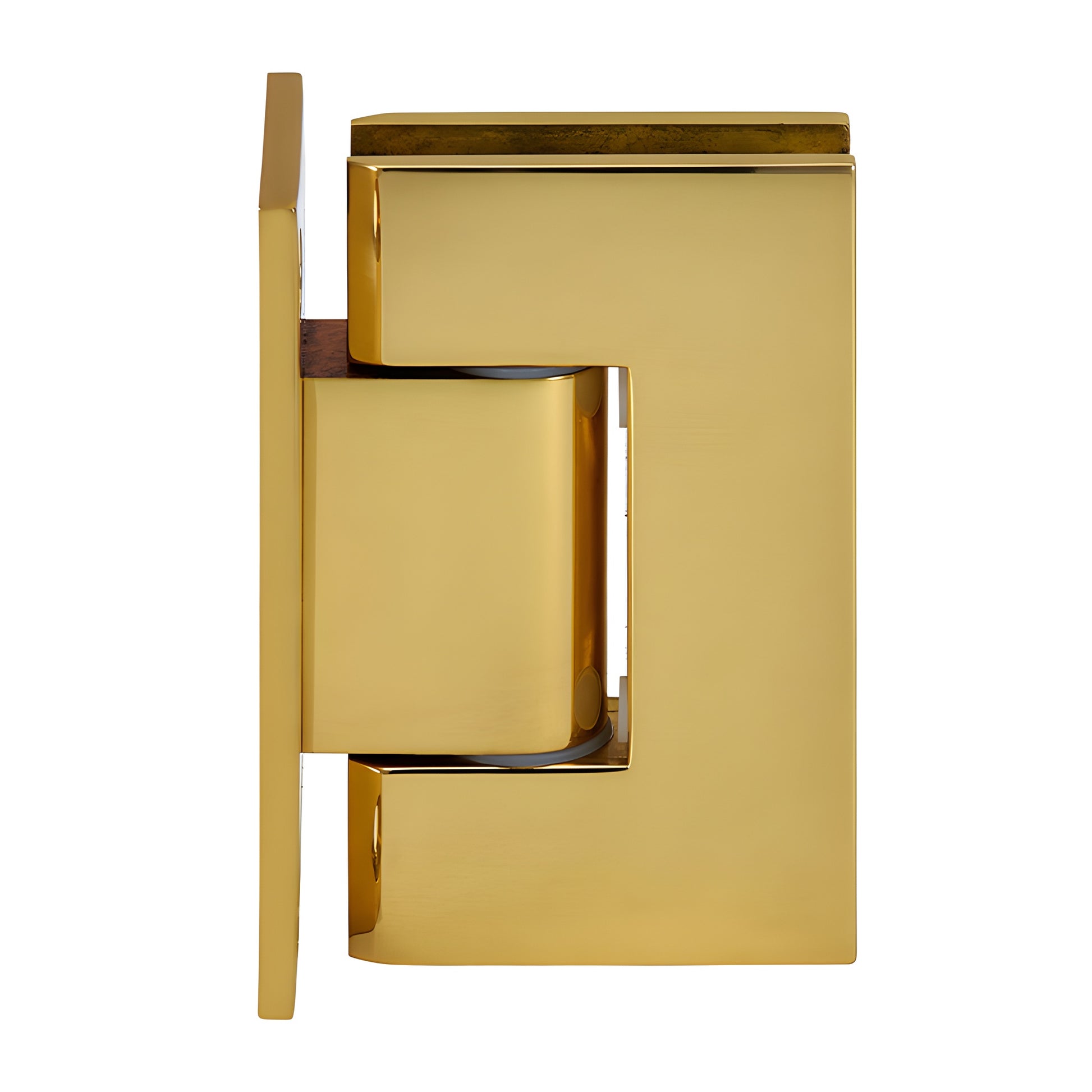

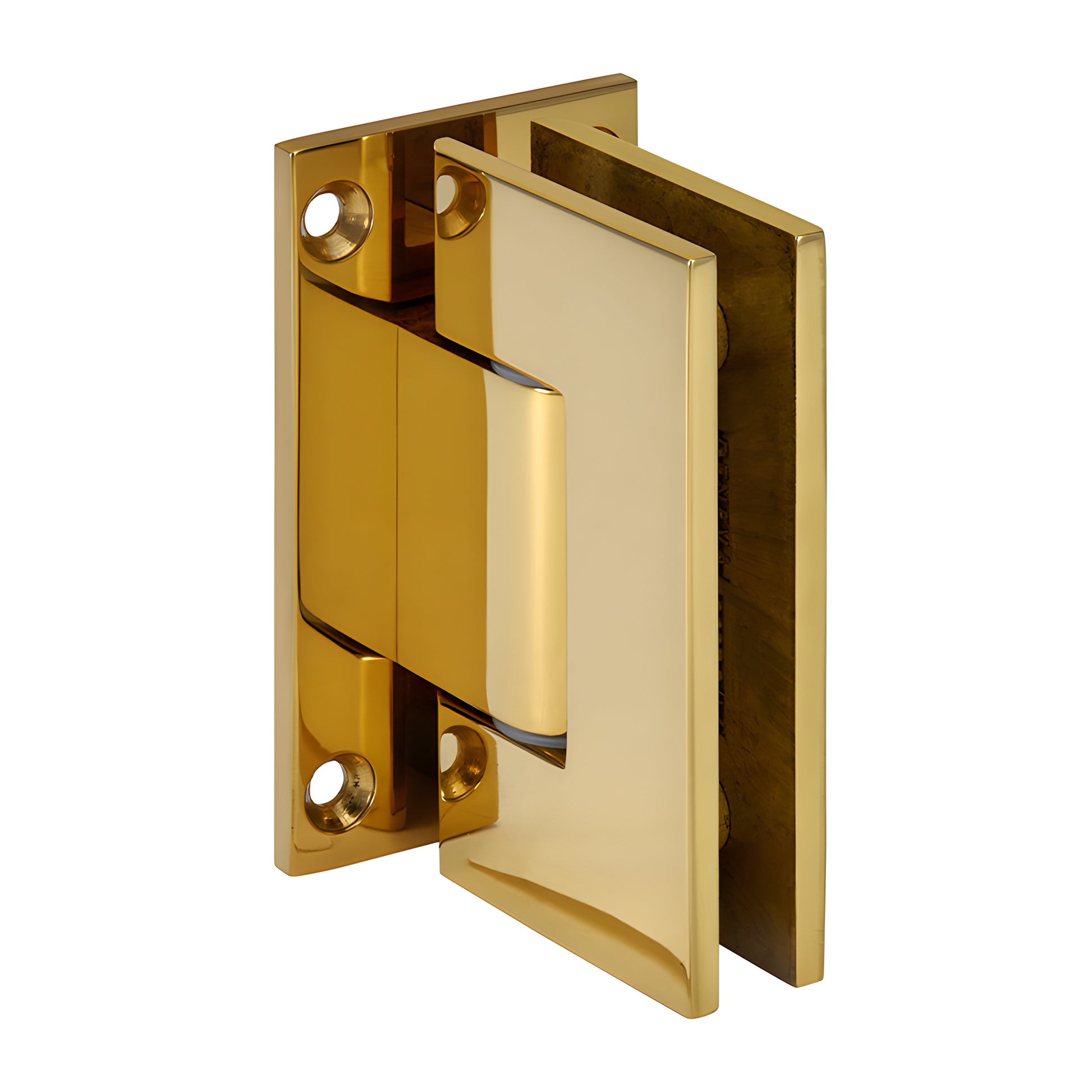

CRL Geneva 537 Polished Brass Shower Door Hinge 5° Offset

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 5 Degree Pre-Set Model (Factory set for 5° tighter closure into shower interior)
• Use with Monolithic Tempered Glass

The CRL Geneva Series professional hinges (SKU: GEN537BR) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three Wall Mount and three Glass-to-Glass—provide design flexibility for frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for durable shower door hardware.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin with one side marked 90° and the opposite side marked 85°. Standard Geneva Hinges ship with the 90° side activated. Offset models ship pre-set to 85° (5° tighter closure into shower interior). The pin rotates (not flipped) to switch positions.

Load capacity and maximum door width:

• Two hinges (8–12 mm glass): up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (8–12 mm glass): up to 120 lbs (54 kg), max door width 32" (813 mm)

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be specified for off-angle installations up to 45°. Using a custom pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard 0° closing position or 5° pre-set model for tighter closure into shower interior
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions
