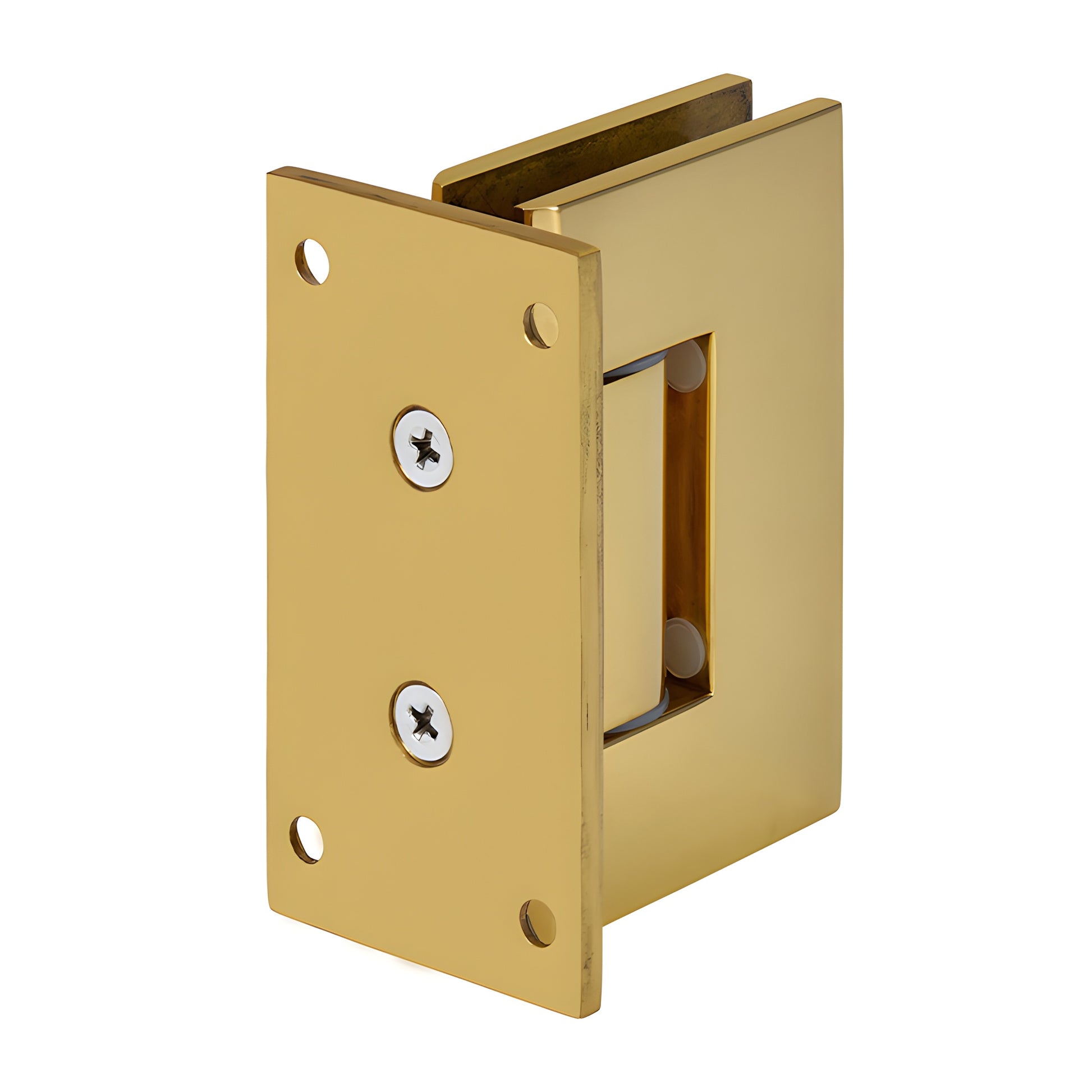

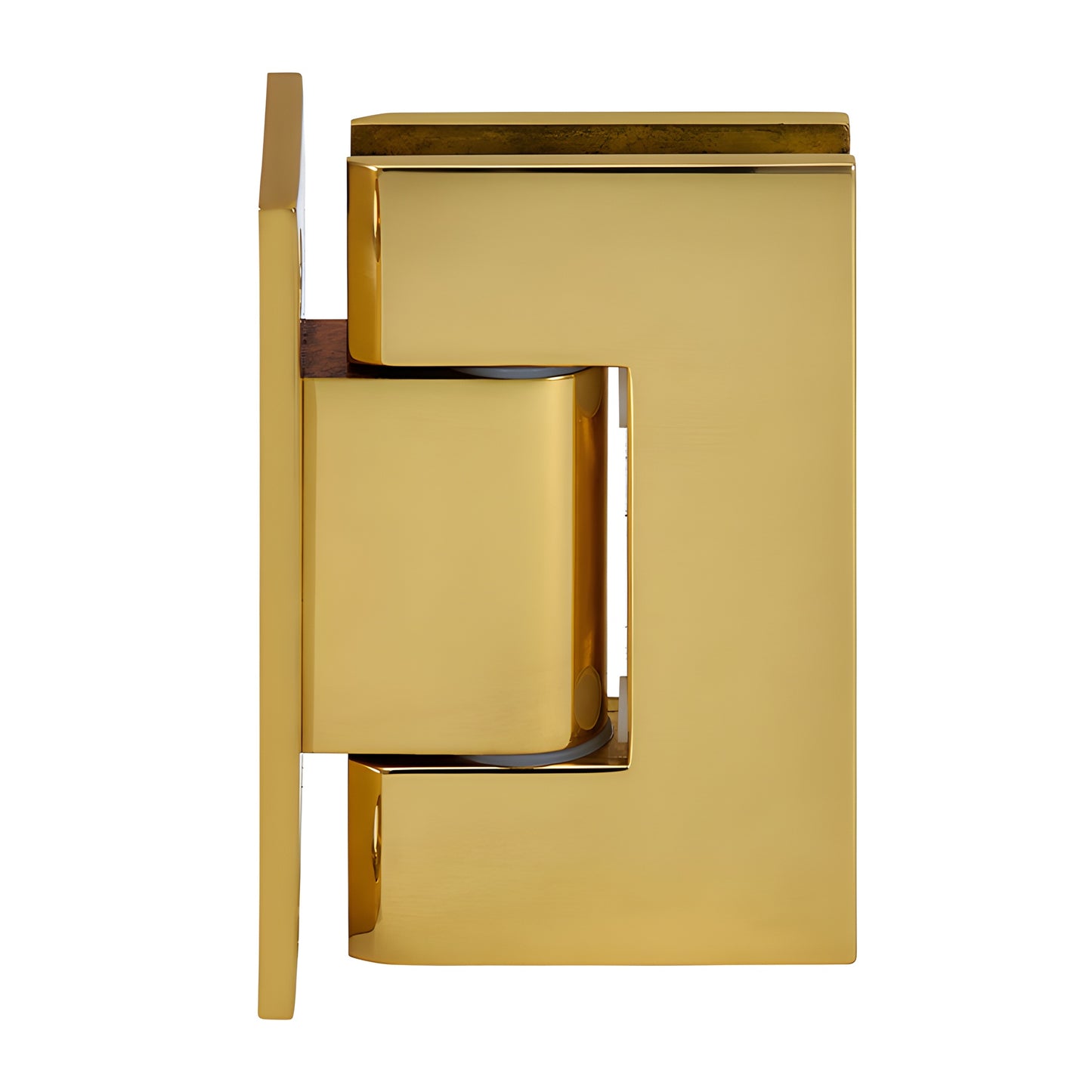

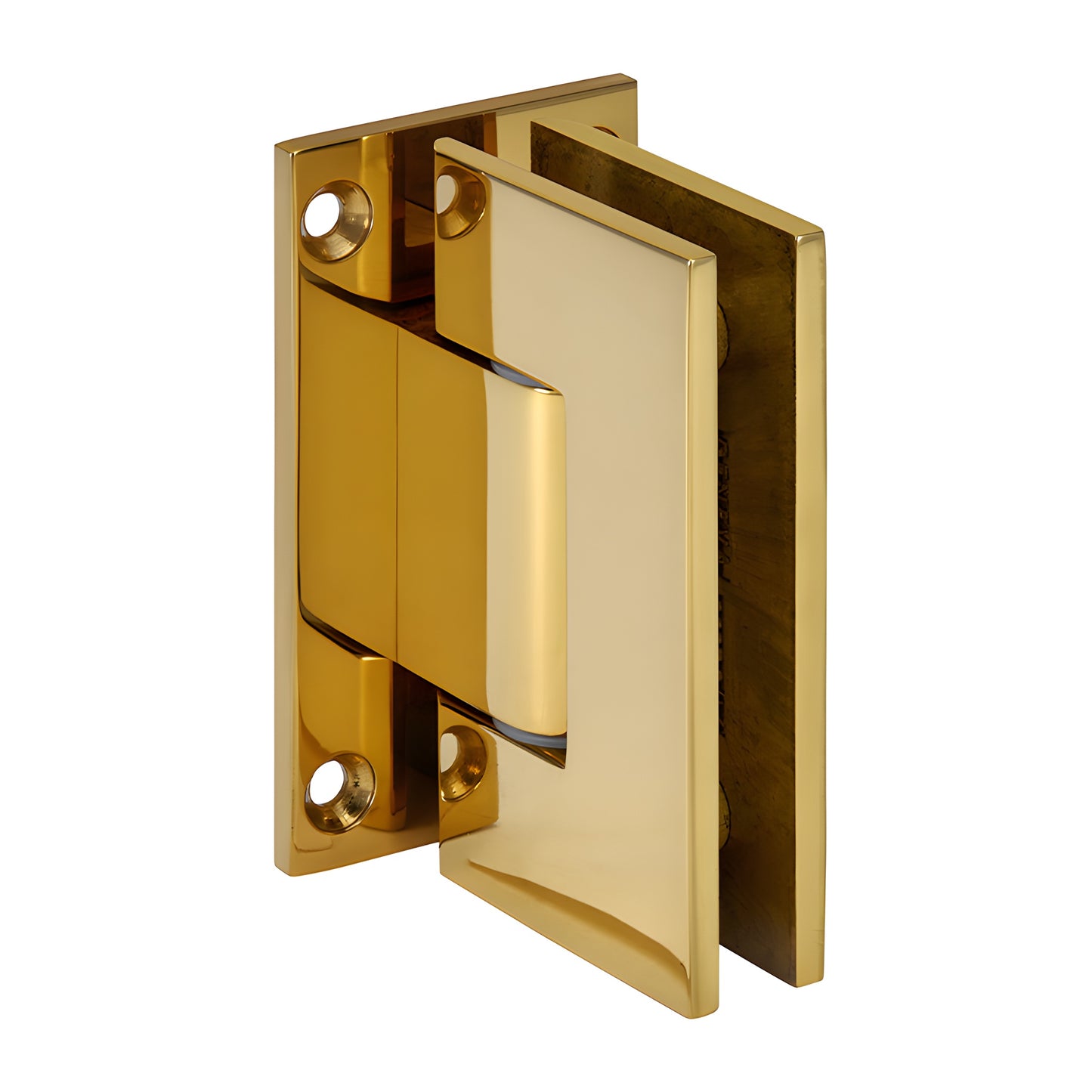

CRL Geneva 337 Polished Brass Adjustable Wall-Mount Glass Door Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable wall mount full back plate
• For use with monolithic tempered glass (see specifications)

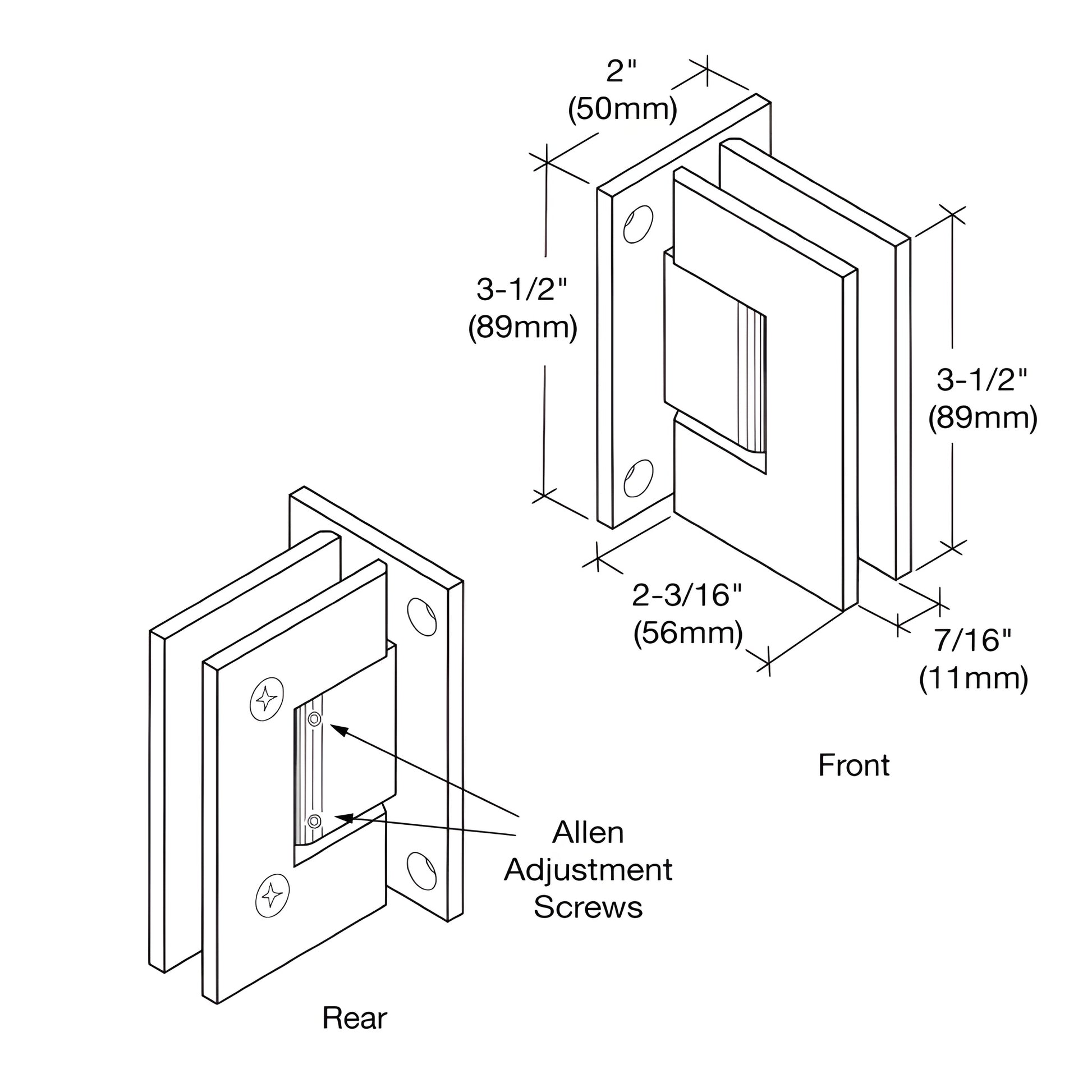

The CRL Adjustable Geneva Series (SKU: GEN337BR) upgrades the popular Geneva hinge into a fully adjustable glass shower door hinge. Angle adjustments up to 90° are made after the door is installed—simply loosen the Allen set screws, pivot the door to the desired position and re-tighten. The hinge self-centers within 15° of the closed position for consistent, snug closing. The door can swing 90° inward and 90° outward (adjusting from the factory-set position can reduce the 90° swing in that direction). For outward-swinging doors using a clear jamb, you can set the hinge to close 5° inside the shower to seat the door tightly against the jamb.

Load & glass capacity
Using two hinges with 5/16" to 1/2" (8–12 mm) tempered glass: holds up to 80 lbs. (36 kg), maximum door width 28" (711 mm).
Using three hinges with 5/16" to 1/2" (8–12 mm) tempered glass: holds up to 120 lbs. (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Post-install adjustable to any angle up to 90° without removing door; self-centering closing action.
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.
