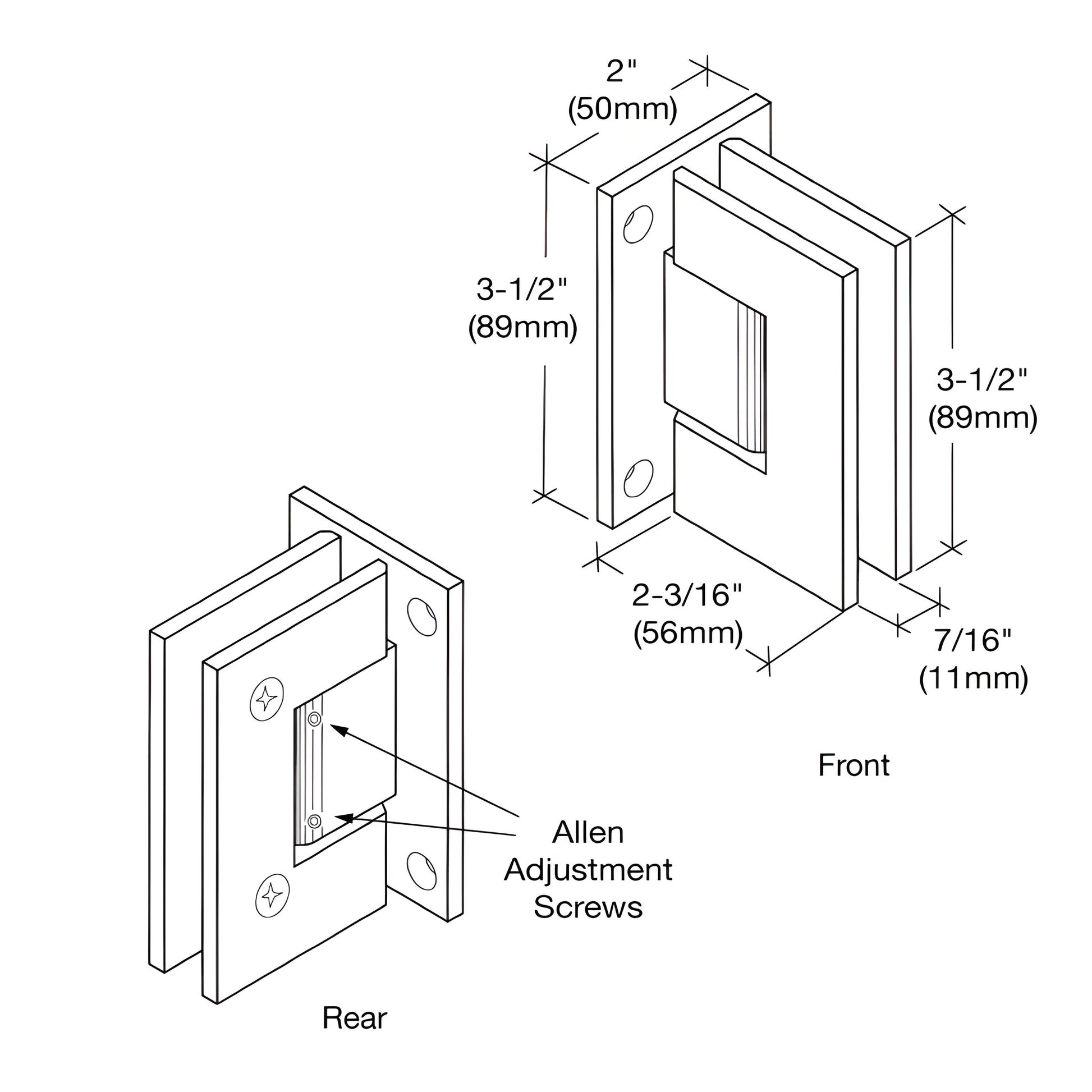

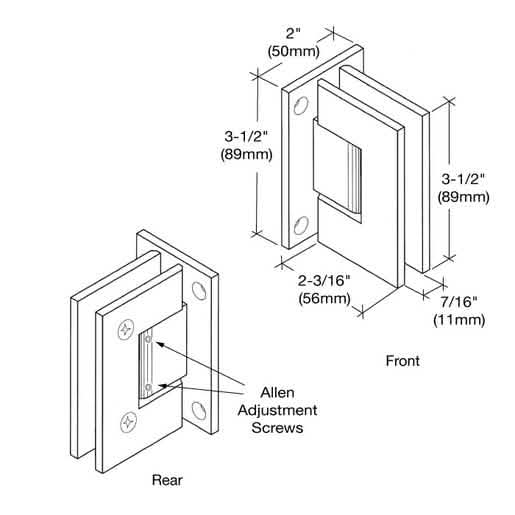

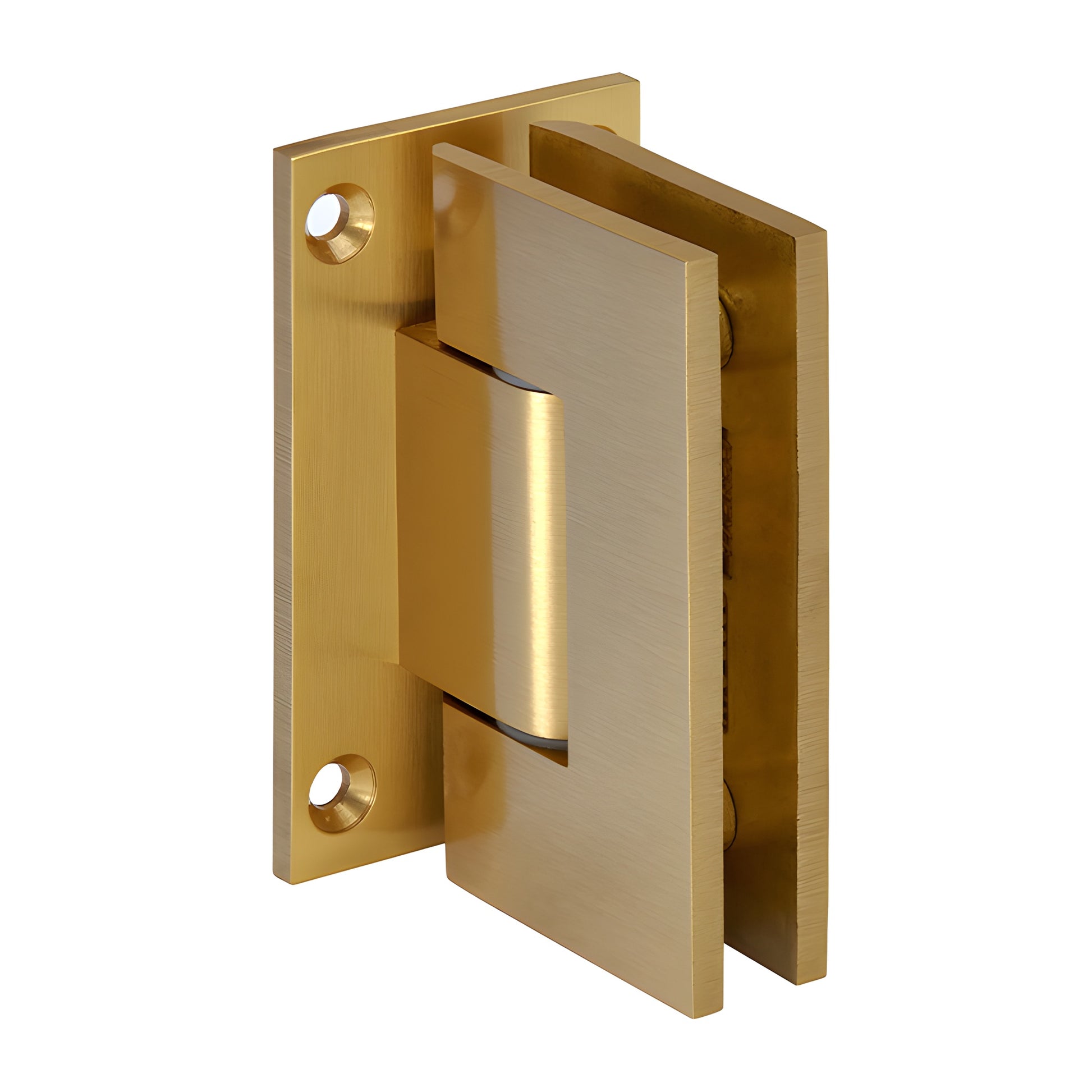

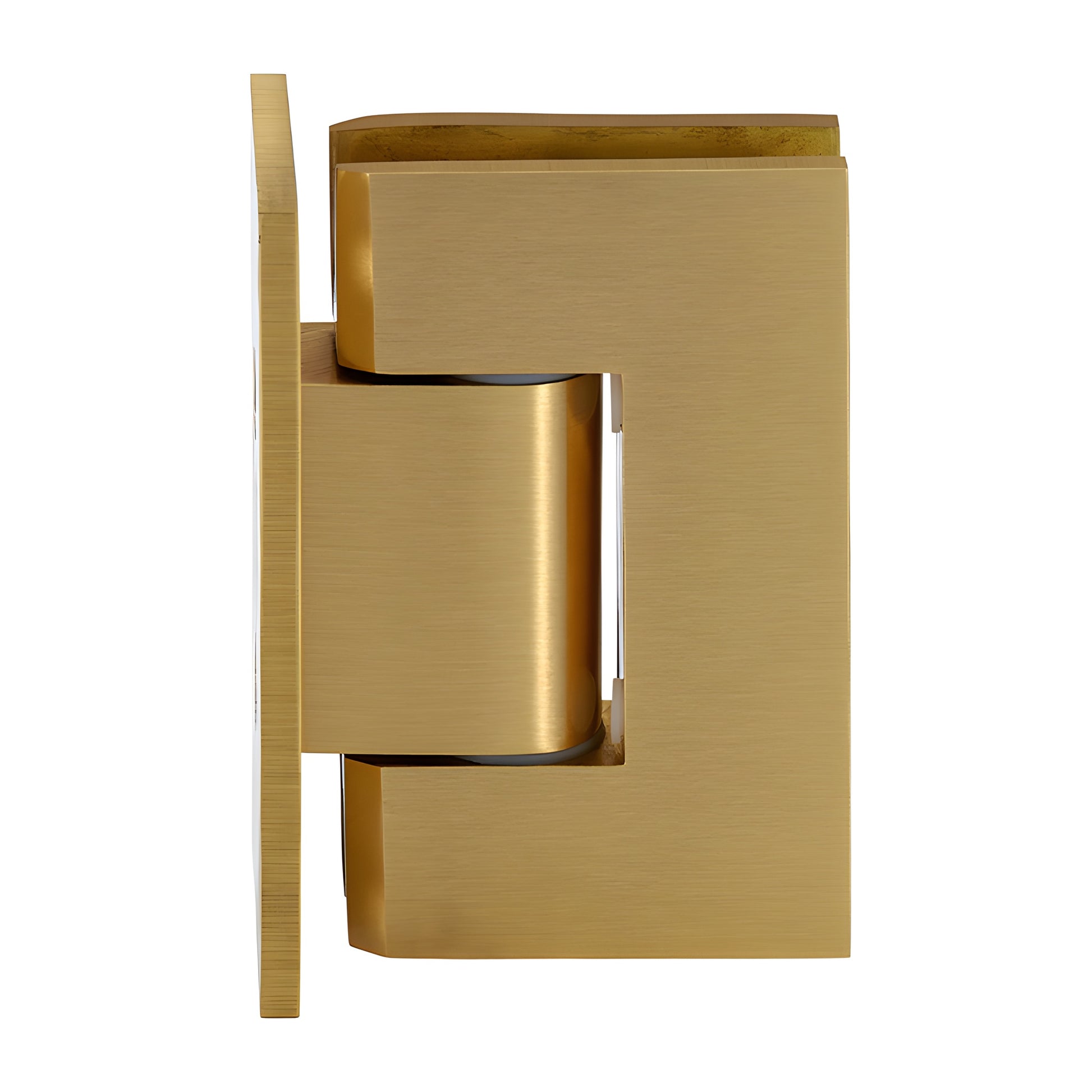

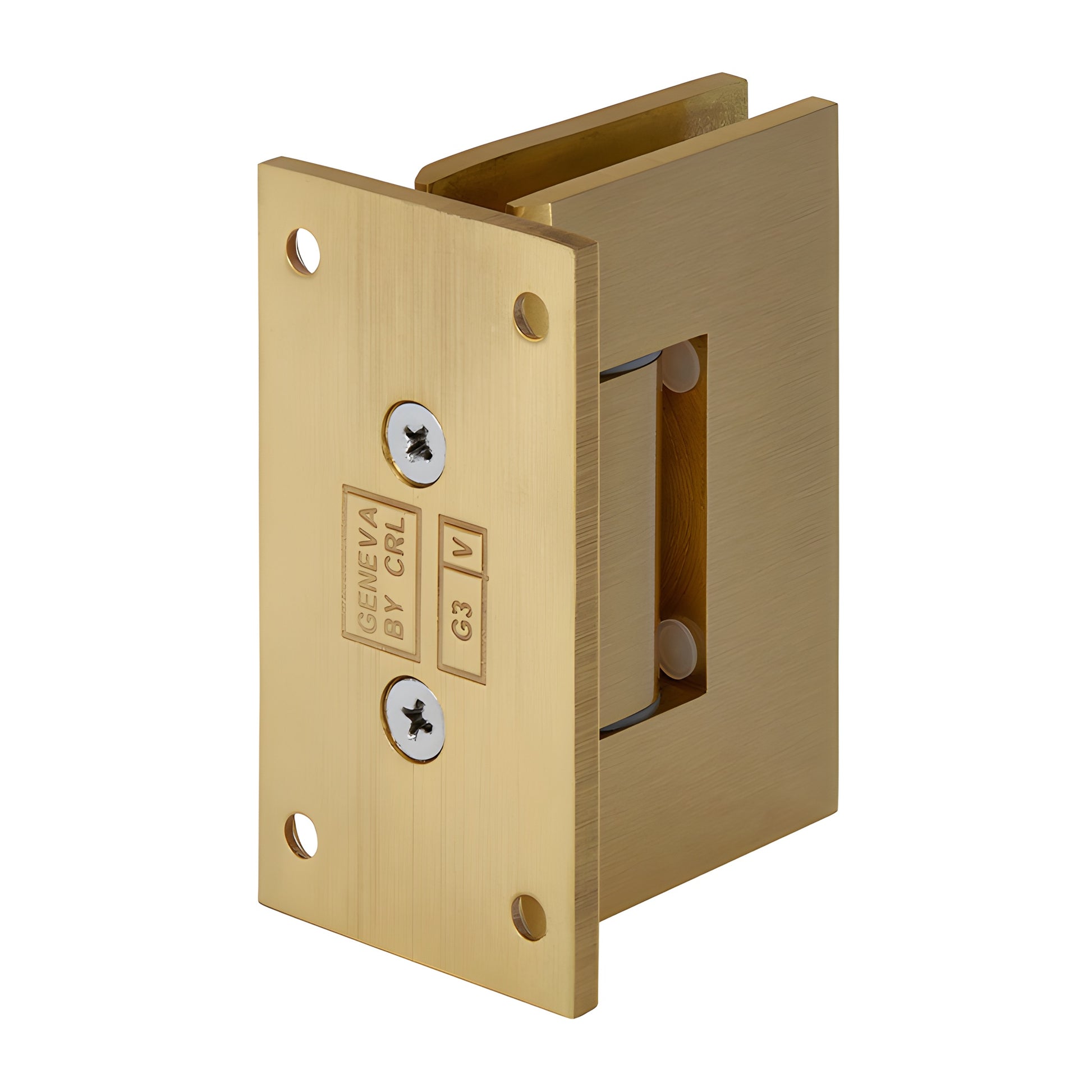

CRL Geneva 337 Satin Brass Adjustable Wall-Mount Backplate Door Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• Three year warranty
• Adjustable wall mount full back plate
• Use with monolithic tempered glass

The CRL Adjustable Geneva Series (SKU: GEN337SB) builds on the popular Geneva hinge with post‑installation angle adjustment up to 90°—no door removal required. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position, then retighten. The hinge self‑centers when the door is within 15° of closed. The door can swing 90° inward and 90° outward (adjusting away from the factory set position reduces swing in that direction). For outward‑pulling doors using a clear jamb, the hinge can be set to close 5° inside the shower, providing a snug fit against the jamb.

Performance:
Using two hinges with 5/16" to 1/2" glass (8–12 mm) supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8–12 mm) supports up to 120 lbs (54 kg) and a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Package: Includes gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles—call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For alternate uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut‑out dimensions may not match other brands.
