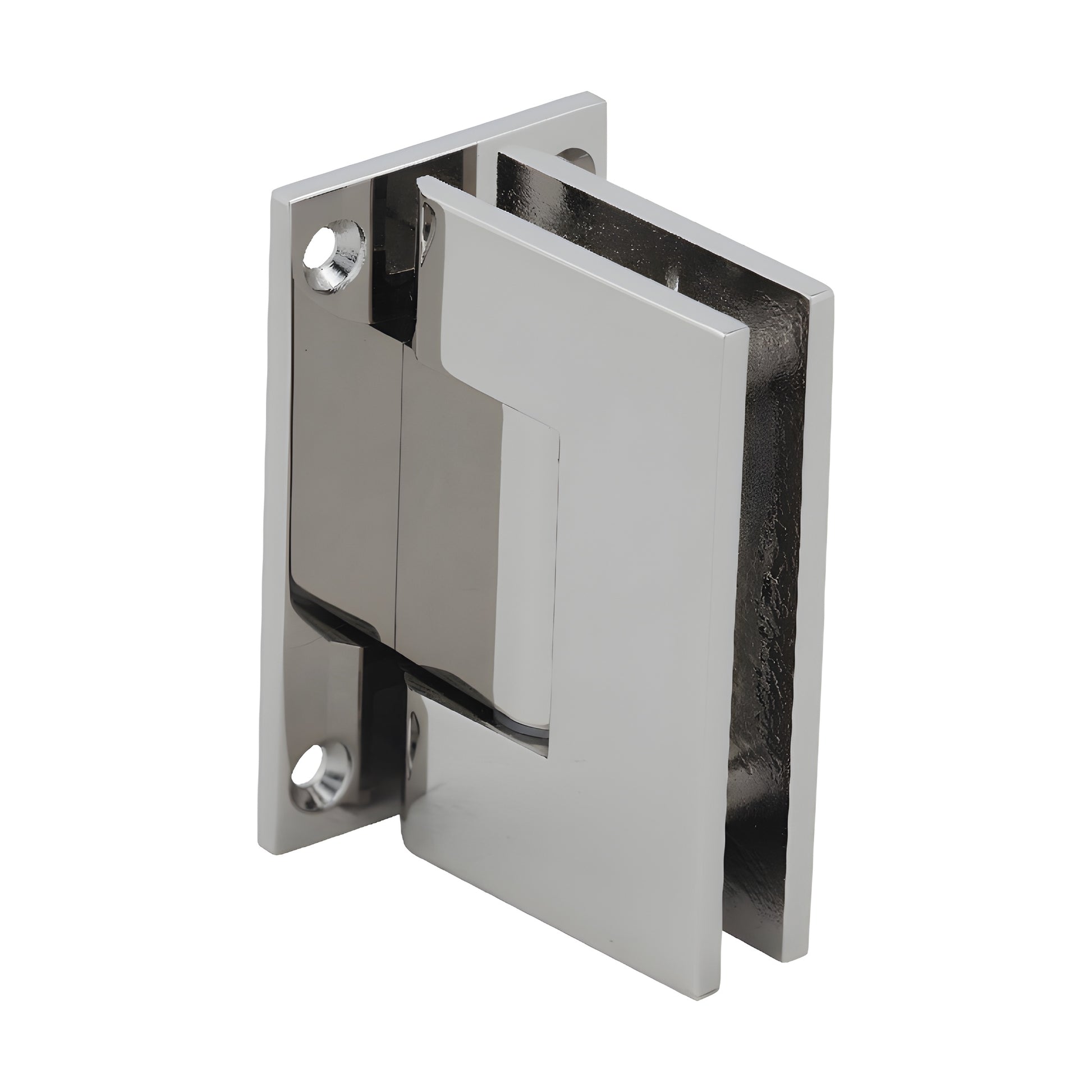

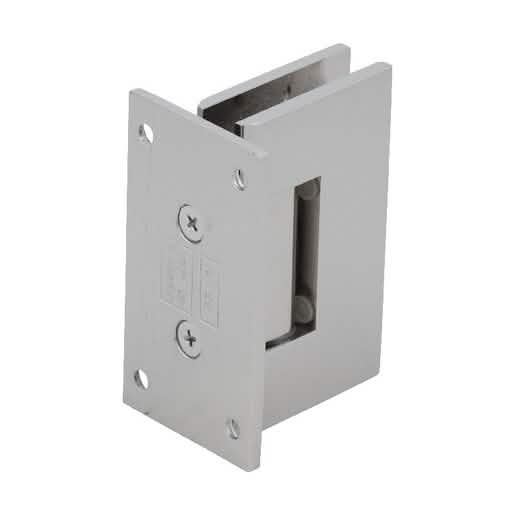

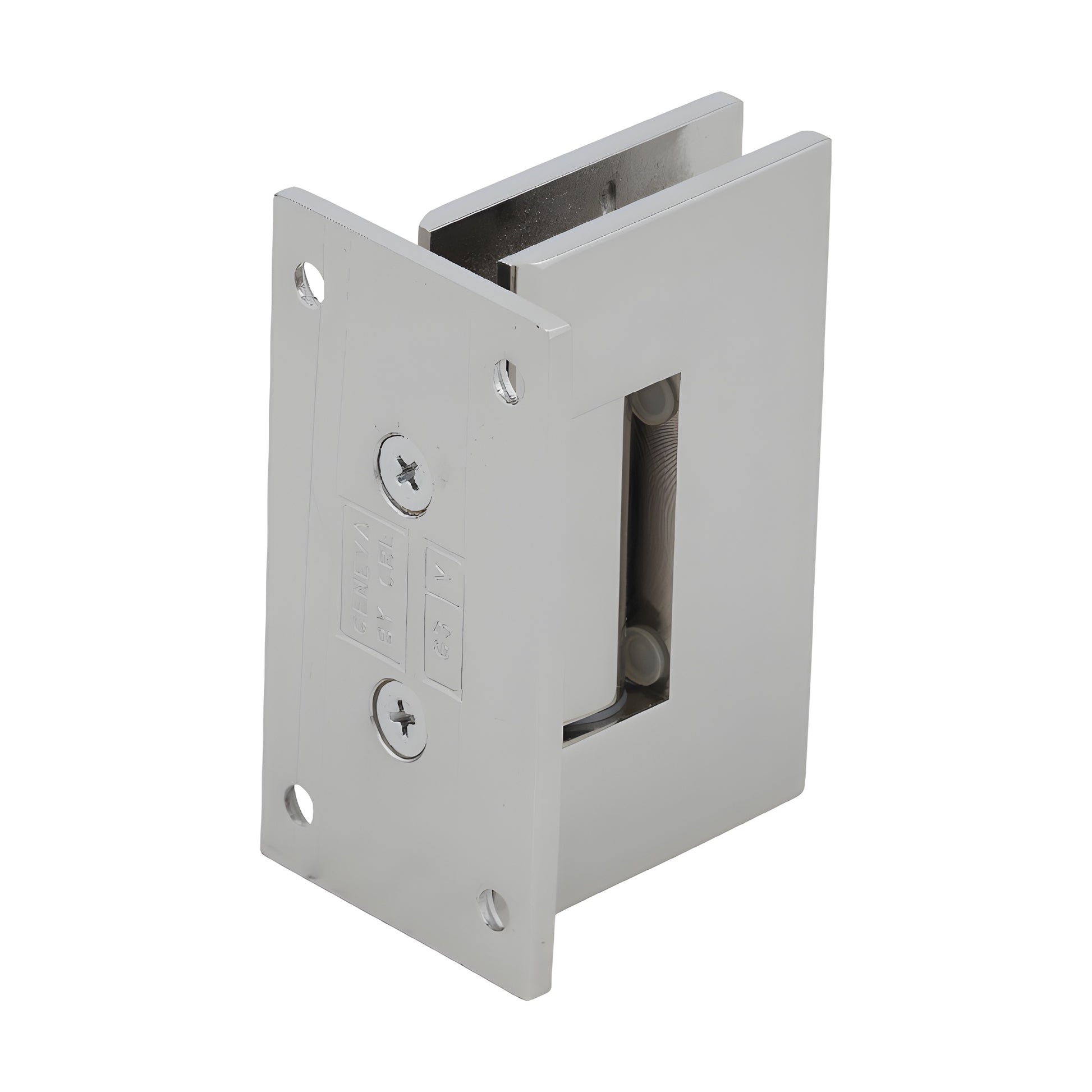

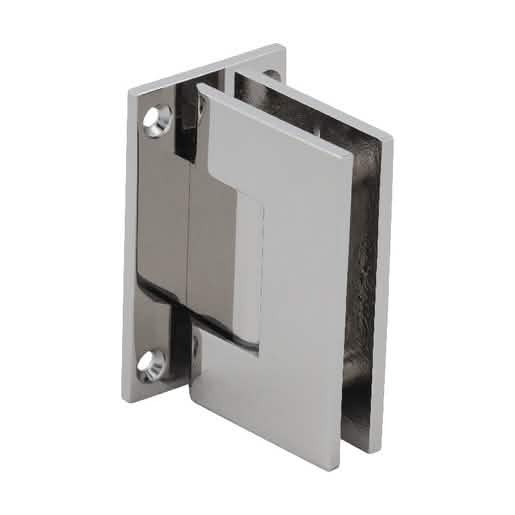

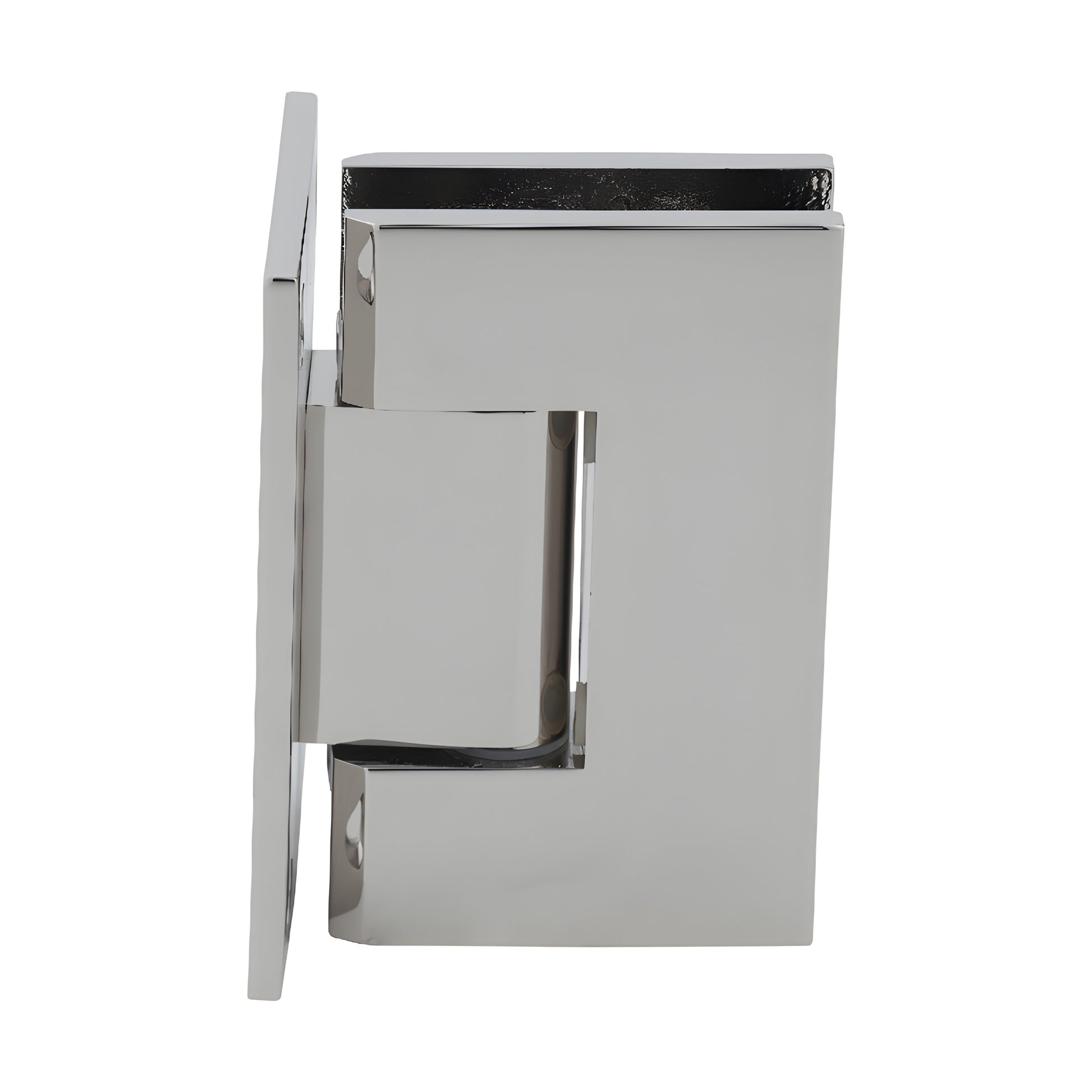

CRL Geneva 537 Polished Nickel Wall-Mount Backplate Hinge 5° Offset

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable decorative finishes
• Three-year warranty
• 5° pre-set model available for tighter closure into shower interior
• For monolithic tempered glass (5/16"–1/2" / 8–12 mm)

The CRL Geneva Series professional hinges (SKU: GEN537PN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles (three Wall Mount and three Glass-to-Glass) provide design flexibility for frameless shower doors and custom enclosures. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. All moving parts are stainless steel; bodies are solid brass for corrosion resistance and long service life.

Standard Reversible Pivot Pin: Each Geneva hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Offset/pre-set models are factory set to 85° (providing a 5° tighter closure into the shower interior). The pin can be rotated to change the active side.

Using two hinges with 8–12 mm glass: holds up to 80 lb (36 kg), max door width 28" (711 mm).

Using three hinges with 8–12 mm glass: holds up to 120 lb (54 kg), max door width 32" (813 mm).

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be ordered for off-angle installations up to 45°. Custom pins may affect glass dimensions and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard 0° closing position or 5° pre-set model for tighter inward closure (ideal for frameless shower doors requiring precise sealing)
Construction: Solid brass body; stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut
