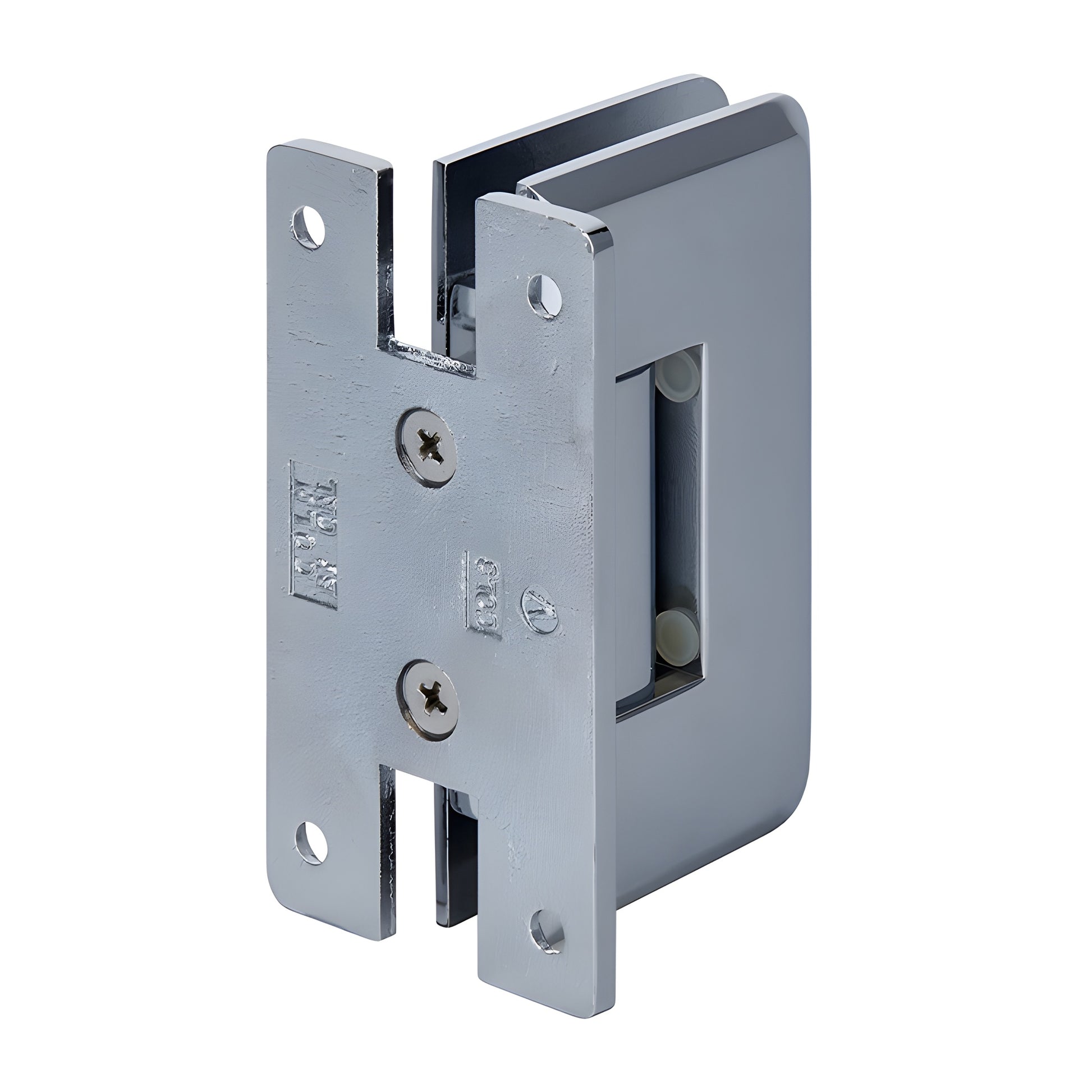

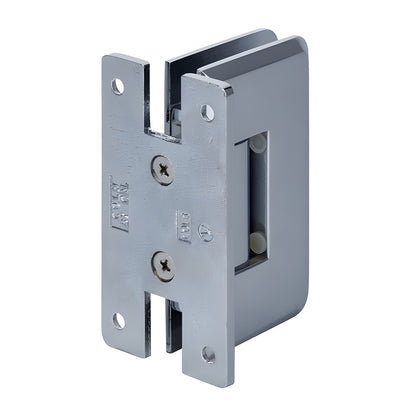

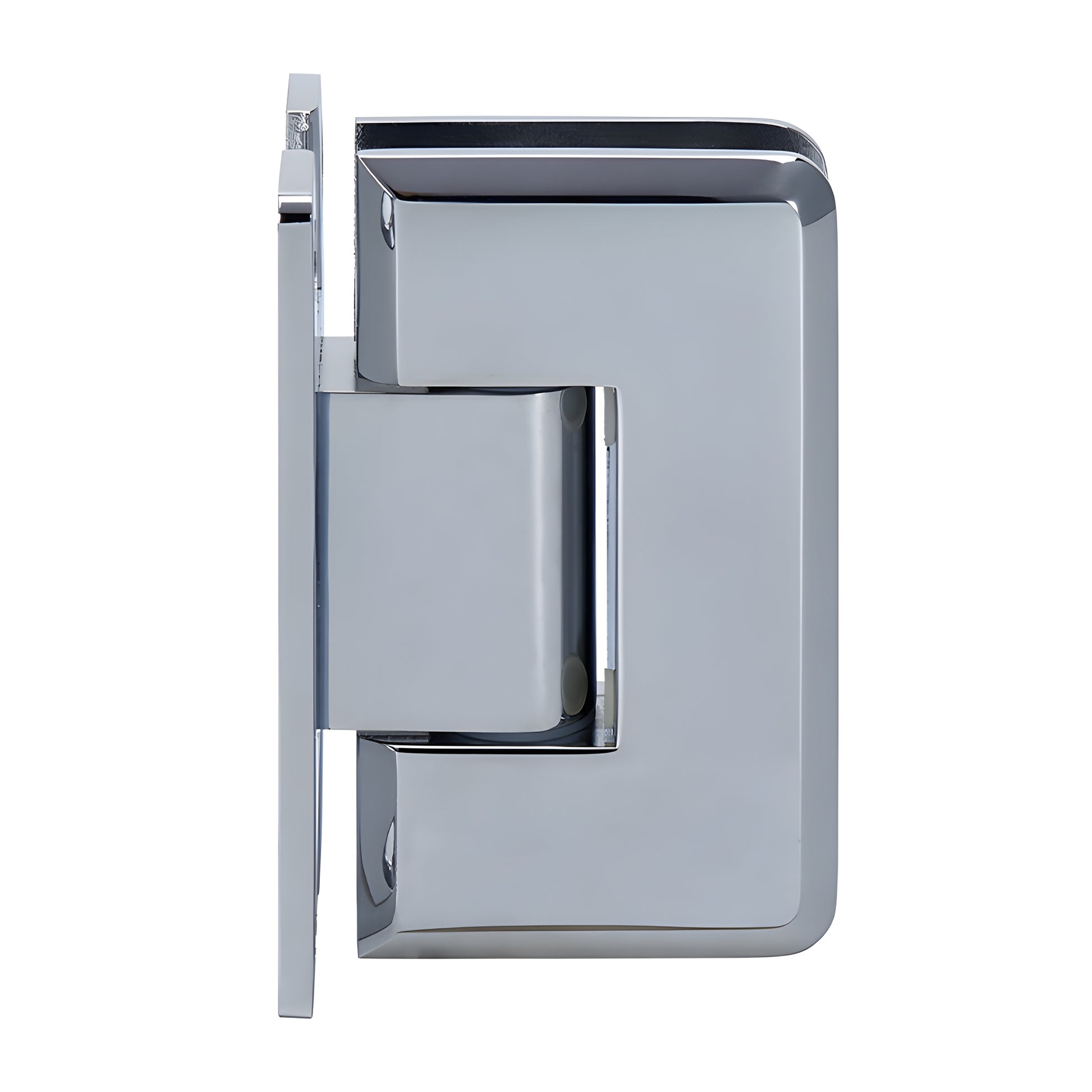

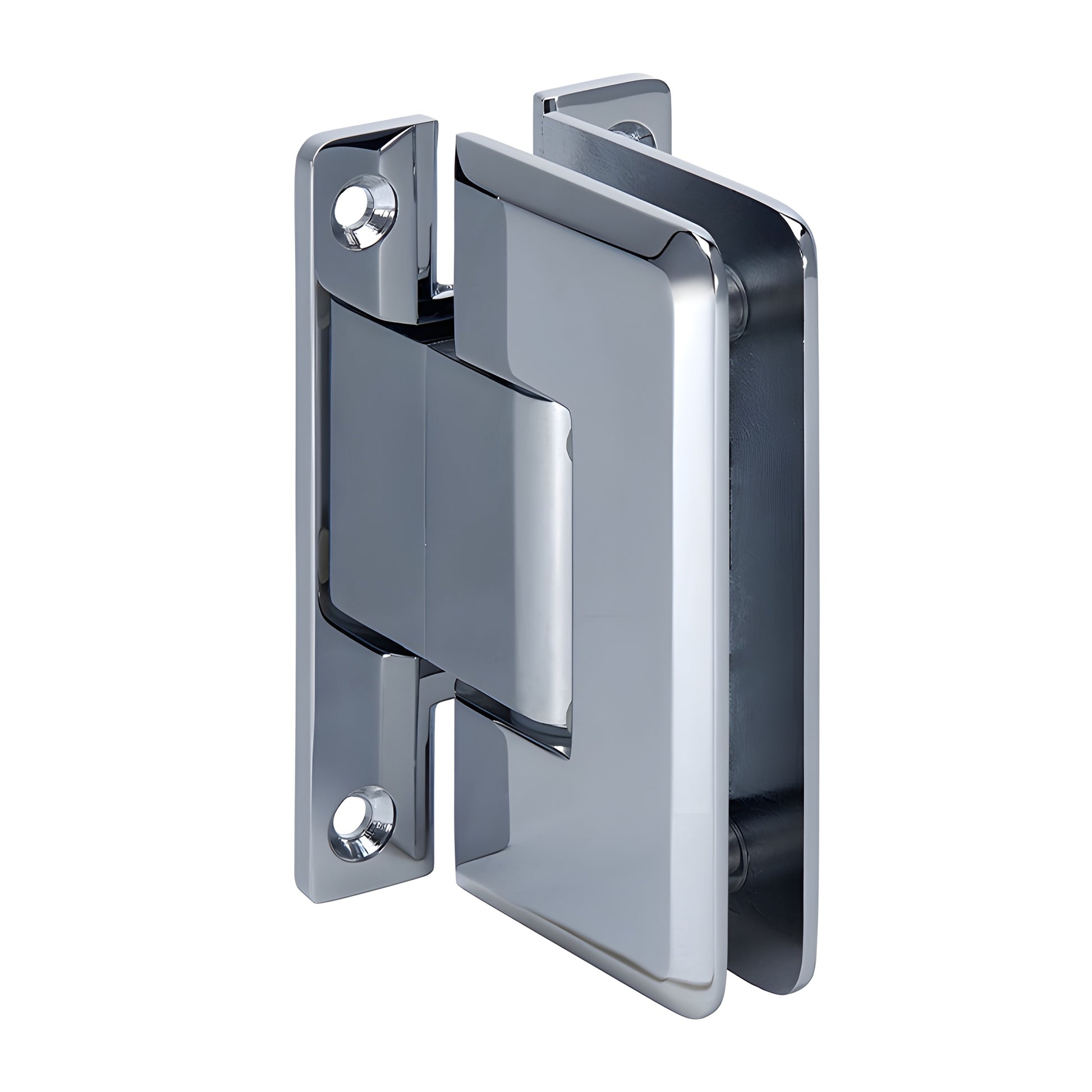

CRL Cologne 337 Chrome Adjustable Wall-Mount Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several durable finishes
• Adjustable wall mount with full back plate
• Designed for monolithic tempered glass

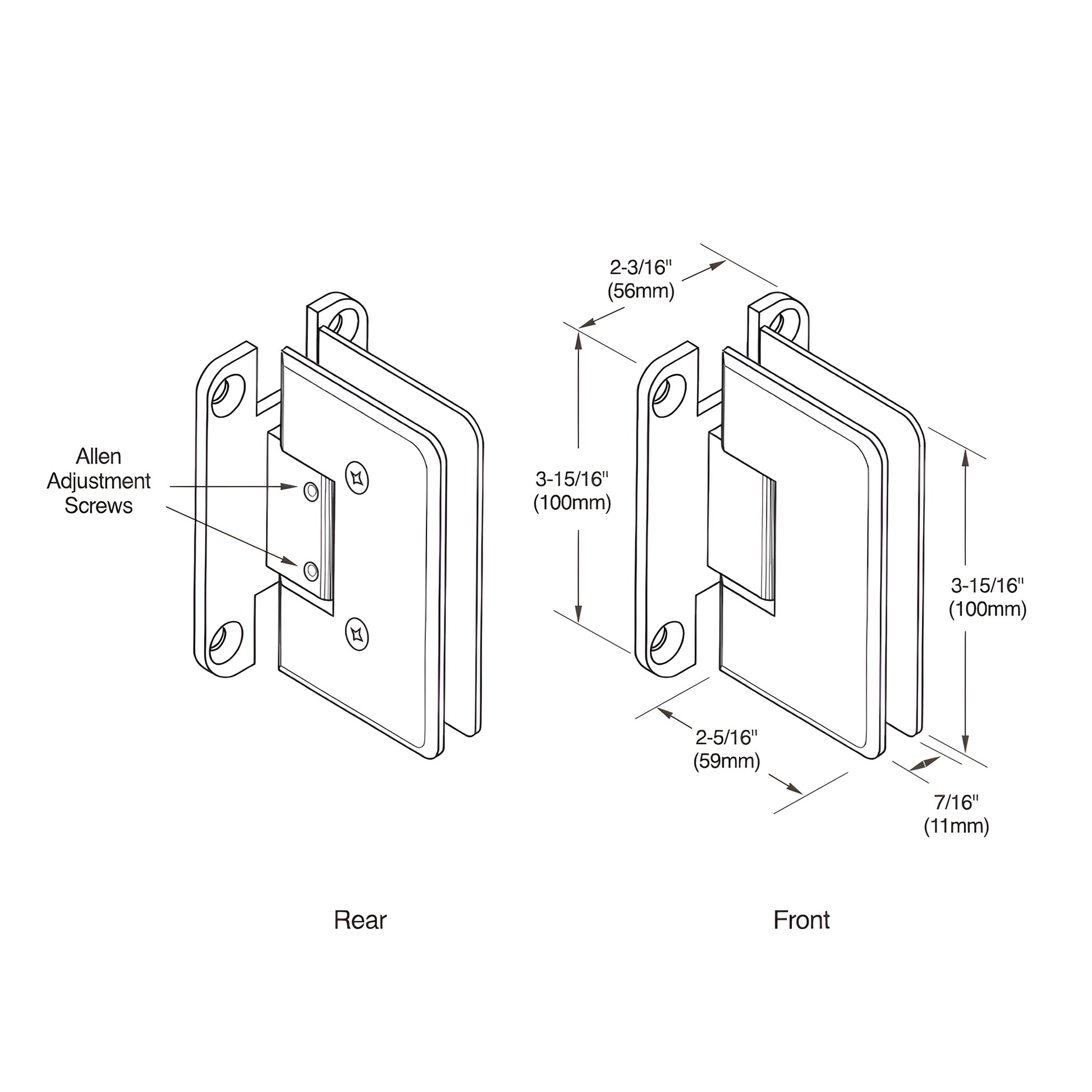

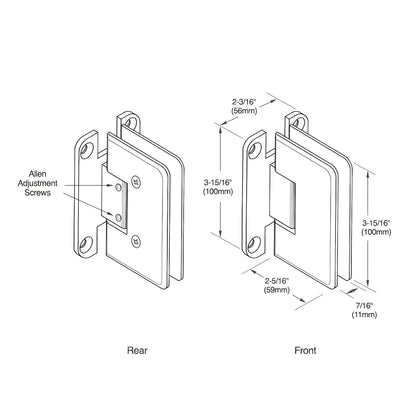

CRL Adjustable Cologne Series (SKU C0L337CH) upgrades the popular Cologne hinge with post-installation angle adjustment up to 90°. After hanging the door, loosen the Allen set screws, rotate the door to the desired position and retighten—the hinge self-centers to the set angle. The door can swing up to 90° inward and 90° outward; note that adjusting from the factory position reduces swing in that direction. For doors that open outward onto a clear jamb, adjust the hinge to close 5° inside the shower so the door seals snugly against the jamb.

Performance:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass for long-lasting corrosion resistance
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details. Custom finishes available on request.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For alternative applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Order the CRL Adjustable Cologne Series hinge (C0L337CH) for a
