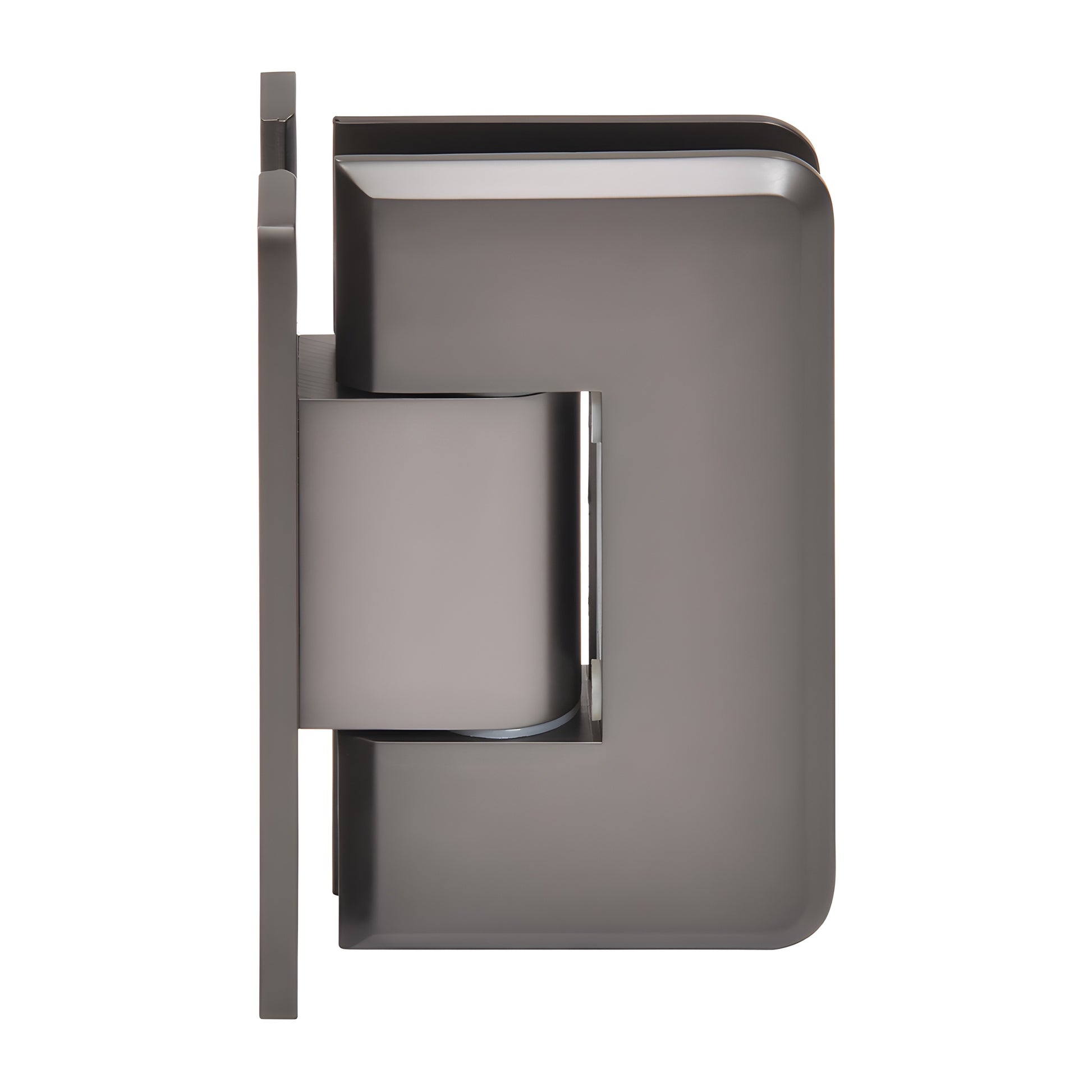

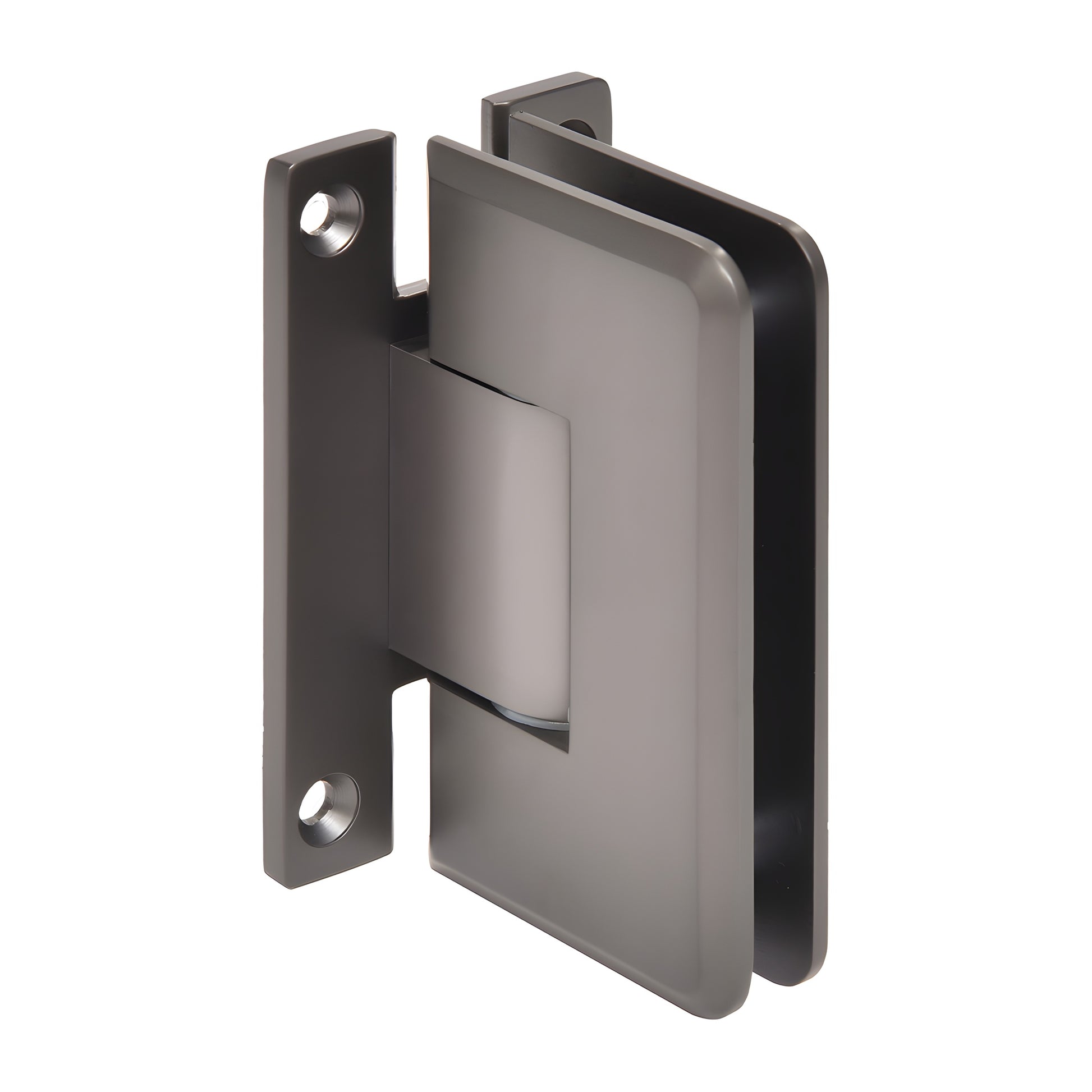

CRL 337 Series Matte Gunmetal Adjustable Wall Mount H-Back Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes

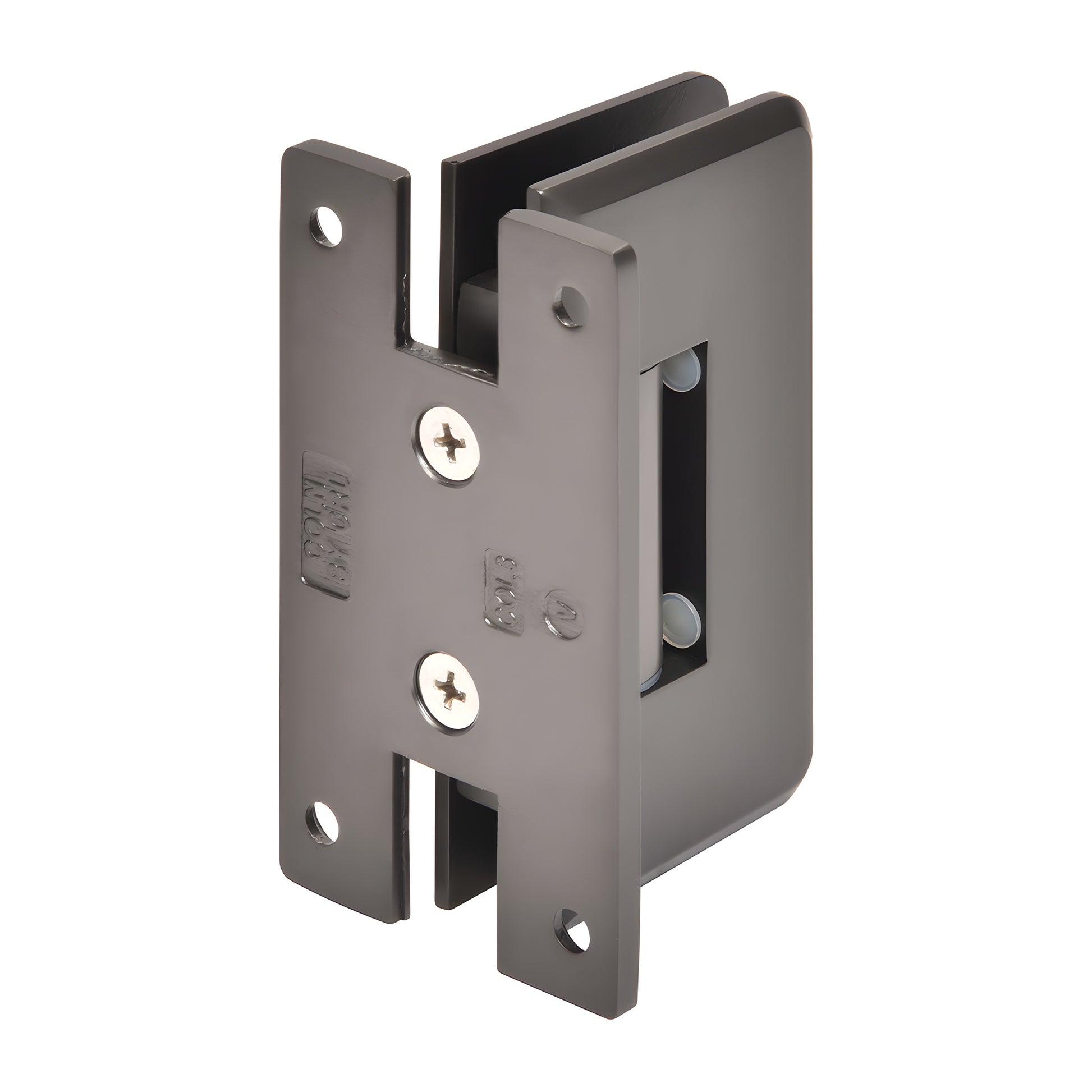

• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

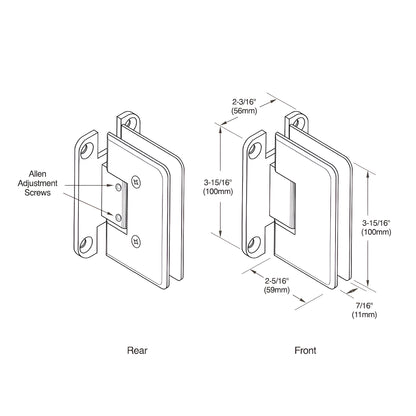

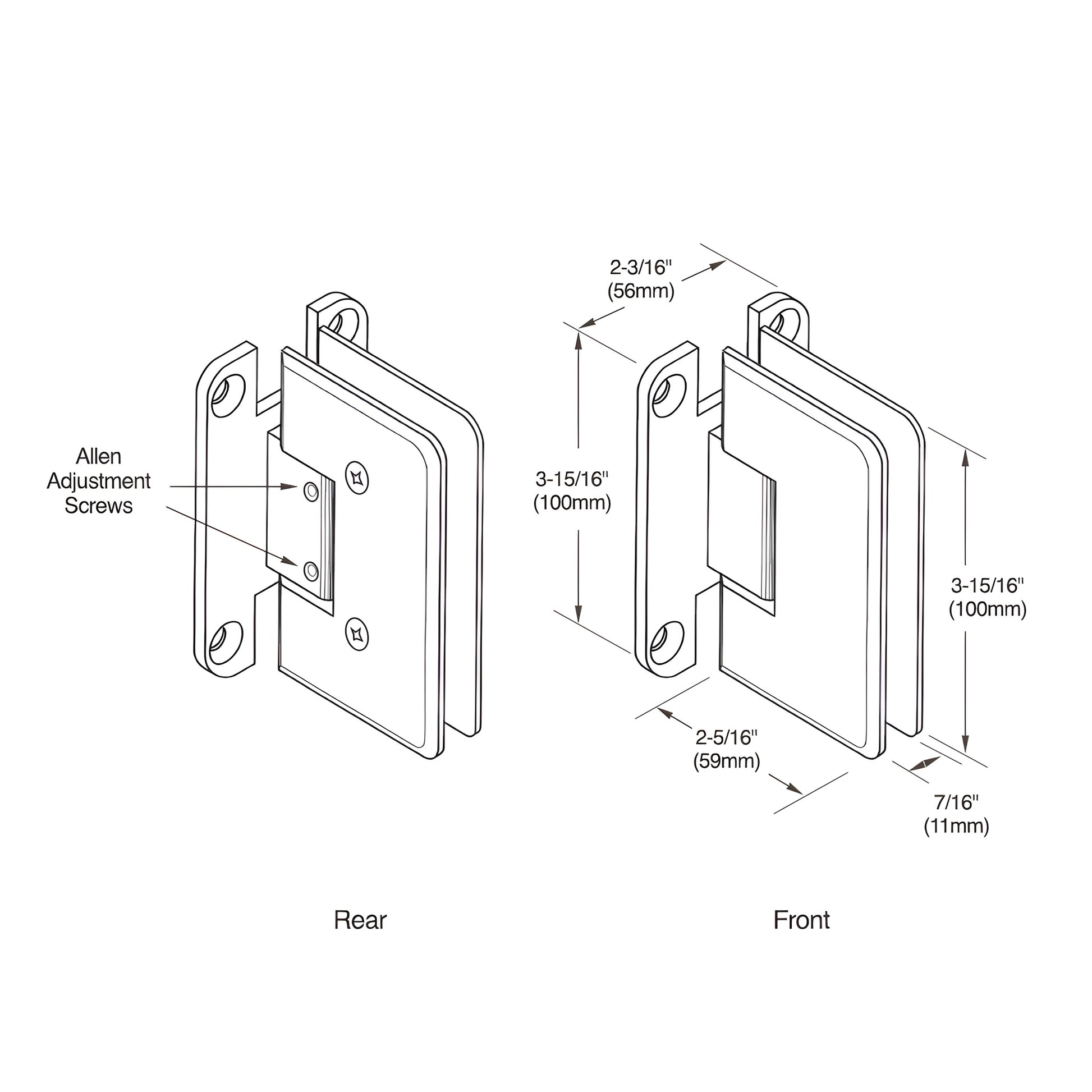

CRL Adjustable Cologne Series — premium adjustable shower door hinge (SKU: C0L337MGM) that builds on the popular Cologne hinge. This solid brass, adjustable shower door hinge lets you set the door angle up to 90° after installation: loosen the Allen set screws, rotate the door to the desired closed position, then tighten to self-center. The hinge supports 90° inward and 90° outward swing (adjusting from the factory position may reduce swing in that direction) and can be fine-tuned to close 5° inside the shower jamb for a snug fit when using a clear door jamb.

Performance:

Using two hinges with 3/8" to 1/2" glass (10–12 mm) — holds up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10–12 mm) — holds up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass

Special Feature: Adjustable to any angle up to 90º without removing the door

Construction: Solid Brass

Hinge Swings: 90º In and 90º Out (at factory set position)

Closing Type: Self-centering when within 15º of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request through CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
