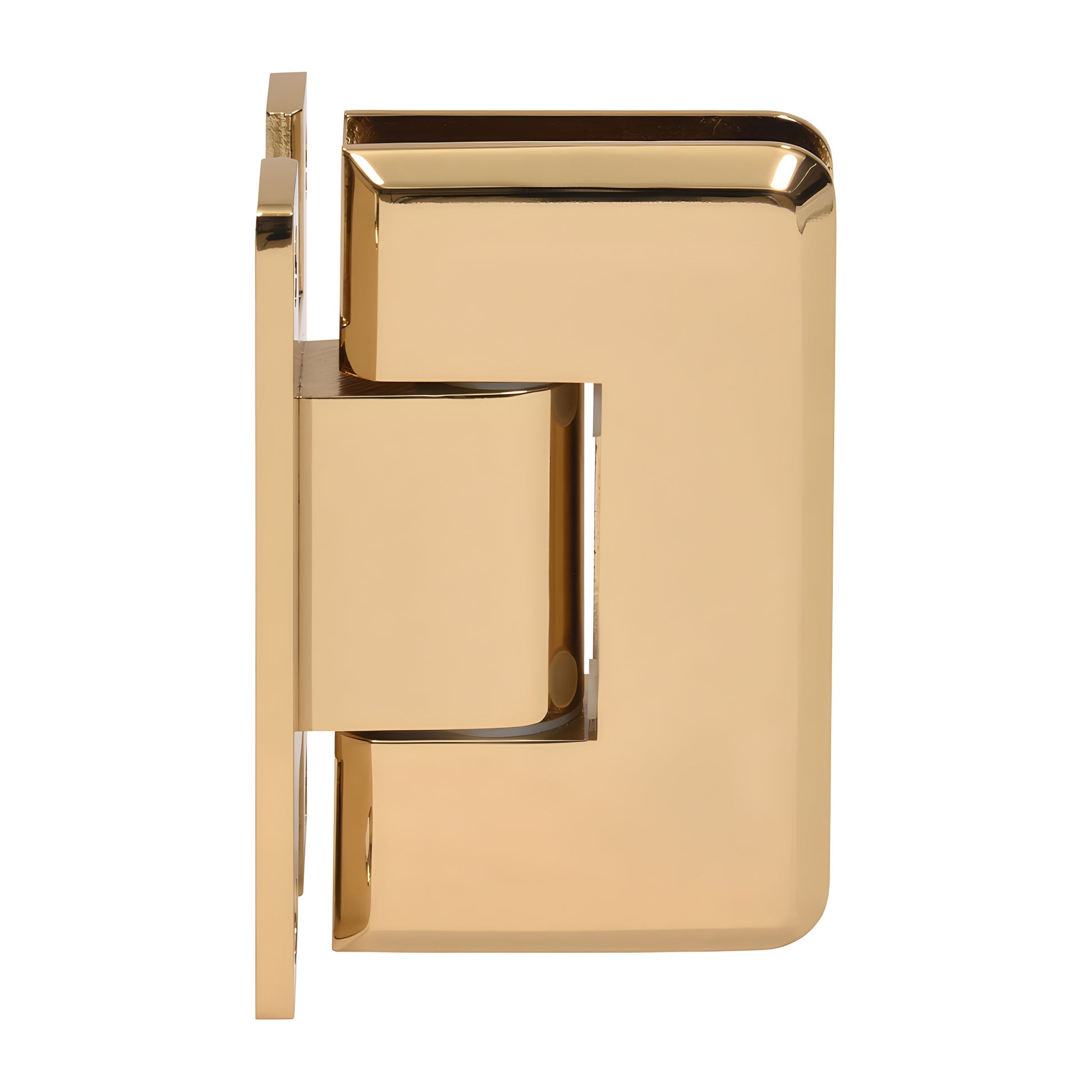

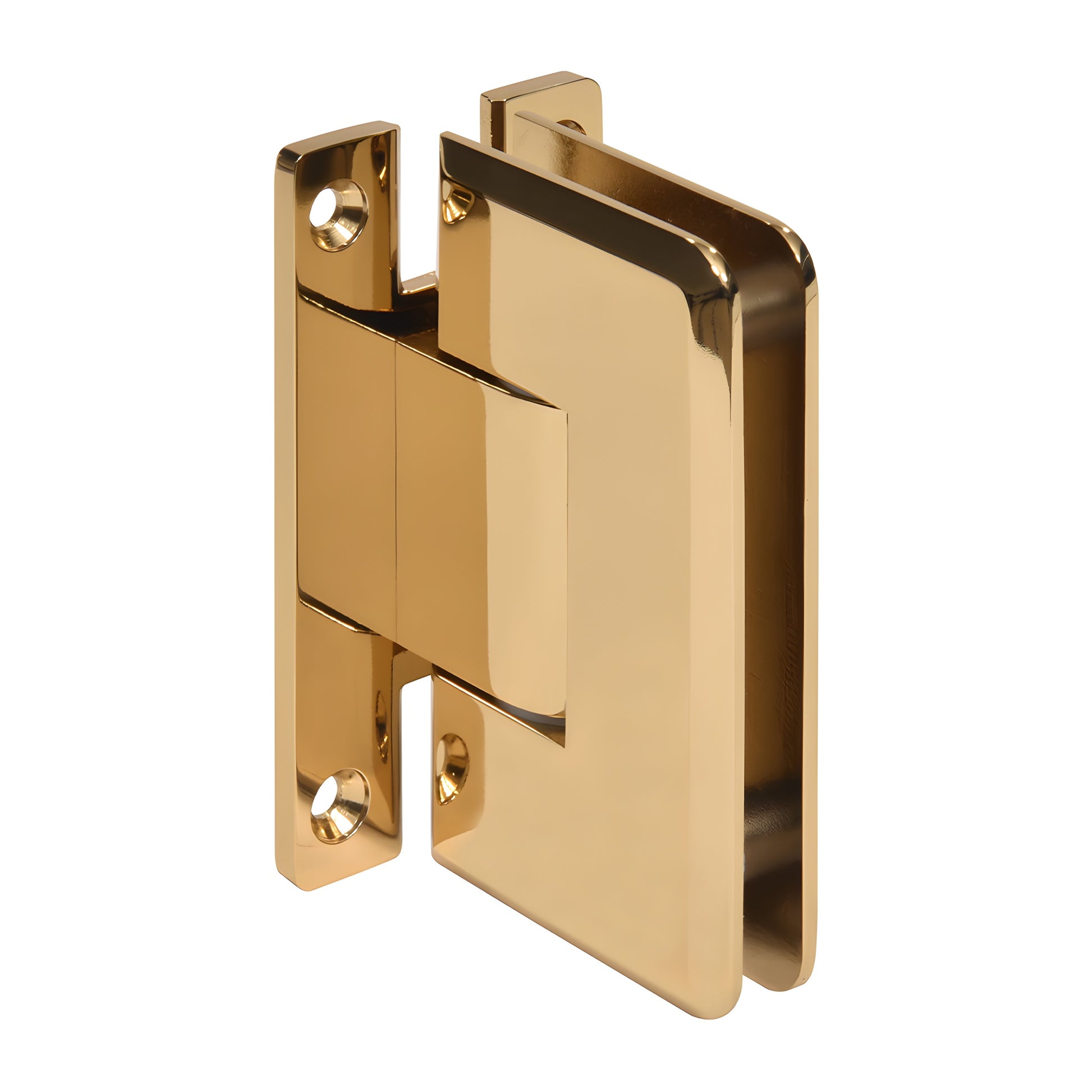

CRL Cologne 337 Adjustable French Gold Wall Mount Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes, including custom finishes on request

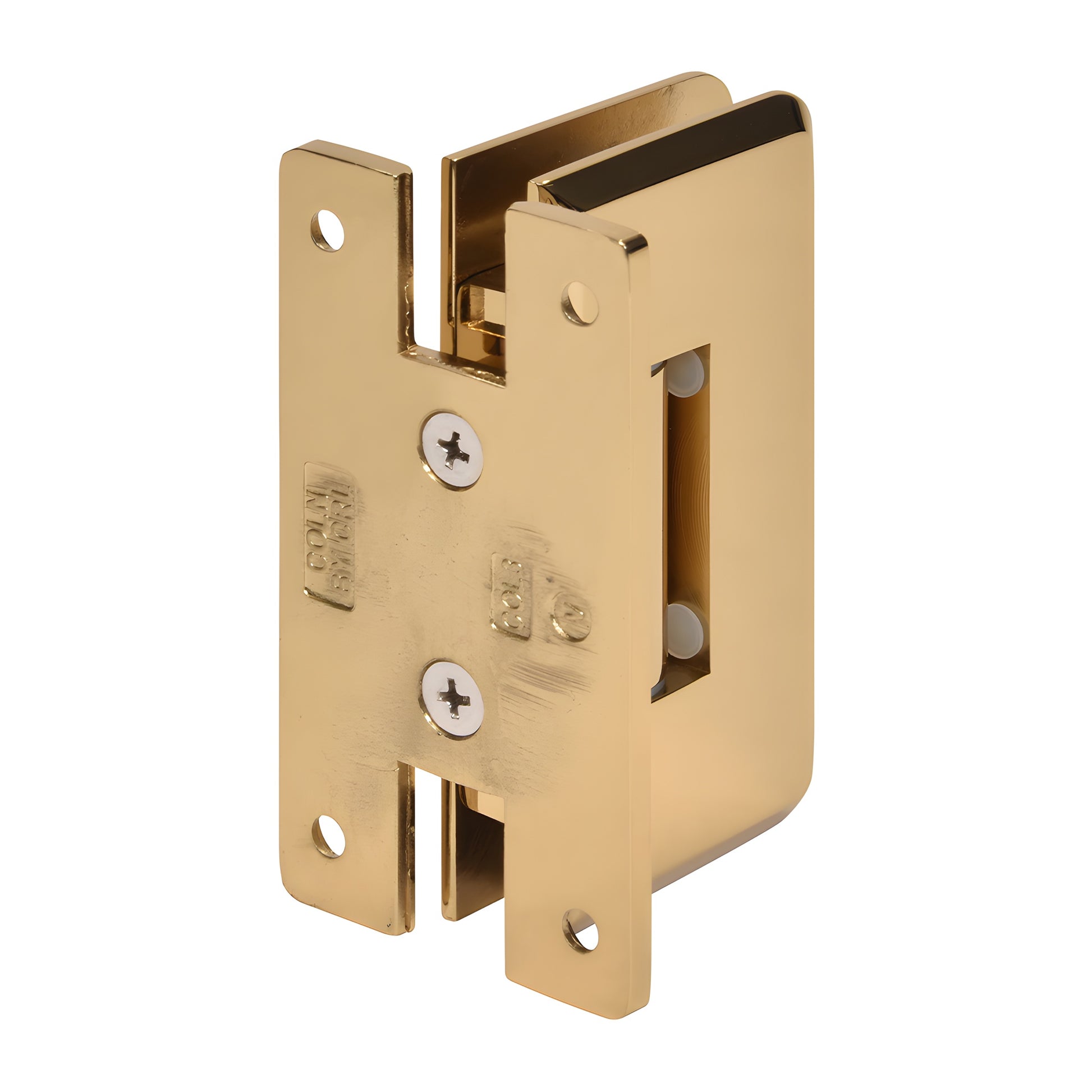

• Adjustable wall mount with full back plate for secure installation
• Designed for monolithic tempered glass shower doors

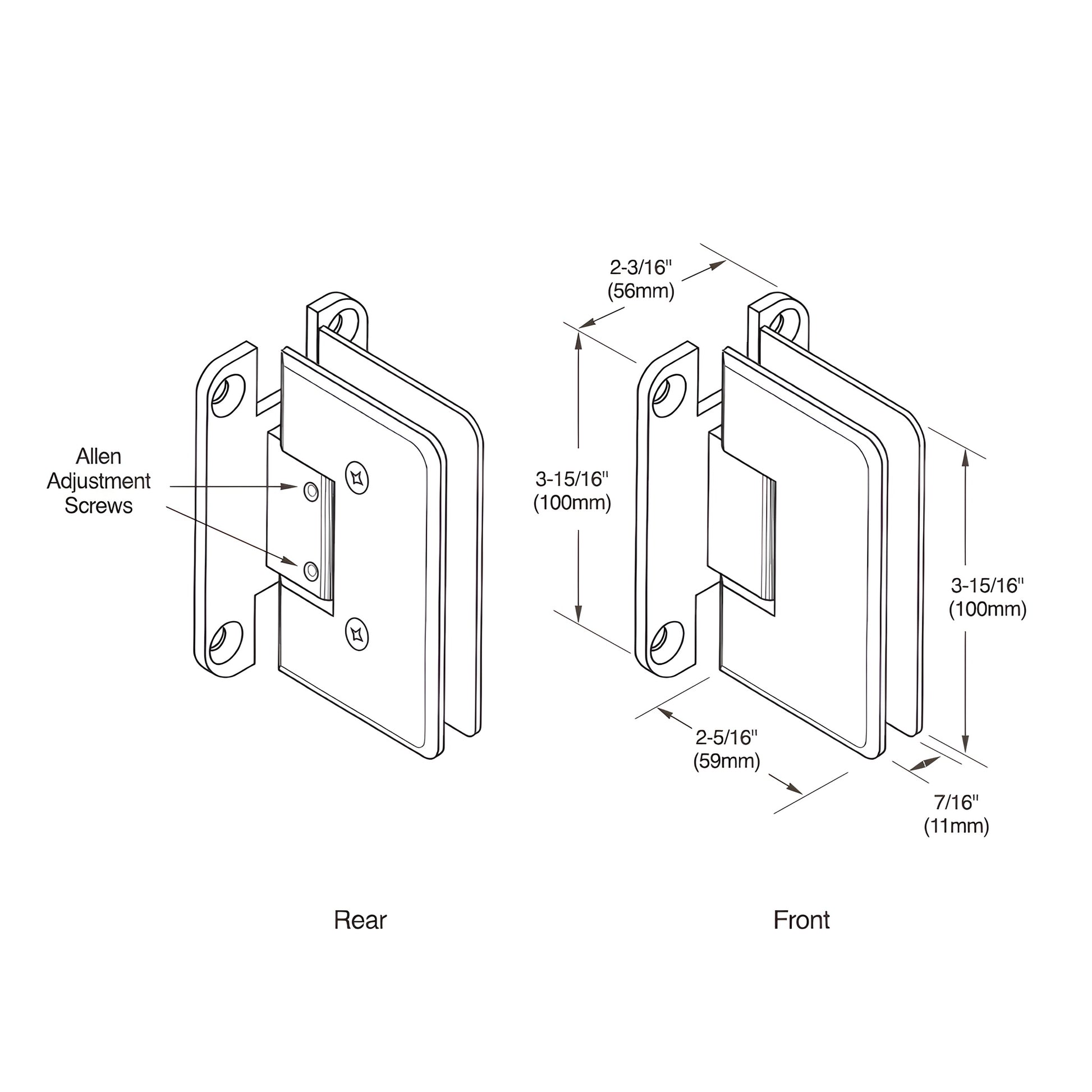

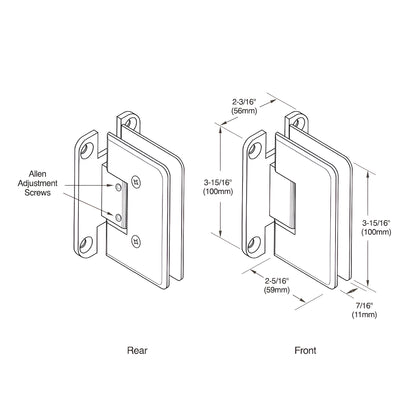

CRL Adjustable Cologne Series — an upgraded Cologne hinge engineered for frameless shower doors. Post-installation adjustment lets you set the door angle up to 90º: loosen the Allen set screws, rotate the door to the desired closed position, then retighten to self-center. Door swings 90º inward and 90º outward (adjusting away from the factory position reduces the swing in that direction). For outward-swing installations using a clear door jamb, adjust the hinge to close 5º inside the shower so the door seals snugly against the jamb.

Load Capacity

Using two hinges with 3/8"–1/2" glass (10–12 mm): holds up to 110 lbs (50 kg). Maximum door width: 36" (914 mm).

Using three hinges with 3/8"–1/2" glass (10–12 mm): holds up to 140 lbs (63 kg). Maximum door width: 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90º without removing door
Construction: Solid brass for corrosion resistance and lasting performance
Hinge Swings: 90º in and 90º out (at factory set position)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available through CRL Technical Sales.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.
